Tungsten Carbide Boring Bars No Coating Inner Hole Cutter Solid Carbide Tools For Profiling And Boring
- Category: >>>
- Supplier: Shenzhen Zhuoluoyu Precision Tool Co. Ltd.
Share on (1600210791767):
Product Overview
Description
Product Description

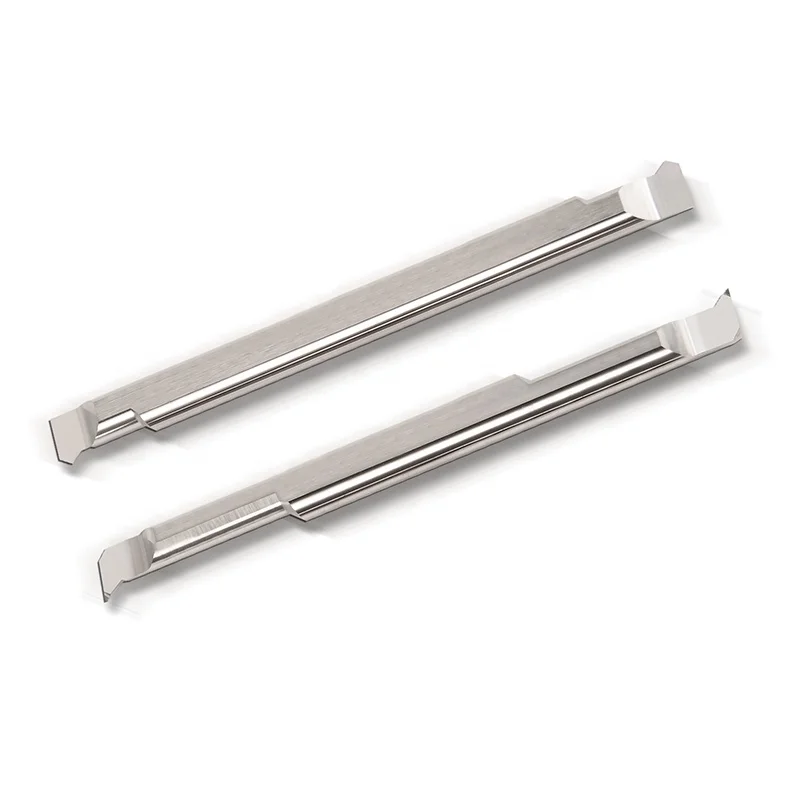

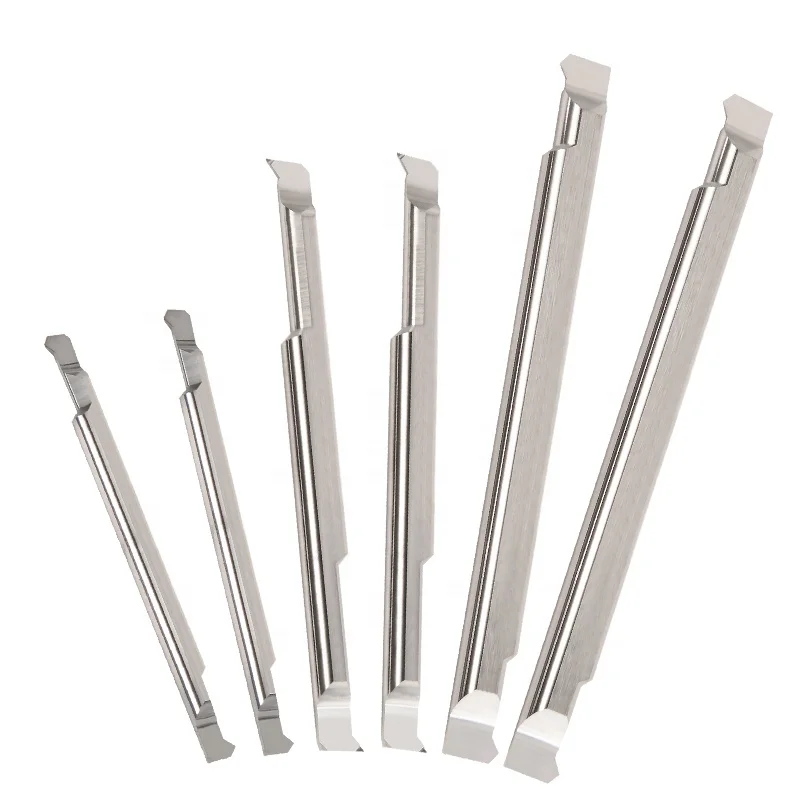

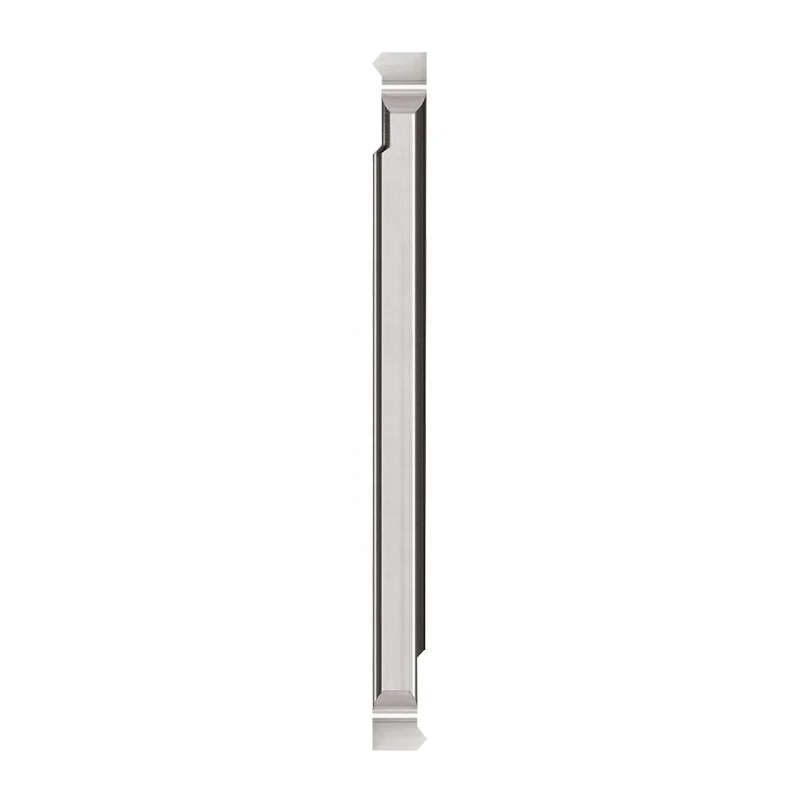

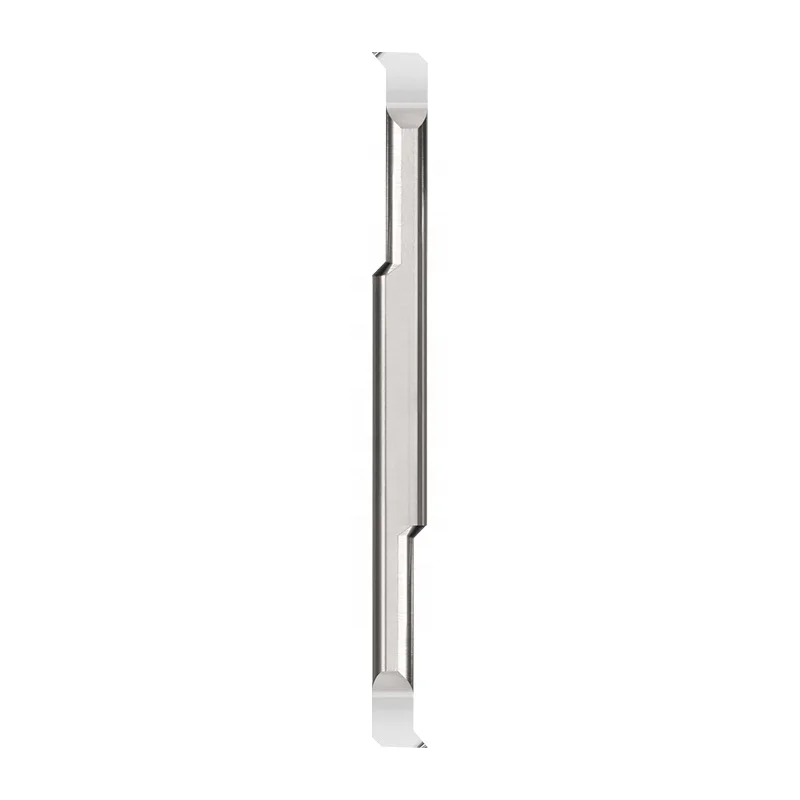

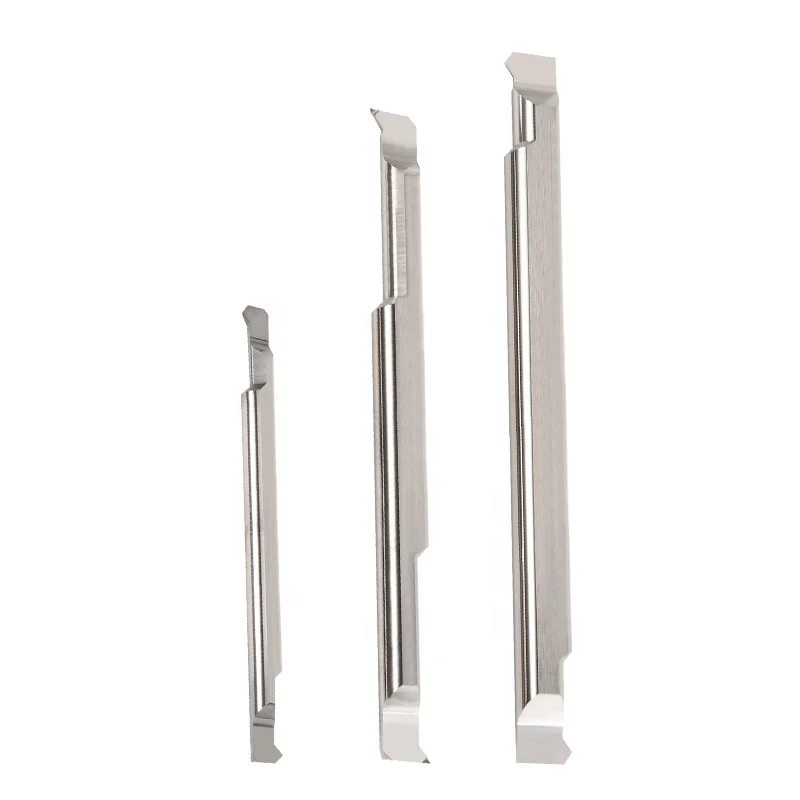

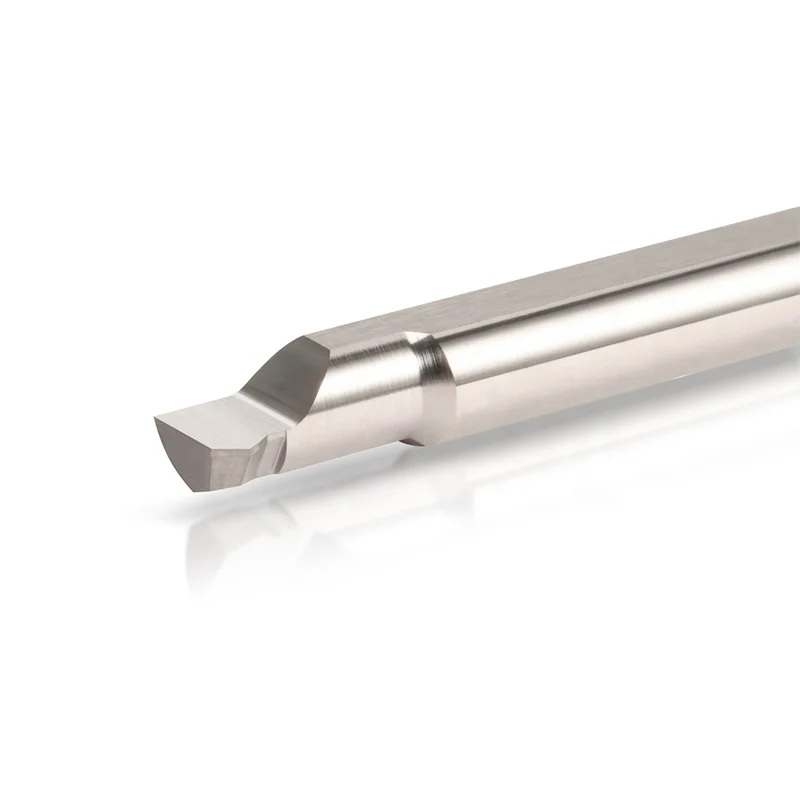

Tungsten Carbide Boring Bars No Coating Inner Hole Cutter Solid Carbide Tools For Profiling And Boring
These tools are made for the high-tech, medical & small components industries. They can be used in machining centers, or with conventional machines. Boring tools with through-coolant which enabling the cooling fluid to reach the cutting edge efficiently.
Brand Name | ZLY Tools |
Material | Tungsten carbide |
Type | Tailor-made |
Product name | Tiny boring tools, small boring tool, miniture boring tool |
Material classification level 1(TMC1ISO) | PMNS |
Tool cutting edge angle(KAPR) | 98 deg |
Tool lead angle(PSIR) | -8 deg |
Corner radius(RE) | 0.15mm |
Depth of cut maximum(APMX) | 0.3mm |
Maximum ramping angle(RMPX) | 17 deg |
Minimum bore diameter(DMIN1) | 4.2 mm |
Maximum overhang(OHX) | 18 mm |
Usable length(LU) | 15 mm |
Hand(HAND) | R |
Substrate(SUBSTRATE) | HC |
Coating(COATING) | no coating |
Coolant entry style: | Without coolant |
Coolant exit style: | No coolant exit |
Connection diameter(DCON) | 4 mm |
Overall length | 40-70 mm |
Weight of item(WT) | 0.015 kg |
Diameter | 0.15-12 |
Cutting Diameter | φ1-φ8 |
Product features | Almost all cutting edge geometry can be specified |
Cutting diameter | 0.5mm to 8mm |
Shank diameter | 3mm to 8 mm, or inch size |
Shank type | Weldon, or round shank |
Machine type | Lathe |
Machining type | Internal step, profile, thread, groove |
Face groove turning | Available |
Cutting length | 0.2-80mm |
Company Profile
FAQ
Q1:Are you a factory or trading company?
A1: We are 15 years+ professional manufacturer in carbide tools industry. Welcome to visit our company.
We guarantee our products are factory price, very cheap and competitive.
Q2:Do you produce special cutting tools?
A2: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for the right demanding applications and variety materials!
Q3:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A3: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q4:If we want to work with you, is it possible to get confidentiality?
A4: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q5:What’s your items lead time?
A5: It depends on the inventory availability, if items needed are in stock, it can be shipped within 24 hours.
But if not, usually our items lead time is about 7 days.
A1: We are 15 years+ professional manufacturer in carbide tools industry. Welcome to visit our company.
We guarantee our products are factory price, very cheap and competitive.
Q2:Do you produce special cutting tools?
A2: Yes,we specialize in customized cutter fabricate and translate the most complex cutting idea into reality, tools manufactured by us are designed and customized for the right demanding applications and variety materials!
Q3:Do you accept low volume for sample order? And what’s your MOQ for special tools?
A3: Yes, we do. For sample order, MOQ one piece is accepted, and the sample lead time is 2-3 days. It can be negotiated for special requirement.
Q4:If we want to work with you, is it possible to get confidentiality?
A4: Sure, all your information including company info, drawings, PO details will be kept confidential, we can signed NDA if you want (non disclosure agreement).
Q5:What’s your items lead time?
A5: It depends on the inventory availability, if items needed are in stock, it can be shipped within 24 hours.
But if not, usually our items lead time is about 7 days.
