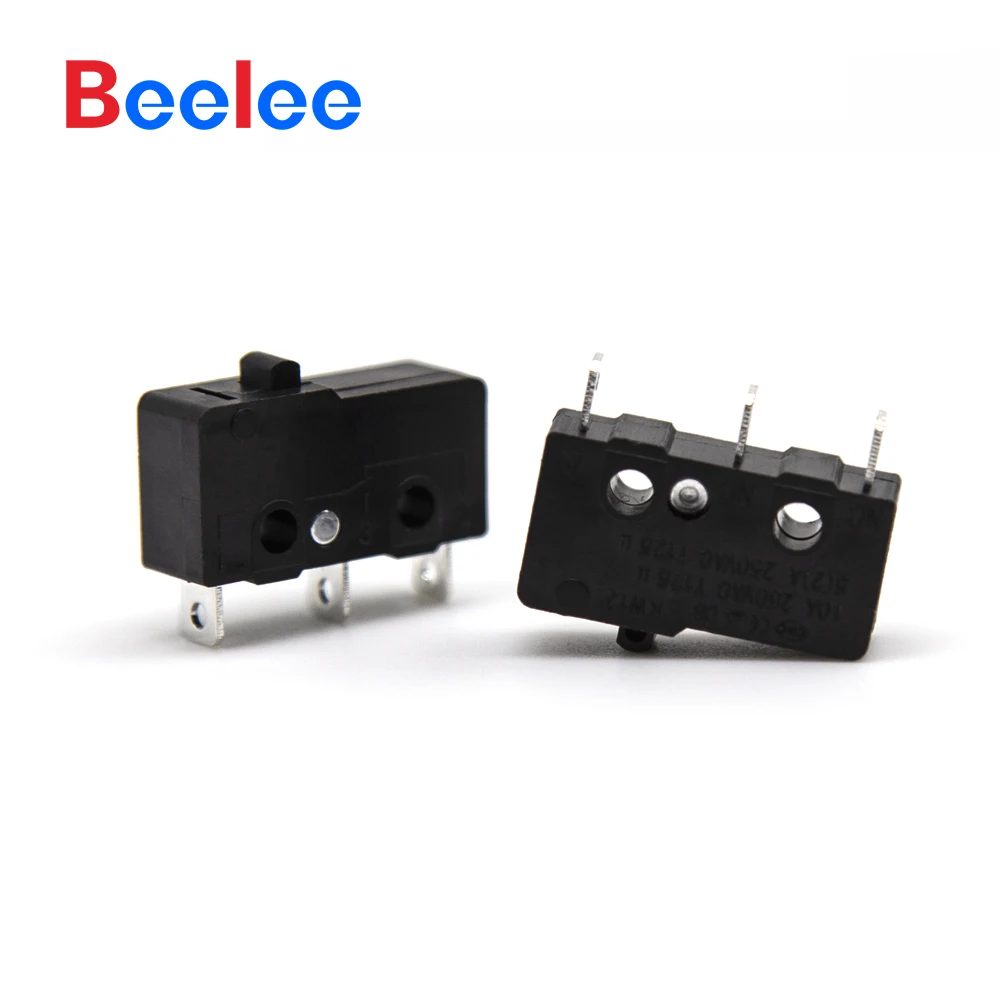

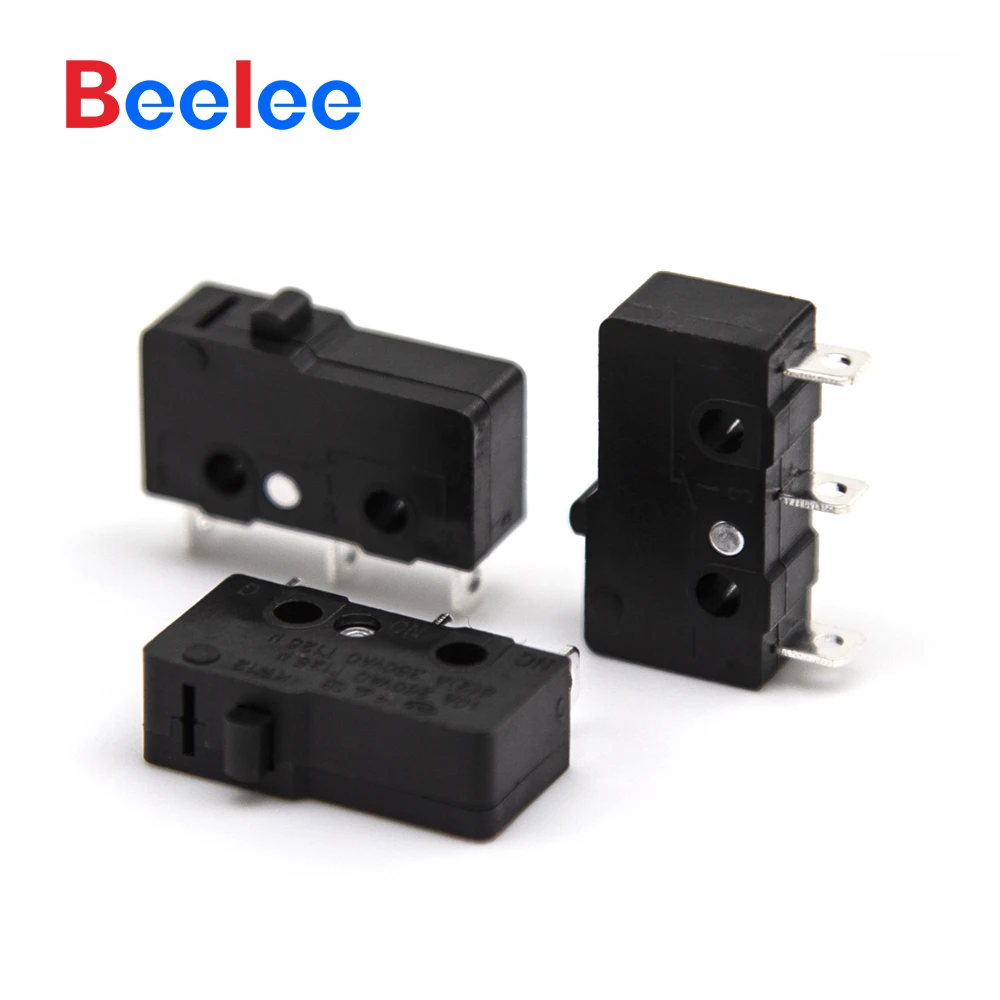

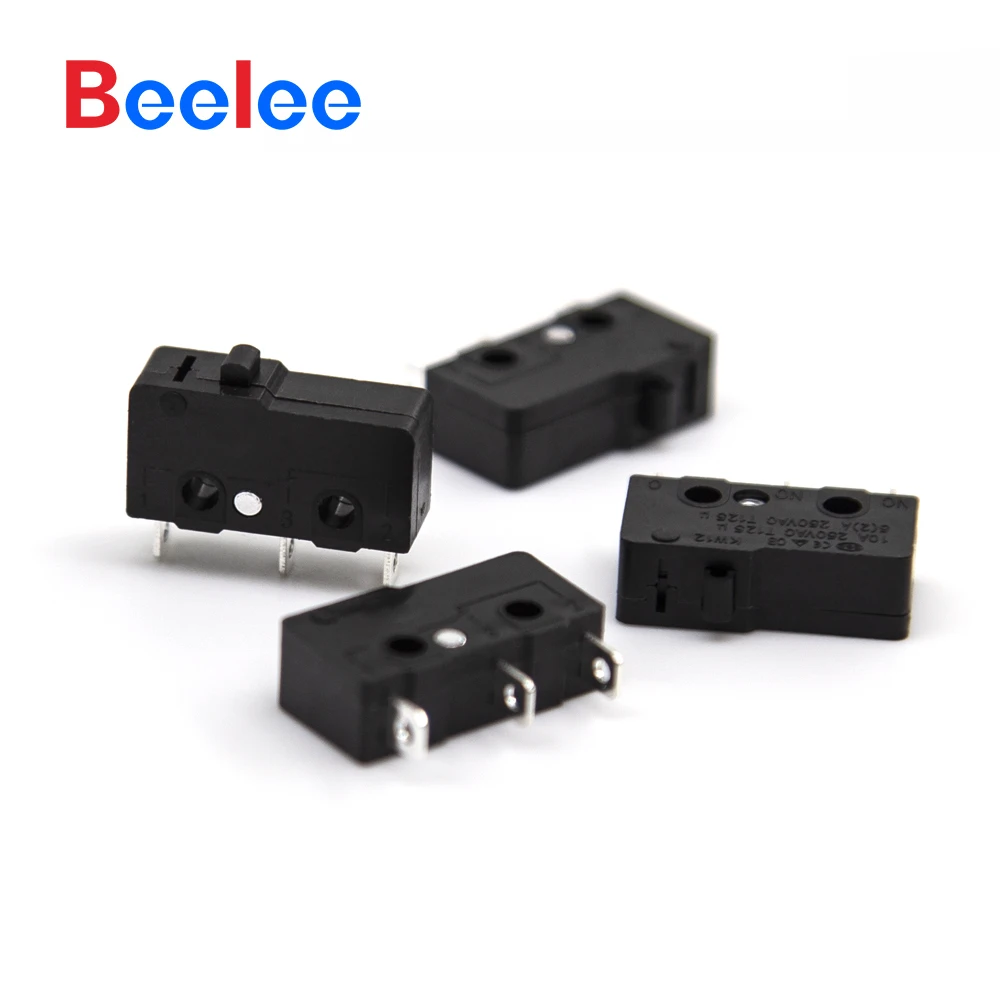

KW12 3A A 3A kw12 микропереключатель потока

Product Overview

Description

According to IEC 61058-1/EN 61058-1/GB 15092.1,the least thickness insulation layer should be 1.1mm,the smallest space distance between the terminal and install board is 1.9mm.If the parts insulation distance cannot be guaranteed,please use insulate cover or guard board to guarantee the insulation distance.

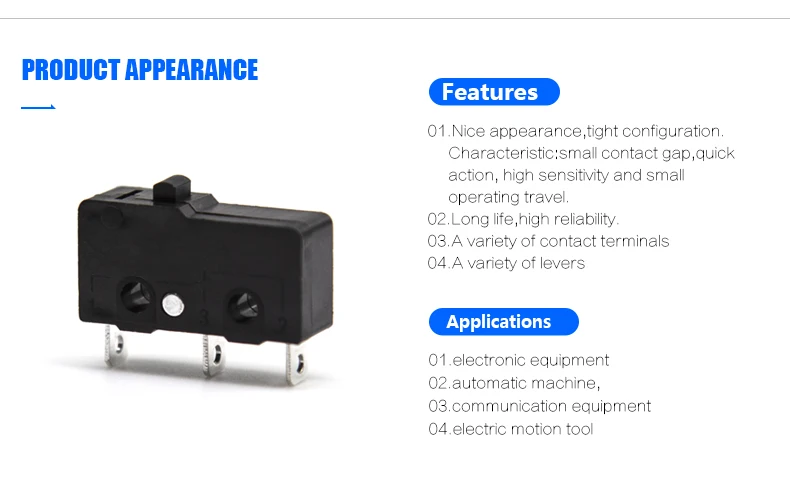

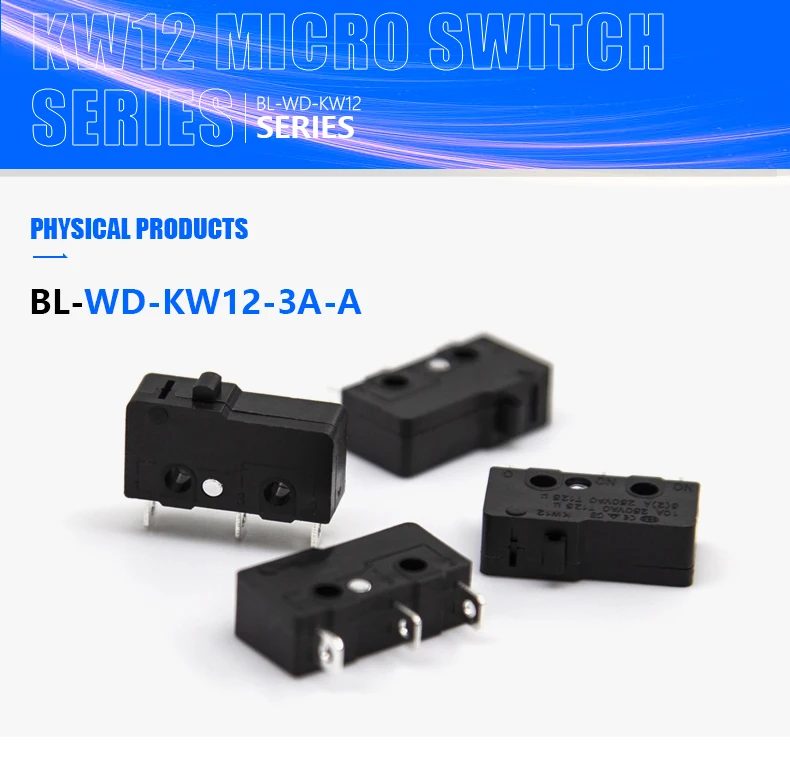

01.The BL-WD-KW12-3A-A is Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.

02.Please pay attention to the temperature class,if use it beyond the temperature class,switch standard characteristics cannot be guaranteed.

03.About the low operating force switches,please do not drop the switch so as to avoid damage to inside structure,because it is of special structure.

04.Please turn off the power when installing,disassembling,wiring work and maintenance check,otherwise,electric shock and burn will happen.

1	Current Resistance	OF>0.5N:≤30(see note)  OF≤0.5N:≤50(see note)
2	Insulation Resistance	≥100(500VDC)
3	Operating speed	0.1mm~1m/s(Related with actuator forms)
4	Working frequency	Mechanical 60 times/min;  Electrical appliances 15 times /min
5	insulance	≥100(500VDC)
6	Operating Force	0.6N MAX

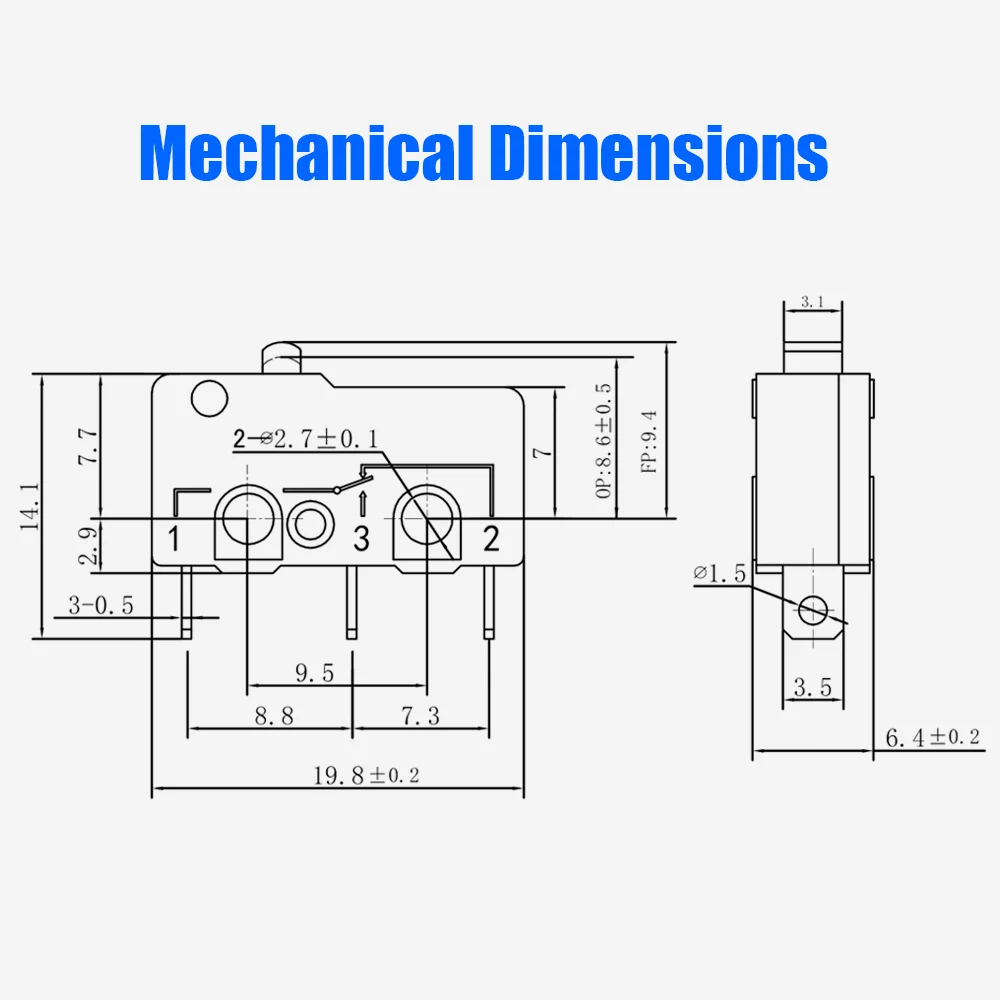

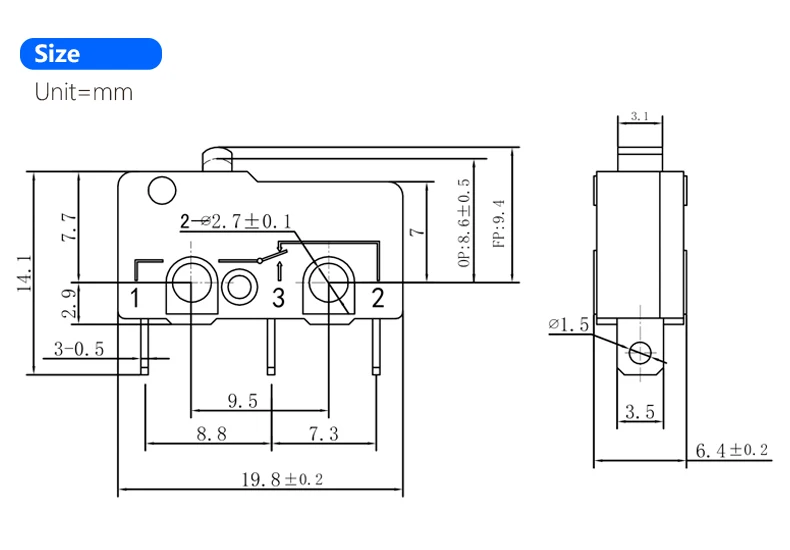

7	Operating Position	9.8±1 mm
8	Vibration resistance	10-55Hz,1.5mm double amplitude
9	Service life	Mechanical≥1,000,000 cycles  Electrical≥10,000 cycles





Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
