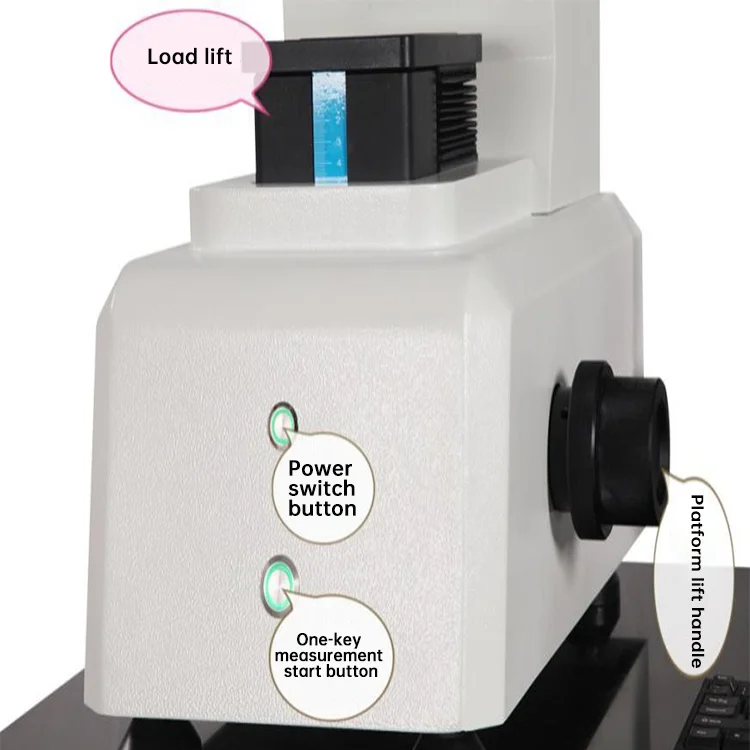

Jinuosh One Key Quick Instrument Intelligent System Optical Image Measuring Machine
- Category: >>>
- Supplier: Guangdong Jinnuo Technology Co. Ltd.
Share on (1600211237989):
Product Overview
Description
Insturment features
Function
1. Fast, effective
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range chart).
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range chart).
Specifications and parameters
Product number | ST80A |
Field of vision | 90㎜*60㎜ |
Measurement accuracy | ±3μm |
Repeatability | ±1.5μm |

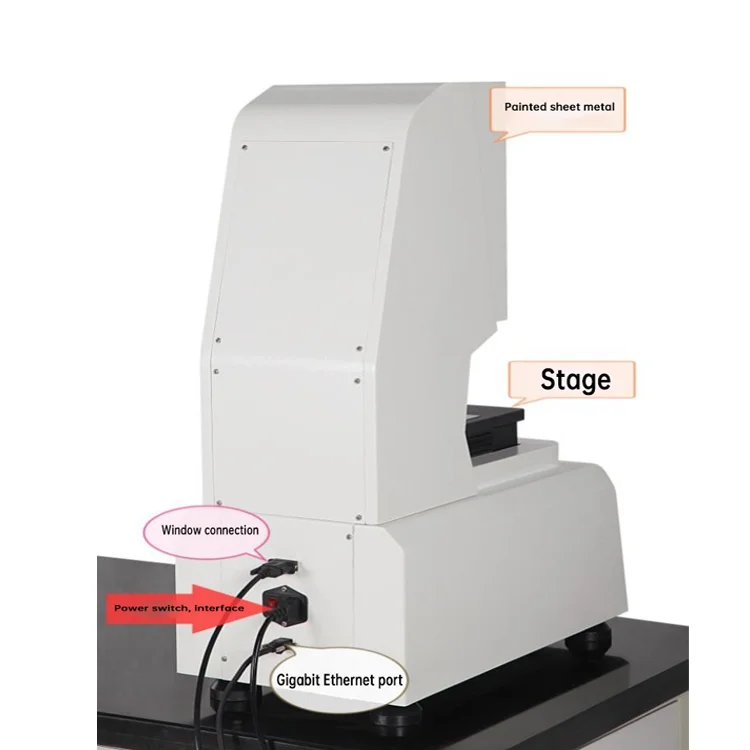

Instrument dimensions | 650*430*950mm |
Instrument weight | 50KG |
Platform load bearing | 15KG |
Image Sensor | 5 million pixel CCD |

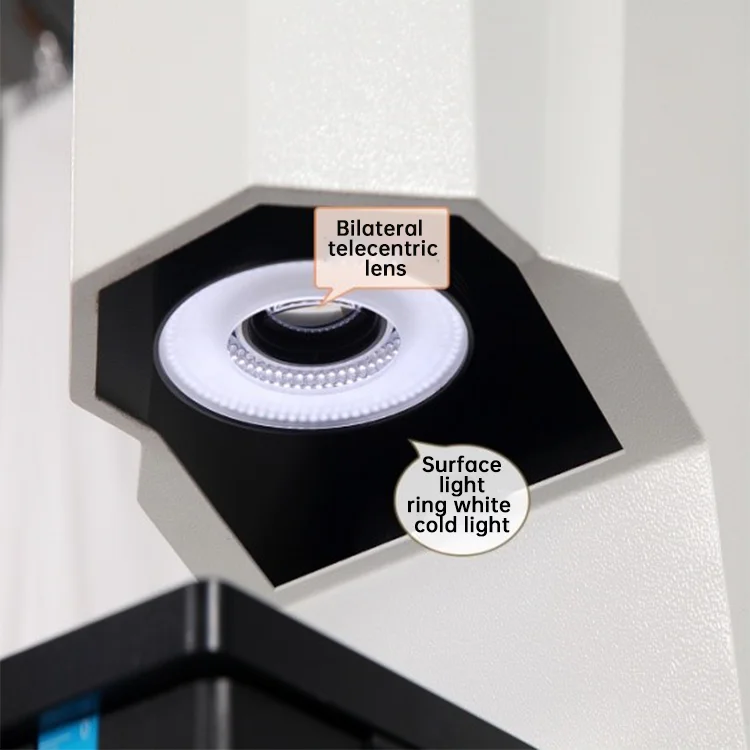

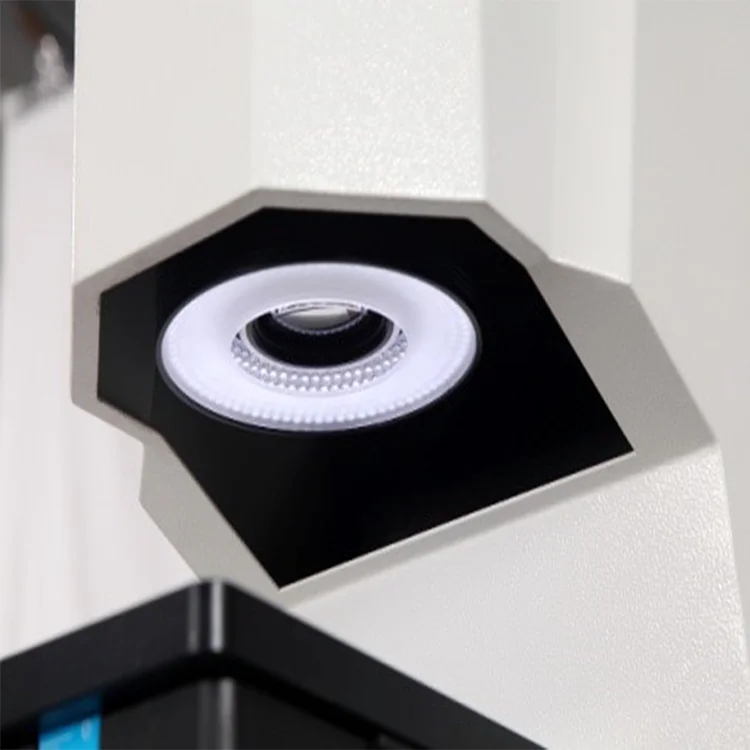

Lens | One-sided telecentric lens |
Maximum workpiece height | 50mm |
Lens working distance | 160mm |
Lens depth of field | 10mm |

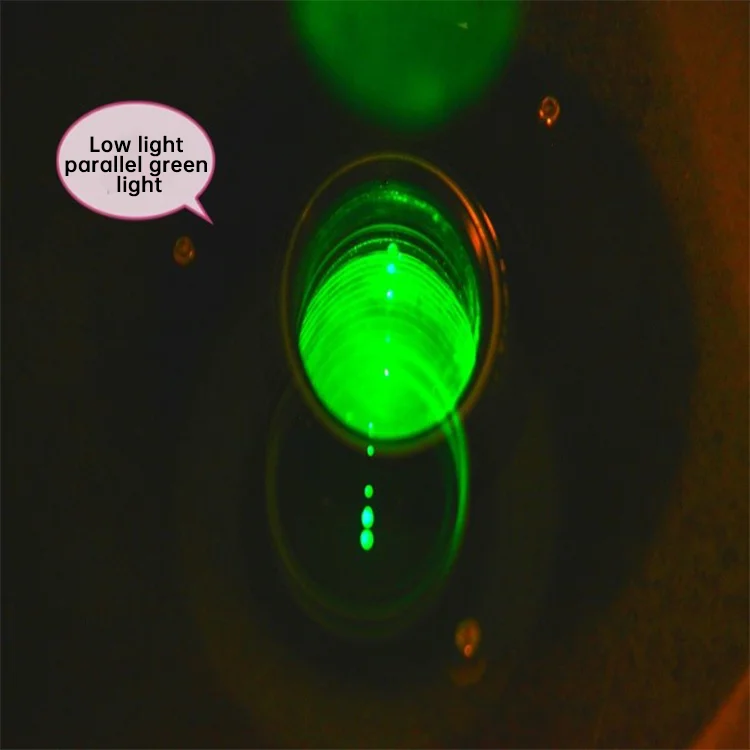

Light source system | Parallel backlight |
Software | JN-AOS.2.0 |
Computer setup | CPU I3 processor 4G memory |
Signal output | Judging the output PASS FAIL NULL |
Working environment | 25°C±2°C 20% to 80% RH |
Measuring speed | ≤5 seconds (within 100 dimensions) |
Measuring basic functions | Point line circle arc angle distance parallel distance |
Accessibility | Intersection parallel bisector vertical tangency |
Geometric tolerance | Position tolerance shape tolerance tolerance |
Power | 80W |
Voltage | AC100-240V 50/60Hz |
Product Overviews
Company Profile
Guangdong Jinuosh Technology Co. LTD
Guangdong Jinuosh Technology Co., Ltd. is a state-level high-tech enterprise engaged in R & D, production and sales of precision
measuring instrument, optical microscope, experimental equipment and various optical elements and components for 16yrs.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die
cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We
provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
measuring instrument, optical microscope, experimental equipment and various optical elements and components for 16yrs.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die
cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We
provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
Partial cooperative enterprises
certificate display
Our services
Jinuosh is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Microscope, Digital Readout, IC, Measuring Software,Test equipment etc.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Microscope, Digital Readout, IC, Measuring Software,Test equipment etc.
FAQ
1. What's the warranty statement?
Jinuosh warrants all the products manufactured by Jinnuo to free from defects in material andworkmanship under normal use of a period of 12 months or 36months after the date of the original purchase price if repair orreplacement is not possible of practical, Jinuosh warranty covers ONLY the product itself. Jinuosh will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored only when the product has been installed
and used properly as deemed byJinuosh, Jinuosh will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
and used properly as deemed byJinuosh, Jinuosh will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinnuo .
3. How about in case of breakage?
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinnuo .
3. How about in case of breakage?
Jinuosh will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow: Returns must be first acknowledged by Jinnuo PRIOR to return, Please contact the related salesman in charge.
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A
lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made
in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return.
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A
lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made
in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return.
4. Howabout the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door
service Life-long maintenance service for the product Thanks for your support to Jinnuo !
service Life-long maintenance service for the product Thanks for your support to Jinnuo !
