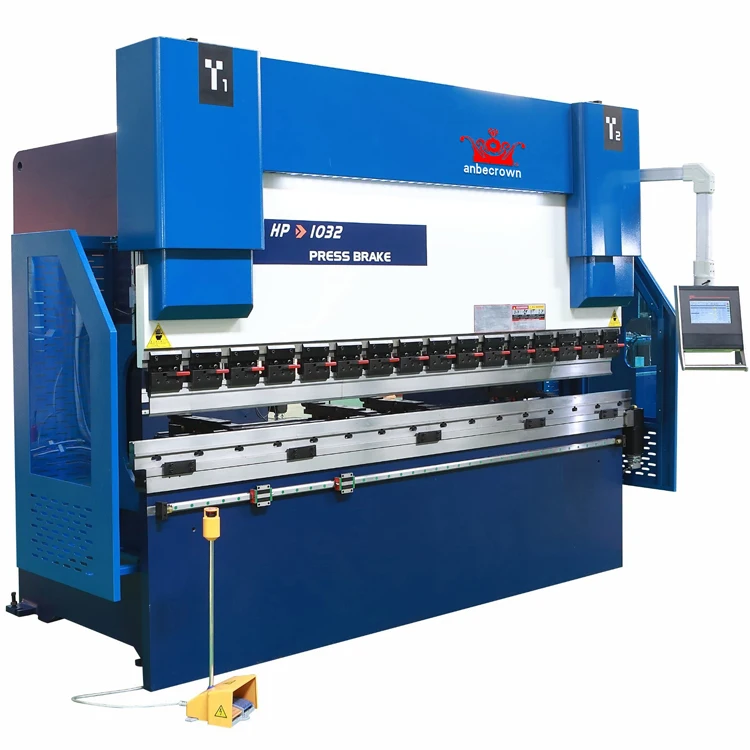

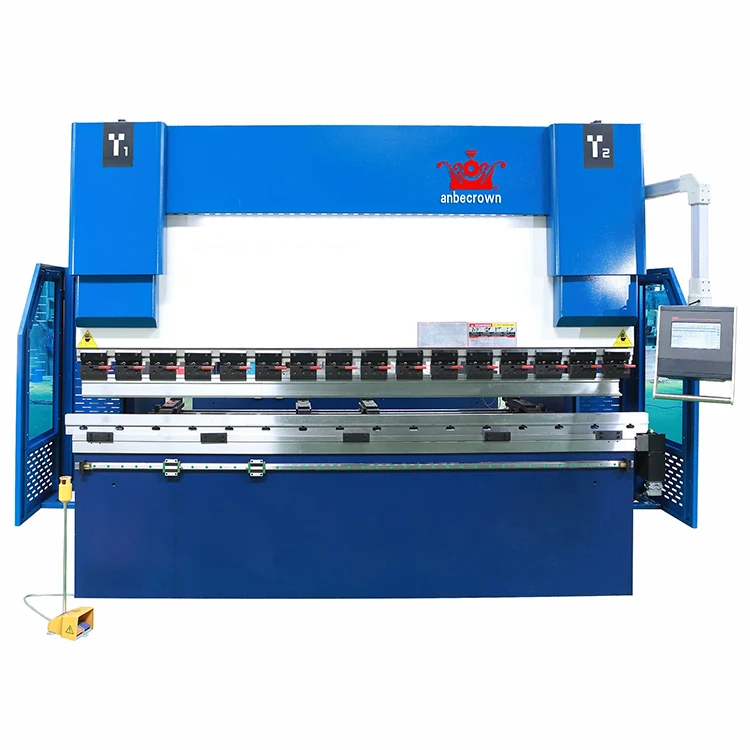

Chinese brand cnc hydraulic metal press brake magnetic press brake WC67K 100T/3200
- Category: >>>
- Supplier: Maanshan Lianguan Machinery Manufacturing Co. Ltd.
Share on (1600211324809):
Product Overview
Description

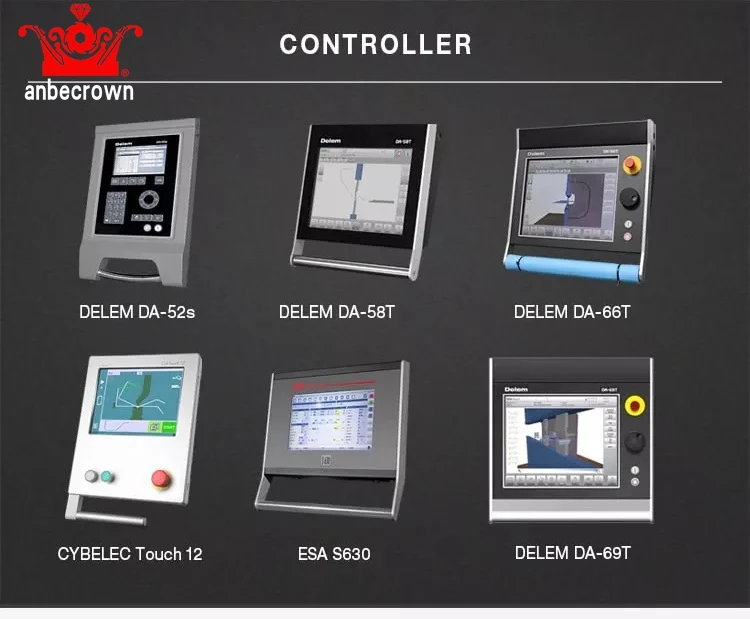

Holland Delem DA52S Controller:
1.8″ broadband color display
2.Max 4-axes control (Y1, Y2, two additional axes )
3.266MHZ processor, memory capacity of 64M
4.Die library, 30 upper dies, 30 lower dies
5.USB memory interface, RS232 interface
6.Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown
6.Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown
7.One-page parameters for rapid editing, navigation shortcut keys
8.Automatically calculate deflection compensation value
9.Micro switch panel, data editing
10.Automatically calculate the bending pressure and die safety region
11.Online operation analysis tool, Diagnostic Dashboard, angle calibration database
8.Automatically calculate deflection compensation value
9.Micro switch panel, data editing
10.Automatically calculate the bending pressure and die safety region
11.Online operation analysis tool, Diagnostic Dashboard, angle calibration database

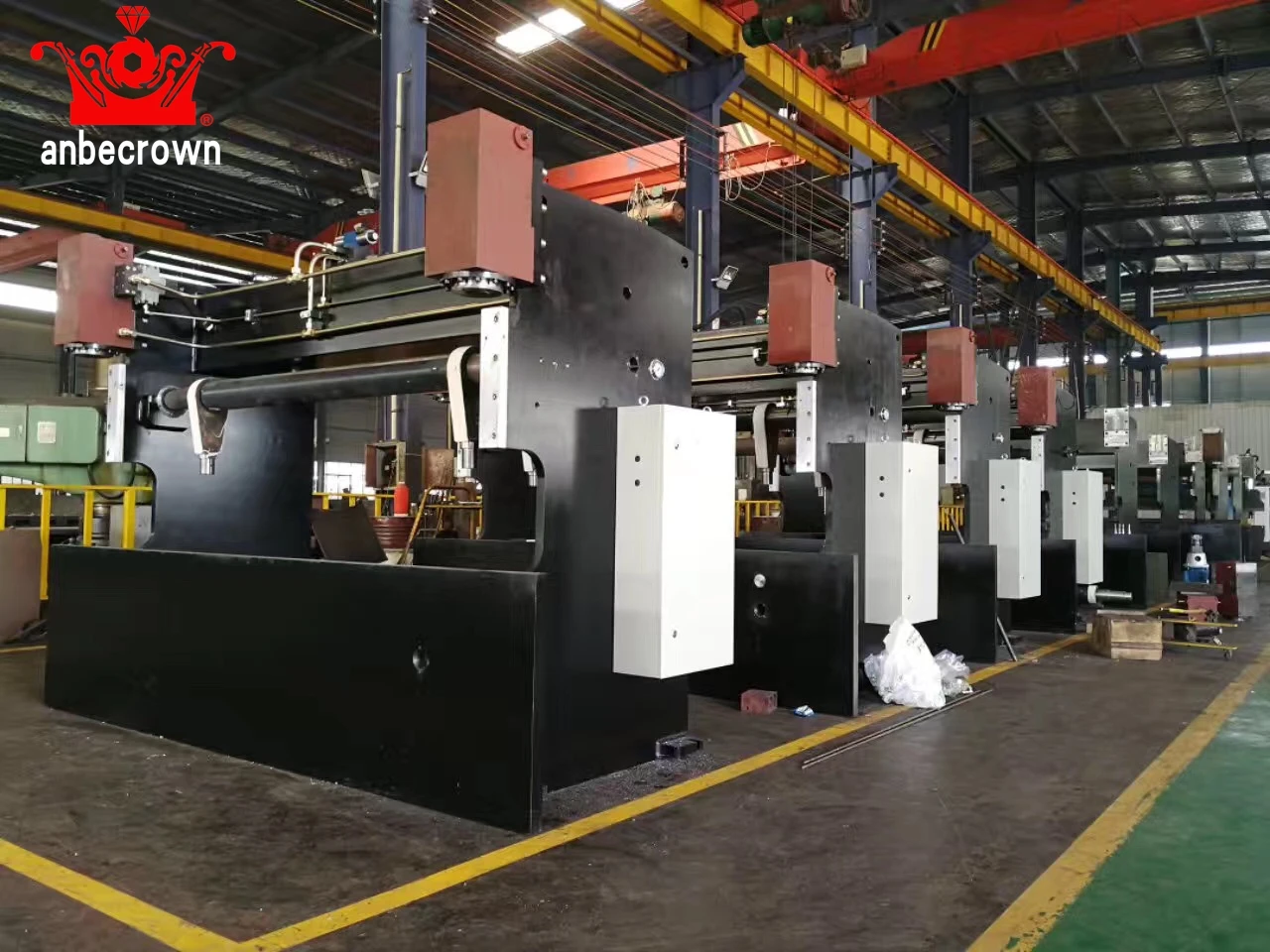

Mechanical structure
1.Totally European design, streamlined looking
2.Frame is tempered,Taking off inner-stress of welded parts by tempering, good stability Remove rust with sand-blast and coated ,with anti-rust paint
3.Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.
Hybrid system
1.With ac servo main motor and electro-hydraulic servo pump control system,this machine will not use universal valve control system,which can provide hydraulic oil only when necessary,eliminate throttle and overflow, This reduce the time of hydraulic seals,working in high temperature.
2.Pressure will be adjusted by CNC system input, working speed will be also adjustable. ALL above things make this machine energy saving, low noise, and less hydraulic problems.

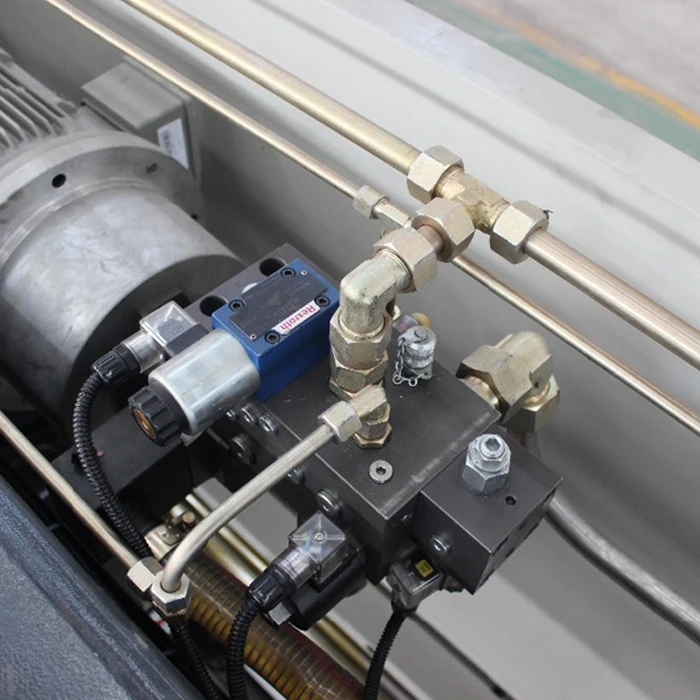

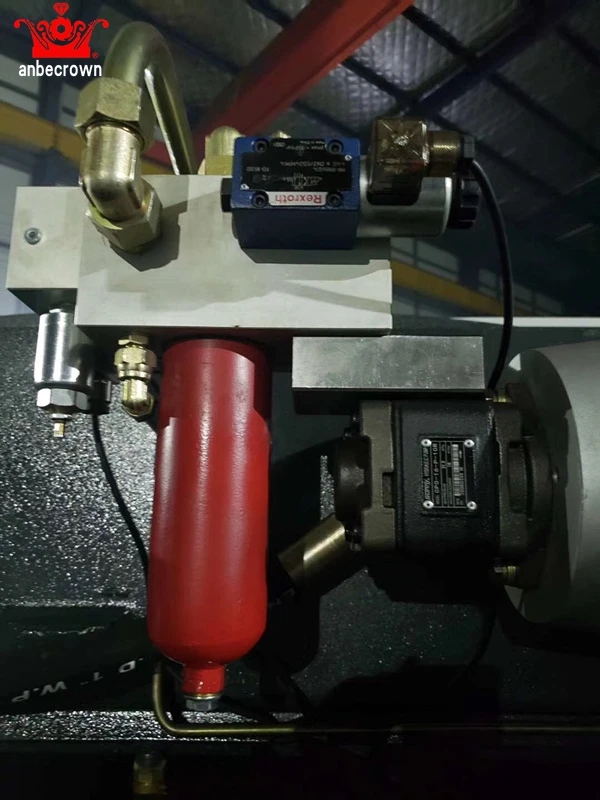

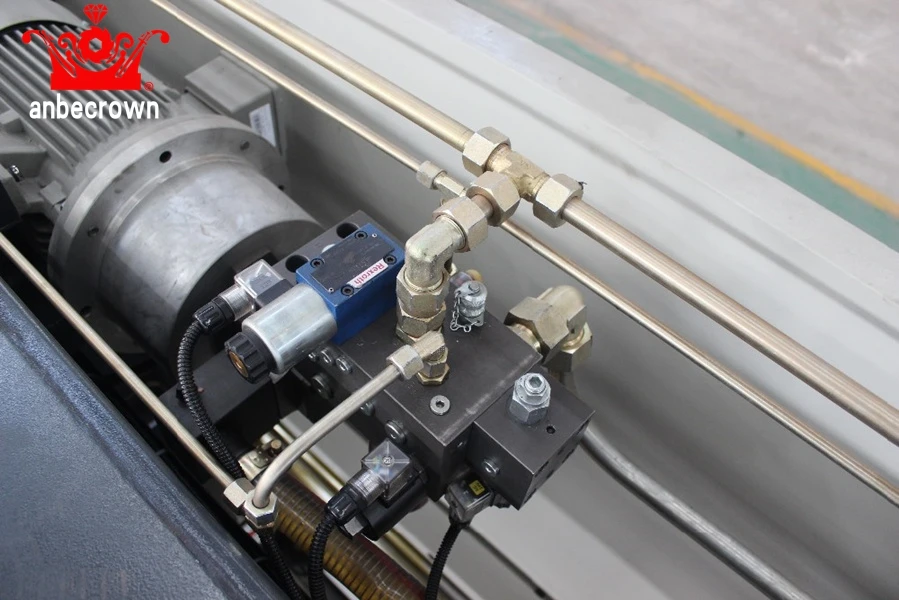

Oil pump
Oil pump
Using Germany Bosch Rexroth oil pump,good performance at noising and low sensitivity to oil pollution and assure of long service life

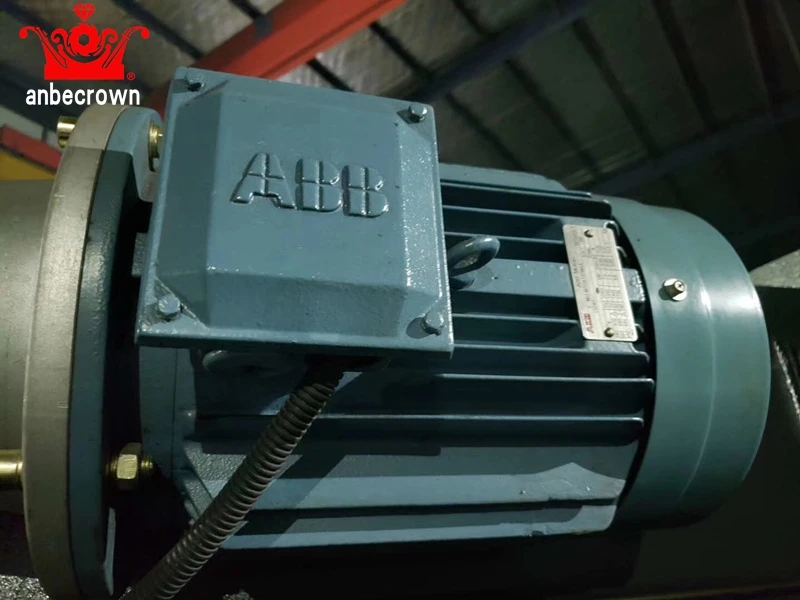

Main motor
Main motor
Using ABB motor guarantees the machine service life,and reduce the noise when working

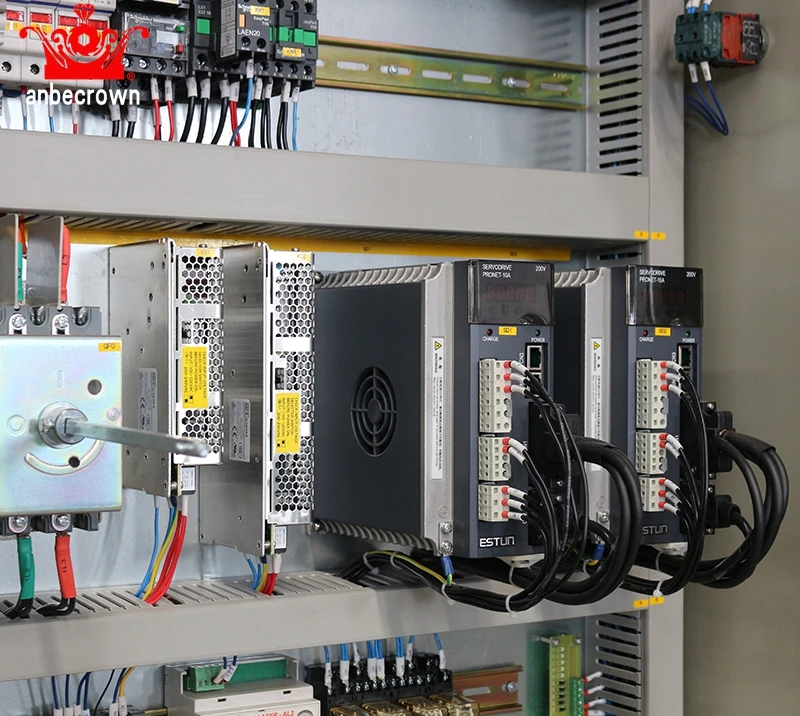

Electrical system
Electrical system
Adopting France Schneider electric to ensures the machine stability, using Estun servo driveand control x-axis and R-axis to
ensure the positioning accuracy of x-axis and R-axis, andthe speed of x-axis and R-axis are adjustable
Servo motor
ensure the positioning accuracy of x-axis and R-axis, andthe speed of x-axis and R-axis are adjustable
Servo motor

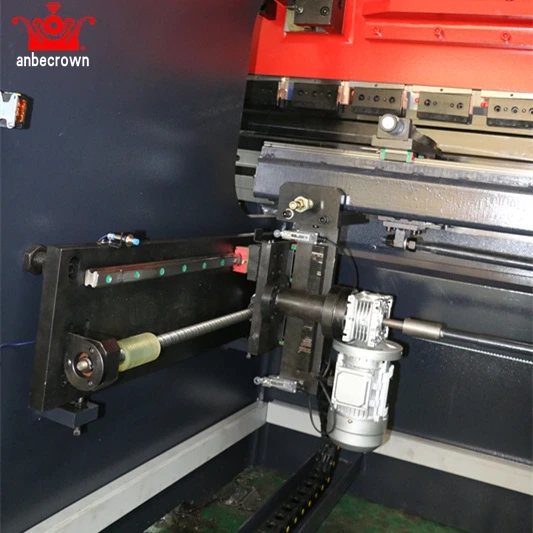

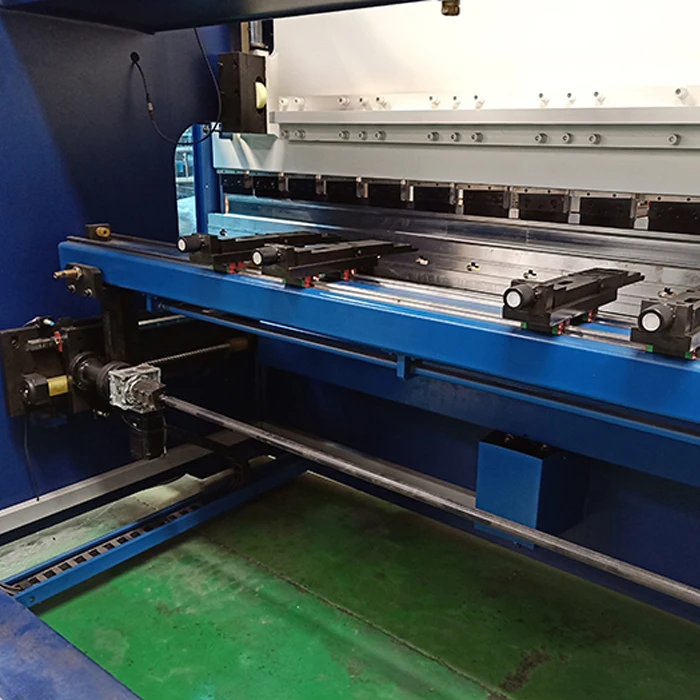

Servo motor Controlled X,R-axis Standard backgauge x-axis and R-axis are controlled by servo motor, stop finger travels along the
double guide rail in left and right
double guide rail in left and right

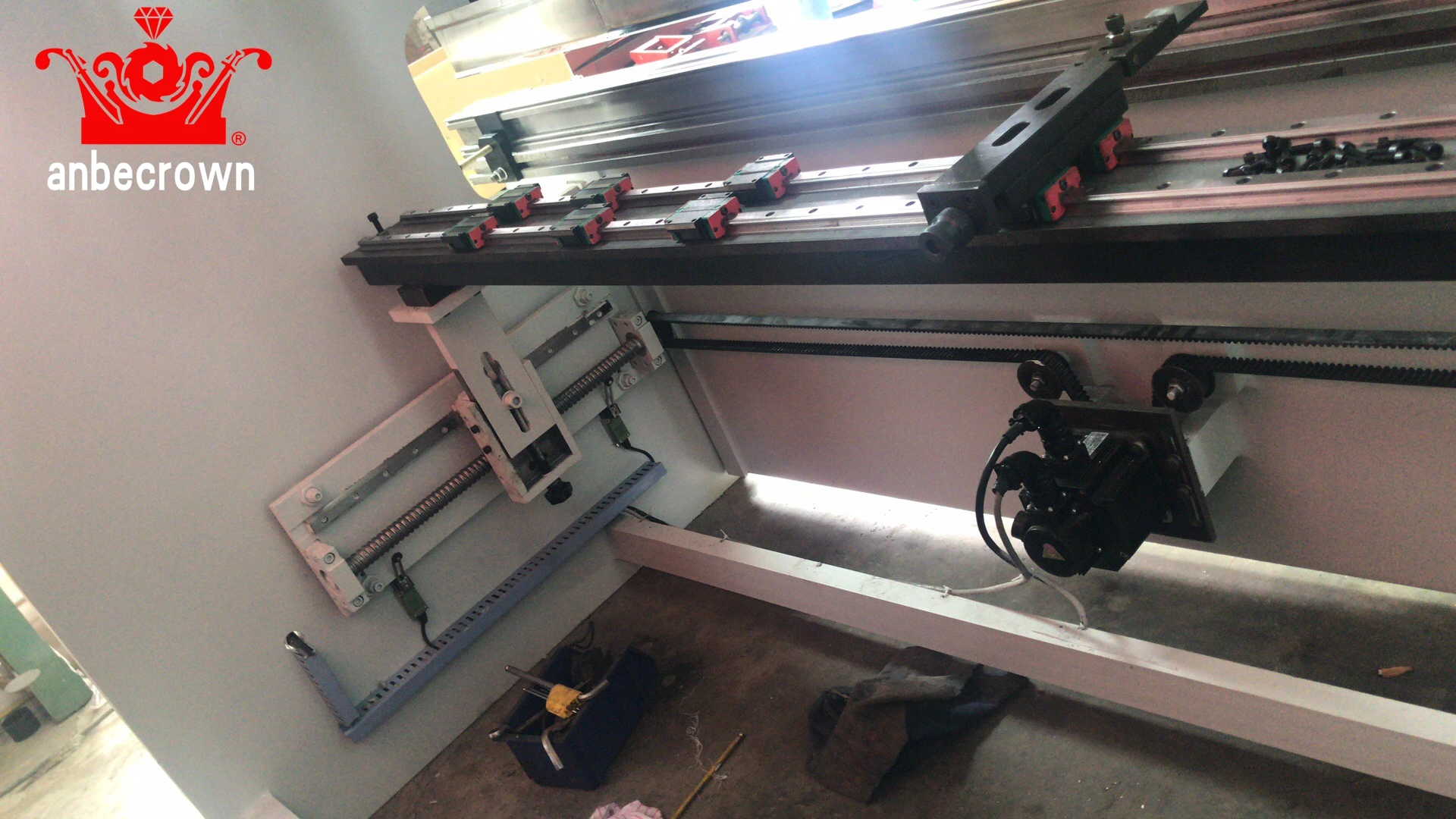

Taiwan HIWIN Ball Screw
Equipped with Taiwan HIWIN ball screw and polished rod structure, backgauge adopts horizontal installation shell structure with
high stability, single shell double guide rail, high precision, x，R-axis drive, automatic CNC system
high stability, single shell double guide rail, high precision, x，R-axis drive, automatic CNC system

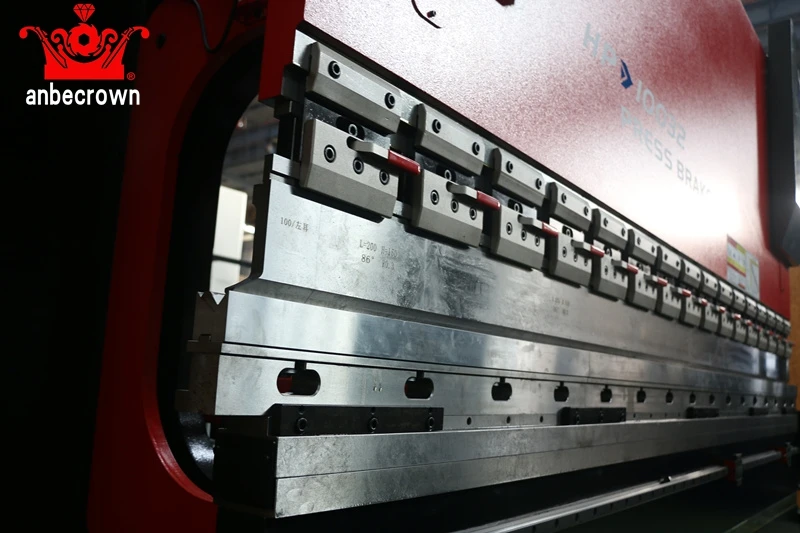

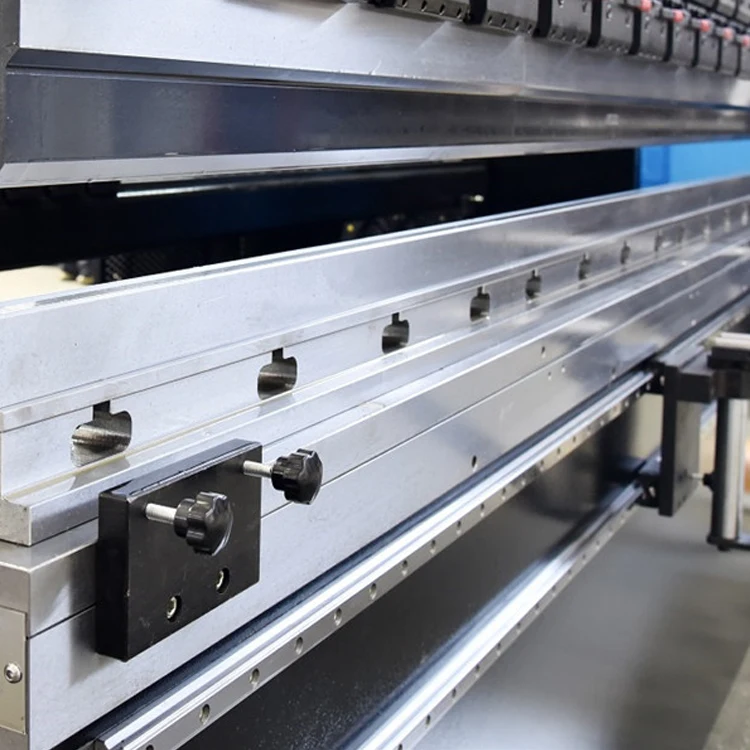

Double V Toolings/Quick Clamp-
1.Standard double-V lower dies with different size and various shaped slots for choice ,convenient for exchanging dies , capable for bending regular plates.with high cost-performance-ratio
2.CNC double-V die workbench, convenient for installation of segmented dies
3.Upper die clamping tools are mechanical clamps, with higher safety when worker exchanging dies
4.The dies are made by 42CrMo steel, hardness after heat treatment up to 42 degrees, ensuring the die service life

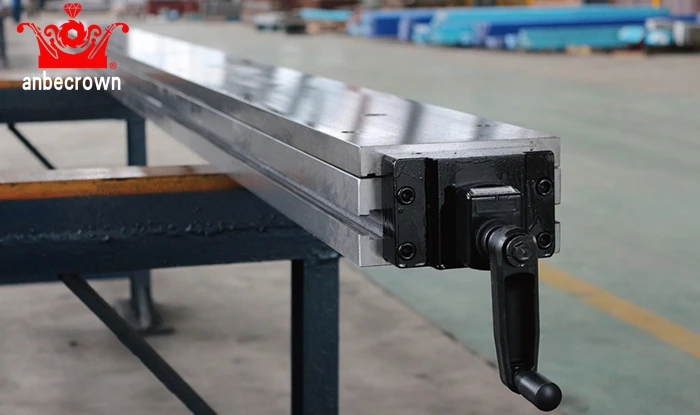

Manual crowing
The crowning will compensate for the deflection of theworktable during bending process so as to obtainhigher working precision.

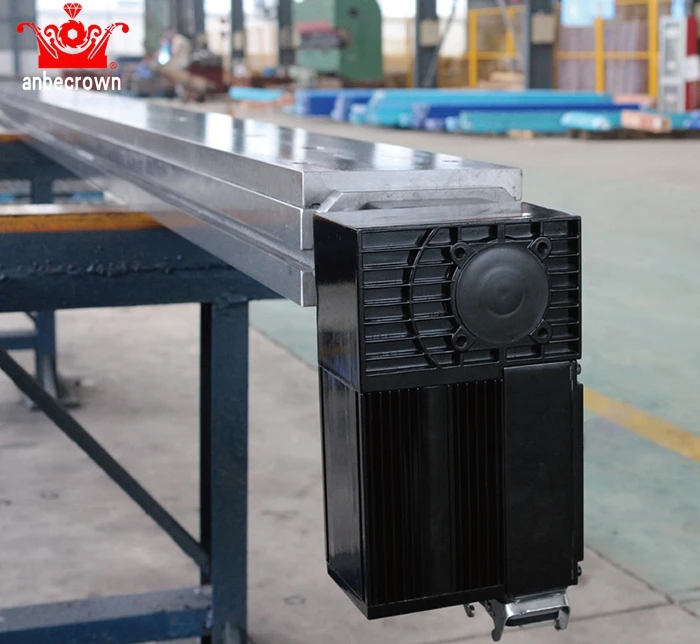

Mechanical crowing
Mechanical crowing
The motorized crowning system will adjust the paral-lelism and straightness automatically.

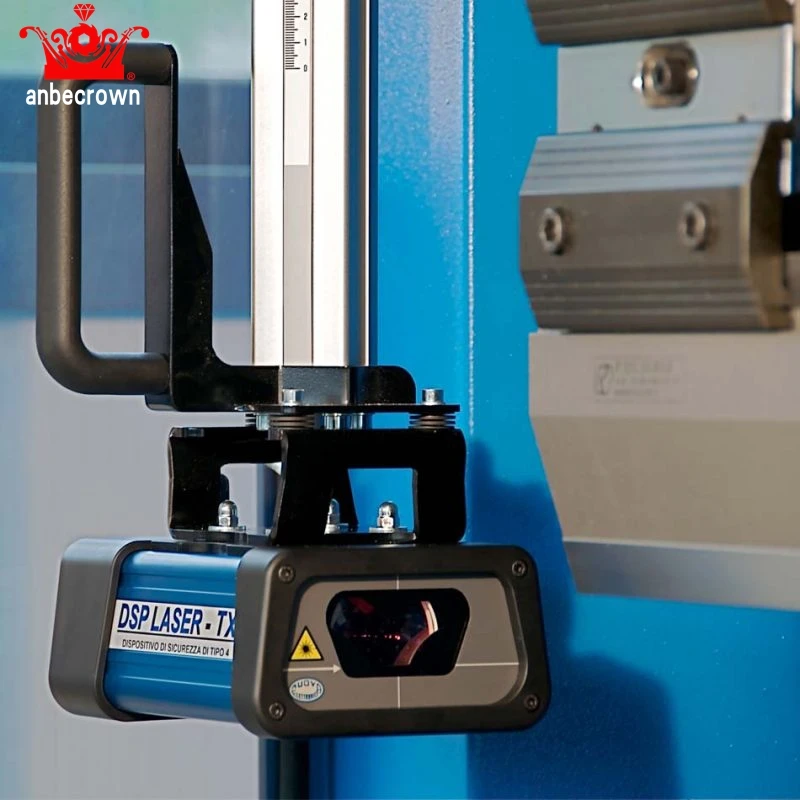

Laser protection
Laser protection
Optional ltaly DSP laser protection for protecting worker's finger safety
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical
requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone
number, e-mail, facebook, whatsapp, wechat, etc.)
requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone
number, e-mail, facebook, whatsapp, wechat, etc.)
Features
Main Features:1.DELEM DA-52S CNC control unit
2.Max 4-axes control (Y1, Y2, two additional axes )
3.Y1, Y2 precision ram positioning
4.Standard BGA-2 for X, R-axis ( X=800mm,R=200mm)
5.CNC motorized wave crowning
6.HOERBIGER hydraulic valve block, pump and valves
7.High Siemens efficiency motor– class IE3
8.Stand By Function for energy-saving drive
9.Rear cover: Safety barriers (Category IV)
10.Sheet metal frontal supports
11.Front and rear lighting
12.Offline software Delem Profile-TL
13.Front cover: AKAS LC-II F safety laser (Category IV) or DSP safety
Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger protection device ( safety light curtain )
South Korea KACON pedal switch ( 4 security grade )
Back metal safeguard, CE standard
Safety relay monitors completed with pedal switch, safety guard
Safety standard（2006／42／EC）
