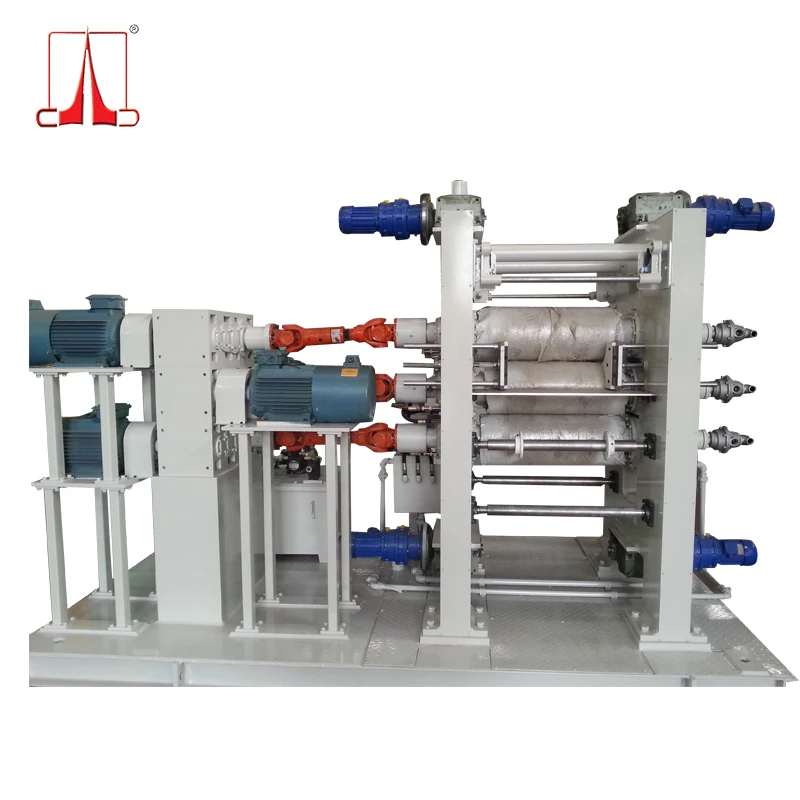

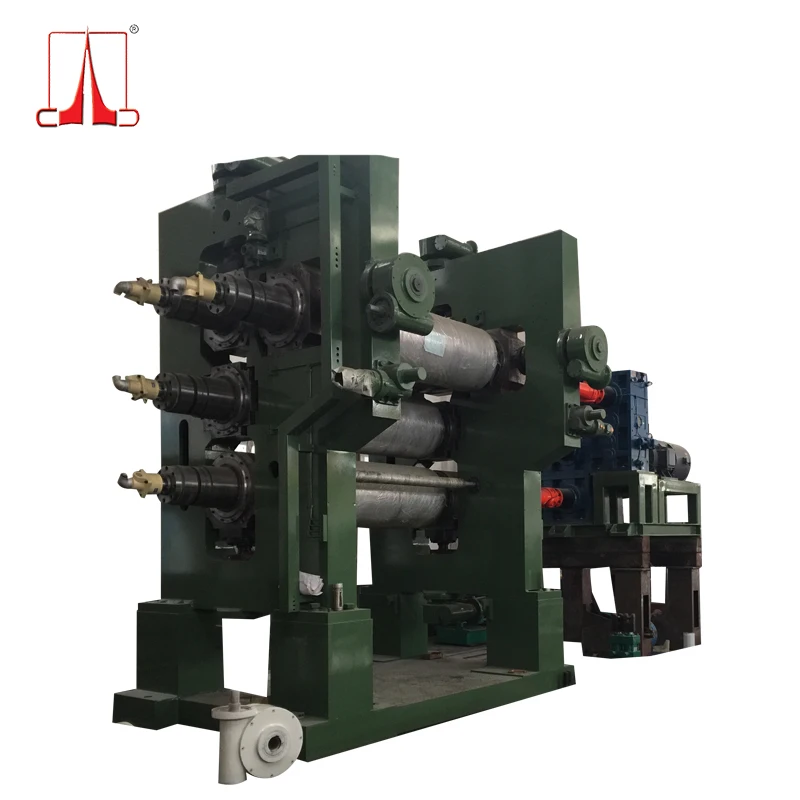

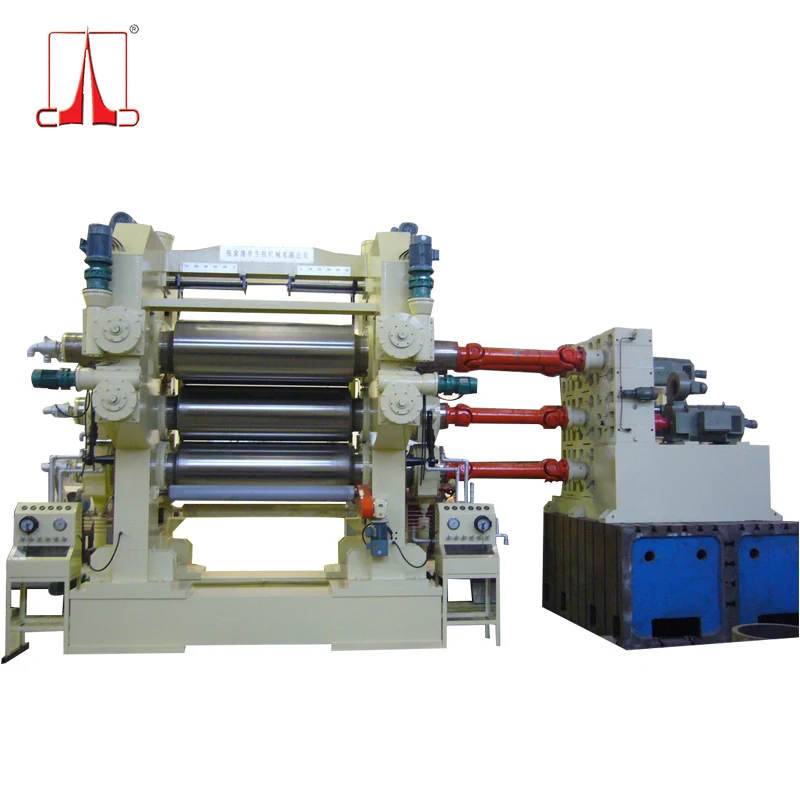

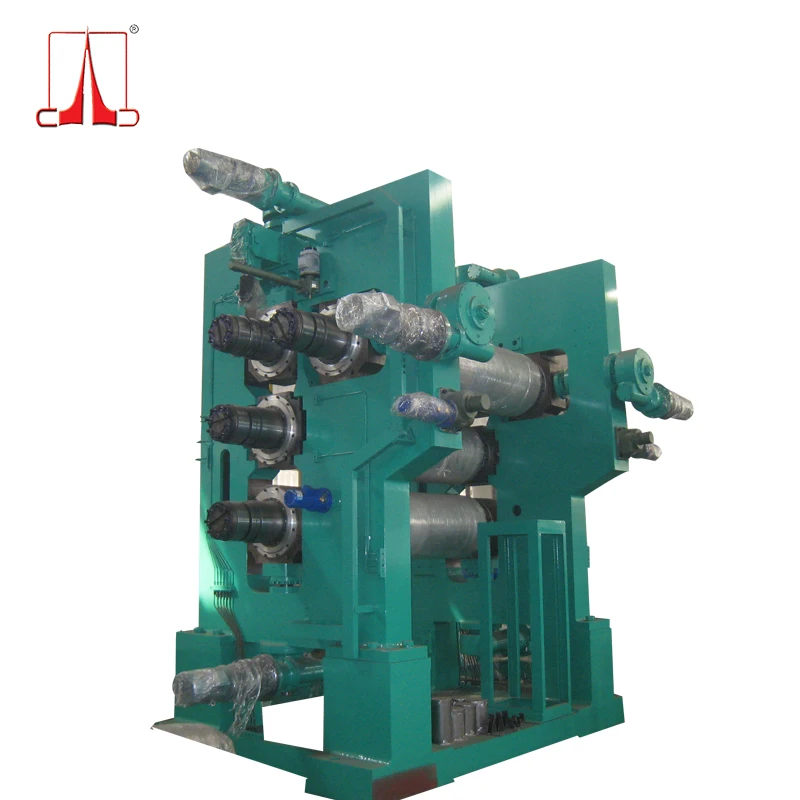

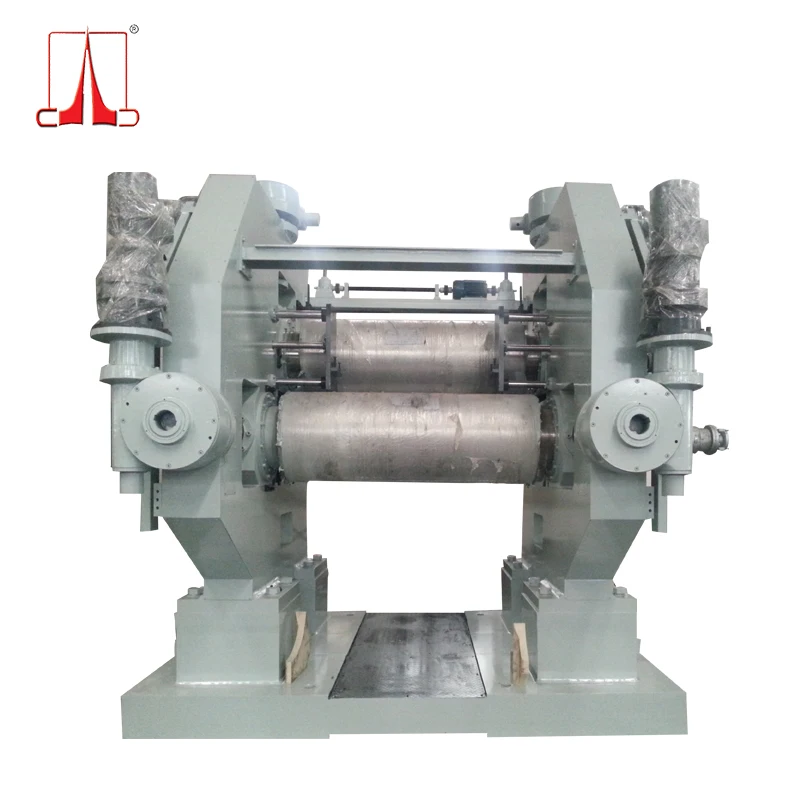

XY 4L860x2500 Rubber four roll calender for sole material Calender rubber making machine
- Category: >>>
- Supplier: Zhangjiagang Lanhang Machinery Co. Ltd.
Share on (1600211343845):
Product Overview
Description
Application of Lanhang Brand Rubber Calender
This machine mainly uses in the rubber (tires, belts,textile fiber rubberizing and so on),the plastic (thin film, sheet, thin sheet plate, wallpaper, floor and so on.) formation processing.
Main Parameters of Our 4 Roll Rubber Calender
Model | XY-4L 630 XY-4Γ 630 XY-4L 630 | XY-4Γ 1120 | XY-4Γ 1400 | XY-4Γ1500 | XY-4Γ 1730 |
Roller Diameter (mm) | Φ230 | Φ360 | Φ400 | Φ450 | Φ610 |
Working Length (mm) | 630 | 1120 | 1400 | 1500 | 1730 |
Roller Linear Speed | 1.5~15 m/min | ||||
Speed Ratio | 1:1.2:1.2:1 | ||||
Thickness of Product | 0.2~6 mm | ||||
Product Width (mm) | 100-500 | 500-920 | 1200 | 1250 | 1500 |
Thickness of Chilled Layer | 10~25 mm | ||||
Hardness of Roller | 68~72 HRC | ||||
Power Supply | AC 380V 50HZ 3P (customize available) | ||||
Motor Power (Kw) | 15 | 55/18.3 | 75/25 | 100/33.3 | 160 |
Air Pressure | 0.6~0.8 Mpa | ||||
Cooling Water Pressure | 0.4 Mpa | ||||
Dimension (m) | 4.0x1.6x2.2 | 4.4x1.8x2.3 | 5.0x1.9x2.6 | 6.9x2.6x3.8 | 7.2x2.8x4.0 |
Weight (t) | 8 | 14 | 18 | 33 | 62
|
