Product Overview
Description
Product Description

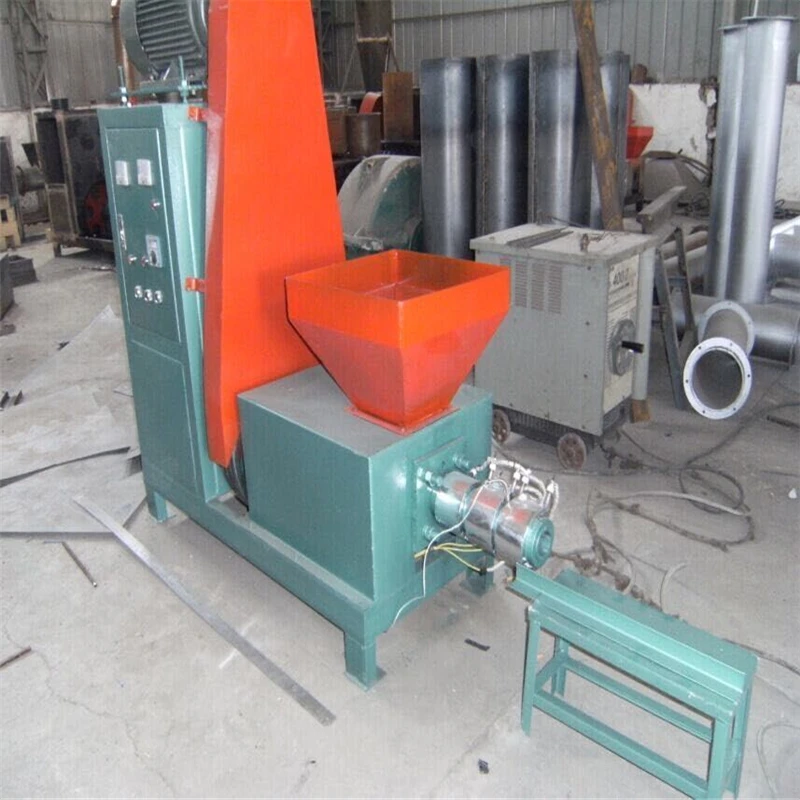

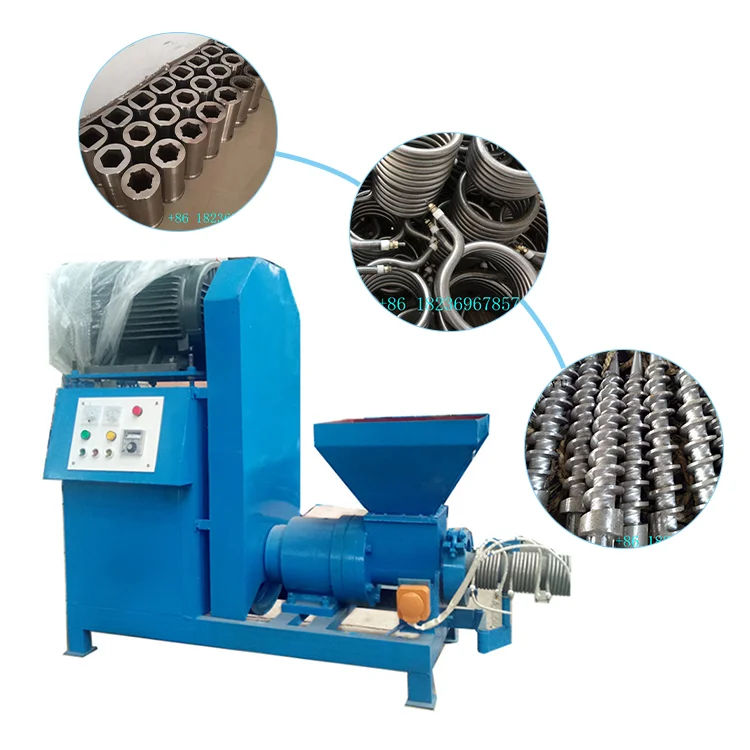

Pressing machine use high temperature 400 degree, high pressure to shape wood sawdust powder into wood briquettes. Wood sawdust's moisture should be less than 15%, dimension should be less than 3mm. Wood sawdust briquettes' density is around 1.3-1.5 g/cm3, the burning time is around 3.5-4 hours. The whole sawdust briquette machine production line can make both wood briquettes and charcoal briquettes.
usage and features:
1.wood charcoal briquette machine can be used in producing high quality wood charcoal stick with sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc. 2.It's equipped with automatic temperature control system and designed to produce high density wood briquette from biomass. the product of this machine can be used to heat boiler, fireplace, etc for warm in house.
3.Perfect working performance:This machine adopts temperature adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure, being easy to operate and maintain.
4.Superior quality of the final products:The solid fuel produced by this machine has the feature of being easy to light, and having high calorific value (over 20% higher than normal wood), little pollution when burning and high density which is favorable to transportation. This machine can make full use of the remainder of farm and forest.
5.Uniform size:A inner moulding is equipped with the shaping mould,which ensures the shape and final size of the products.
6.Our briquette machine with higher capacity and lower energy consumption.
7.Production moisture is 8-12% ,raw material size below 3-5mm.
8.This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.
9.This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick from biomass.
Specification
Main Technical Parameters | ||
Voltage | 380V or customized | |
Capacity | 260-350kg/h | |
Motor power | 18.5kw | |
Speed | 40rpm | |
Raw material | Peanut shells, bagasse,rice husk,sawdust, | |
Usage | press the powder into briquettes | |
Moisture of raw material | 8%-12% | |
Working type | Screw Pushing | |
Package | Wooden case | |
Details Images

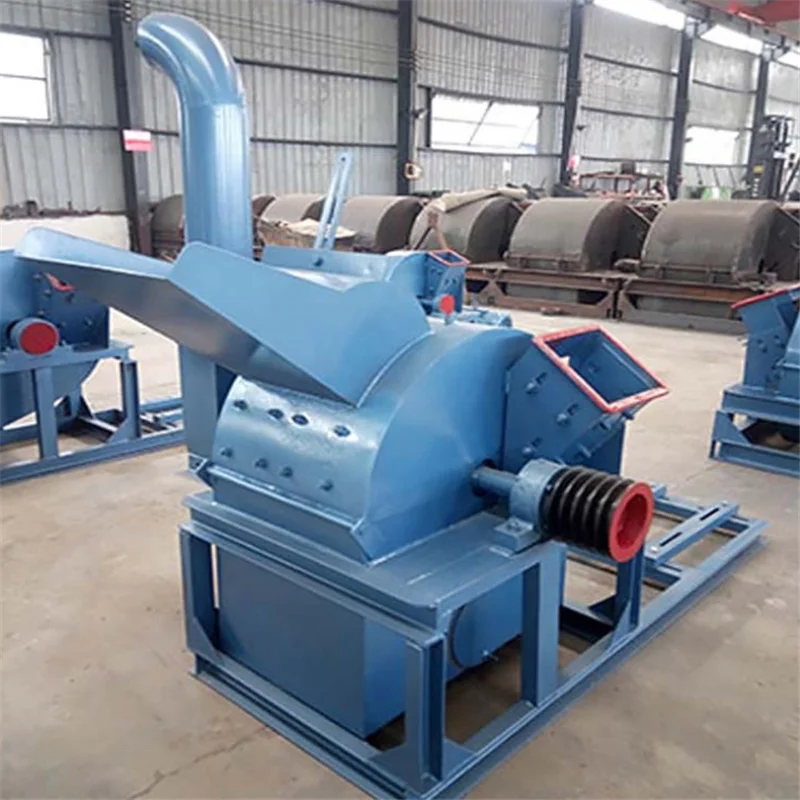

Step 1 Crushing
Crush the raw material(wheat straw, sunflower husk, coffee husk, soybean husk, rice husk, wood chips, sawdust, tae waste, cotton
stalk, paddy straw,peanut husk, and any other type of agro-forestry waste) into small pieces (size is about 3-5mm)
stalk, paddy straw,peanut husk, and any other type of agro-forestry waste) into small pieces (size is about 3-5mm)

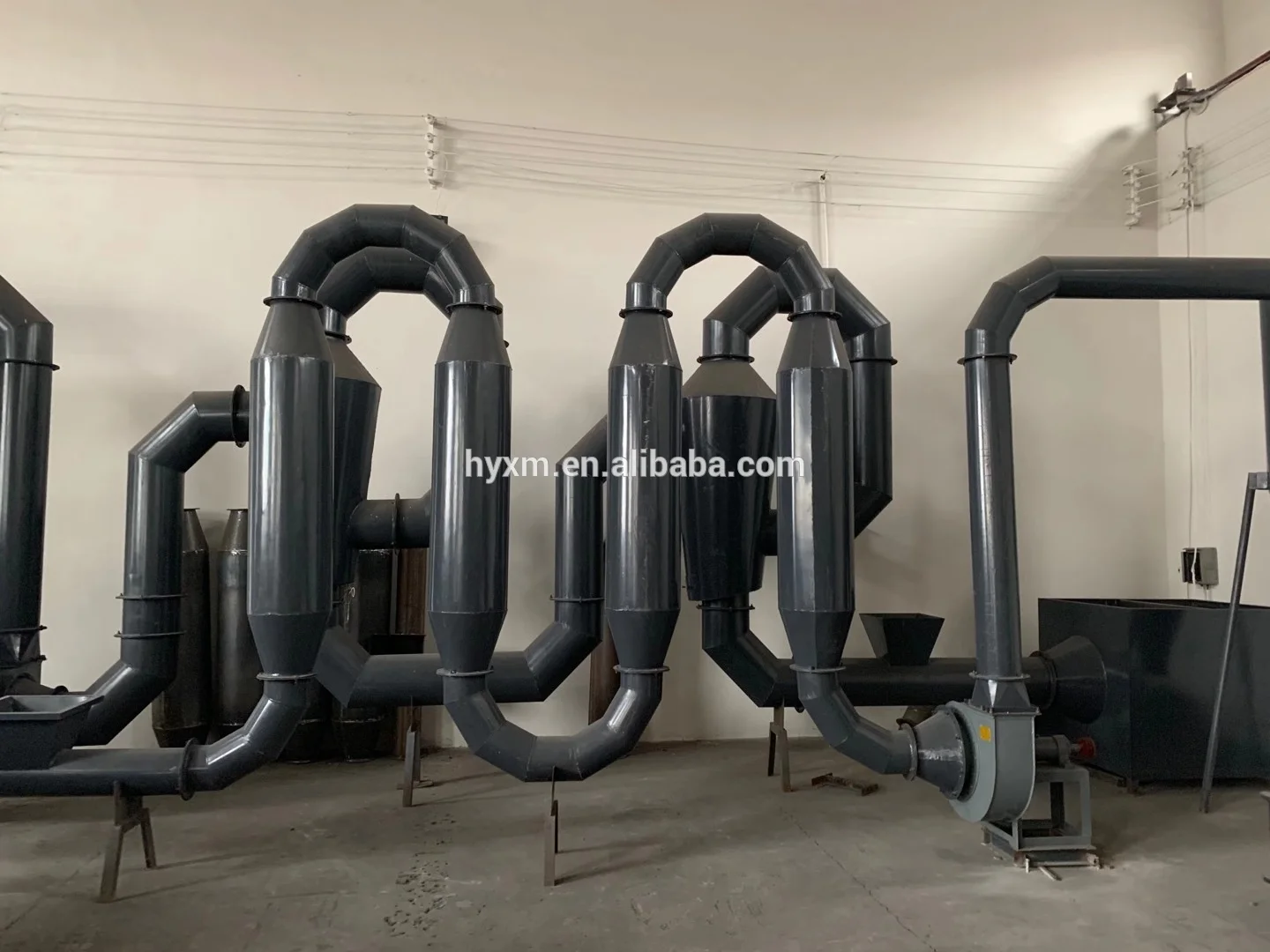

Step 2 Drying
Dry the material by the dryer machine or dried it in the sun, till the moisture is less than 8%- 12%;

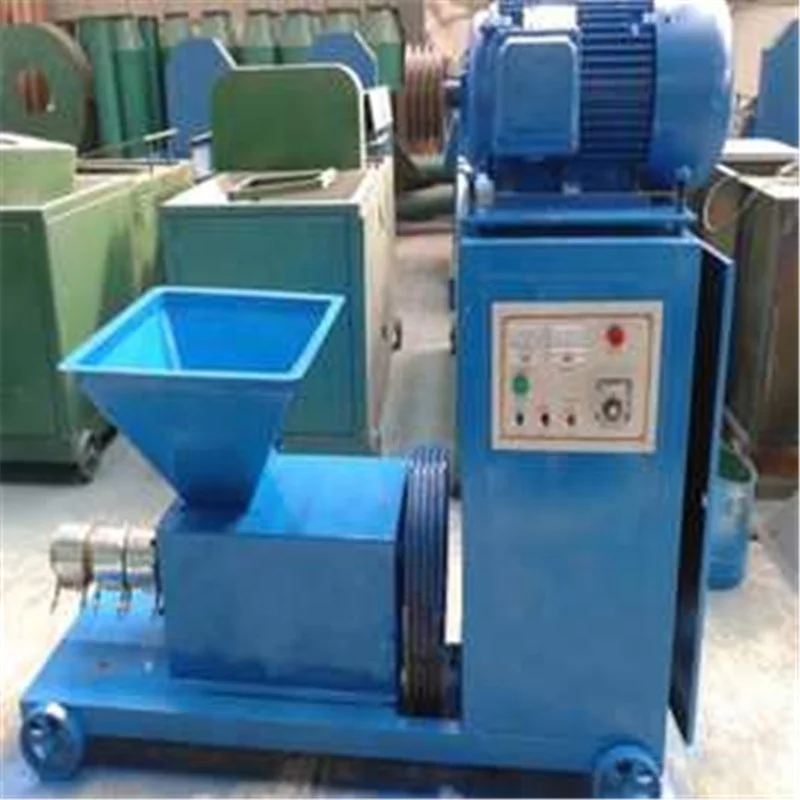

Step 3 Forming shape
Put the dried material into feeding inlet of briquette machine by worker or by screw conveyor; Produce the briquette from the
dried material without any additive by the wood briquette machine;
The material is made into a wooden rod by high pressure molding at a high temperature of 300 to 350 degrees.
dried material without any additive by the wood briquette machine;
The material is made into a wooden rod by high pressure molding at a high temperature of 300 to 350 degrees.

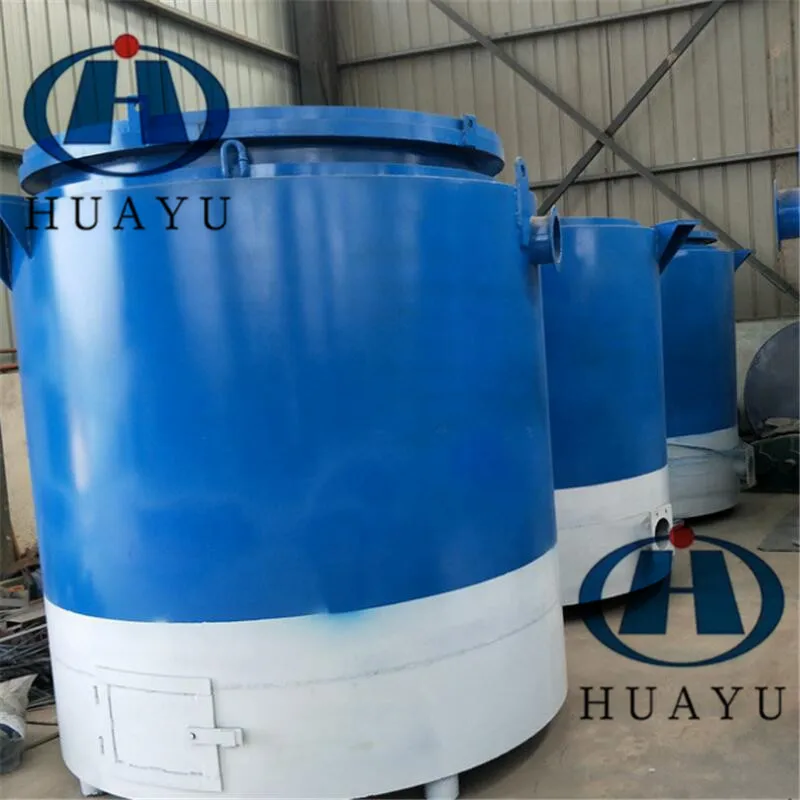

carbonizing
After the sawdust briquette is formed, the shape is uniform and the humidity is right, so that it can be directly carbonized.

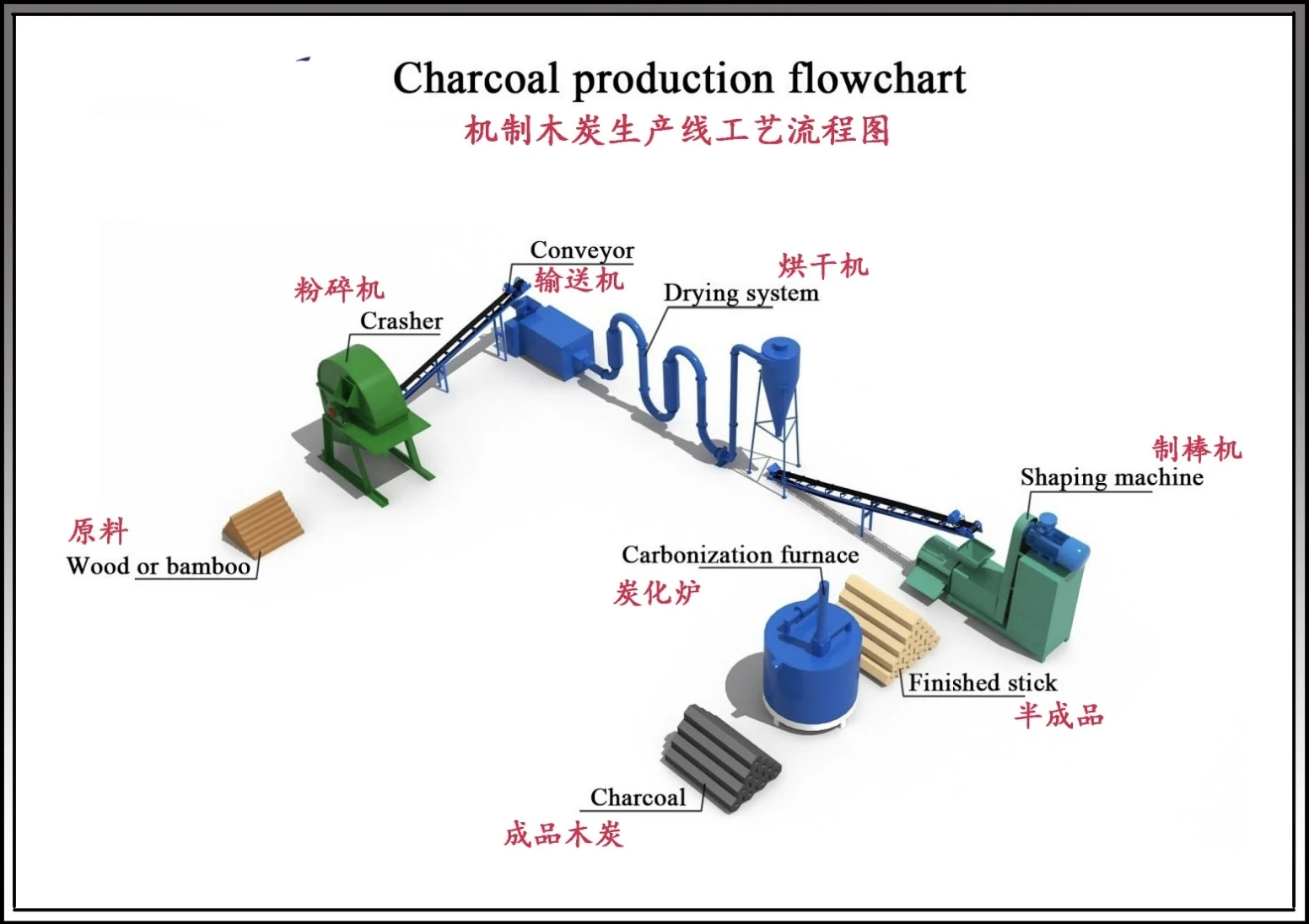

Charcoal production flowchart
After putting powdery materials into the forming machine inlet, the motor drives the screw to rotate to press them into different shapes of six arris or other forms.
Sleeves can be easily changed. Different shapes of sleeves make different shapes of products.
Raw material (biomass) → Wood sawdust crusher machine → dryer → sawdust briquette machine → Charcoal furnace → Charcoal briquettes
Sleeves can be easily changed. Different shapes of sleeves make different shapes of products.
Raw material (biomass) → Wood sawdust crusher machine → dryer → sawdust briquette machine → Charcoal furnace → Charcoal briquettes

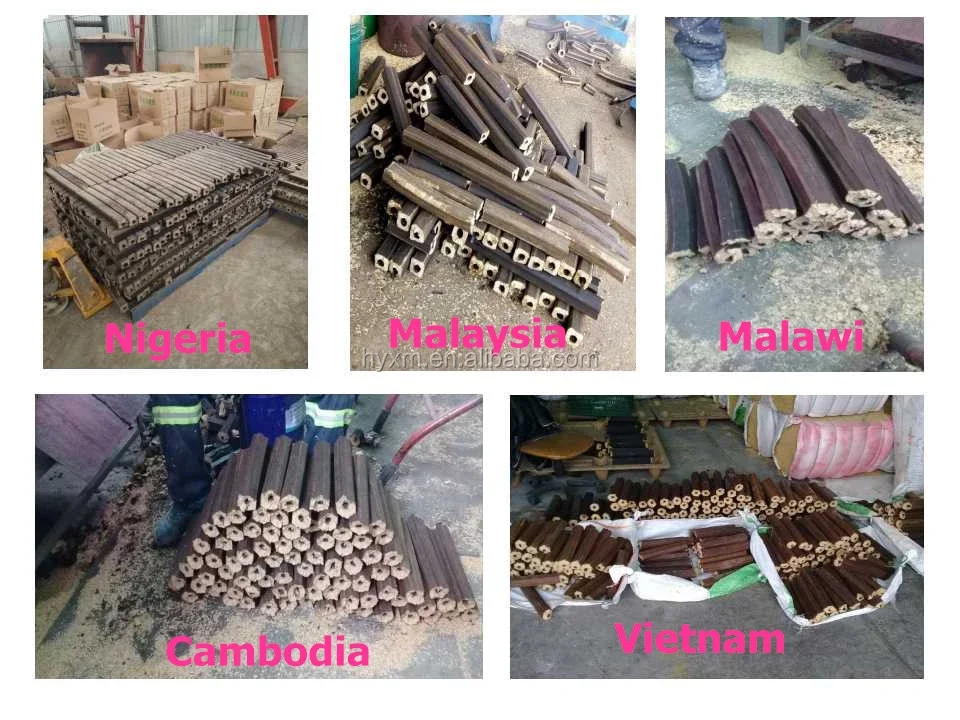

Final products
Character of final charcoal
-High density
-Long burning time
-No smoke
-No smell
-High density
-Long burning time
-No smoke
-No smell

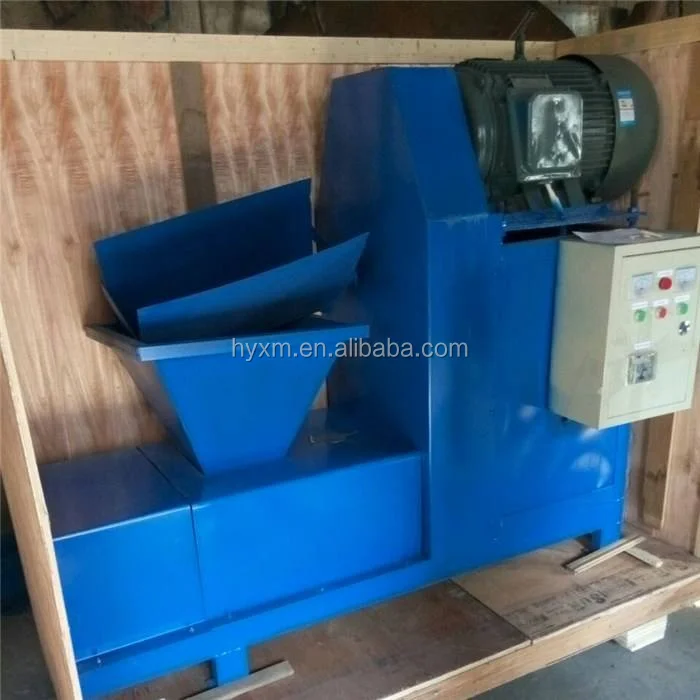

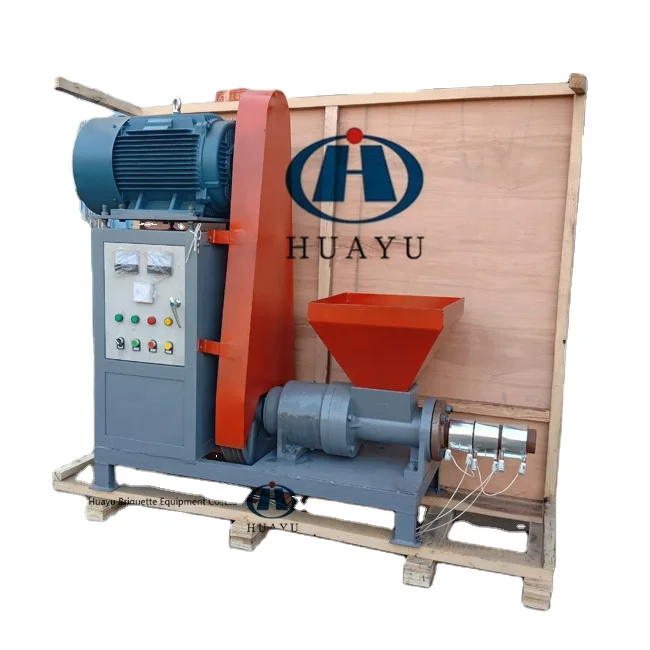

Packing & Delivery
1. Big machines packed in container
2. Spare parts packed in wooden case
3. If you have any special requirement, we will pack as request
2. Spare parts packed in wooden case
3. If you have any special requirement, we will pack as request
Company Profile
Zhengzhou HUAYU Briquette Equipment Co., Ltd.
Specialize in the development and production of briquette machines, located in No. 169 Taojia Road, Xingyang Zhengzhou, Henan, China. our factory covers an area of 66000 square meters, has over 100 workers and 23 engineers at work for research and development. We make machines with high quality and the most favorable price, widely sold at home and abroad and enjoy good
reputation.
Our company has more than 100 experienced workers and a complete set of production line which includes assembling, pressing, roller processing, case processing, and other workshops.

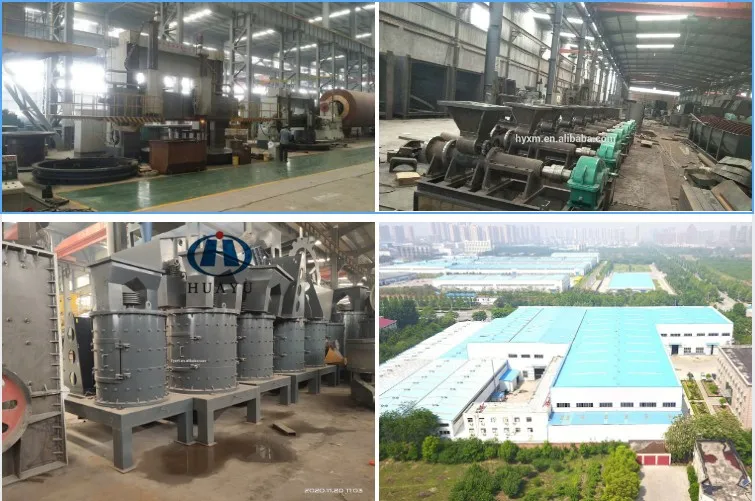

The follow pictures are our factory and workshops.
Specialize in the development and production of briquette machines, located in No. 169 Taojia Road, Xingyang Zhengzhou, Henan, China. our factory covers an area of 66000 square meters, has over 100 workers and 23 engineers at work for research and development. We make machines with high quality and the most favorable price, widely sold at home and abroad and enjoy good
reputation.
Our company has more than 100 experienced workers and a complete set of production line which includes assembling, pressing, roller processing, case processing, and other workshops.
The follow pictures are our factory and workshops.
