7kg take off Weight UAV drones G7 VTOL fixed wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use
7kg take off Weight UAV drones G7 VTOL fixed-wing UAV aircraft for Mapping use

7kg take off Weight UAV drones G7 VTOL fixed wing UAV aircraft for Mapping use

Share on (1600211515876):


Price:$16,899.00 - $17,499.00

Quantity:


Product Overview

Description

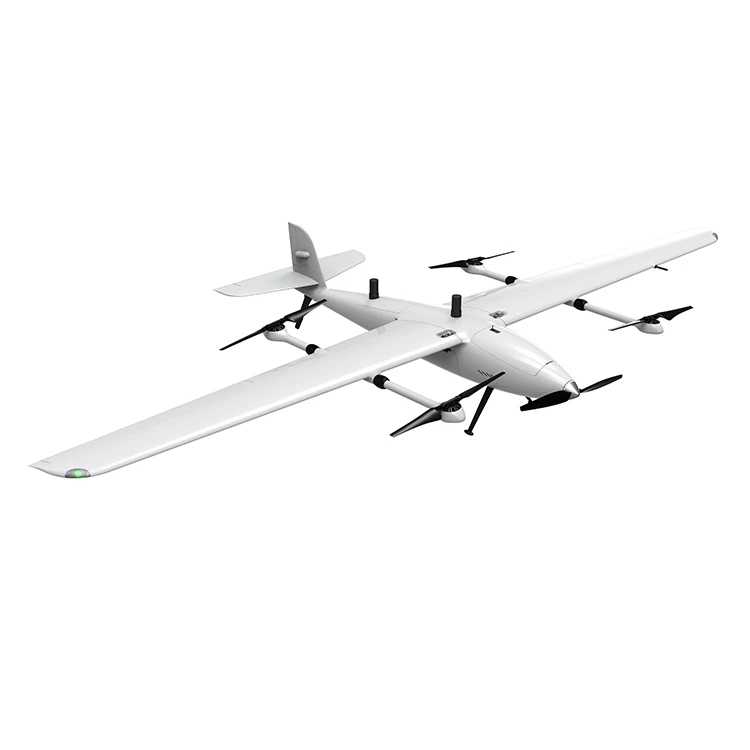

G7 is a pure electric vertical take-off and landing(VTOL) fixed-wing UAV which with a standard take off weight of 7kgs.

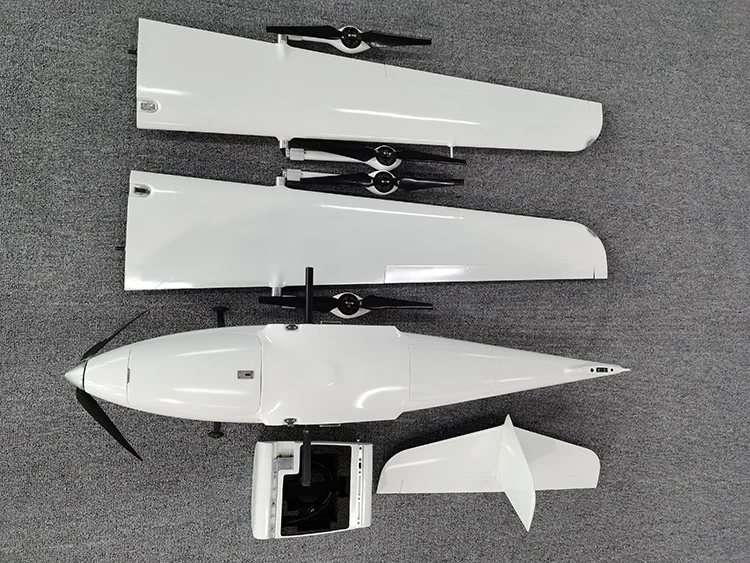

The development of this UAV was based on long-endurance and long-range requirements according to the characteristics of the application for surveying and mapping and patrol.One minute rapid deployment is achieved through modular design, which makes a better operating experience for users.
With the design of independent payload cabin,users can replace the payload flexibly according to the operation requirements.



Prodcut Name
G7 VTOL fixed-wing UAV Mapping version
Material
Carbon fiber + glass fiber
Color
White/gray
Standard take-off weight
7 kg
Max. Payload Weight
1.0 kg
Cruise Speed
72km/h
Max. Flight Speed
100km/h
Control radius
15km
Max. climb speed
4m/s
Max. Descend speed
5m/s
Max. Altitude AMSL
4000m
Max. Wind Resistance
Level 6
Operating temperature
-10~60℃
Flight Time
130-160min (130min with Sony A7RII Camera)
Flight Distance
160-190km(160km with Sony A7RII Camera)

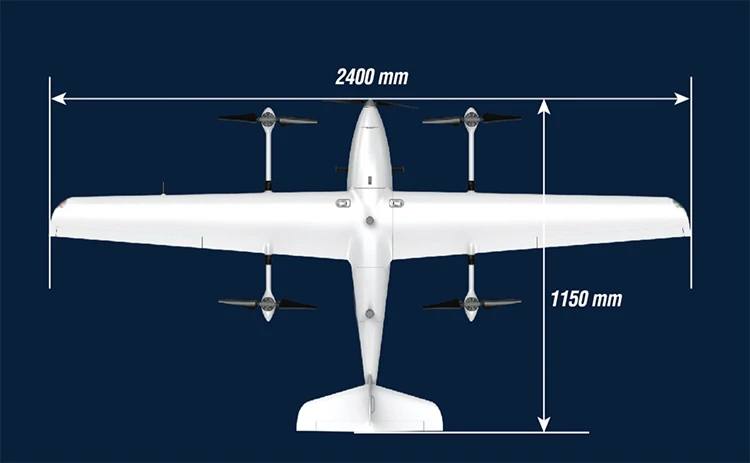

Aircraft dimensions
2400*1150*300mm




Configuration list of G7 each version
Parts Name
SPEC
QTY
G7-1
G7-2
G7-M
Composite Frame(Carbon fiber + glass fiber)
Composite material
1
√
√
√
Motor for VTOL Mode
4112 kv485
4
√
√
√
ESC for VTOL Mode
60A
4
√
√
√
(Pairs)Propeller for VTOL Mode
15*55
2
√
√
√
Motor for Fixed wing Mode
3525 kv450
1
√
√
√
ESC for Fixed wing Mode
80A
1
√
√
√
Propeller for fixed wing Mode
14*10
1
√
√
√
Servo
4
√
√
√
Power board
GY powerboard v4.1
1
√
√
√
toolkit
RTW Allen Screwdriver Set
1
√
√
√
Aluminum packing box
Aluminum box packaging
1
√
√
√
Pixhack V3 Flight control
pixhack v3
1
√
Pixhack V3 GPS
GPS pixhack V3
1
√
Air Speedometer
1
√
√
G1 Flight control
G1
1
√
GPS G1 V3
G1 V3
1
√
ET07 Radio Controller
ET07
1
√
√
SKYRC PC520 Charger
SKYRC pc520
1
√
√
Data transmission D02 10KM
D02 10KM
1
√
√
6S 22000mAh battery
6S 22000MAH
1
√
PPK
UAV-381-PPK
1
√
orthographic camera+Lens
sony a7rm2+FE35/2.8
1
√
Assembling and tuned services
1
√
√










Q1:Is GY UAV LTD.CO. a factory or trading company?
A1:GY UAV Co.,Ltd. is a professional manufacturer of UAV for industrial application.

Q2:There are so many UAV manufacturers in China, why do we choose you?
A1:Firstly,we could provide good products for you because we have a team with over 10 years experience in R&D for UAV.
secondly,we provide products with good quality,we have good chain of materials can ensure the quality,and we full test the every product before shipment.
Thirdly,good price.we are factory direct sales with competitive price.
At last,good service.24 hours quick response.

Q3:what kind of versions of UAV do you provide?
A3:GY UAV are widely used for mapping, survey, monitor, surveillance, forest fire prevention, meteorology, oil-pipe, marine etc. Civilian and Military.
We can provide RTF Version, Power set version,KIT version and other version which you like.
We welcome OEM & ODM cooperation.
