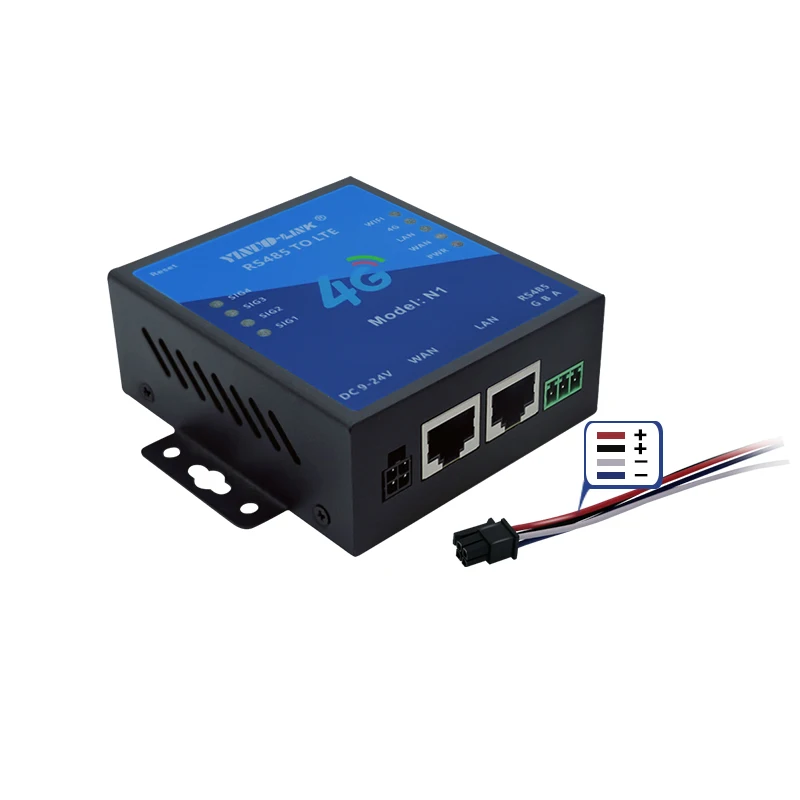

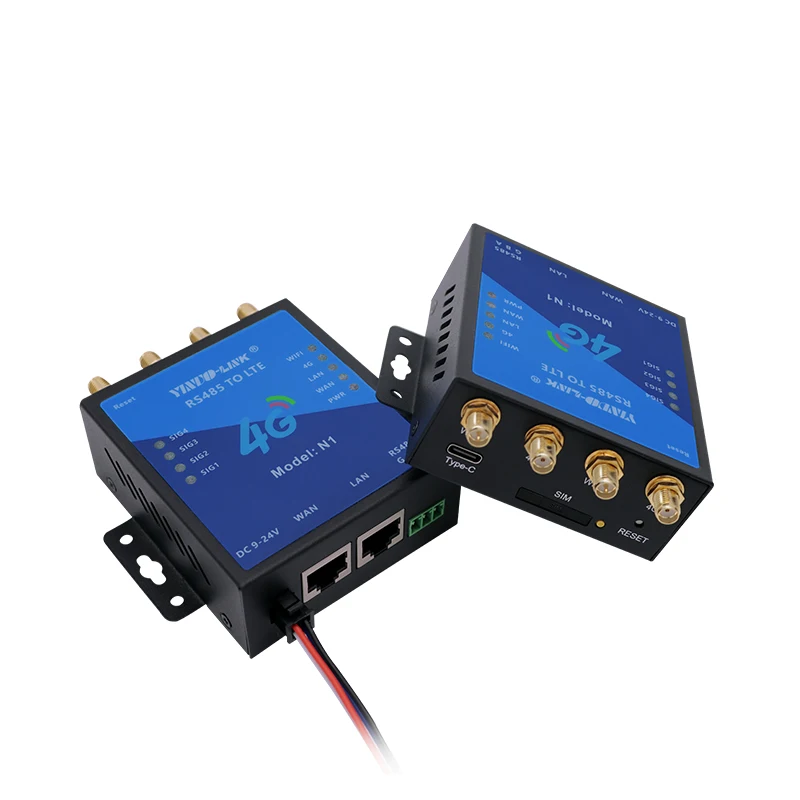

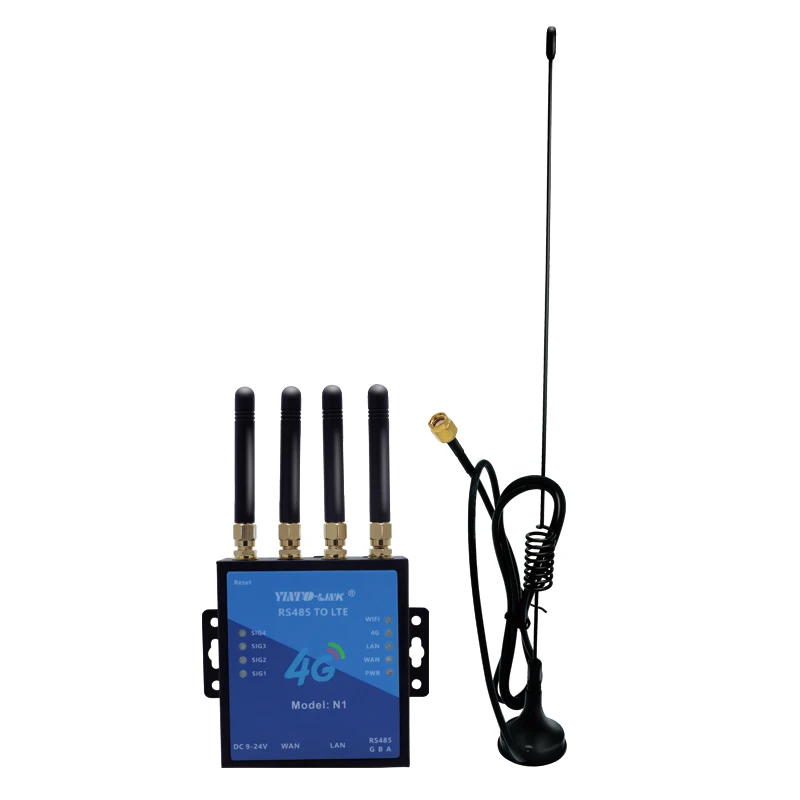

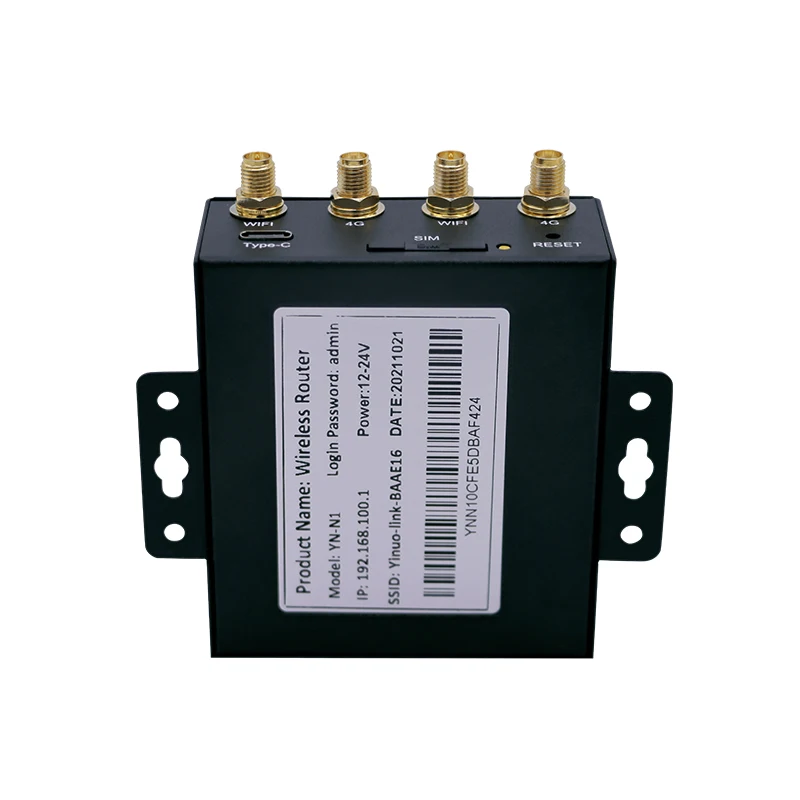

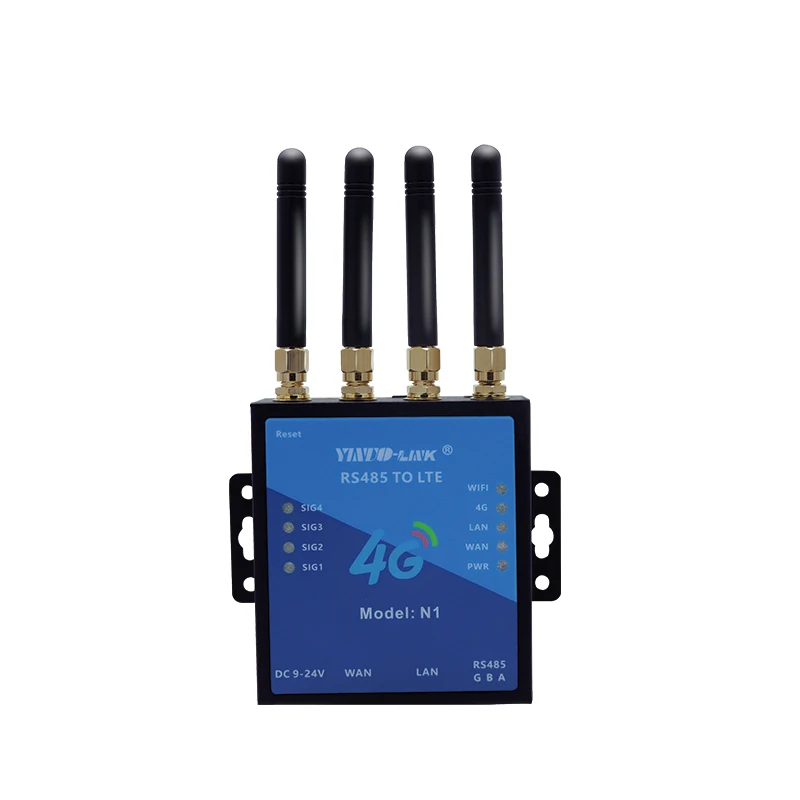

QCA9531 802.11N Industrial 4G Pocket Wireless LTE Router with SIM Card Socket GPS GPRS GSM

Product Overview

Description









Hardware

RAM: Default DDR2:128MB

FLASH: Default 16MB, Maximum 16MB

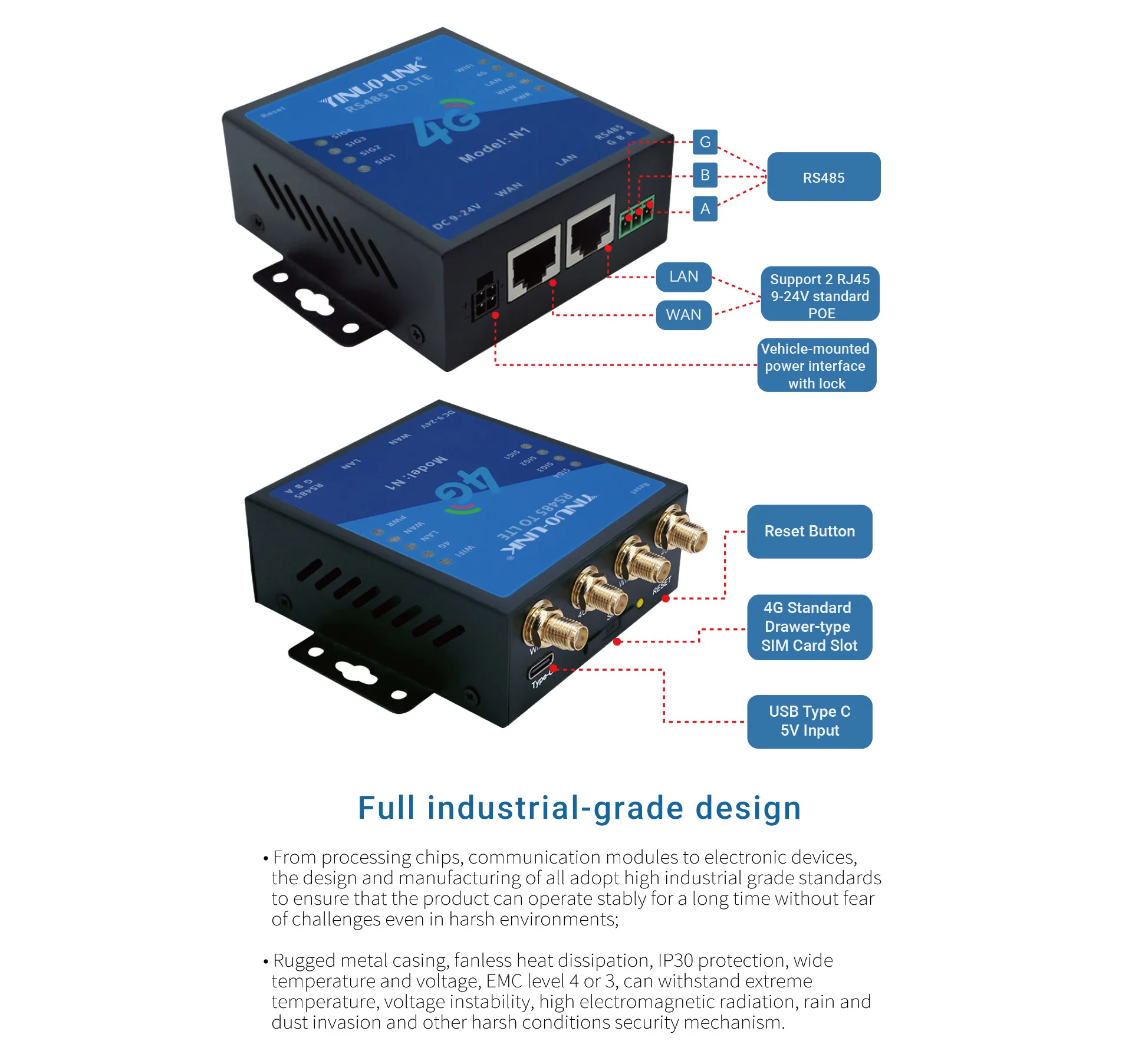

Interface

Ethernet Port: 2*10/100Mbps Fast Ethernet Port,WAN/LAN

Industrial Serial Interface: RS485 x 1 Industrial terminal;   RS485 Signal:A,B,G;   ESD Protection:8KV

Reset button: Pinhole type reset button

SIM card holder: Drawer-type card holder

Wi-Fi: 802.11b/g/n:300Mbps

Grounding terminal: Support

WiFi

Transmitting Power:   802.11b: 16dBm ±2dBm(11Mbps)                                         802.11g:15dBm ±2dBm(54Mbps)                                         802.11n  2.4GHz:13dBm ±2dBm(HT20 MCS7)                                         802.11n  2.4GHz:13dBm ±2dBm(HT40 MCS7)

Power Supply

Max. Power: < 8W Power Interface: 4 PIN Vehicle-mounted locking terminal Standby Power: 100mA 24V(HSPA+network) Working Power: 150mA 24V(HSAP+network)  Peak power: 180mA 24V(HSPA+network)

Software Specifications Network Type: Support LTE,WCDMA(HSPA+),EDGE,GPRS LAN protocol: Support ARP, Ethernet WAN protocol: Support Static IP, DHCP, PPPoE IP routing: Static routing Firewall: Stateful Packet Inspection (SPI), DoS attack defense, Multicast filter/Ping probe packet, Access Control List(ACL), NAT, PAT, DMZ, port mapping, and virtual server Embedded watchdog: Device runs self-detection, auto recovers from malfunctions Link Detection Embedded: Sends heartbeat packets to detect, auto redials when disconnected Mechanical Characteristics Mounting method: Din-Rail mounted, Wall-mounted Shell: Metal Structure Product Size: 70X80X30mm Packing Size: 180X145X55mm Protection class: IP30

Other Ambient temperature and humidity:   Operating temperature: -40°C ~ 75°C                                                                       Storage temperature: -40°C ~ 100°C                                                                       Ambient Humidity: 10% to 90% RH non-condensing                                                                       Storage Humidity: 5% to 90% RH non-condensing LED: PWR, SYS/WiFi/4G/4G Signal Strength Indicators Certification: CE, FCC, RoHS
