Core Bore Hole Drilling Machine :





Product Description





1 Applications :


In mining and other geological engineering operations, coring sample is needed to obtain rock structure, physical and mechanical properties.


Core-taking is the most direct means of exploration, it uses a hollow drill pipe to drill down from the surface, forming a cylindrical borehole in the rock formation, and obtaining core, ore, and soil from different depths in the borehole, Analytical studies were conducted to identify and
classify rock formations.





2 Features :


Our HC-100 fully hydraulic core hole drilling machine can be used in different environments, such as ground and roadway, to meet different drilling requirements and has a wide range of applications.
Our core bore drilling machine has high working efficiency, can effectively save manpower, material, financial resources and time, improve working efficiency.
Our core hole drilling machine has reasonable structure, simple installation and disassembly, and is easy to handle.





3 Technical Parameters :

























































HC100 Rock Coring Rig



Working Way



Hydraulic



Power Source



Diesel Powered



Power



25 Hp



Max Drilling Depth



100 m



Max Drilling Diameter



200 mm



Drilling Angle



0°- 90 °



Rotation Speed



0-800 r/min


(Continuously Variable Transmission)



Max Torque



650 Nm



Max Lifting Force



3 T



Machine Height



2.6 M



Weight



500 Kg



Dimension



1400*1250*2600 Mm











Photo Shows

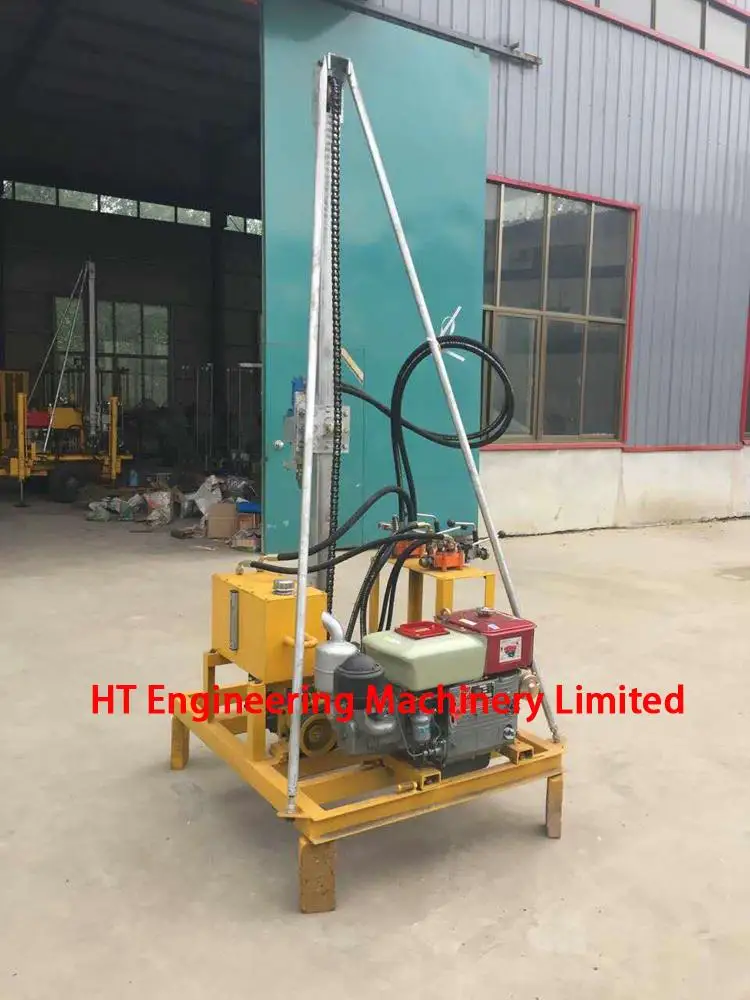

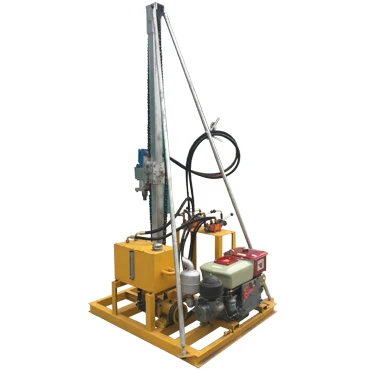

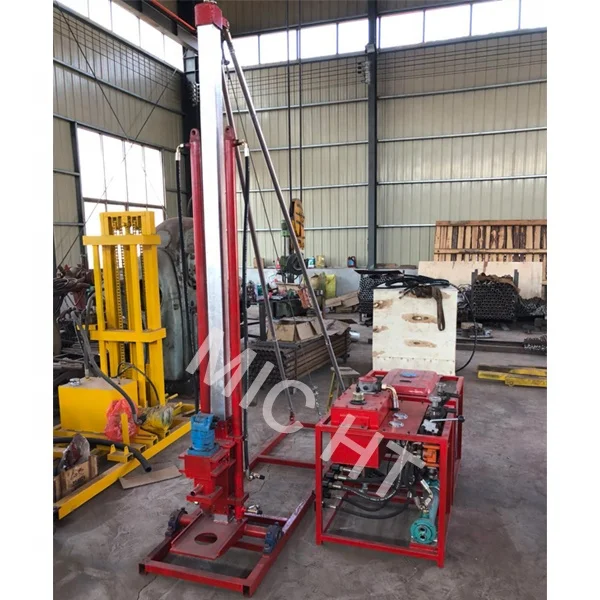

Without chassis, hydraulic legs and wheels :

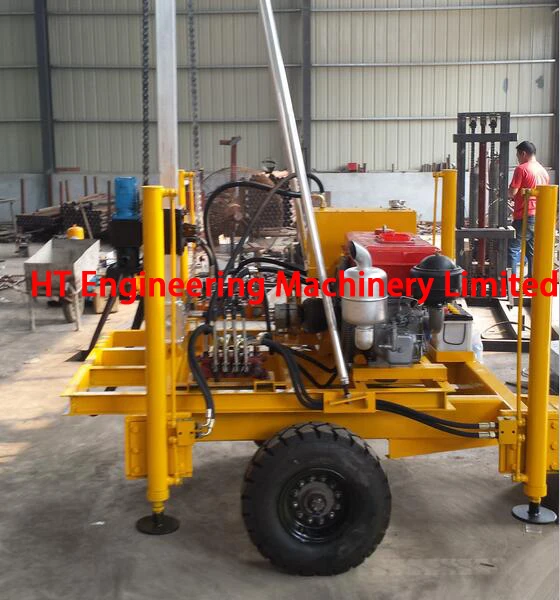

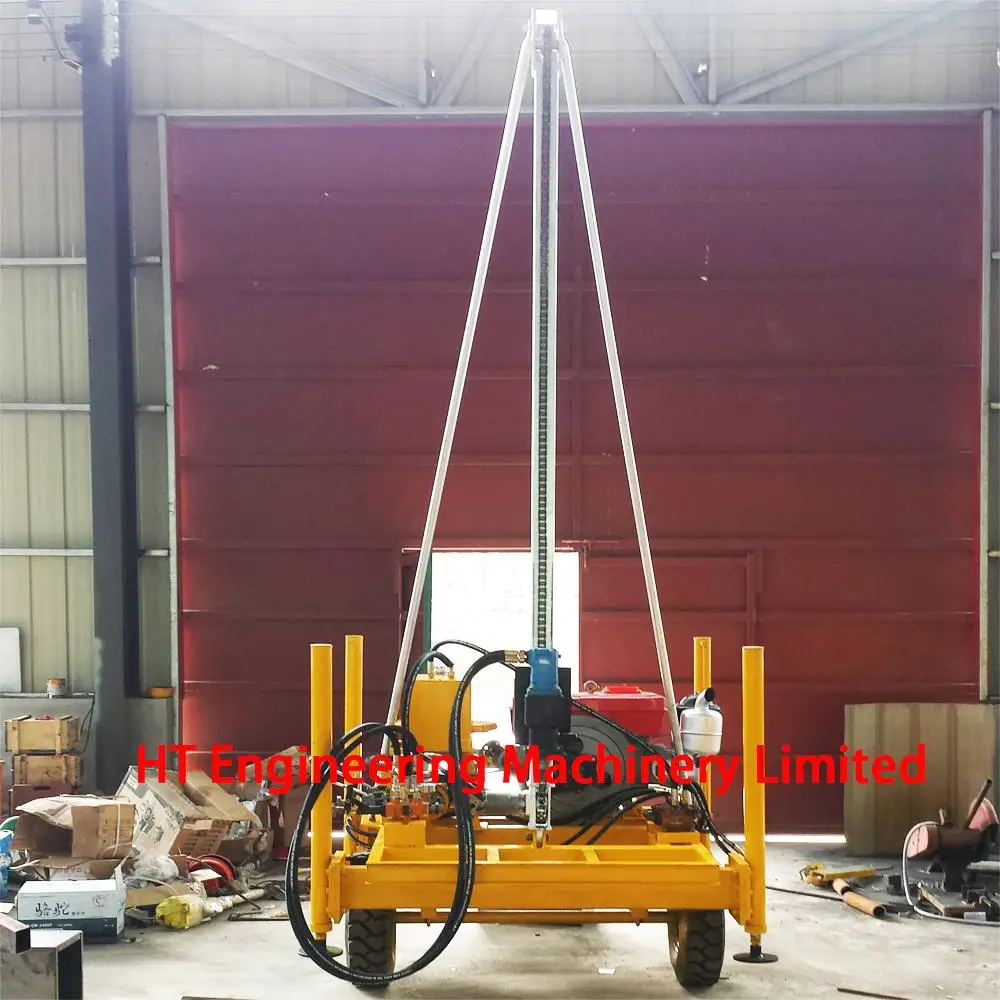

Withchassis, hydraulic legs and wheels :

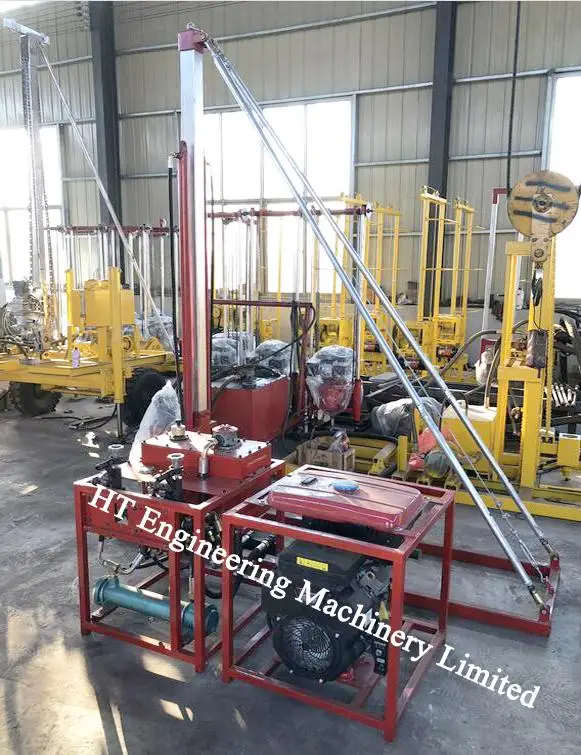

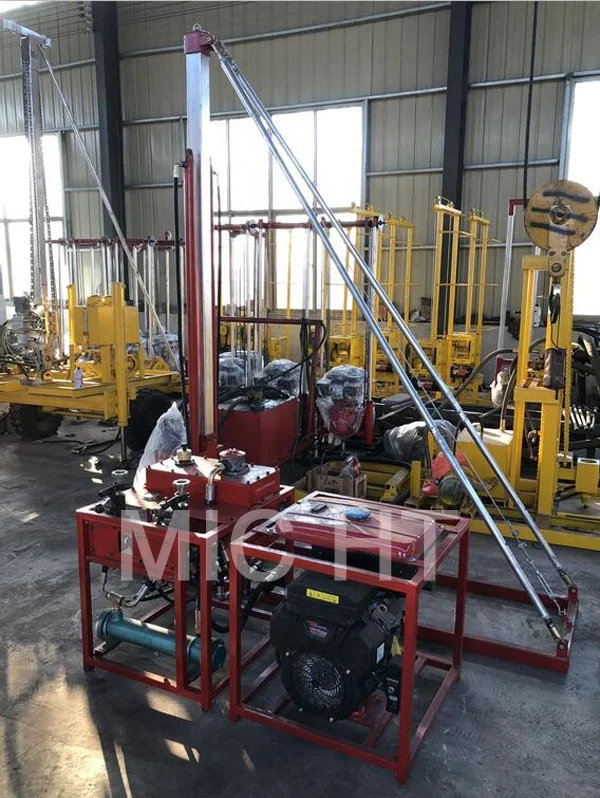

High Configuration Model :

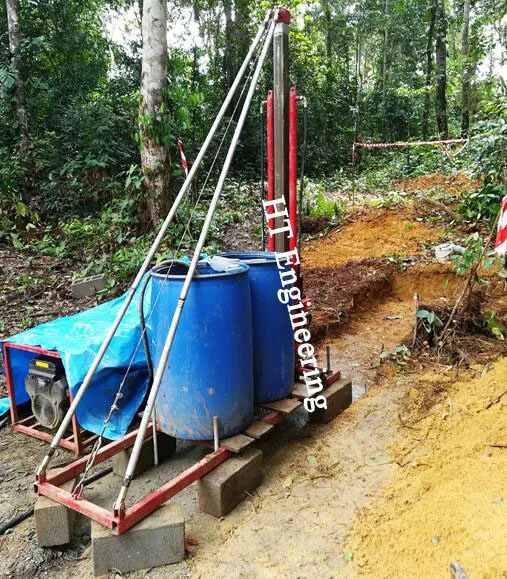

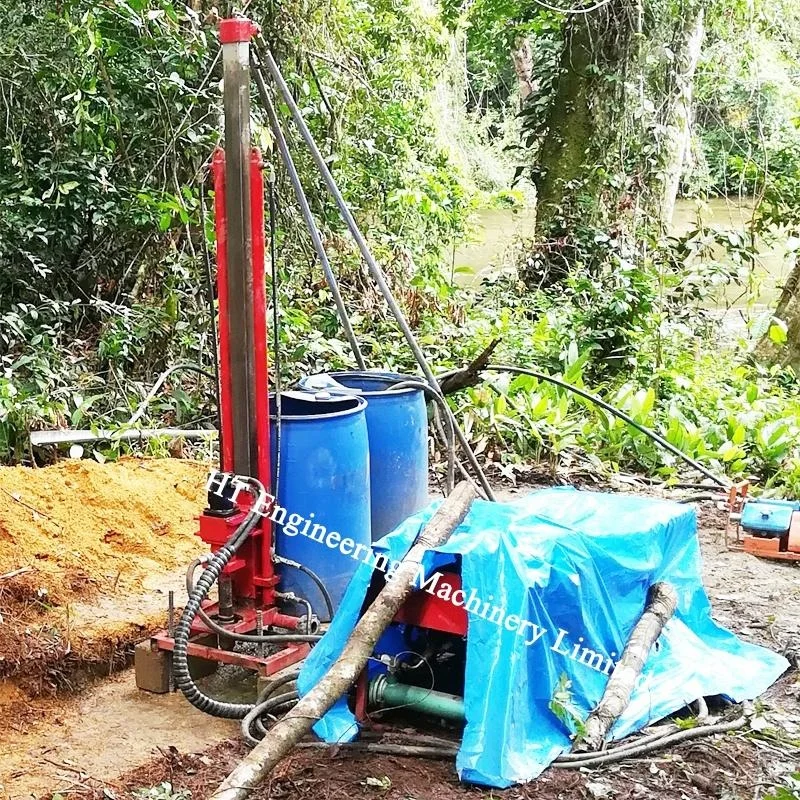

Used In Gabon :

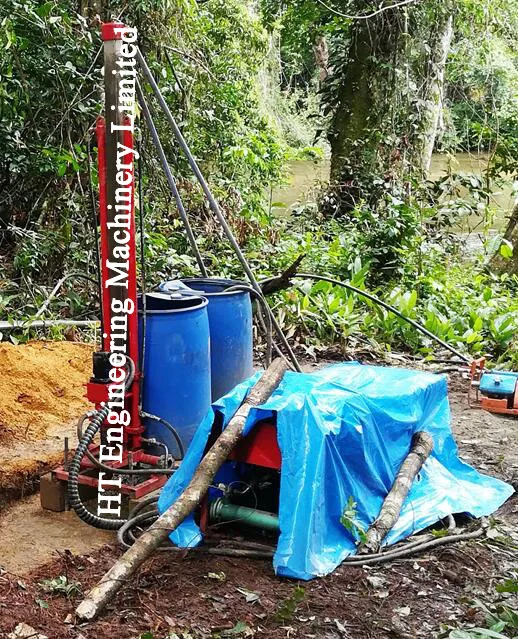

Used In Gabon :
