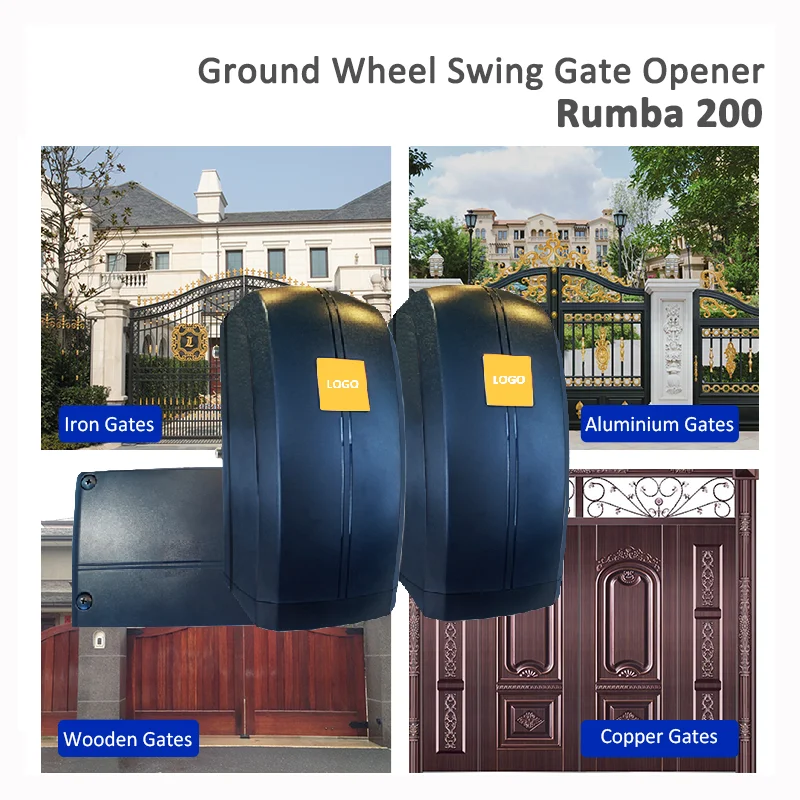

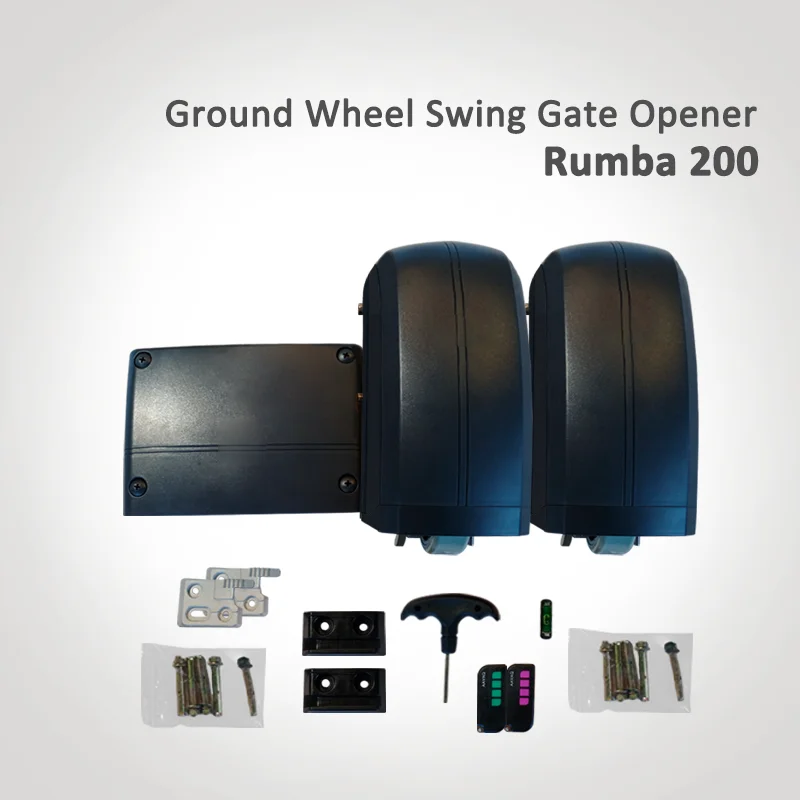

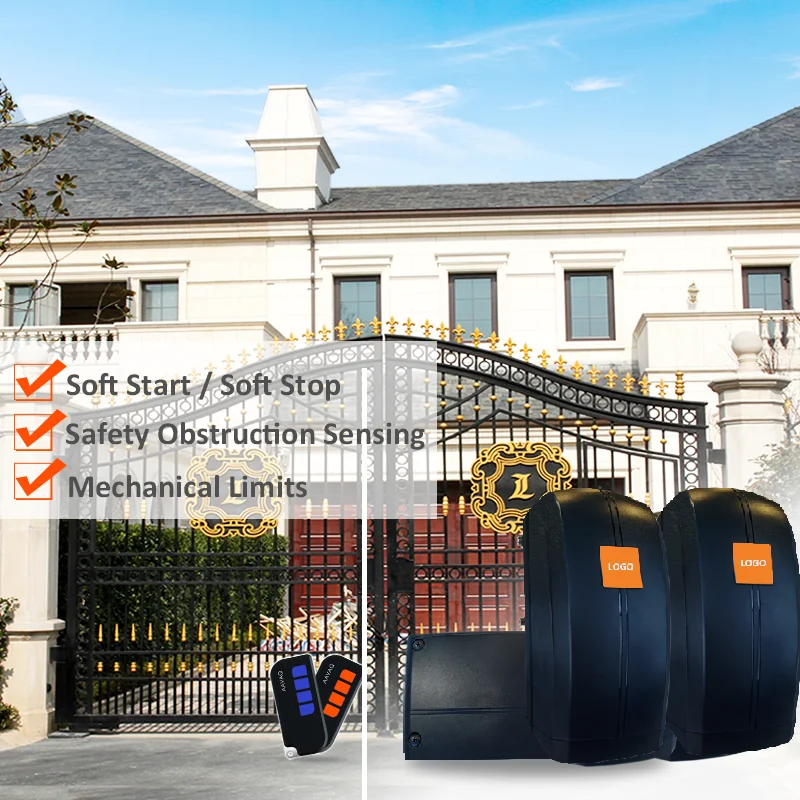

Smart WiFi DC Motor Swing Gate Opener Roller Wheel Automatic Gate Operator

Share on (1600211768657):


Price:

Quantity:


Product Overview

Description


Smart WiFi DC Motor Swing Gate Opener Roller Wheel Automatic Gate Operator



Product Description





























































































Technical Specifications


Rumba200


Maximum Gate Weight


250kg


Maximum Gate Width


6m


Maximum Pulling Force ( When Started )


25kgf


Maximum Pulling Force ( When Running )


15kgf


Maximum Speed


200mm/s


Duty Cycle


40%


Rated Current / Maximum Current


3A / 10A


Nominal Input Voltage


220V AC ± 10%, 50 / 60Hz


Motor


24V DC


Transformer


100W


Degree of Protection


IP54


Slow Start / Slow Stop Function


Yes


Safety Obstruction Sensing


Yes


Connect to APPLink Smartphone Controller


Available


Operating Temperature


-20°C to +50°C


Limit Switch Type


Mechanical limit switches with electronic running way adaption


Radio


KEELOQ Hopping Code, 433MHz


TX Capacity


Standard 2, Max. 25 Transmitter ( Remotes )


Maximum Distance


80m


Weight


11.5kg

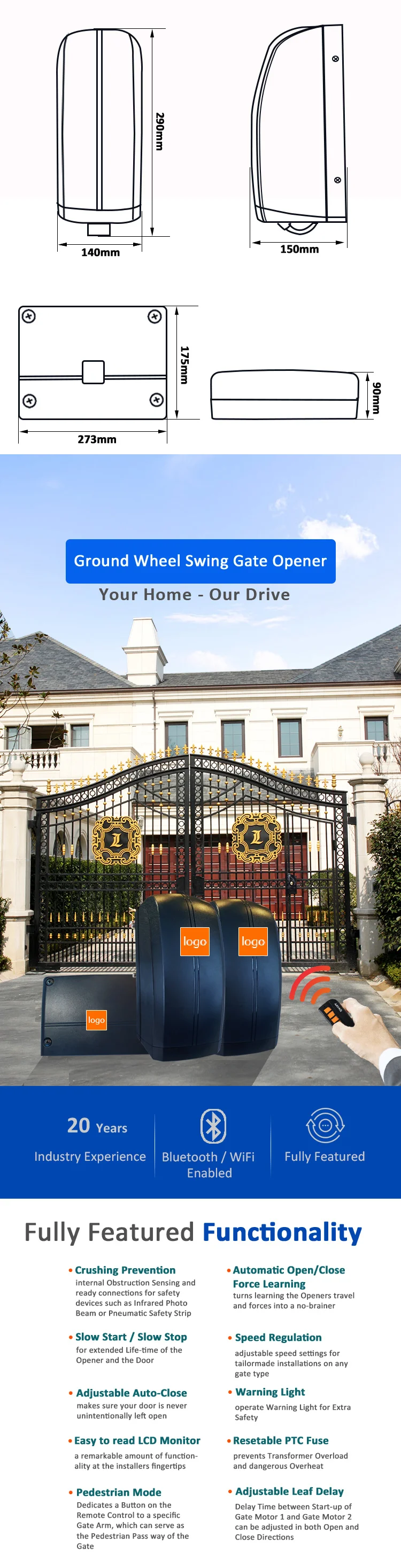

Rumba_01

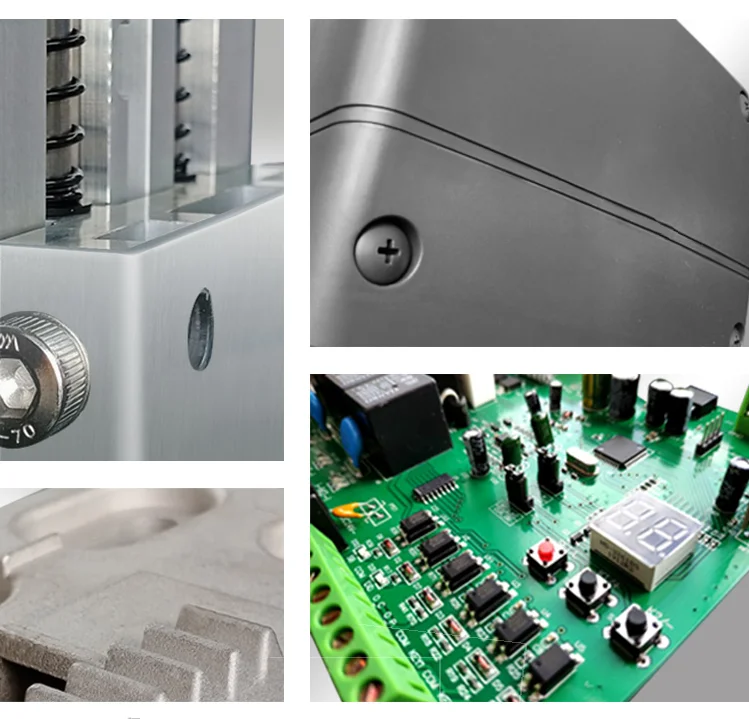

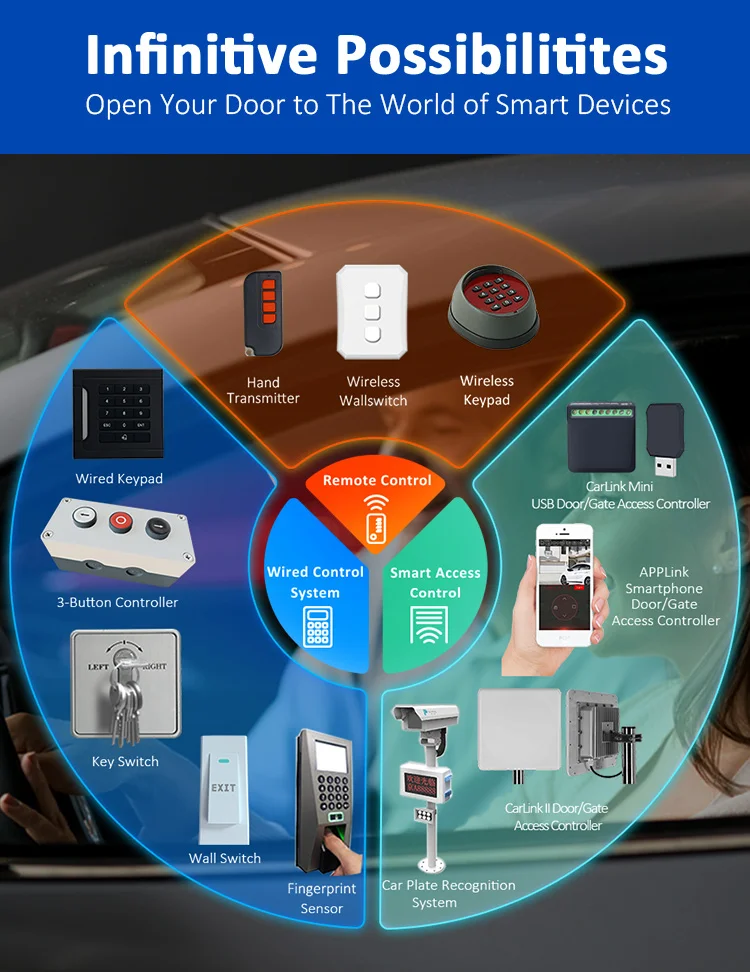

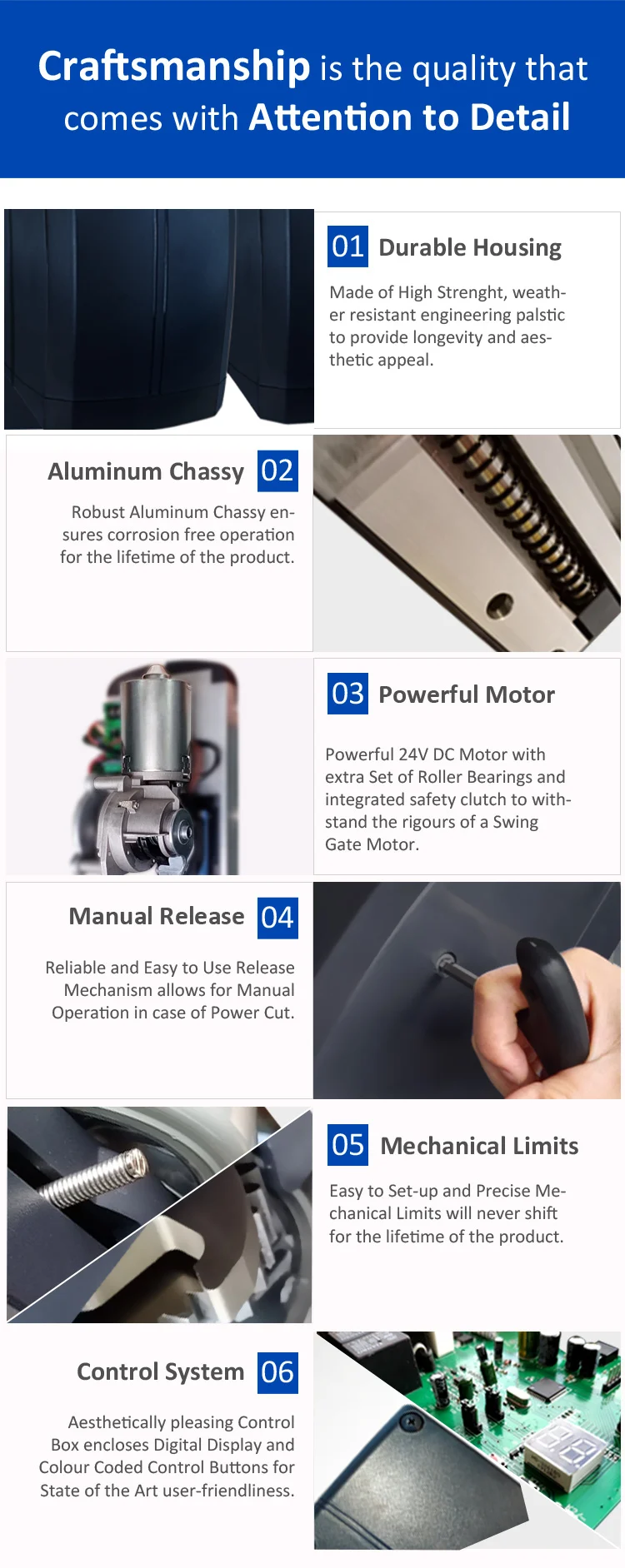

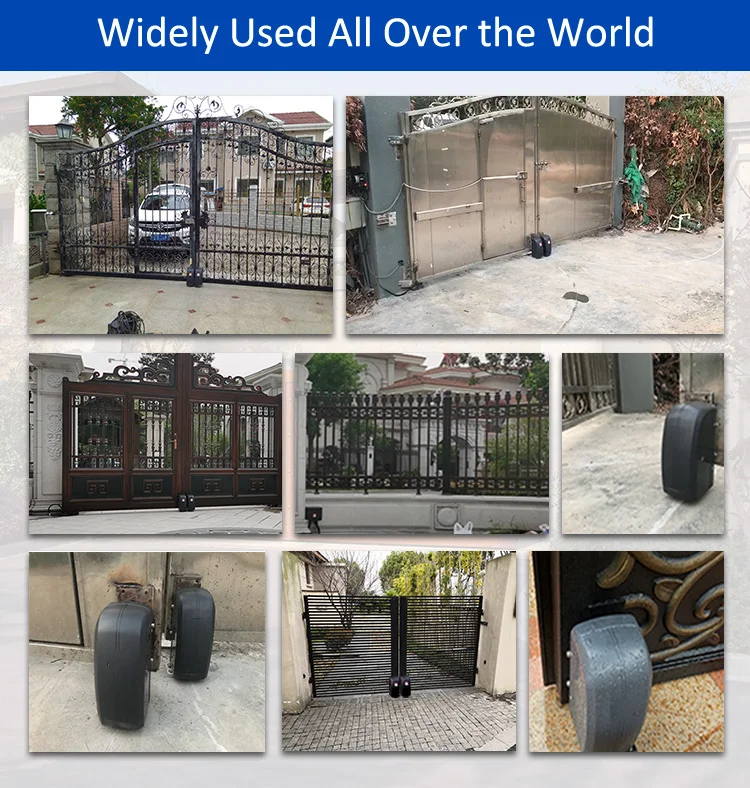

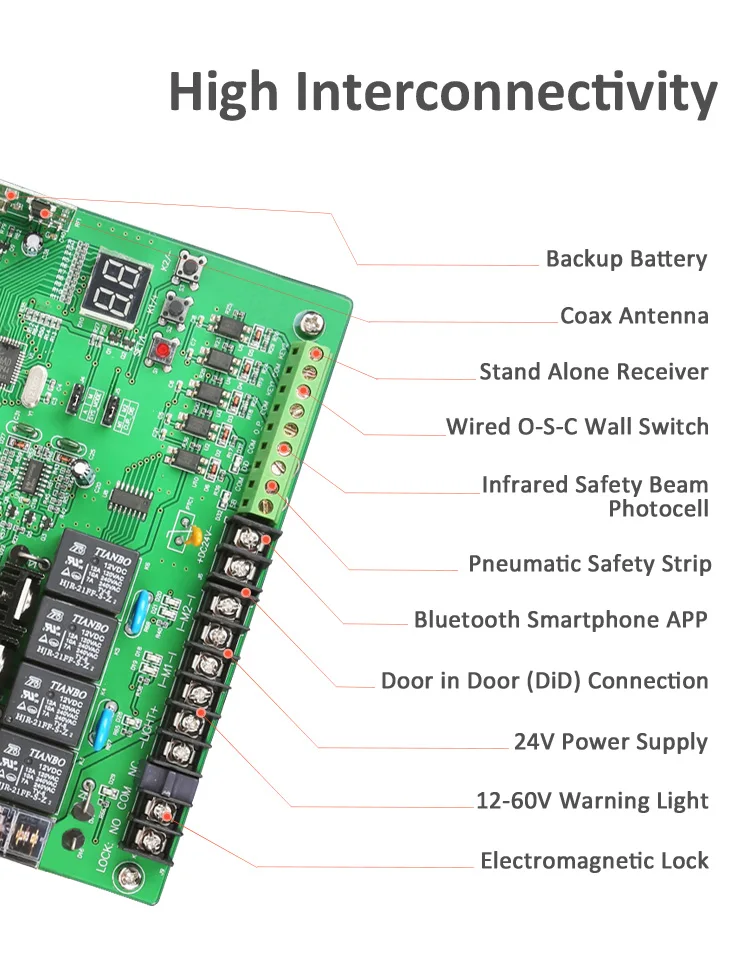

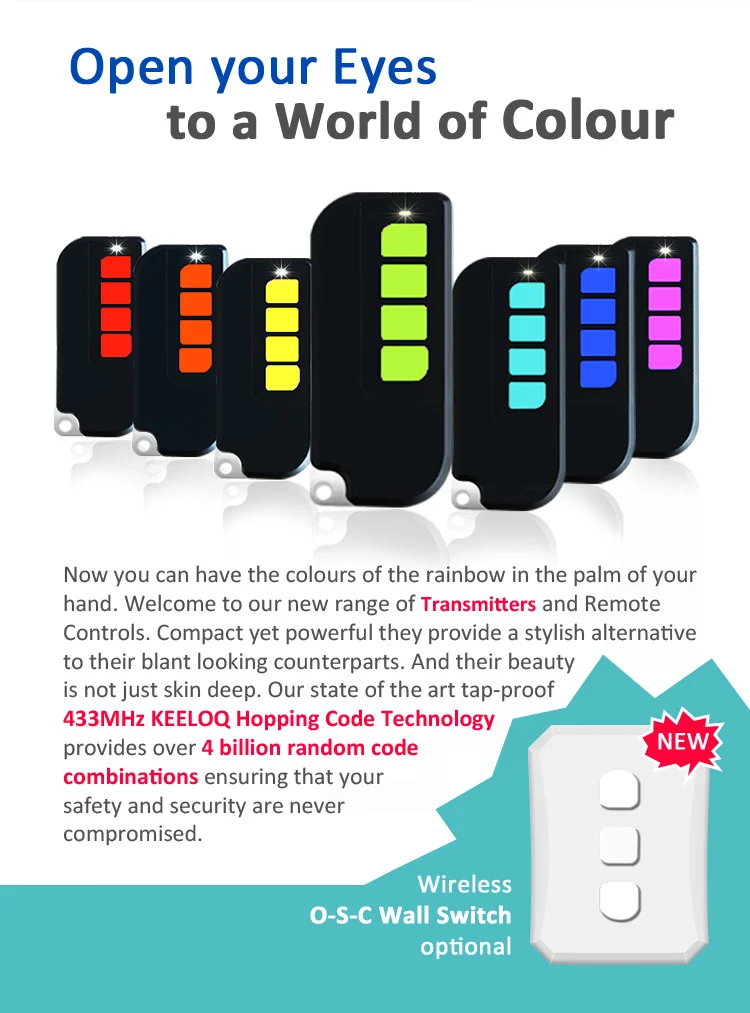

Rumba_07Rumba_07 (2)Rumba_04Rumba_09Rumba_03Rumba_06Rumba_024





Packaging & Shipping

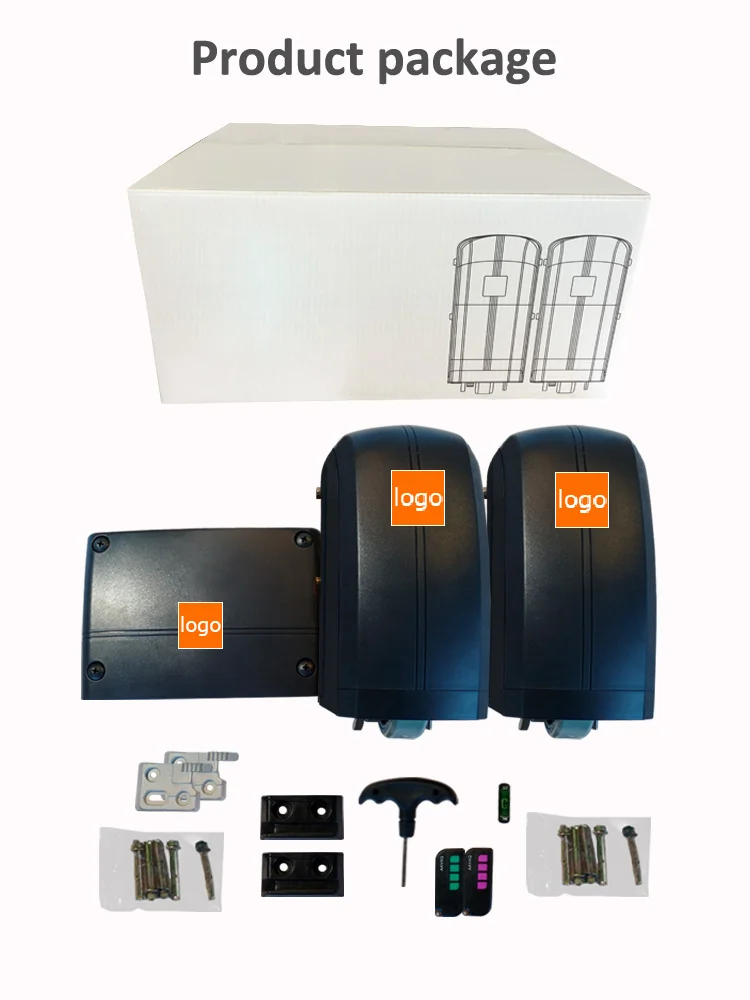

 Rumba_08





Company Information


factroy viewfactory view 1





FAQ


1Q: What kind of payment and price term?


AOur Payment terms are TT,LC at sight, B/L agaist copy etc.


2Q: Can you supply OEM/ODM service?


A: Yes, we supply OEM/ODM service


3Q: May I get free sample?


A: Yes, we could provide FREE samples


4Q: What is the lead time?


A: Our sample time is around 3-5 working days, order lead time is 25-30 working days


5Q: What is your warranty?


A: Our warranty is 5 years


6Q: What certification do you have?
A: We have UL, FCC, CE, GS, EMC, ROHS , REACH, KC, KCC, RCM, PSE, ISO9001, ISO14000 etc certification
