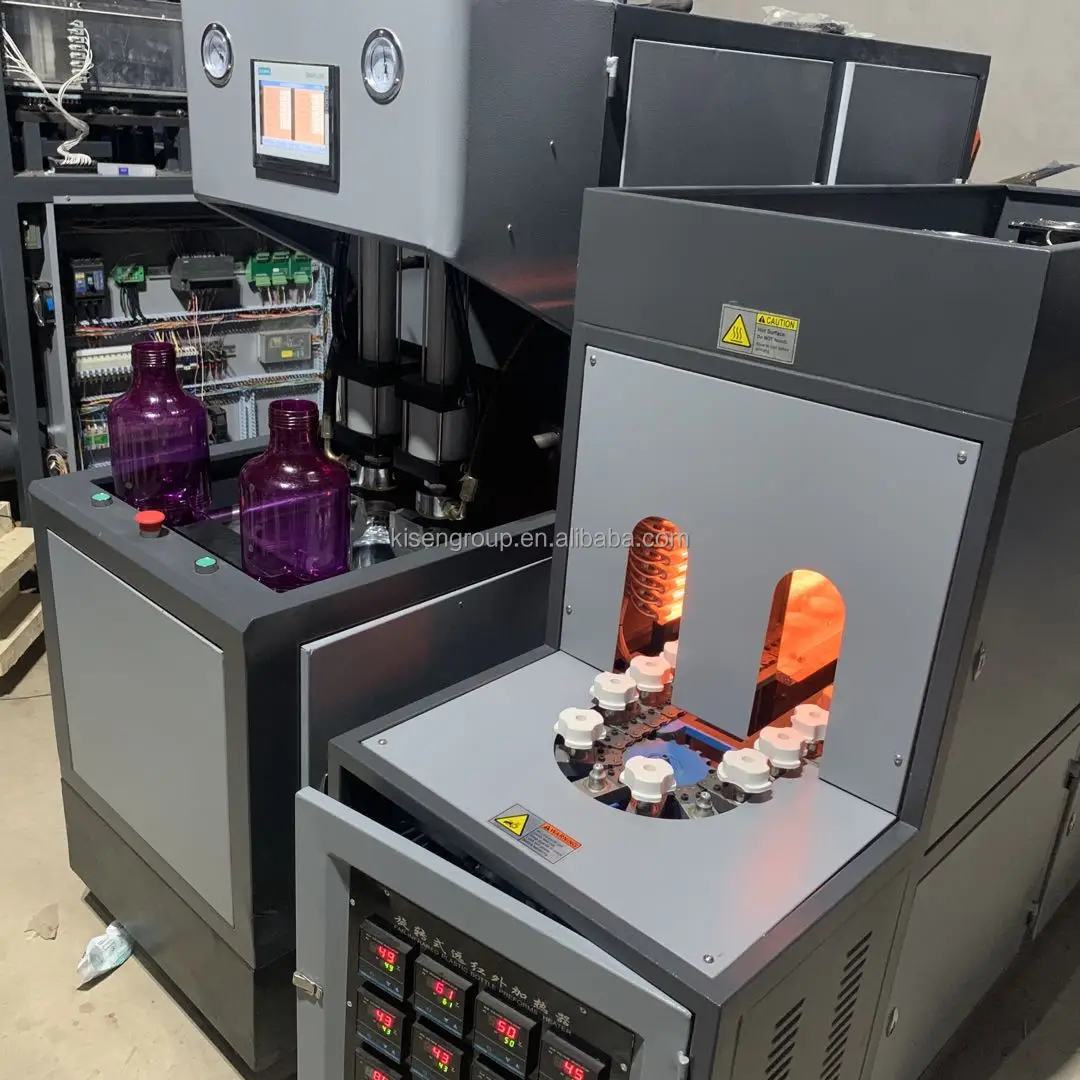

2 cavity blowing moulding machine price
CM-8Y1 2 cavity blowing moulding machine is suitable for producing PET plastic containers and bottles from 0.1 to 2.5L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Advanced double-crank clamping and mid-platen moving design ensure preforms do not drop during mould closing.
*Imported high pressure blowing system eusures higher clarity and faster production.
*Space saving, structure stable, easy and safe for operating.
Model | ITEM |
| CM-8Y1 |
Container | Product material | / | PET |
| Volume | L | 0.1~2L |
| Theoretical output | pcs/h | 600-900 |
| Preform length | mm | <300 |
| Preform inner diameter | mm | ≥φ12 |
Mould | Max.mould plate Diameter(L*W) | mm | 350*380 |
| Max.mould thickness | mm | 210 |
| Clamping force | KN | 45 |
| Mould opening stroke | mm | 160 |
Machine size and Weight | Main machine (L*W*H) | cm | 160*60*161 |
| Main machine weight | kg | 500 |
| Heater (L* W*H) | cm | 187*63*145 |
| Heater weight | kg | 250 |
| Power | kw | 17.5 |

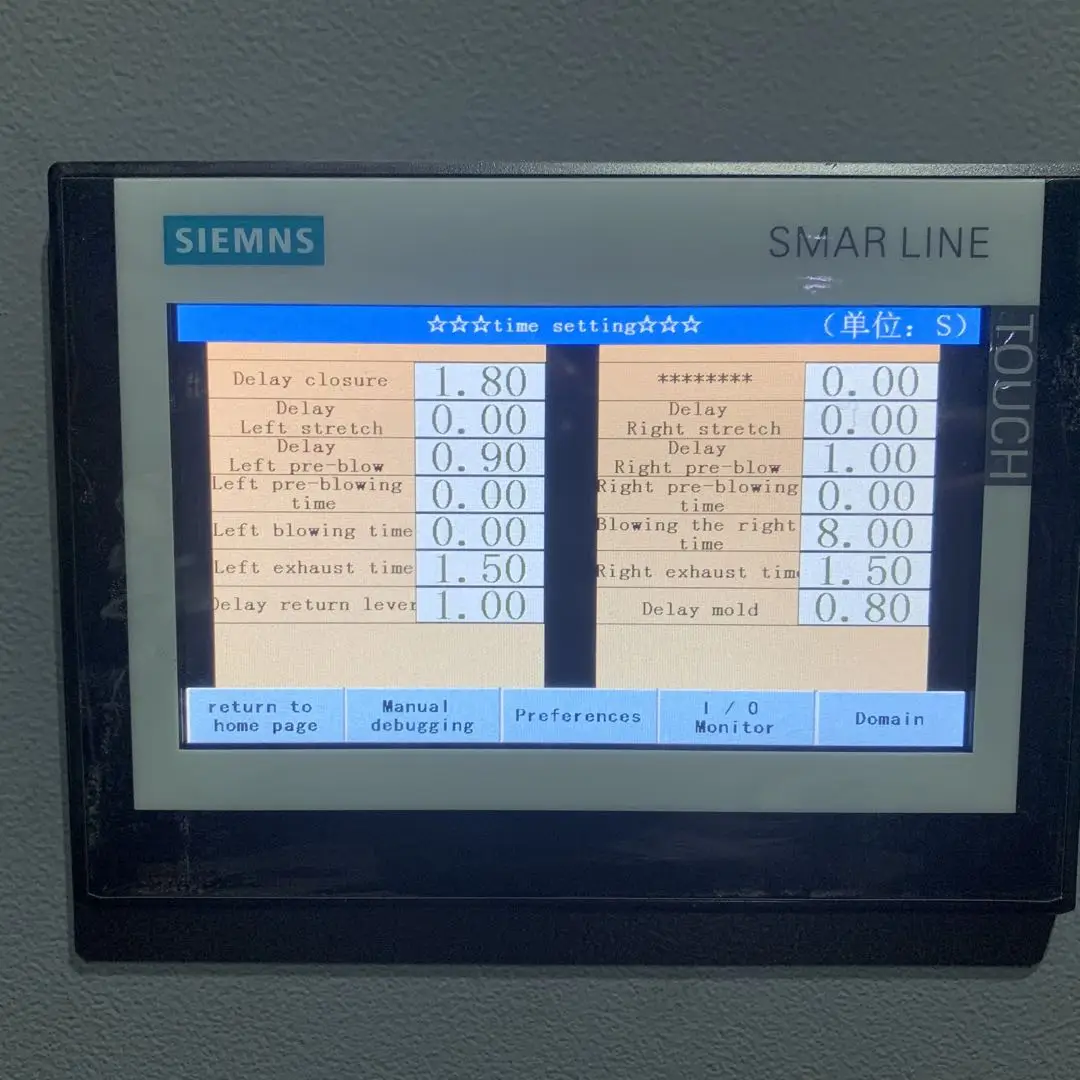

2021New touch screen control (machine upgrade )

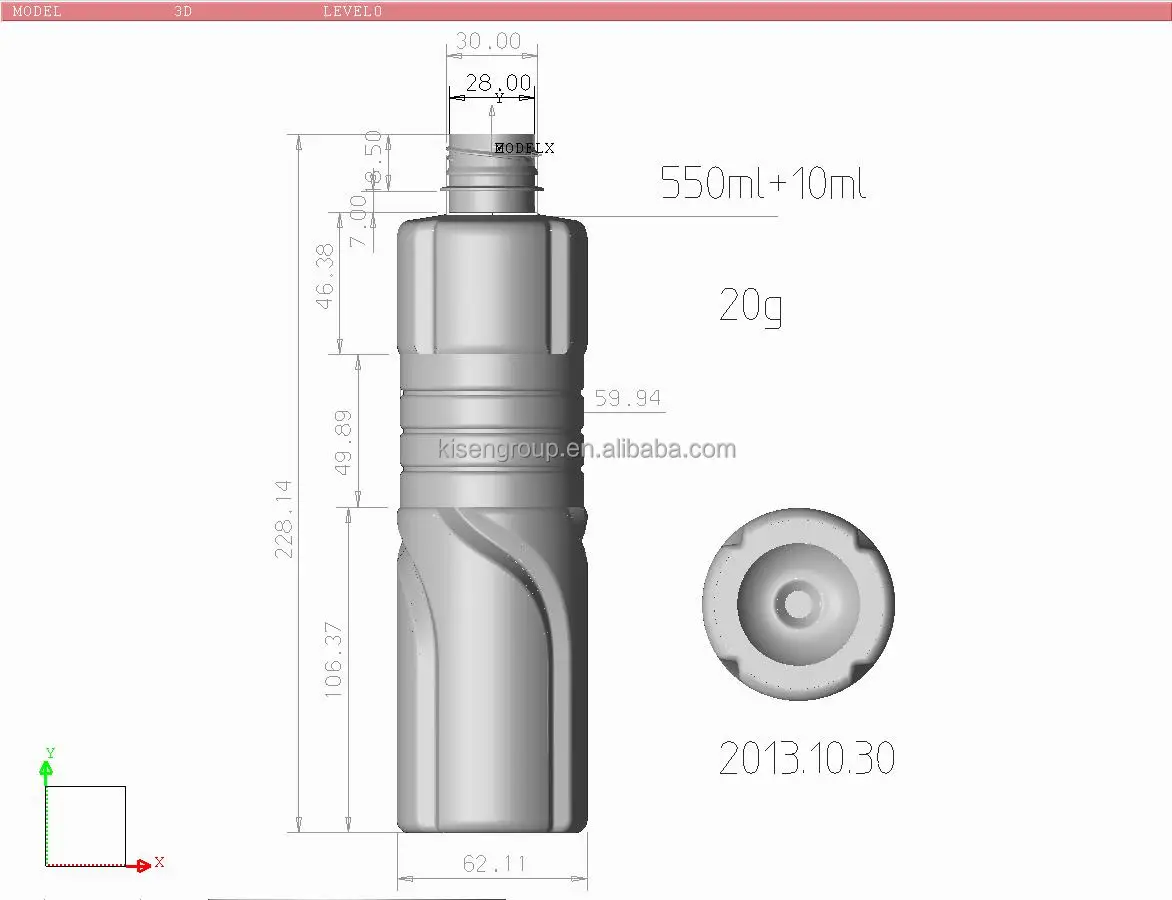

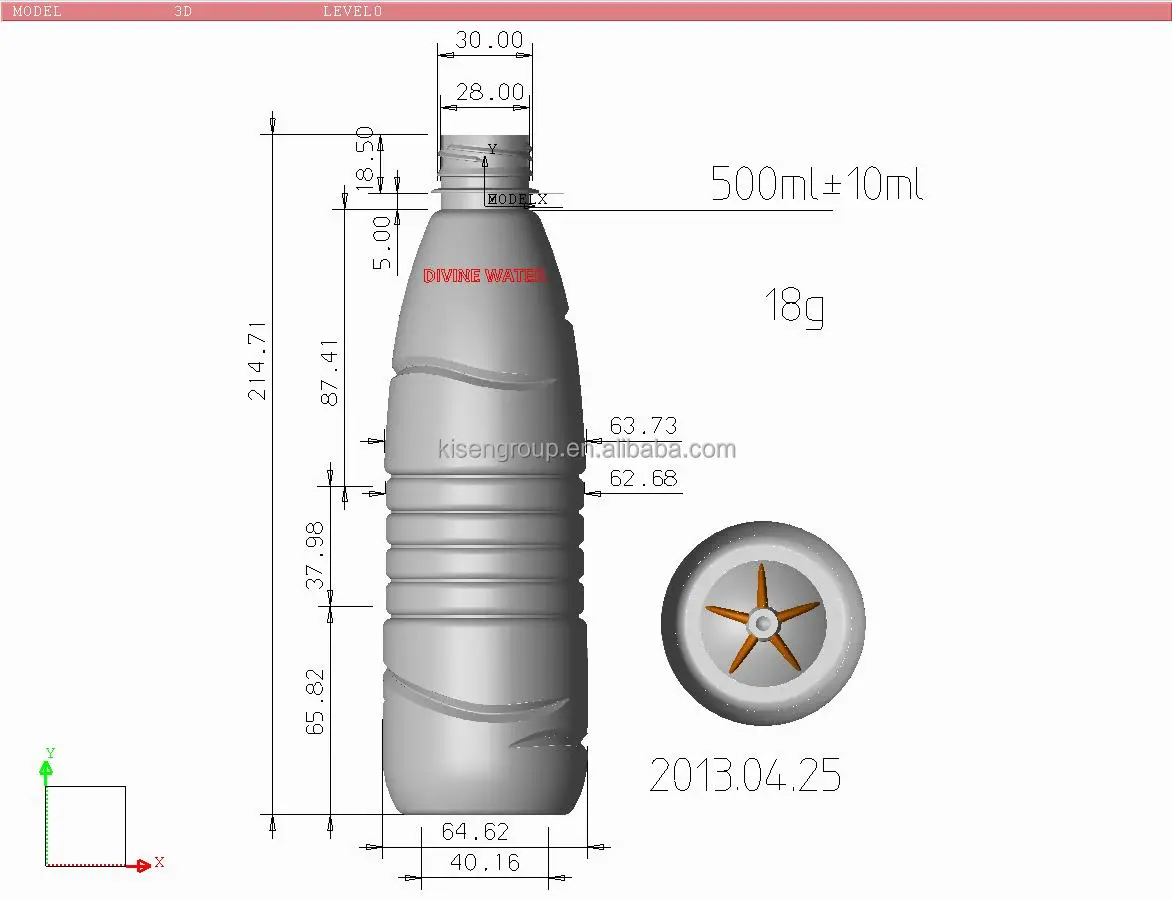

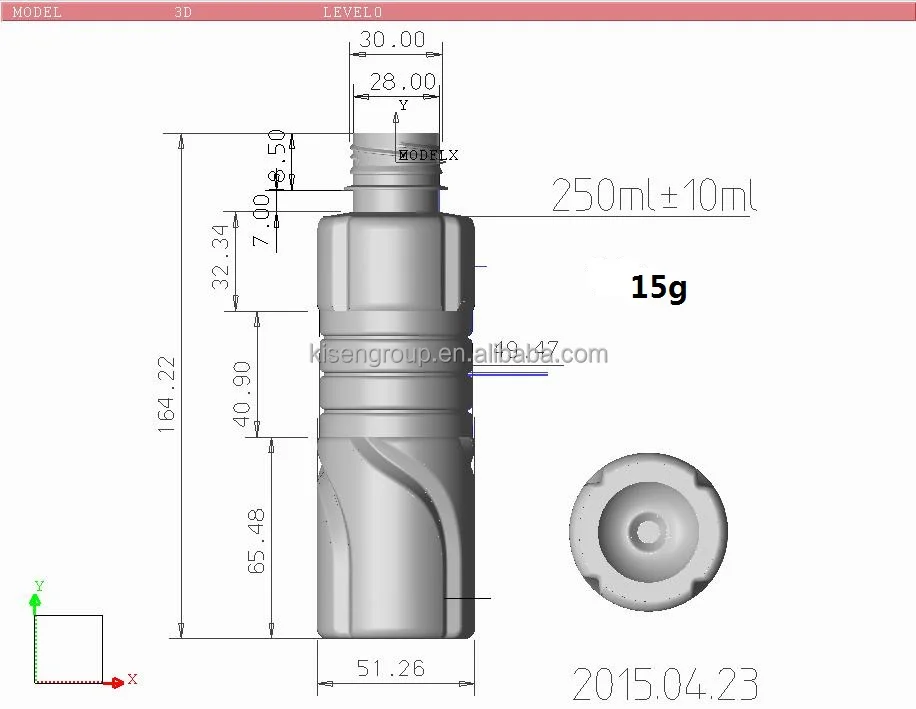

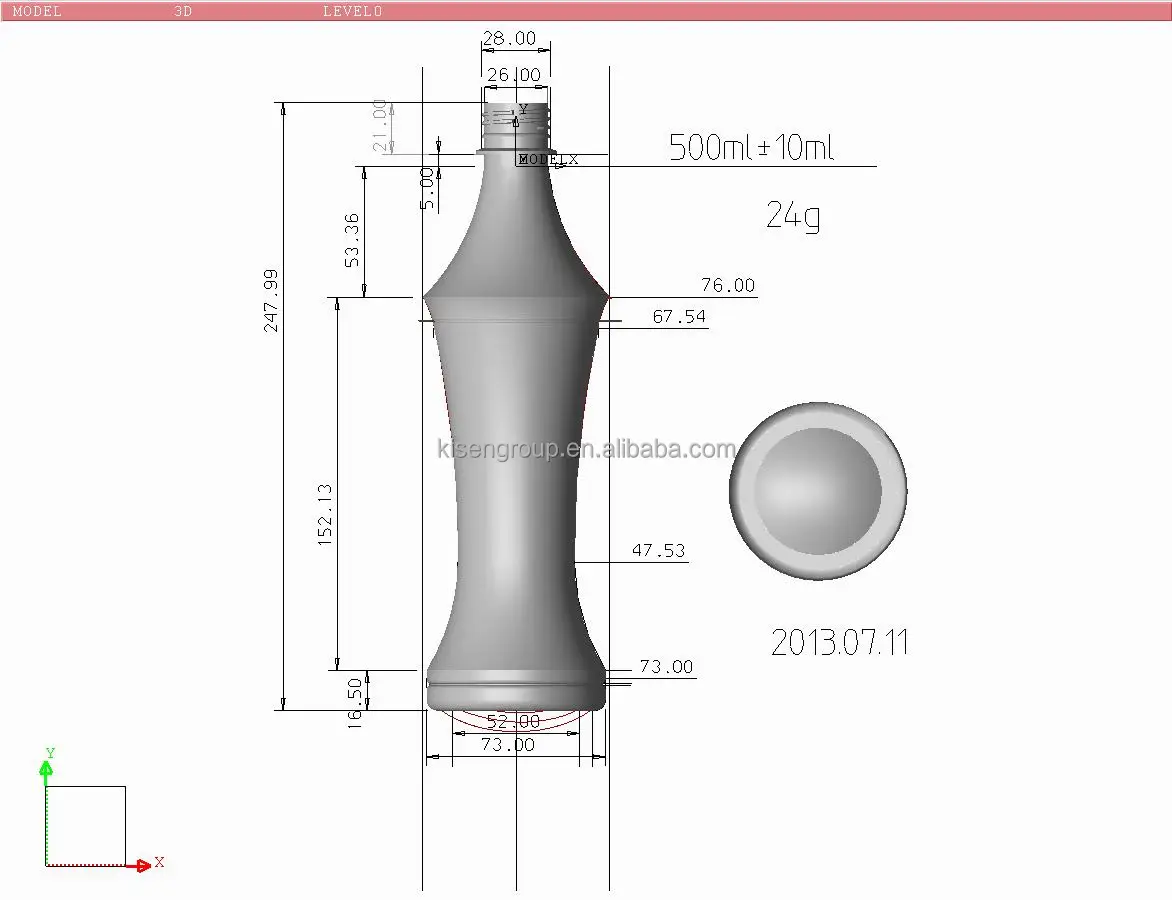

we can provide the complete machine with air compressor and free mould design service as well !

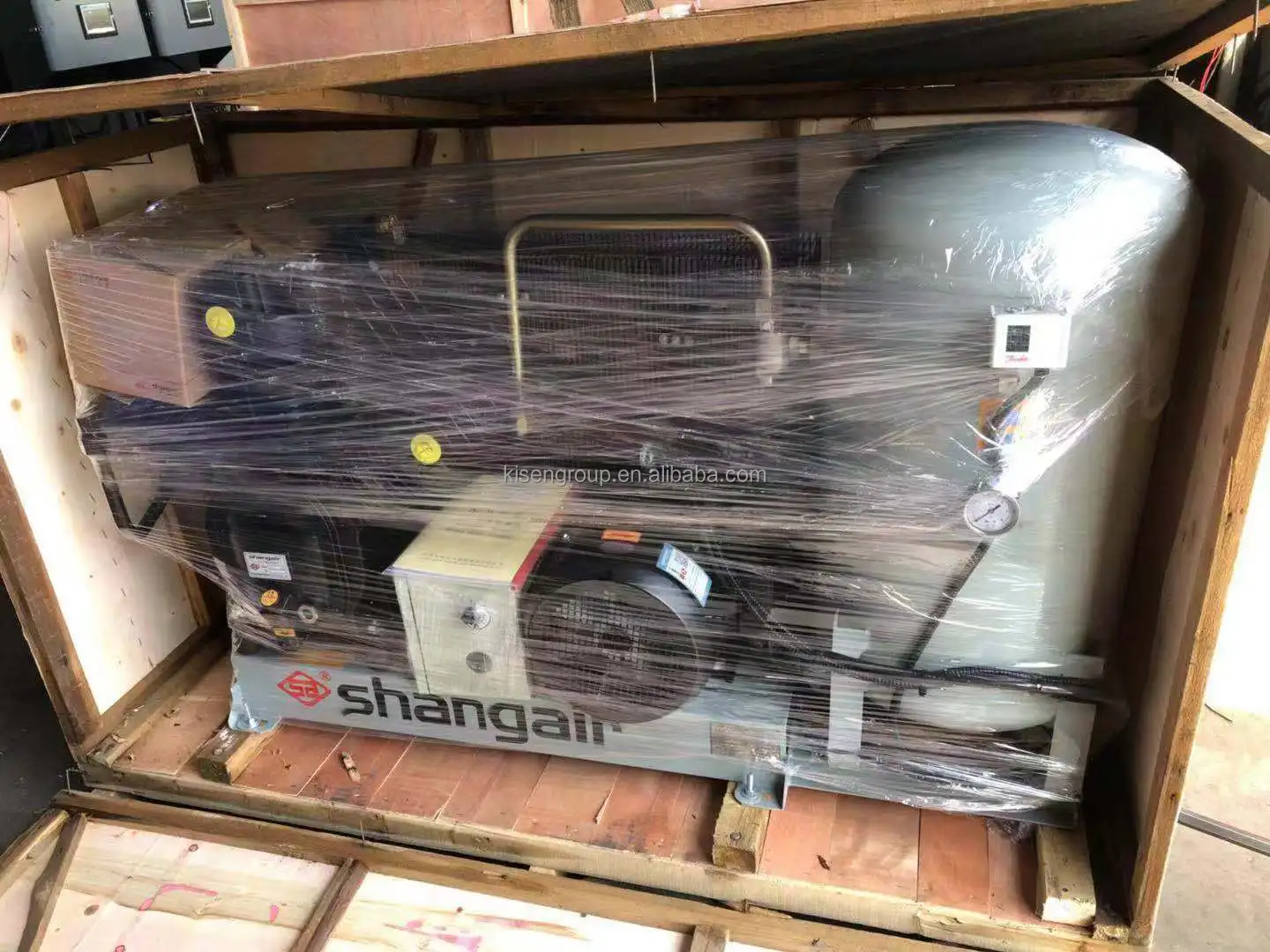

we advice this 2 cavity bottle blower a 0.7m3/min 30kg HP air compressor

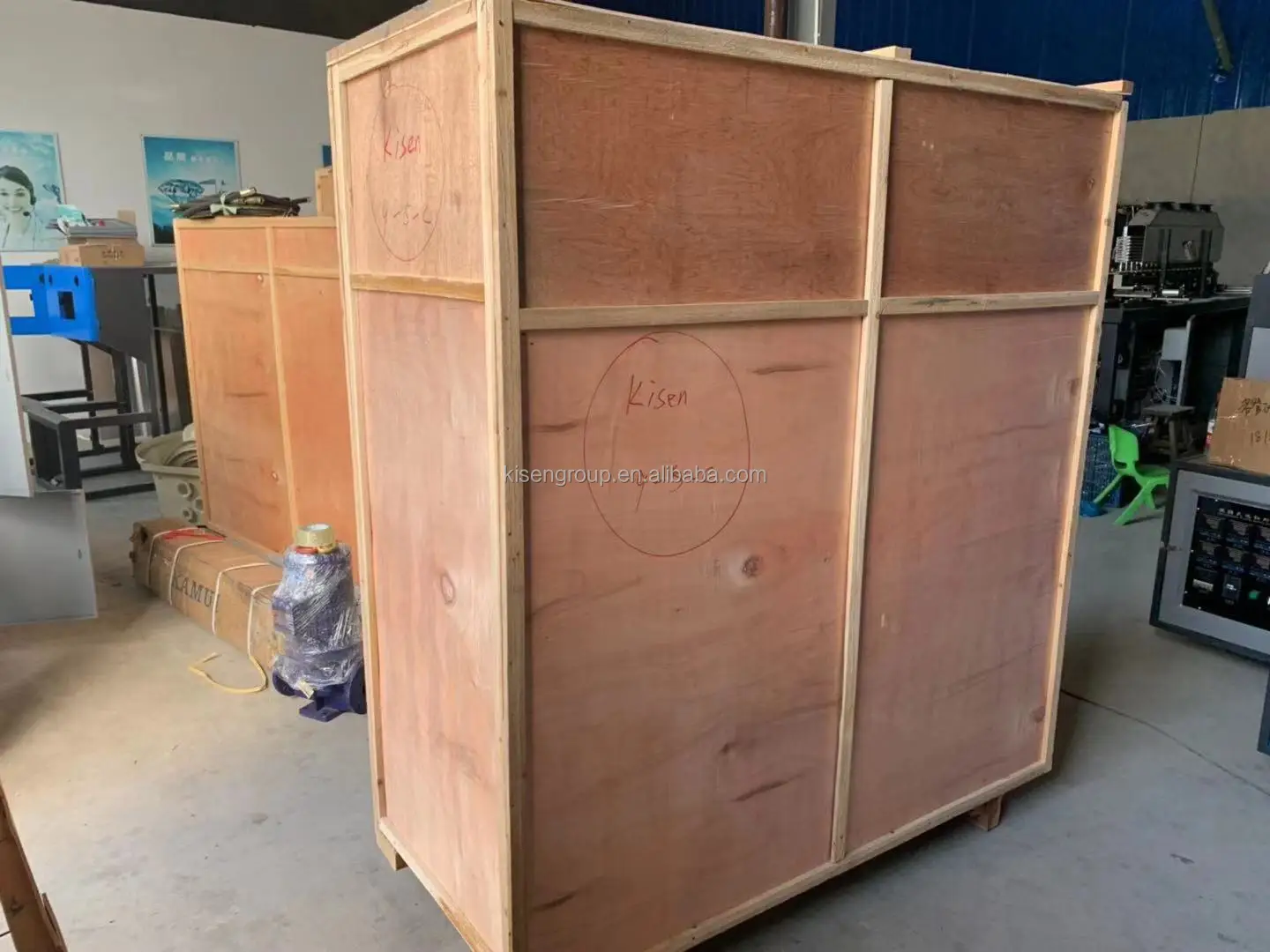

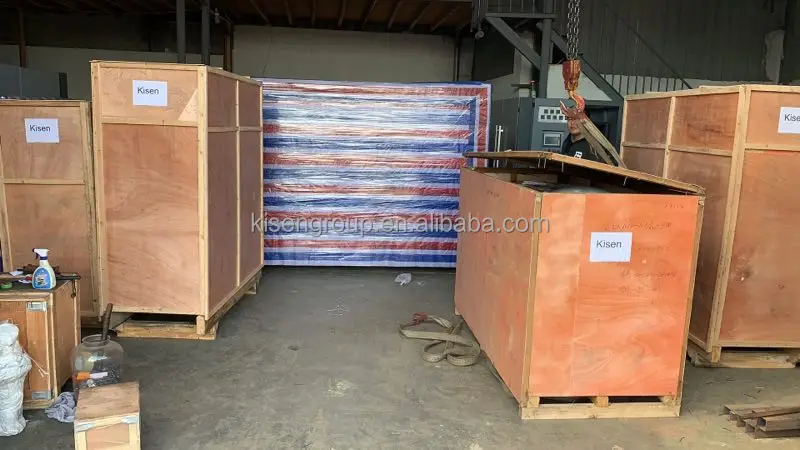

Machine packing
We also provide ship service , if you do not have ship agent in china ,we can provide you a C&F/CIF trade term service .(please contact our sales check ship cost )
