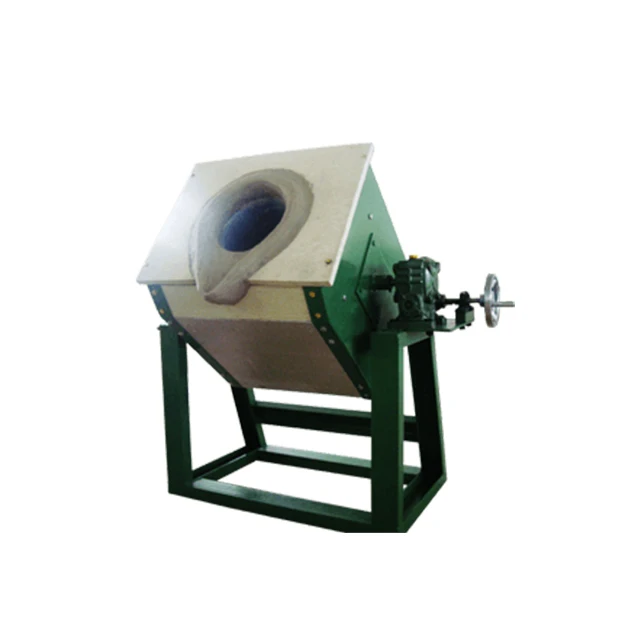

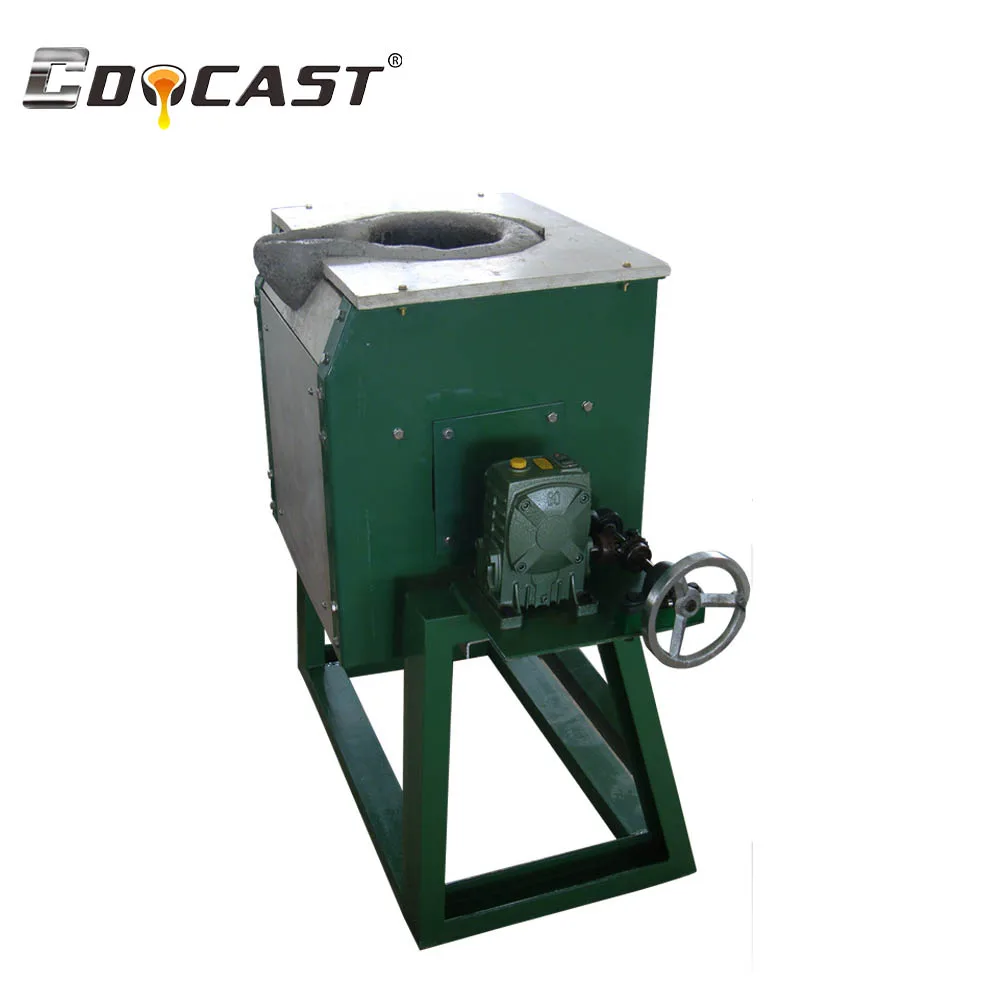

Small induction 10kg 20kg 30kg 40kg 50kg stainless steel melting furnaces for sale
- Category: >>>
- Supplier: Zhejiang Cooldo Electromechanical Equipment Co. Ltd.
Share on (1600212008774):
Product Overview
Description
Products Description
Small induction 10kg 20kg 30kg 40kg 50kg stainless steel melting furnaces for sale

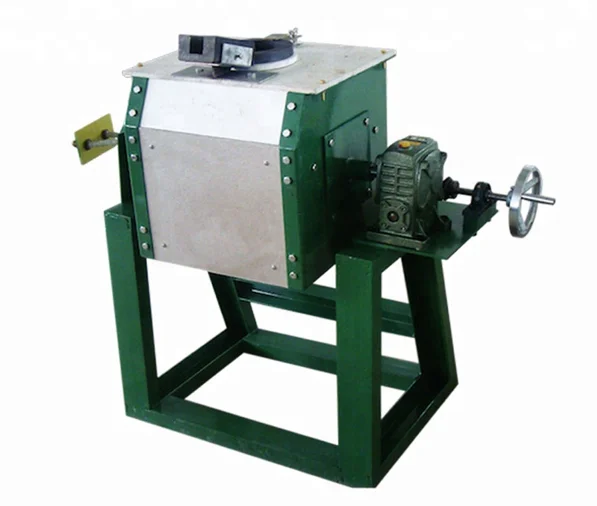

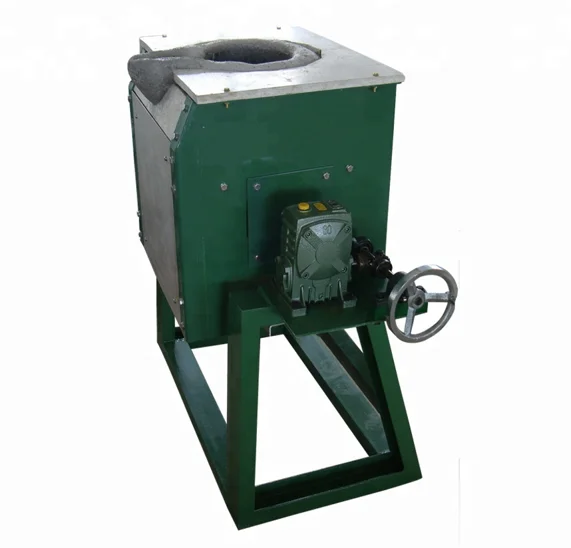

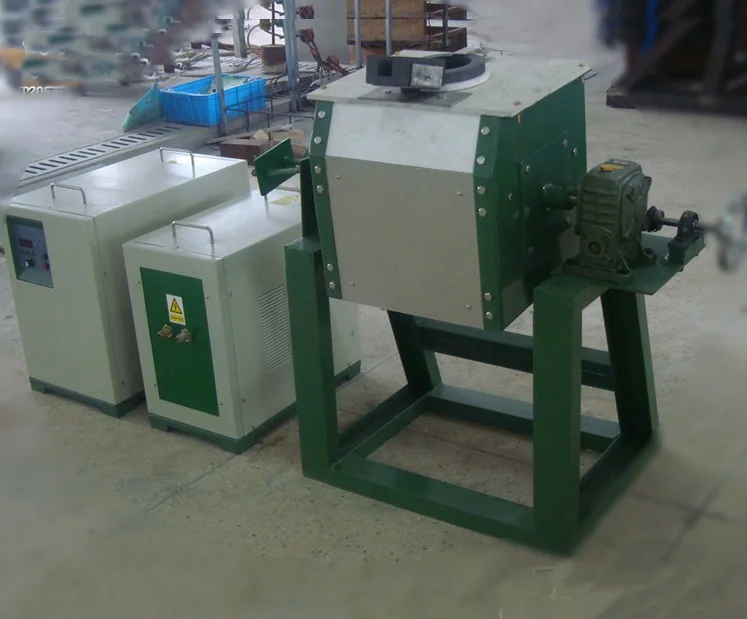

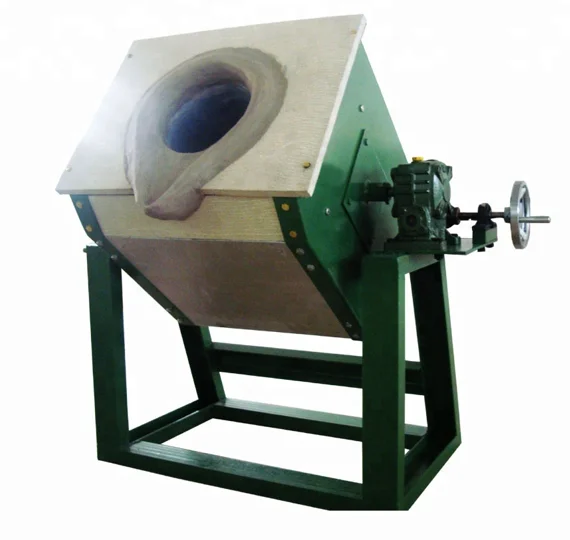

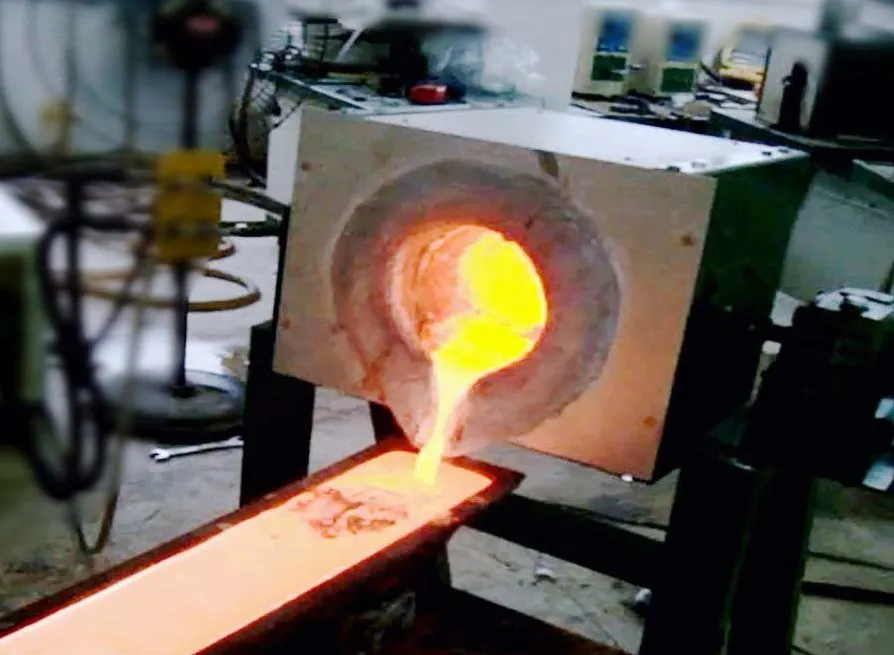

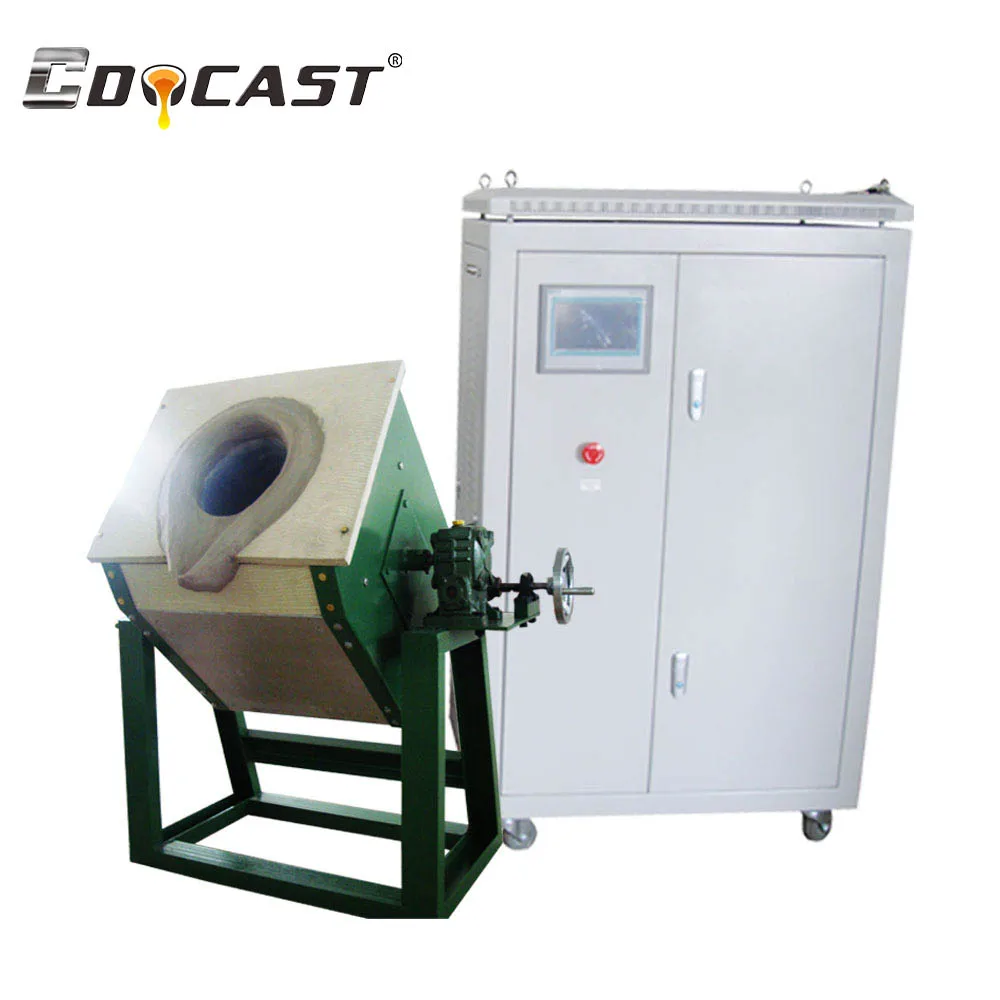

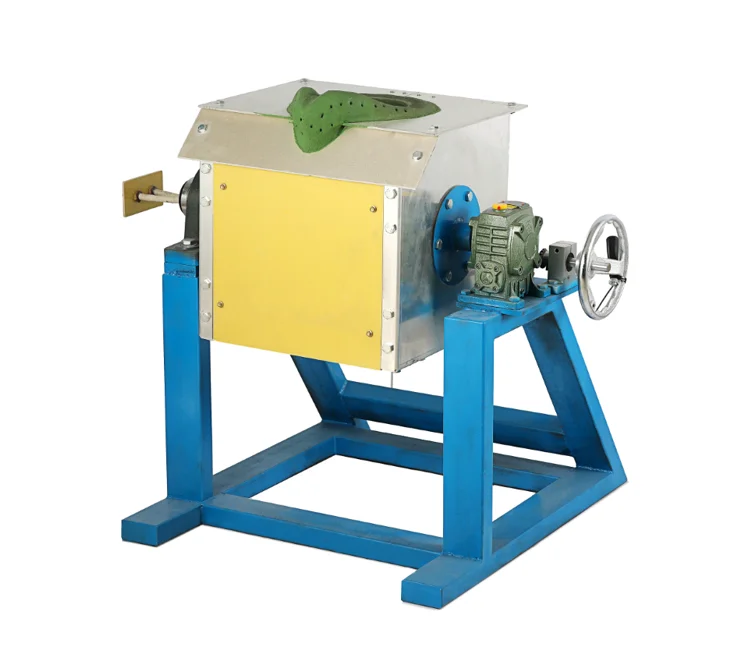

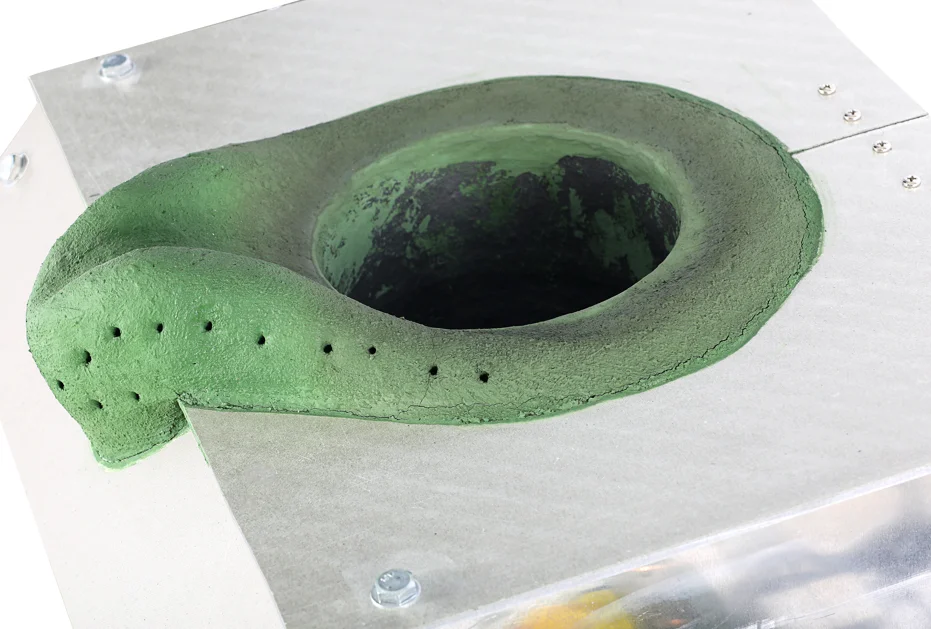

This small manual tilting induction melting furnace can operate continuously for 24 hours.The furnace body adopts manual inclined structure, which is simple and convenient, economical and practical.A motor can also be added to make the furnace body automatically tilt into the motor furnace body, especially suitable for the furnace with large capacity and difficult work of manual tilt operation.Metal smelting furnace using silicon carbide graphite and zirconia crucible, usually used to melt gold, silver, copper, aluminum.We will use silicon carbide graphite crucible, and for high melting point metals such as stainless steel, iron, platinum, we will use zirconia crucible which can withstand high temperature.
1, IGBT Technology

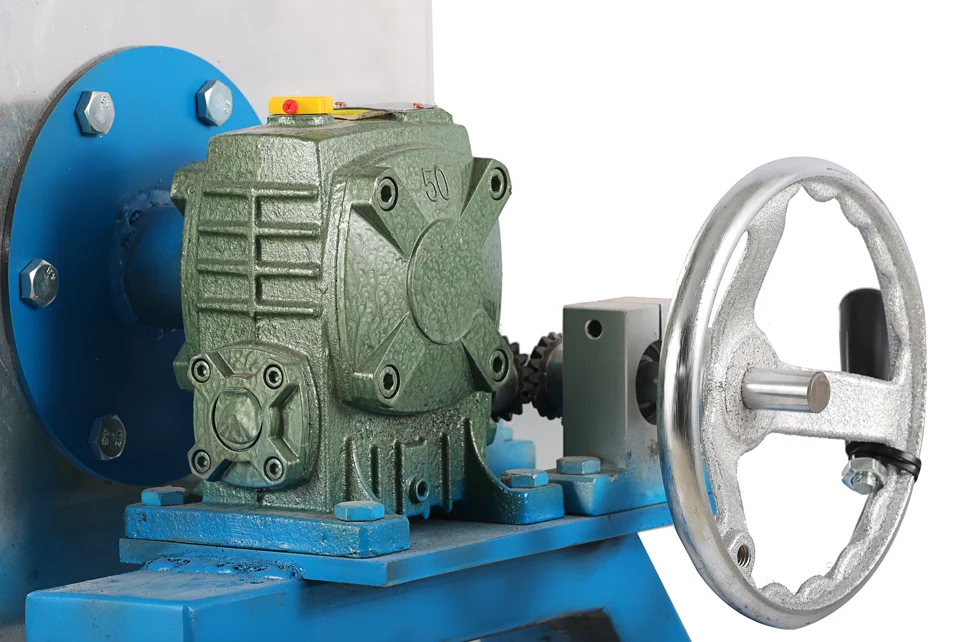

2, Manual Tilting wheel system device
3, Energy efficient, higher power factor and power efficient
4, Wide range 1~20kHz frequency automatic tracking adaptability
5, Working ability of consecutive 24 hours 100% full load

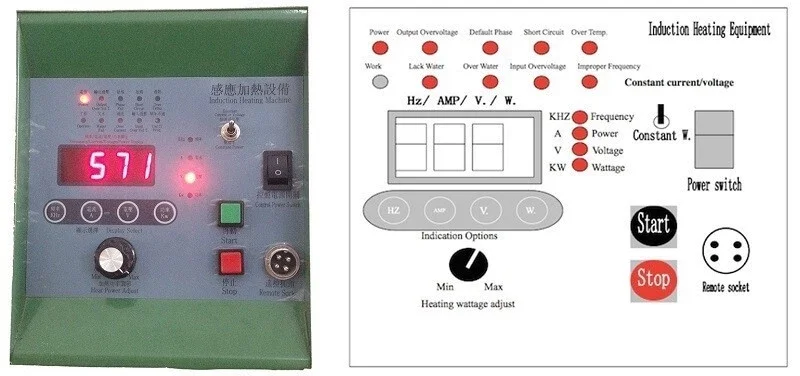

6, The control selection function for constant output voltage or constant current/constant power Frequency, power, voltage and current full display, adjustable heating, holding time(0.1s-99.9s)
7, Economic and easy to install
8, Low cost for maintainance
9, Compact size
Model | CDO- MTF15 | CDO- MTF25 | CDO- MTF35 | CDO-MTF45 | CDO-MTF70 | CDO-MTF90 | CDO-MTF110 | CDO-MTF160 | |||||||||
MAX input power | 15kw | 25kw | 35kw | 45kw | 70kw | 90kw | 110kw | 160kw | |||||||||
MAX input current | 23A | 36A | 51A | 68A | 105A | 135A | 168A | 240A | |||||||||
Input voltage | Three-phase 340V-420V 50/60Hz | ||||||||||||||||
Oscillation frequency | 1K-20KHz | ||||||||||||||||
Requirement of cooling water | Hydraulic pressure | ≥0.2Mpa | ≥0.3Mpa | ||||||||||||||
Flow rate | ≥6L/min | ≥20L/min | |||||||||||||||
Temperature of water | ≤45℃ | ||||||||||||||||

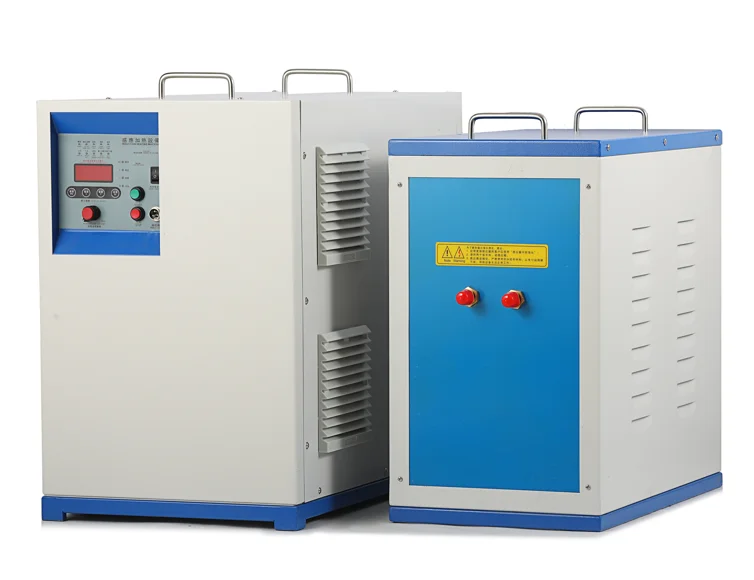

Generator box | Weight | 28kg | 29kg | 52kg | 52kg | 57kg | 91kg | 99kg | 134kg | ||||||||
Volume | 51*28*49cm | 65*35*58cm | 78*40*88cm | 78*50*88 cm | |||||||||||||
Transformer box | Weight | 35kg | 35kg | 35kg | 38kg | 52kg | 68kg | 95kg | 95kg | ||||||||
Volume | 62*30*53cm | 64*48*58cm | 64*65*61cm | ||||||||||||||
Melting Capacity Parameter of Manual Tilting Metal Melting Furnace
Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy | Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy | |||||||||
CDO-MTF15 | 3kg | 10kg | 3kg | CDO-MTF70 | 25kg | 80kg | 25kg | |||||||||
CDO-MTF25 | 5kg | 20kg | 5kg | CDO-MTF90 | 40kg | 120kg | 40kg | |||||||||
CDO-MTF35 | 10kg | 30kg | 10kg | CDO-MTF110 | 50kg | 150kg | 50kg | |||||||||
CDO-MTF45 | 18kg | 50kg | 18kg | CDO-MTF160 | 100kg | 250kg | 100kg | |||||||||
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload. | ||||||||||||||||

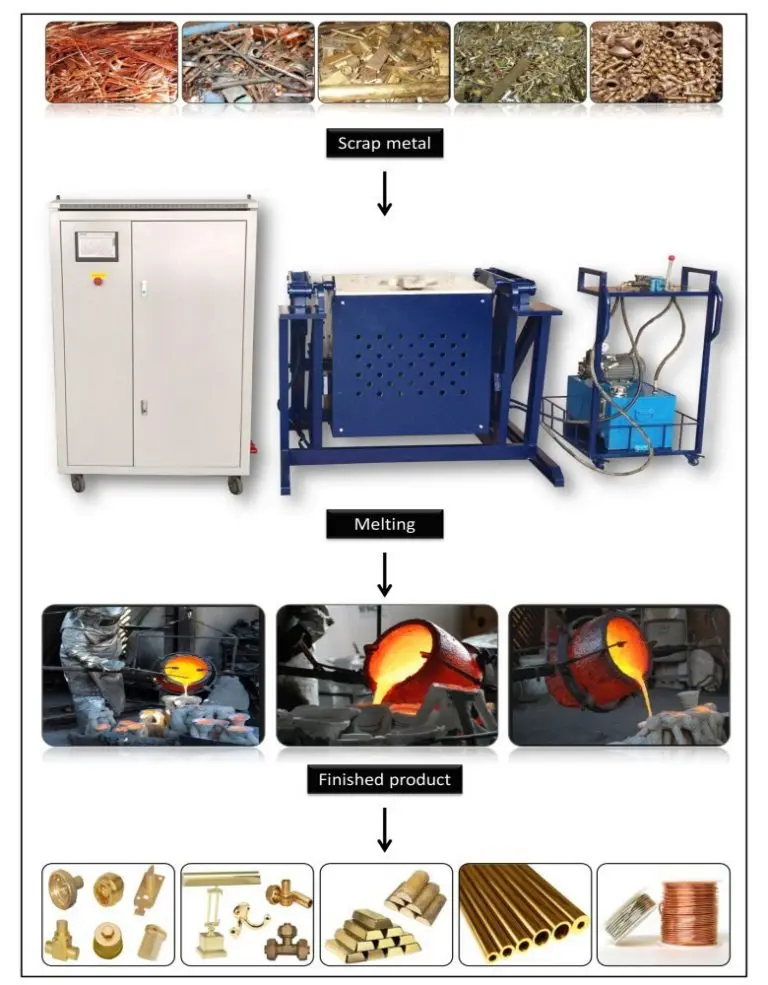

Application
Packing & Delivery
Factory
Showing Room
Customer Photos
Customer Feedback
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
