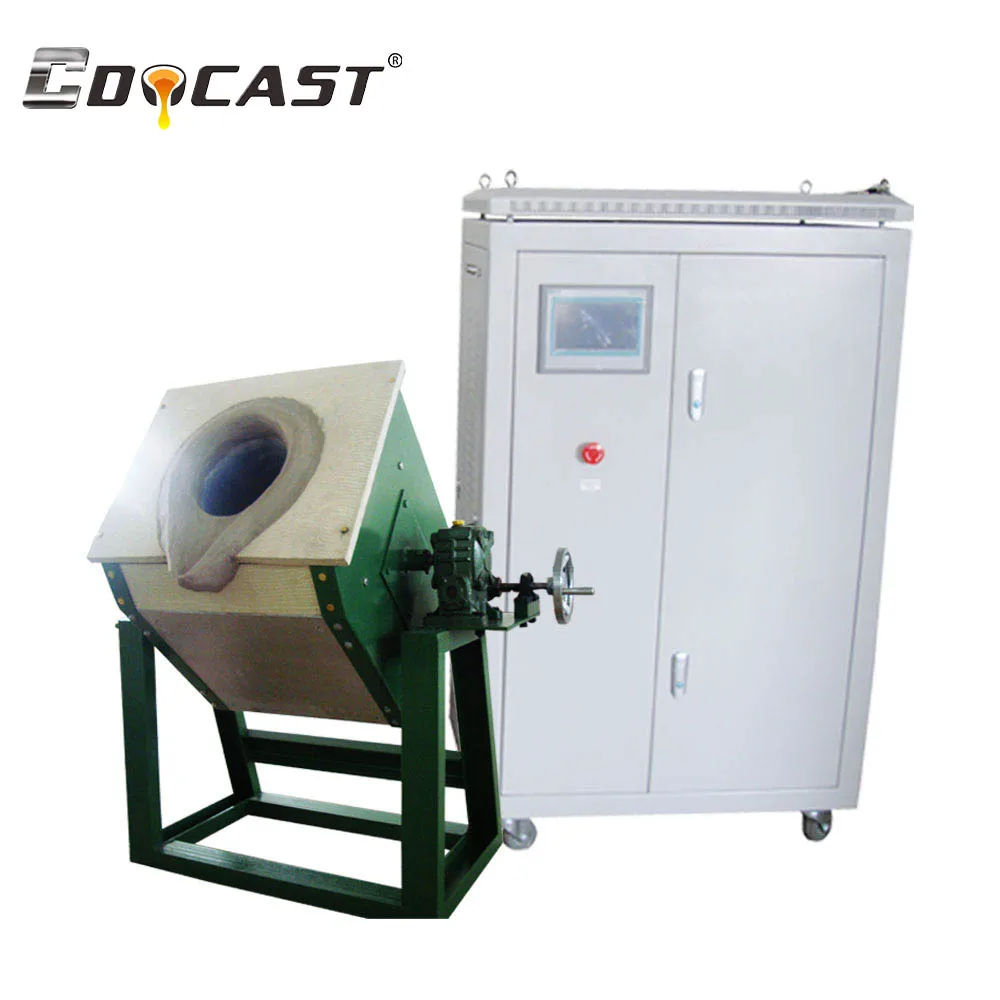

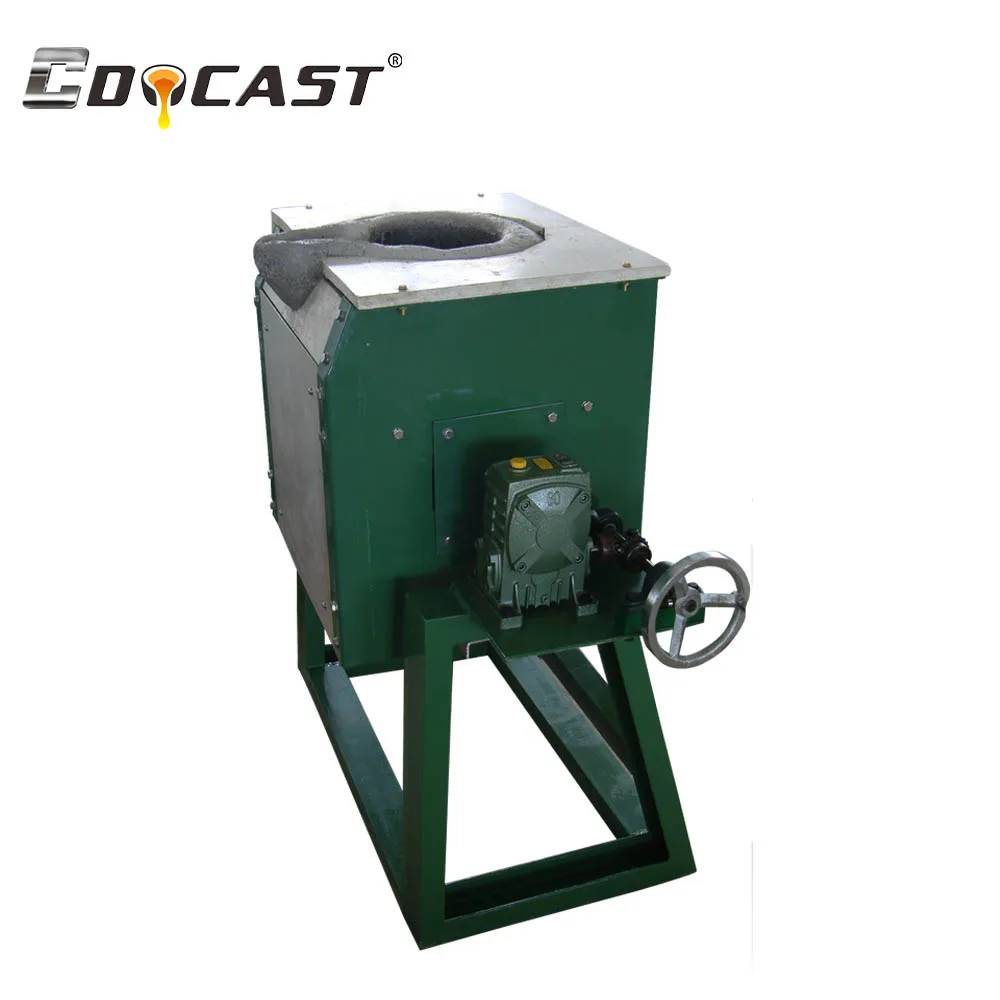

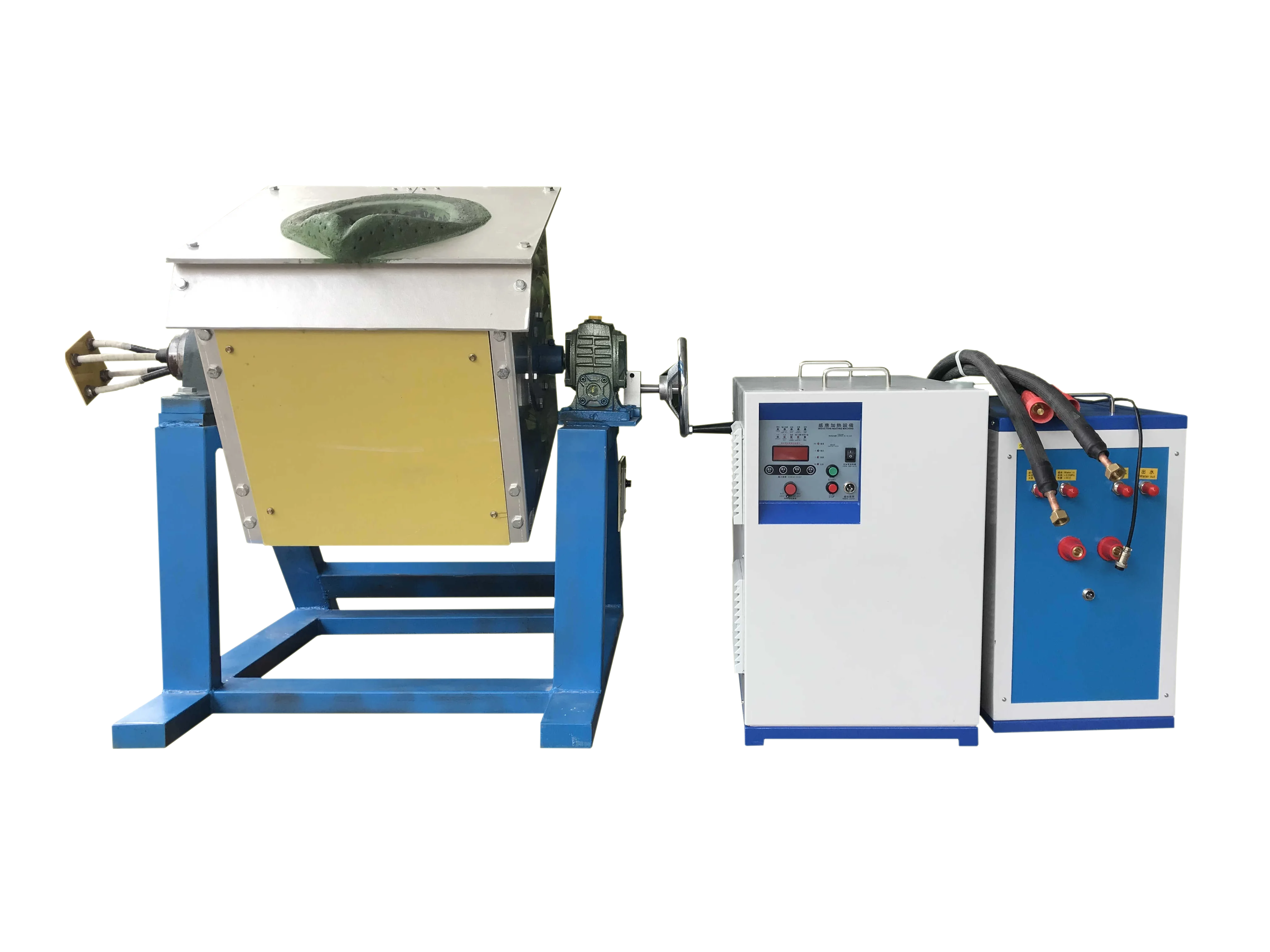

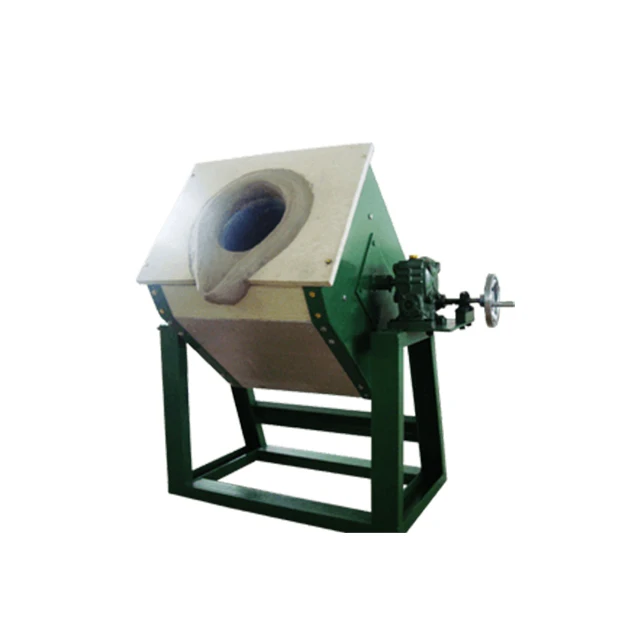

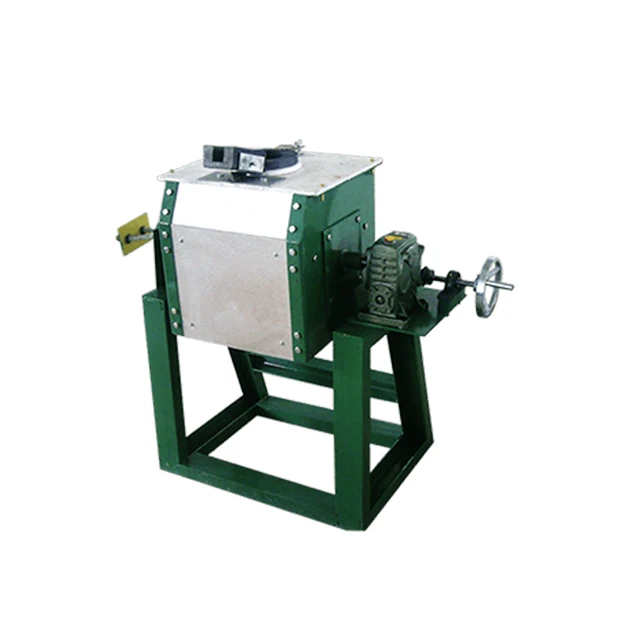

Small Capacity Induction Manual Tilting Melting Furnace For Ferrous and Non Ferrous Metal
- Category: >>>
- Supplier: Zhejiang Cooldo Electromechanical Equipment Co. Ltd.
Share on (1600212031682):
Product Overview
Description
Products Description
Small Capacity Induction Manual Tilting Melting Furnace For Ferrous and Non-Ferrous Metal
This small manual tilting induction melting furnace can operate continuously for 24 hours.The furnace body adopts manual inclined structure, which is simple and convenient, economical and practical.A motor can also be added to make the furnace body automatically tilt into the motor furnace body, especially suitable for the furnace with large capacity and difficult work of manual tilt operation.Metal smelting furnace using silicon carbide graphite and zirconia crucible, usually used to melt gold, silver, copper, aluminum.We will use silicon carbide graphite crucible, and for high melting point metals such as stainless steel, iron, platinum, we will use zirconia crucible which can withstand high temperature.

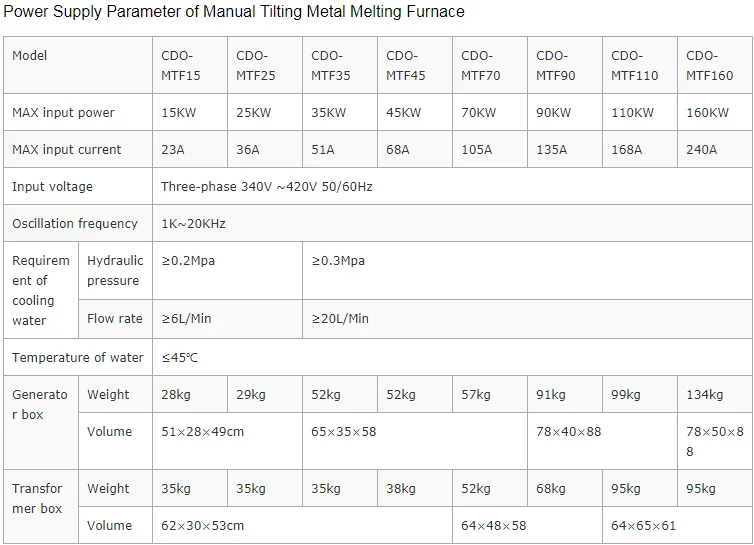

Parameter
Melting Capacity Parameter of Manual Tilting Metal Melting Furnace
Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy | Model | Fe, ss | Cu, Au, Ag | Al, Al-alloy | |||||||||
CDO-MTF15 | 3kg | 10kg | 3kg | CDO-MTF70 | 25kg | 80kg | 25kg | |||||||||
CDO-MTF25 | 5kg | 20kg | 5kg | CDO-MTF90 | 40kg | 120kg | 40kg | |||||||||
CDO-MTF35 | 10kg | 30kg | 10kg | CDO-MTF110 | 50kg | 150kg | 50kg | |||||||||
CDO-MTF45 | 18kg | 50kg | 18kg | CDO-MTF160 | 100kg | 250kg | 100kg | |||||||||
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload. | ||||||||||||||||
Application
Feature
1: CDOCAST induction melting machine has the magnetic stirring induction heating function, which can make the metal melting more homogeneous and evenly, additionally, improves the casting speed.
2: Original handle operation, easy and convenient to pour molten metal. Removable high temperature resistant mica board is installed in the dumping area.

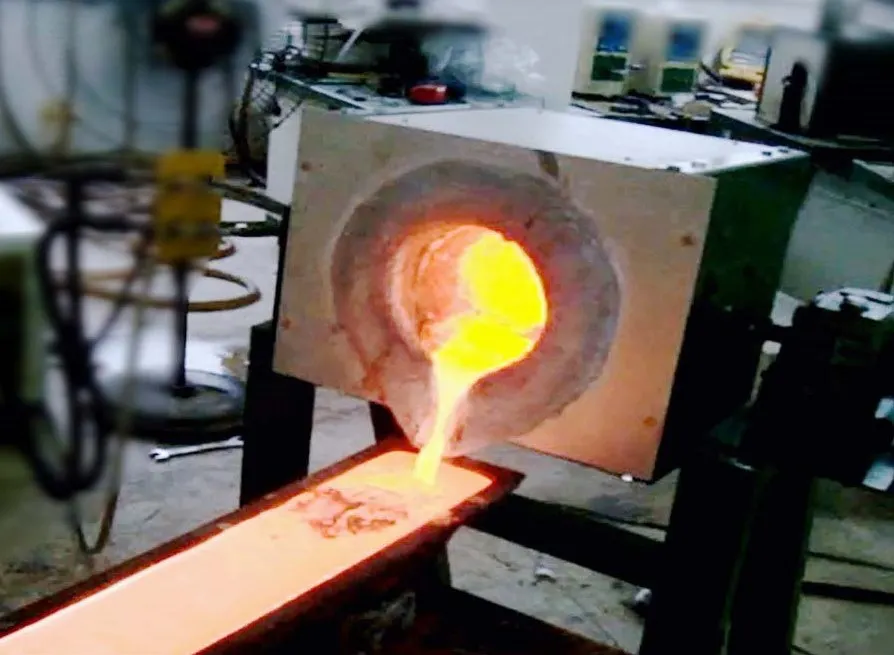

3: The entire melting process is safe to operate. When the smelting is completed, the liquid metal can be easily and precisely poured into the mold by moving the handle.
4: The induction melting machine is Configured with a variety of safety alarm system, if the occurrence of over-current, over-voltage, water shortage and other conditions, the machine will stop running automaticlly , which can effectively protect the machine!
5: Thermocouple or infrared thermometer temperature control can be installed as optional part to monitor the temperature of the entire melting process.
6: The highest temperature can reach 2000°C, and the power is high. The metal materials such as copper, aluminum, steel, gold, silver, etc. can be quickly smelted.
7: Comes with the Ability to work continuously for 24 hours, greatly increasing productivity.
Packing & Delivery
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
