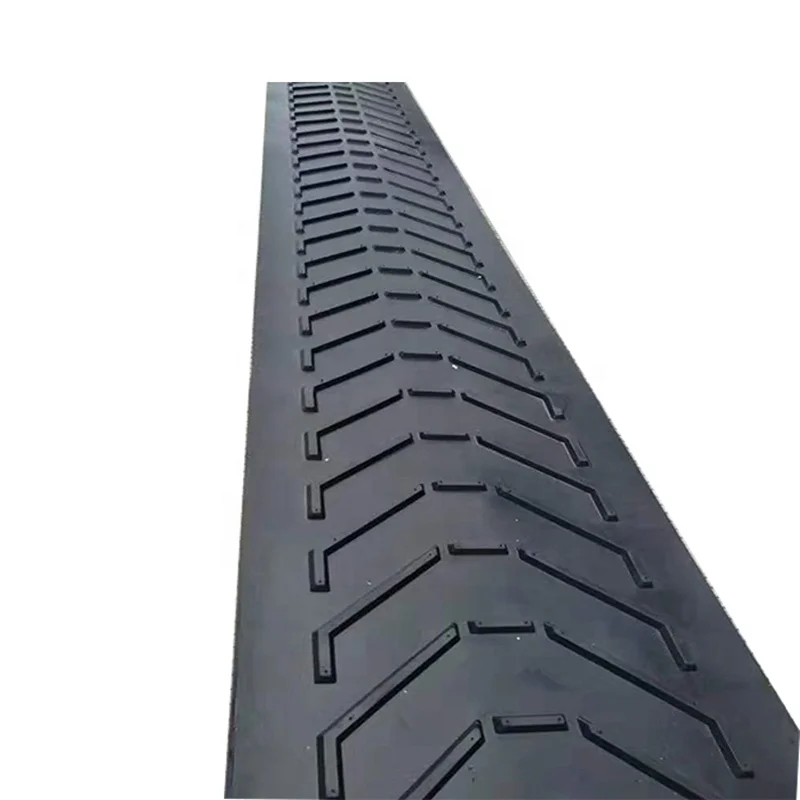

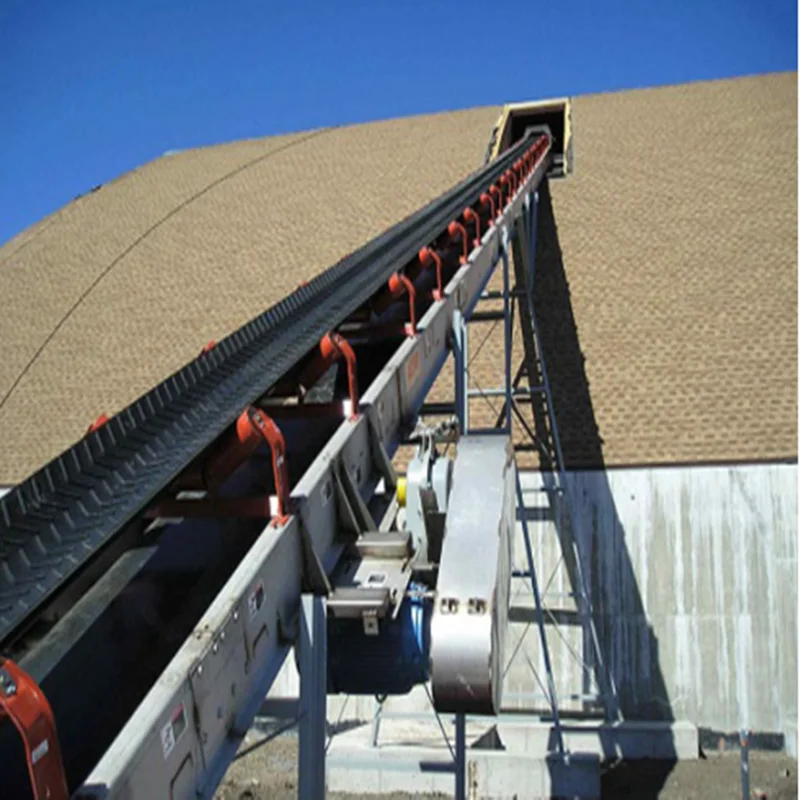

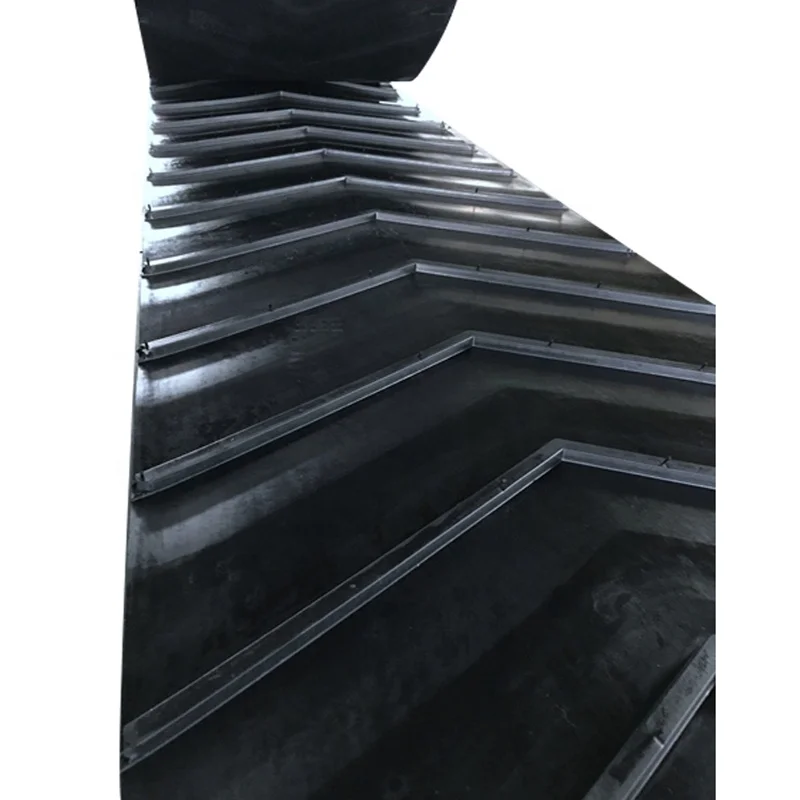

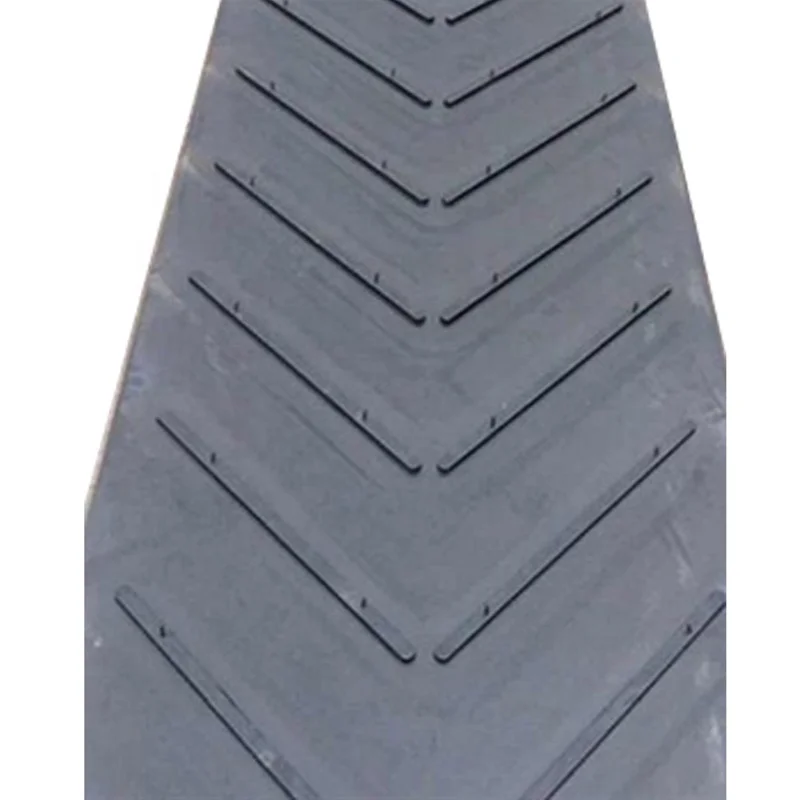

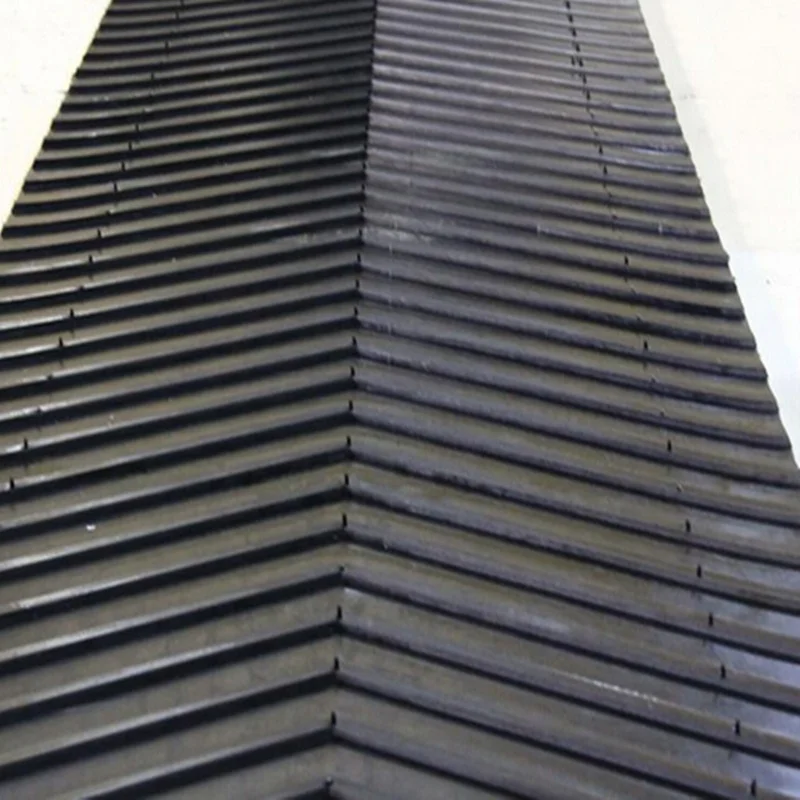

Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
Anti-slip;
Cleats and top cover rubber are vulcanized integrally;
Cleat pattern, angle and pitch are designed elaborately.
Selection of a type and height of cleats depends on the materials conveyed and the angle of inclination:
Type of material
Material example
Max. angle of inclination
Height of cleats
H(mm):14
H(mm):16
H(mm):25
H(mm):32
Powdery
Flour, etc.
25°
25°
28°
30°
Loose flowing
Corn, barley, wheat, rye, etc.
20/25°
20/25°
25/30°
25/30°
Loose rolling
Gravel, ground stone, etc.
25°
25°
28°
30°
Packed
Sacks, paper sacks, etc.
30/35°
30/35°
35/40°
35/40°
Sticky
Wet sand, ash, wet loam, etc.
30°
30/35°
35/40°
40/45°

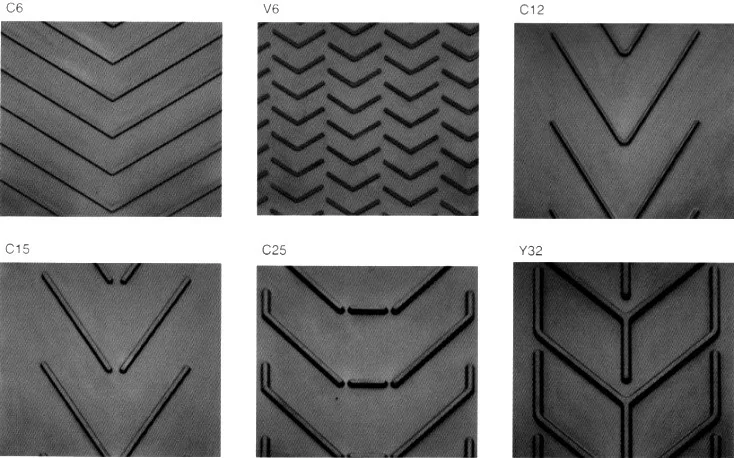

Cleat pattern ranges: Conveyor belts with close V type, open V type, C type, and Y type:

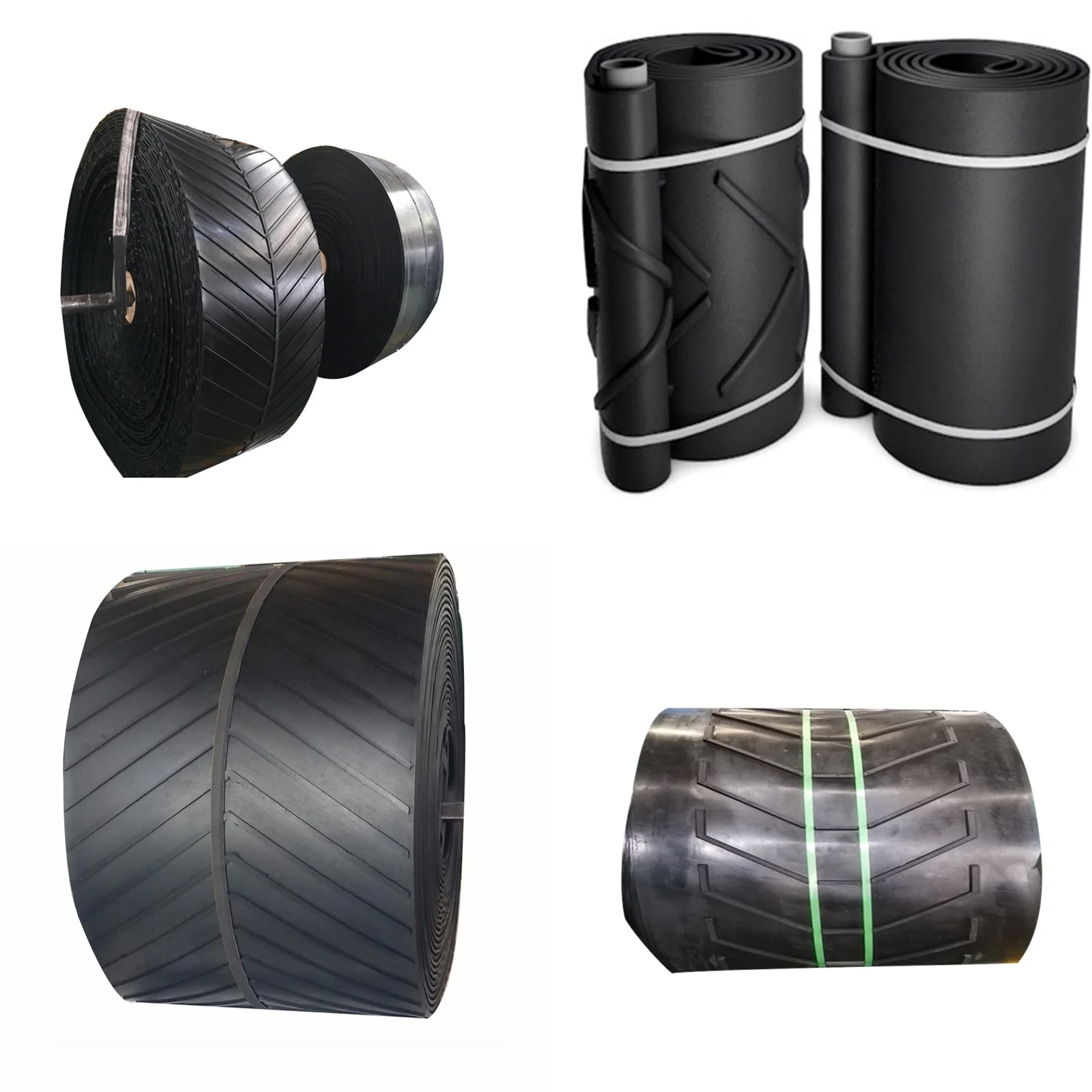

Packaging & Shipping
Our Services
Our company specially supply rubber fabric conveyor belt. We have been exporting various tapes for over 10 years. If you are interested in our products, please contact me! !
Company Information
Company Information
Beijing TRX Rubber Products Co., Ltd is a leading professional manufacturer of conveyor belts & conveyor accessories in China. The main workshops cover 20,000 square meters in the total 60,000 square meters of the plant. The applied technology and equipment in the advanced production lines are state of the art in the industry.
It specializes in following three series: 1) Heavy-duty Conveyor Belt, including universal EP/NN and CC Belt, Chevron Belt, Oil Resistant Belt, Abrasion Resistant Belt, Heat Resistant Belt, Fire Resistant Belt, Chemical Resistant Belt, Sidewall Belt, Flat Transmission Belts, 2) Rubber Sheets, including SBR, NBR, NR, CR, EDPM, Rubber With Insertion 3) Conveyor accessories. These three series of products conform to RMA, DIN, ASTM and ISO specifications.
Its products, honored with “The most Advanced level of Products” by the Committee of Science and Technology, have been widely used in mining and quarrying, power stations, steel plants, bulk cargo terminals, cement industry, and other material handling fields. With great success in domestic market, it has been focusing on global market with several hundreds of foreign valued customers in Asia, South America, North America, Africa and Europe.
The company mission:
1. Supply one-stop outstanding service to global customers.
2. Engage in complete solutions with conveyor belting and power transmission belting.
3. Persist in technology improvement and quality control in the whole process of production and service.
The company vision:
Providing complete conveying solutions with innovation, enthusiasm and safe, eco-friendly processes to achieve operating efficiencies for our material handling customers.
FAQ
Q1. Are you a manufactuer?
Yes, we mainly produce Rubber conveyor belts over 15 years.
Q2. What about the lead time?
1) 3--5 days for sample 2) 15--20 days for mass production.
Q3. How to pay?
1) T/T or L/C through bank account 2) Select Alibaba Trade Assurance Service
Q4. How about package?
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole 2) Outer is packed with one ply water-proof PP fabric
