WEIPU SA1213 Push pull 5A Wire To board square flange 500V Push Locking industrial electric connector
- Category: Connectors & Terminals >>>
- Supplier: Guangzhou,Weipu,Mechanical,And,Electrical,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

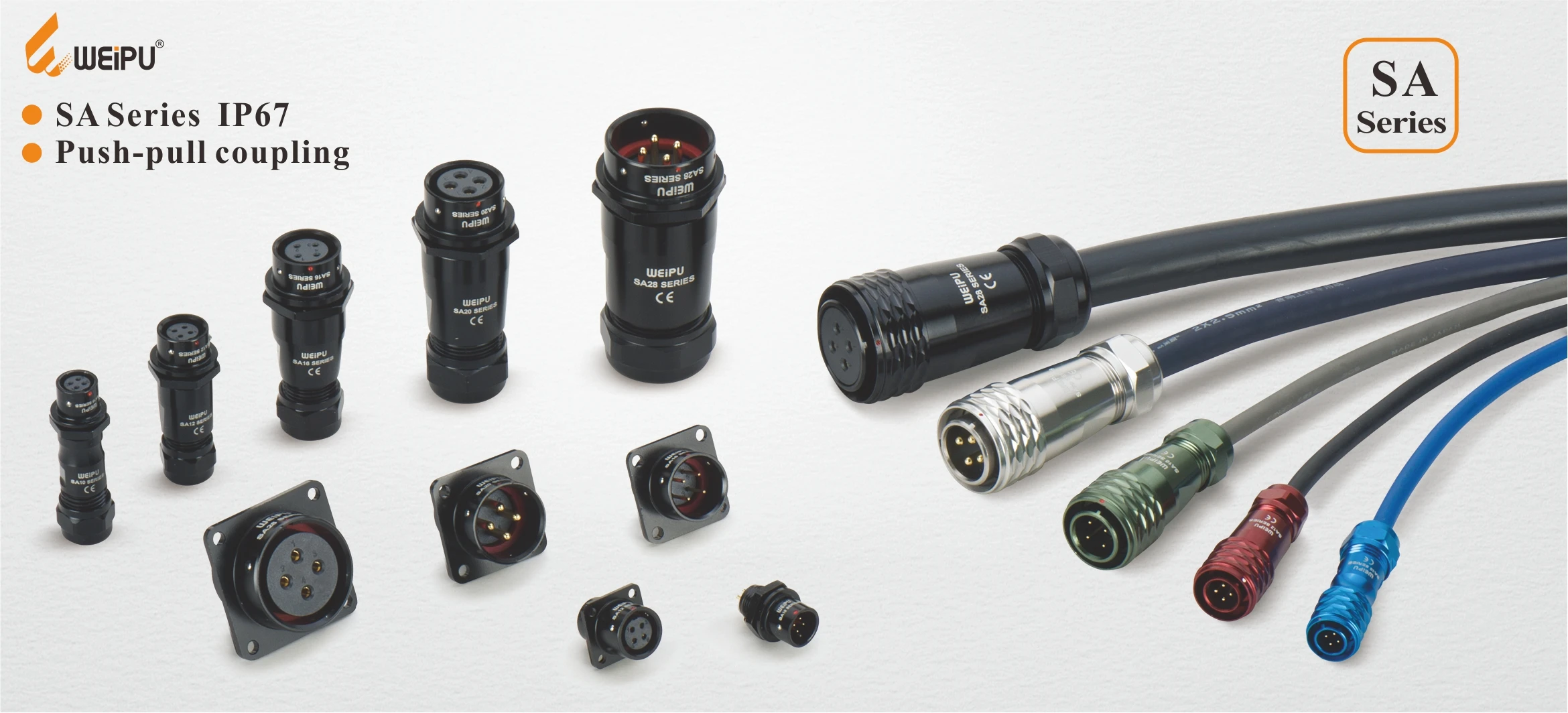

SA12 Series with multi-core(2-9 core) design to fit with different industrial needs within below key features:
△The shell is made of anodized aluminium, compressive, anti-explosive and anti-deformation properties.
△Gold-plated contacts, high-strength corrosion resistance and electrical conductivity,can electively cope with changes in
temperature rise that caused by current;
temperature rise that caused by current;
△Push-pull coupling is easy to operate and easy to install;
△Current rating: 3A/5A/13A
△The product is IP67 rated in the connected condition.

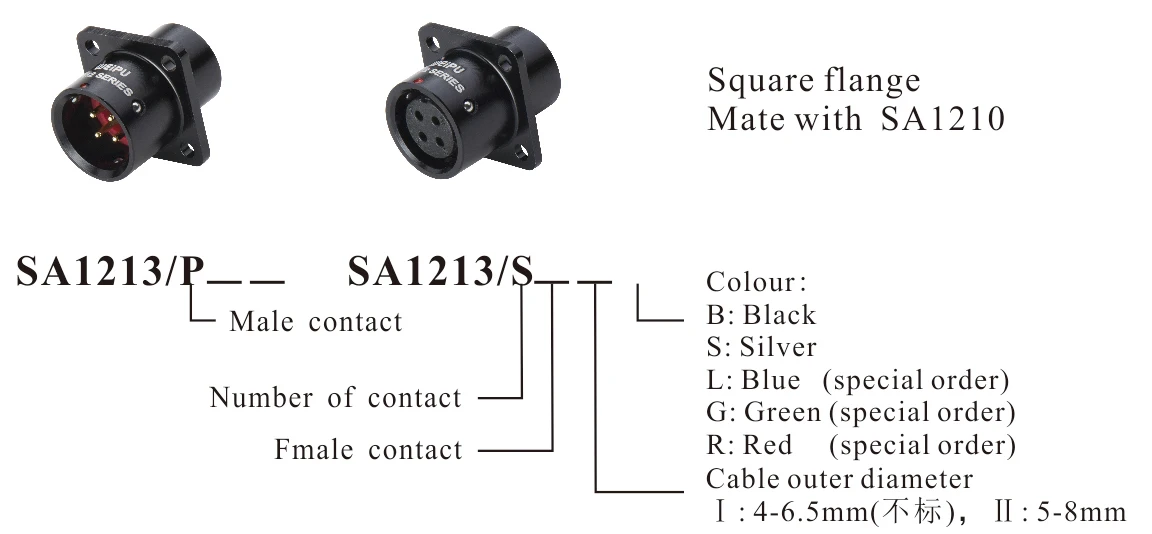

Model No. | SA1213 | ||||
Product name | SA12 Square flange | ||||
Coupling | Push-pull coupling | ||||
Shell material | anodized aluminium | ||||
Insert material | PPS, max temperature 260℃ | ||||
Contact material | Brass with gold plating | ||||
Termination | Solder | ||||
IP rating | IP67 | ||||
Mating cycle | 500 | ||||
Temperature range | -40℃~+85℃ | ||||
Insulation resistance | 2000MΩ | ||||

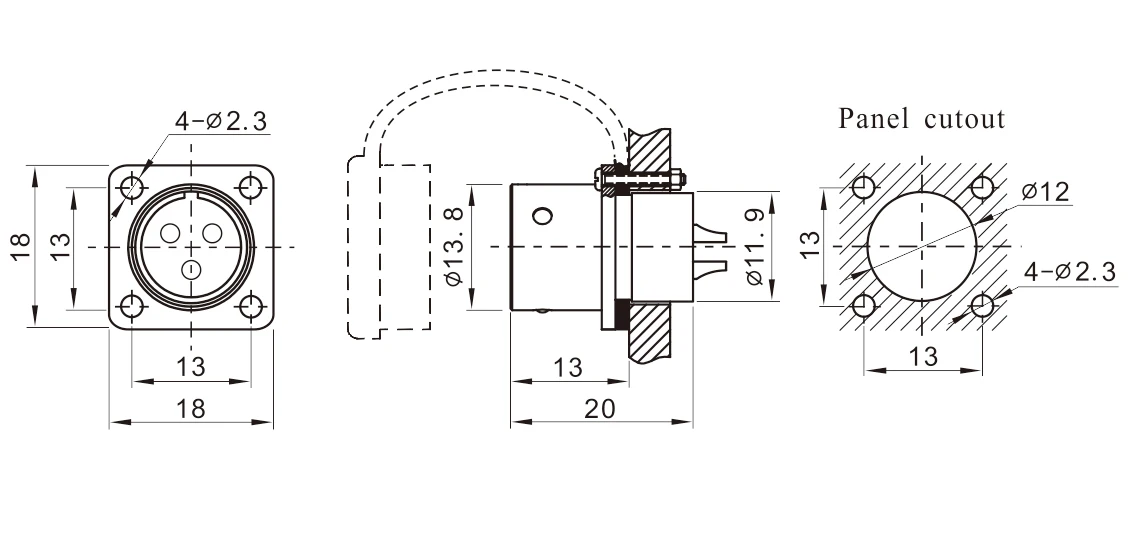

Contact spec
Production Process
Application scenarios
Application scenarios
The machine with good efficiency is base on the effectively stable running. The connectors produced by WEIPU can work effectively and stably even under extreme conditions.
The products of WEIPU refer to rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical, agriculture and other fields.
The products of WEIPU refer to rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical, agriculture and other fields.
Related Products
Our Company
Guangzhou Weipu Mechanical And Electrical Co., Ltd.
WEPU was established in 1996 specializes in producing the industrial connector devices to ensure safe and reliable power supply solution.
We are the member of"Naional Electrical Appliances Standardization Technical Committees and one of the members to draft the national standard for industrial connectors GB/T11918-2014.
Weipu has strong R& D capacity, can develop various connectors according to customers' special request.
As a leader with 24 years of experience in the connector industry, we consistently pursue high quality and develop new products to meet the needs of our customers from different industries.
We are the member of"Naional Electrical Appliances Standardization Technical Committees and one of the members to draft the national standard for industrial connectors GB/T11918-2014.
Weipu has strong R& D capacity, can develop various connectors according to customers' special request.
As a leader with 24 years of experience in the connector industry, we consistently pursue high quality and develop new products to meet the needs of our customers from different industries.
FAQ
Q1. Are you a manufacturer or trading company?
Weipu:We are a professional manufacturer of waterproof connectors with our own factory and Marketing Department.
Q2. What is the lead time?
Weipu:Normally speaking, it asks for 5-20 days for mass production except during observed holidays.
Q3.What certification do you have?
Weipu:he electrical connector have got CE Rohs2.0 certification for our products.
Q4: Where is the Distribution of product's industrial base?
Weipu:Zhongshan, Guangdong, China
Q5.Where can be used this kind of connector
Weipu:Weipu Industrial connector now widely used in the fields of
measurement,medical,audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
measurement,medical,audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
