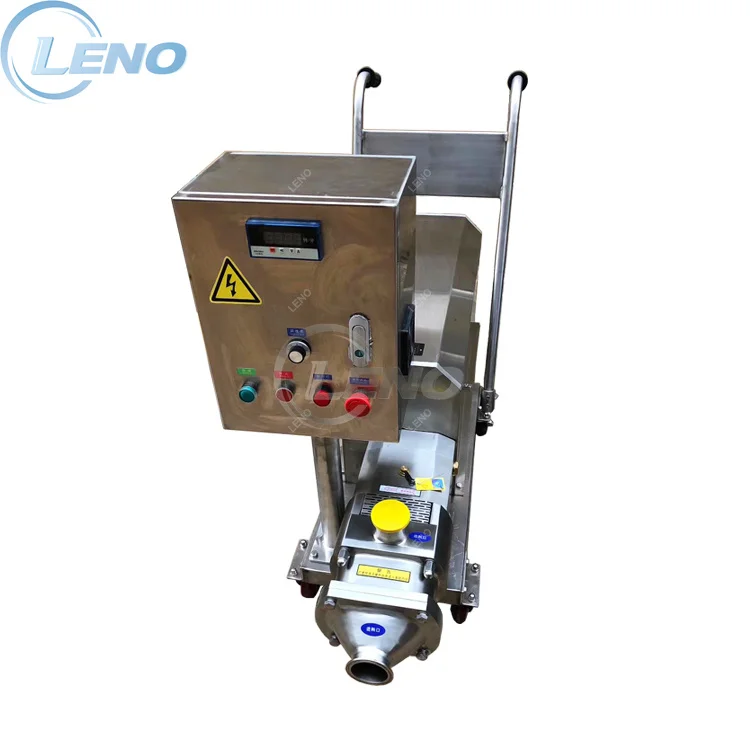

LENO Price Food Grade SUS304 SUS316L Transferring Stainless Steel Mono Screw Pump
- Category: Pumps >>>
- Supplier: Wenzhou,Leno,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Profile type | STAINLESS STEEL MONO SCREW PUMP | ||||
Material | SS304 or SS316L | ||||
Capacity | 0-100T (Customized) | ||||
Pressure | 0-8bar | ||||
High Viscosity | 1-100,000,00pas | ||||
Stator type | Rubber type | ||||
Temperature | 0-80 celsius degree | ||||
connection type | Clamp | Union | Flange | ||
motor type | Normal | Ex-Proof | inverter | ||
Speed | 0-960RPM | ||||
1.outlet 2.pulling 3.stator 4.screw shaft 5.cardan joint 6.inlet 7.coupling 8.feeding foundation 9.feeding bid
10.bearing pedestal 11.shaft 12.auxiliary 13.bearing bid 14.shaft coupling 15.foundation 16.motor
10.bearing pedestal 11.shaft 12.auxiliary 13.bearing bid 14.shaft coupling 15.foundation 16.motor
Application:
Screw pump rotor for food industry is also called progressive cavity pump, Is widely used in
delivery of high viscosity products such as chocolate, syrup and jams etc.
delivery of high viscosity products such as chocolate, syrup and jams etc.
Technical Parameters | ||||||||
Model | FLOW(T/H) | Lift(M) | Speed(RPM) | Motor(KW) | ||||
LNP-10-M | 0.5 | 0-8bar | 1400 | 0.37 | ||||
LNP-15-M | 1 | 0-8bar | 960 | 0.55 | ||||
LNP-20-M | 1.5 | 0-8bar | 960 | 0.75 | ||||
LNP-25-M | 2 | 0-8bar | 960 | 1.1 | ||||
LNP-30-M | 3 | 0-8bar | 960 | 1.5 | ||||
LNP-35-M | 5 | 0-8bar | 960 | 2.2 | ||||
LNP-40-M | 7 | 0-8bar | 960 | 3 | ||||
5.5 | 0-8bar | 720 | 2.2 | |||||
LNP-45-M | 9 | 0-8bar | 960 | 4 | ||||
7 | 0-8bar | 720 | 3 | |||||
LNP-50-M | 13 | 0-8bar | 960 | 5.5 | ||||
10 | 0-8bar | 720 | 4 | |||||
LNP-55-M | 18 | 0-8bar | 960 | 7.5 | ||||
13 | 0-8bar | 720 | 5.5 | |||||
LNP-65-M | 30 | 0-8bar | 720 | 11 | ||||
LNP-85-M | 60 | 0-8bar | 720 | 15 | ||||
We can customize the equipment according to your requirements. | ||||||||
Description
Single screw pump is used in all fields widely to feed kind of medium, running at a constant pressure continuously, without pulse and damage when feeding medium and change the gauging aim through adjusting rotation speed. This product is applicable for feeding medium which has following properties: 1. High solid content(diameter of the biggest particle is 50mm)or no solid content 2. Medium with all viscosities(1mPas~3,000,000mPas) 3. Medium that is easy to be generated
and swelled 4. Shearing sensitive medium 5. Medium with/without self lubrication 6. Erosive medium(PH=0~14) 7. Adhesive medium8. Toxicity hazard medium
and swelled 4. Shearing sensitive medium 5. Medium with/without self lubrication 6. Erosive medium(PH=0~14) 7. Adhesive medium8. Toxicity hazard medium
Application:
Screw pump rotor for food industry is also called progressive cavity pump, Is widely used in delivery of high viscosity products such as chocolate, syrup and jams etc.
Q1 | Are you trade or manufacturer? |
A | We are a factory with an international sales company specialized in support for global distributors. |
Q2 | Can you provide instant technical consulting services? |
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. |
Q3 | What's the difference between Ready-To-Ship and Customized products? |
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. |
Q4 | What is the payment terms? |
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
Q5 | How to choose the shipment way? |
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
Q6 | How about the after-sales service? |
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
