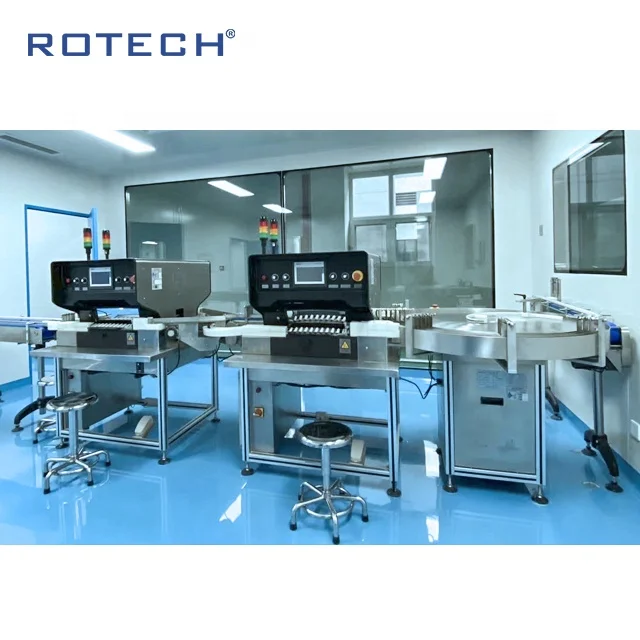

Manual Visual Inspection Machine For Ampoule

Product Overview

Description

DNDJ-150 Light Inspection Machine



Working principle

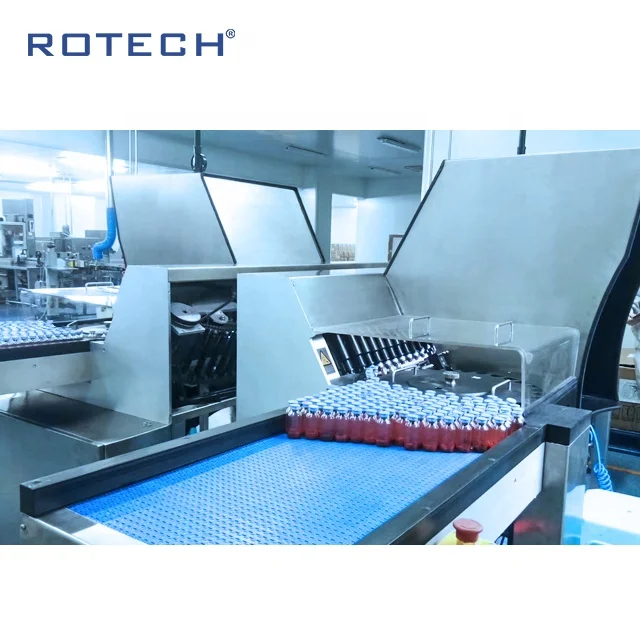

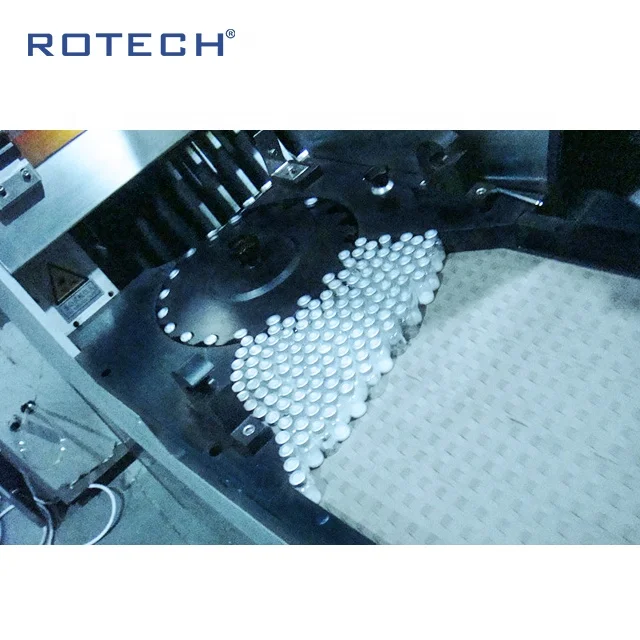

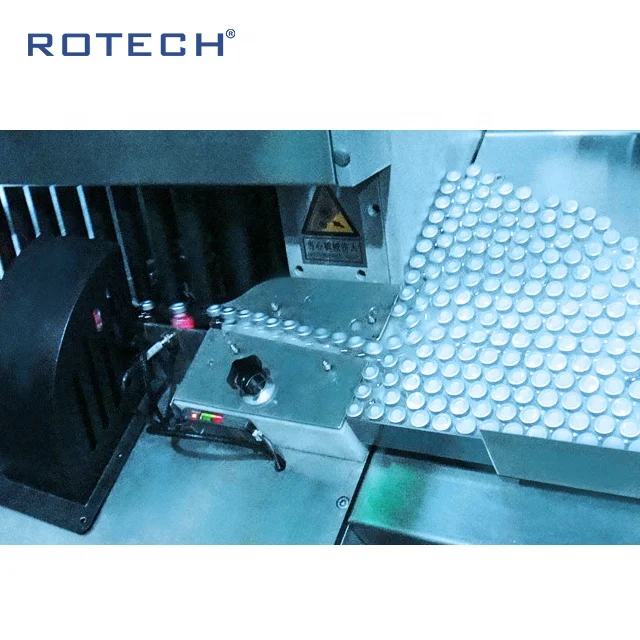

The preparation bottles are orderly arranged on the conveying shaft through the bottle feeding device, when entering into the high speed automatic rotation section, the impurities in the solution in the bottles will float. Then they will pass through the dark inspection room and advance through rotation and they will pass through the light curtain of focused light source in turn.



Main performances and features

1.High efficiency.

2.Wide application range: it can inspect ampoule bottles, vials, pre-filling syringes, large infusion bottles, cartridge syringes for dentistry, etc. the products that can be inspected have a wide range of specifications:0.5-1000ml.

3.The products that can be inspected include various types: solution, pure water, antibiotic, suspension, eyedrop, diagnostic agent, lyophilized powder, etc.

4.It can inspect various defects simultaneously granules, impurities, glass vessel appearance defects, microwave cracks.

5.The Tyndall effects is adopted.

6.The adjustable high efficiency cold light source.

7.The turning speed of the net belt and the rotation speed of the roller are adjustable.

8.The light source color temperature can be selected with adjustable illuminance and angle so as to achieve the best inspection effect.

9.The automatic program controlled system.

10.It can be independently used with the front end bottle unscramble, and can also used in combination with previous and next production lines through communicating with them.



Technical Parameters

Model	DNDJ-150
Application range	Used for inspecting ampoule bottles, vials, pre-filling syringes, large infusion bottles, cartridge syringes for dentistry, etc
Operator	1 person
Maximum output	50-150 bottles/min
Inspection height	900±50mm
Operating mode	Continuous type or intermittent type
Rejecting mode	Hand instruction automatic rejecting
Touch screen	Yes
Power supply	2P AC220V 50/60HZ 0.5KW
Machine dimensions	(L)1500×(W)1000(H)×1680mm
Weight	600kg
