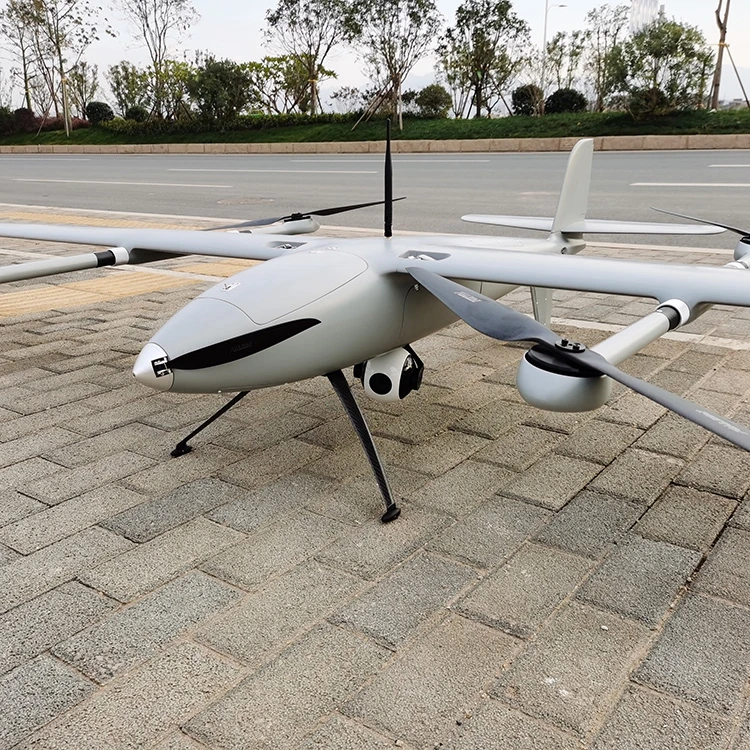

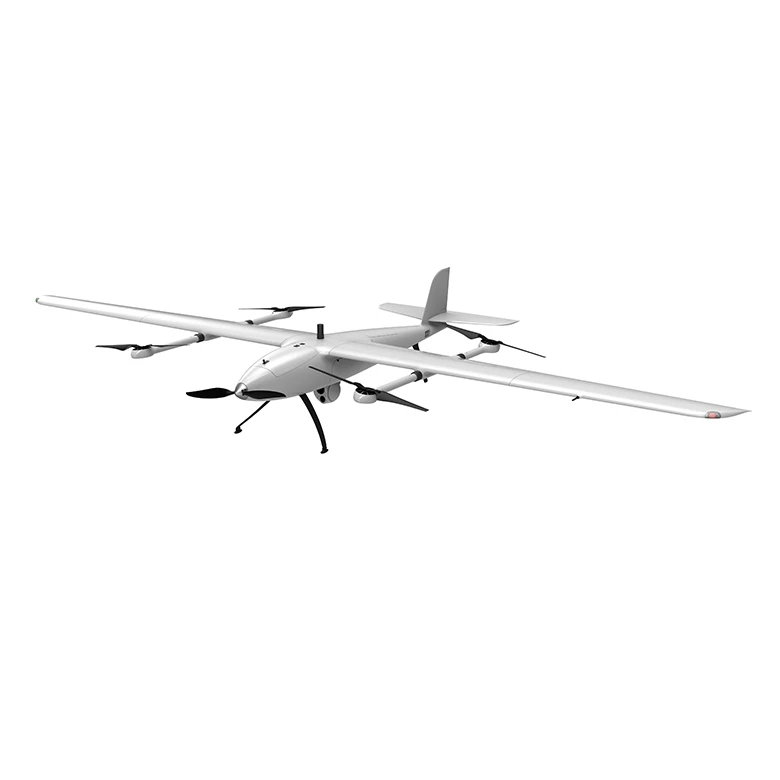

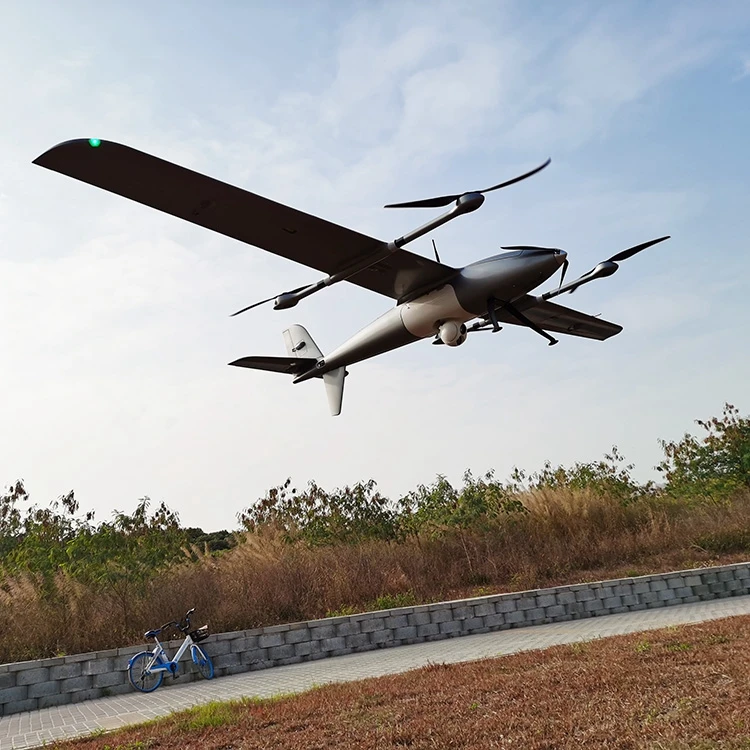

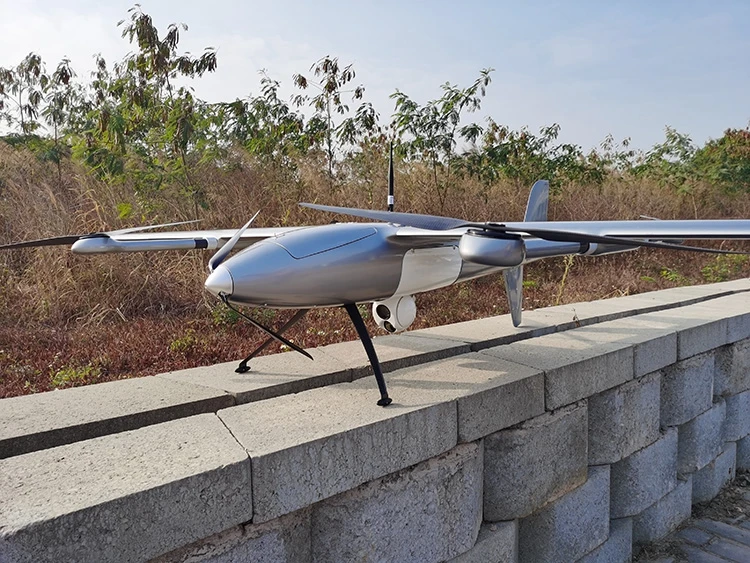

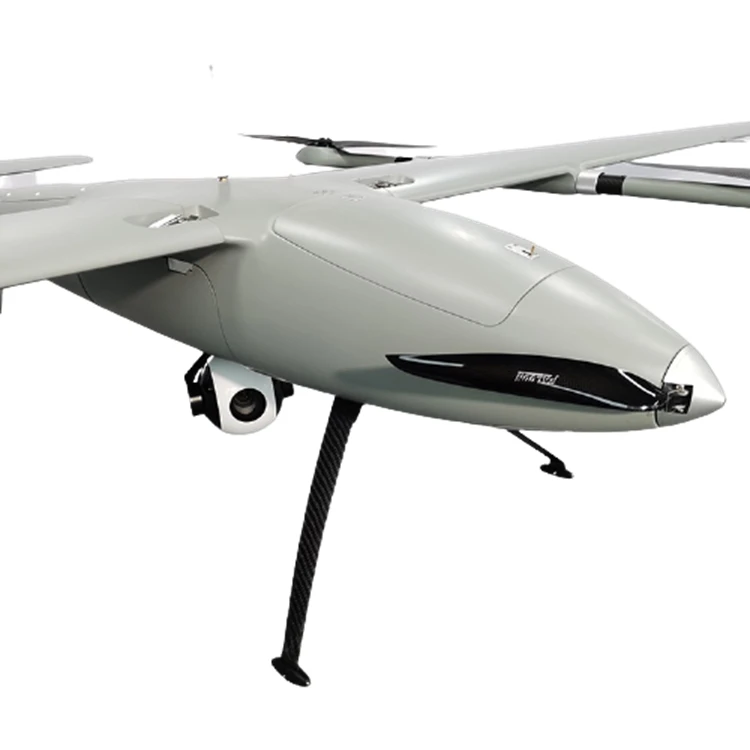

G15 VTOL fixed wing UAV professionnel surveillance drone
- Category: >>>
- Supplier: Shenzhen Gy Uav Co. Ltd.
Share on (1600212263276):
Product Overview
Description
G15 is a pure electric vertical take-off and landing(VTOL) fixed-wing UAV which with a standard take off weight of 15kgs.

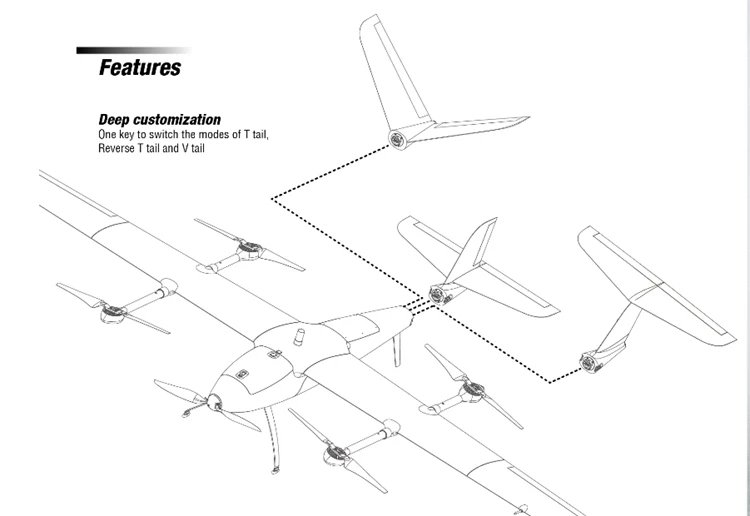

It adopts a composite aerodynamic layout of four-rotors and fixed wings, combines the advantages of VTOL of the four-rotors models and the long range of the fixed-wing models.Flexible and can adapt to various complex take-off and landing conditions.
It adopts a composite aerodynamic layout of four-rotors and fixed wings, combines the advantages of VTOL of the four-rotors models and the long range of the fixed-wing models.Flexible and can adapt to various complex take-off and landing conditions.
Prodcut Name | G15 VTOL fixed-wing UAV with power set version |
Material | Carbon fiber + glass fiber |
Color | White/gray |
Standard take-off weight | 15kg |
Max. Payload Weight | 5kg |
Cruise Speed | 75km/h |
Max. Flight Speed | 100km/h |
Control radius | 30km |
Max. climb speed | 4m/s |
Max. Descend speed | 5m/s |
Max. Altitude AMSL | 4000m |
Max. Wind Resistance | Level 6 |
Operating temperature | -10~60℃ |
Flight Time | 210min(210min with Sony A7RII Camera) |
Flight Distance | 265km(265km with Sony A7RII Camera) |
Aircraft dimensions | 3378*1500*500mm |
Parts Name | SPEC | QTY | G15-1 | G15-2 | G15-S |
Composite Frame(Carbon fiber + glass fiber) | Composite material | 1 | √ | √ | √ |
Motor for VTOL Mode | 6212 220KV | 4 | √ | √ | √ |

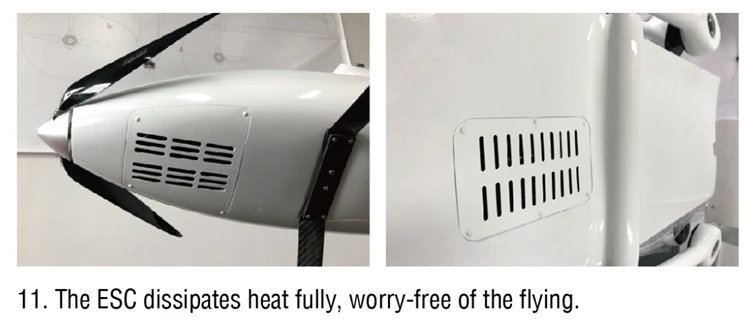

ESC for VTOL Mode | 80A | 4 | √ | √ | √ |
(Pairs)Propeller for VTOL Mode | 22*6.6 | 2 | √ | √ | √ |
Motor for Fixed wing Mode | 5225 180KV | 1 | √ | √ | √ |
ESC for Fixed wing Mode | 80A | 1 | √ | √ | √ |
Propeller for fixed wing Mode | 18*14Folding paddle | 1 | √ | √ | √ |
Servo | KST508 | 4 | √ | √ | √ |
Power board | GY powerboard v3.1 | 1 | √ | √ | √ |
toolkit | RTW Allen Screwdriver Set | 1 | √ | √ | √ |
Aluminum packing box | Aluminum box packaging | 1 | √ | √ | √ |
Pixhack V3 Flight control | Leixun Flight Control pixhack v3 | 1 | √ | ||
Pixhack V3 GPS | GPS pixhack V3 | 1 | √ | ||
Pixhack Air Speedometer | pixhack | 1 | √ | √ | |
debugging services | 1 | √ | |||
Data transmission | SDR400L 30km | 1 | √ | ||
G1 Flight control | G1 | 1 | √ | ||
GPS G1 V3 | G1 V3 | 1 | √ | ||
Air Speedometer | √ | ||||
ET07 Radio Controller | ET07 | 1 | √ | √ | |
SKYRC PC1080 Charger | SKYRC pc1080 | 1 | √ | √ | |
Graph&Data transmission | M52 | 1 | √ | ||
6S 25000mAh battery | 6S 25000MAH | 2 | √ | ||

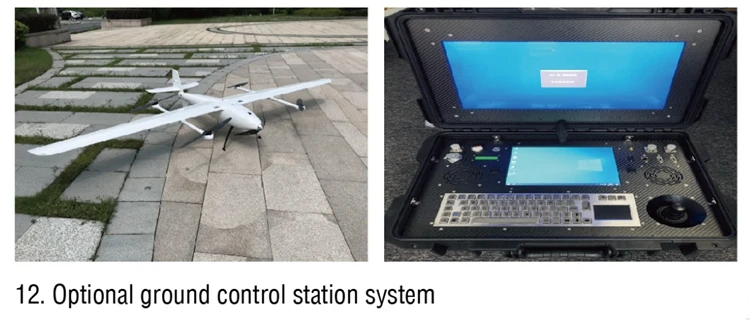

G20 GCS | G20 | 1 | √ | ||
30x single Light Camera with tracking function | Q30T | 1 | √ | ||
Assembling and tuned services | 1 | √ |
Q1:Is GY UAV LTD.CO. a factory or trading company?
A1:GY UAV Co.,Ltd. is a professional manufacturer of UAV for industrial application.
Q2:There are so many UAV manufacturers in China, why do we choose you?
A1:Firstly,we could provide good products for you because we have a team with over 10 years experience in R&D for UAV.
secondly,we provide products with good quality,we have good chain of materials can ensure the quality,and we full test the every product before shipment.
Thirdly,good price.we are factory direct sales with competitive price.
At last,good service.24 hours quick response.
Q3:what kind of versions of UAV do you provide?
A3:GY UAV are widely used for mapping, survey, monitor, surveillance, forest fire prevention, meteorology, oil-pipe, marine etc. Civilian and Military.
We can provide RTF Version, Power set version,KIT version and other version which you like.
We welcome OEM & ODM cooperation.
A1:GY UAV Co.,Ltd. is a professional manufacturer of UAV for industrial application.
Q2:There are so many UAV manufacturers in China, why do we choose you?
A1:Firstly,we could provide good products for you because we have a team with over 10 years experience in R&D for UAV.
secondly,we provide products with good quality,we have good chain of materials can ensure the quality,and we full test the every product before shipment.
Thirdly,good price.we are factory direct sales with competitive price.
At last,good service.24 hours quick response.
Q3:what kind of versions of UAV do you provide?
A3:GY UAV are widely used for mapping, survey, monitor, surveillance, forest fire prevention, meteorology, oil-pipe, marine etc. Civilian and Military.
We can provide RTF Version, Power set version,KIT version and other version which you like.
We welcome OEM & ODM cooperation.
