Product Overview
Description

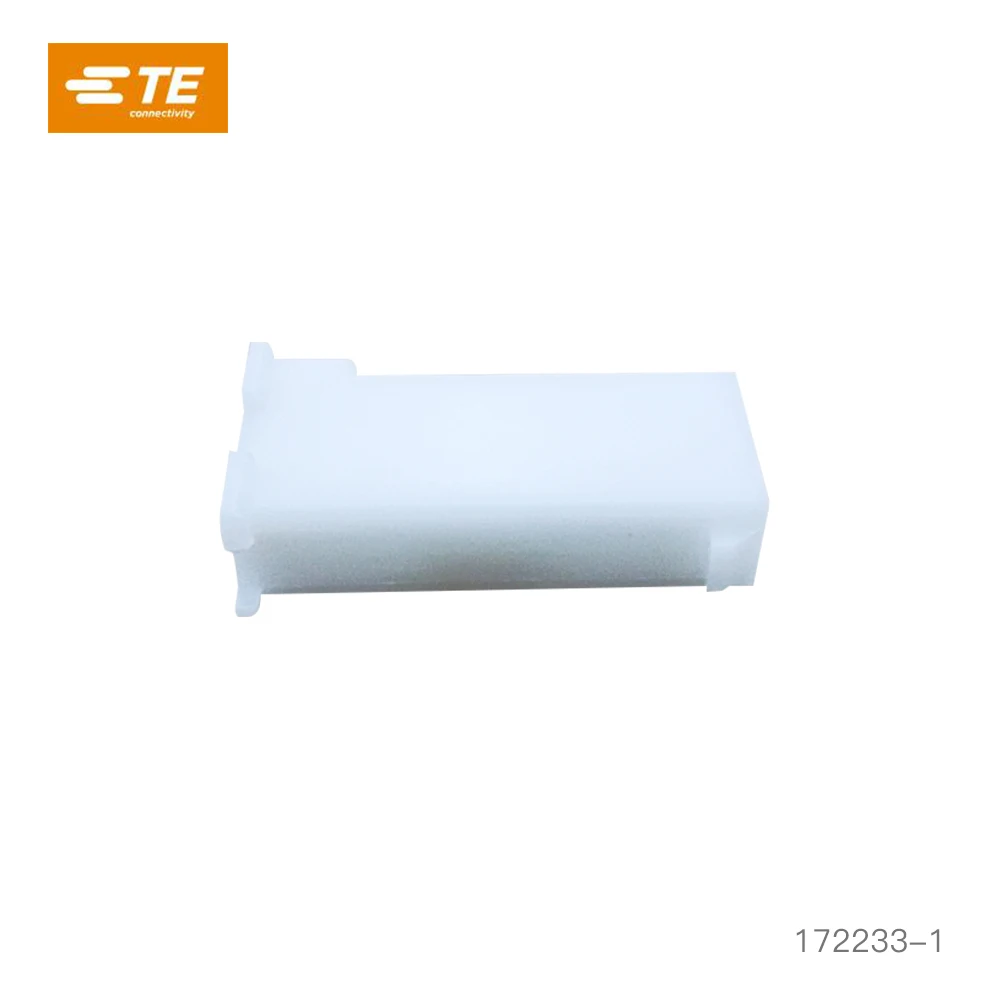

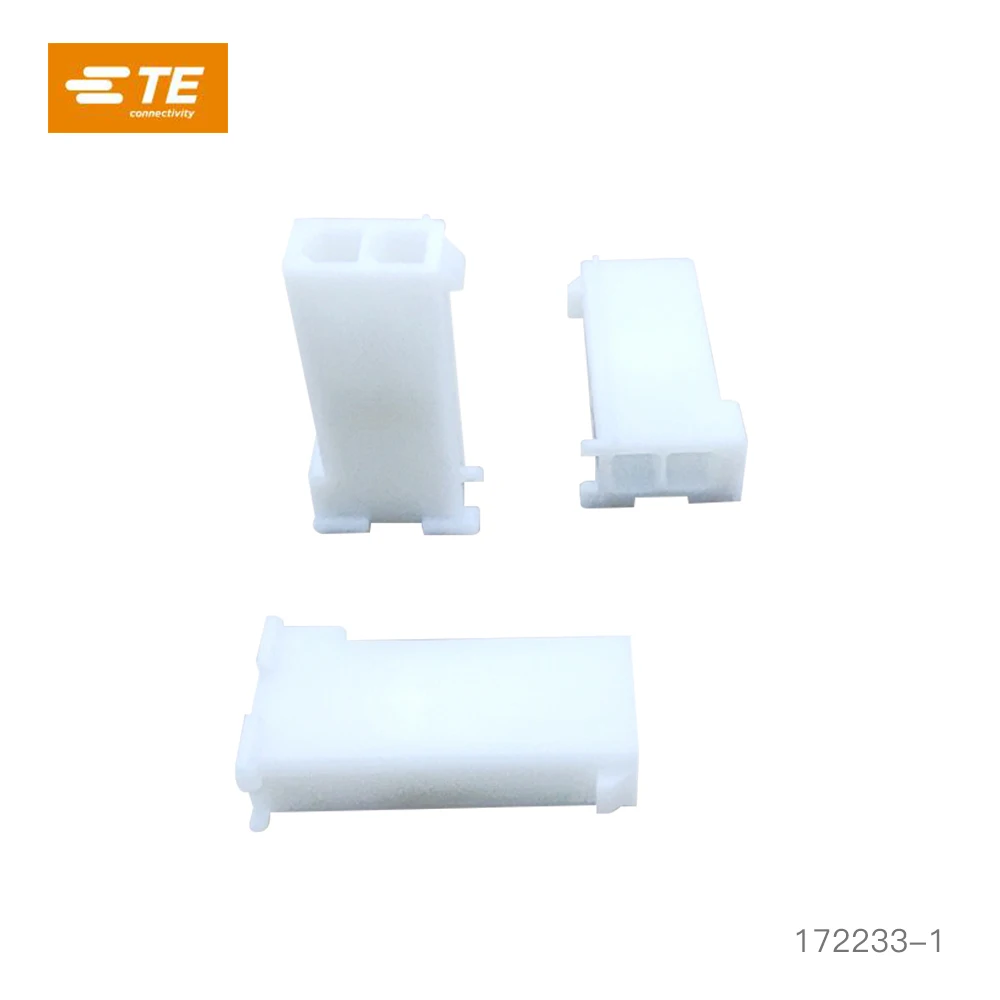

172233-1 : MATE-N-LOK Rectangular Power Connectors | TE Connectivity
Please review product documents or contact us for the latest agency approval information.
Please Note: Use the Product Drawing for all design activity.
Product Type Features
-
Rectangular Power Connector Type : Housing -
Connector & Housing Type : Receptacle
-
Connector System : Wire-to-Panel, Wire-to-Wire
-
Sealable : No
-
Connector & Contact Terminates To : Wire & Cable
Configuration Features
-
Number of Positions : 2
-
Number of Power Positions : 0
-
Number of Signal Positions : 0
-
Number of Rows : 1
Electrical Characteristics
-
Operating Voltage (VAC): 600
-
Operating Voltage (VDC): 600
Contact Features
-
Contact Retention Within Housing : Without
-
Contact Type : Pin
-
Contact Layout : Inline
-
Multiple Contact Types : Without
Termination Features
-
Termination Method to Wire & Cable : Crimp
Mechanical Attachment
-
Panel Mount Feature : Without
-
Connector Mounting Type : Panel Mount
Housing Features
-
Centerline (Pitch) : 4.2 mm [ .165 in ]
-
Housing Color : Natural
-
Housing Material : Nylon 66
Usage Conditions
-
Operating Temperature Range : -20 – 105 °C [ -4 – 221 °F ]
-
Insertion Force (kg): 2.7
Operation/Application
-
Circuit Application : Power & Signal
-
Assembly Integration Feature : Without
Industry Standards
-
UL Flammability Rating : UL 94V-0
-
Glow Wire Rating : Standard Part - Not Glow Wire
-
Agency/Standard : CSA, UL
-
VDE Tested : No
-
CSA File Number : LR7189
-
Agency/Standard Number : E28476
-
UL Rating : Recognized
-
CSA Rating : Certified
Packaging Features
-
Packaging Method : Bag
-
Packaging Quantity : 1000
