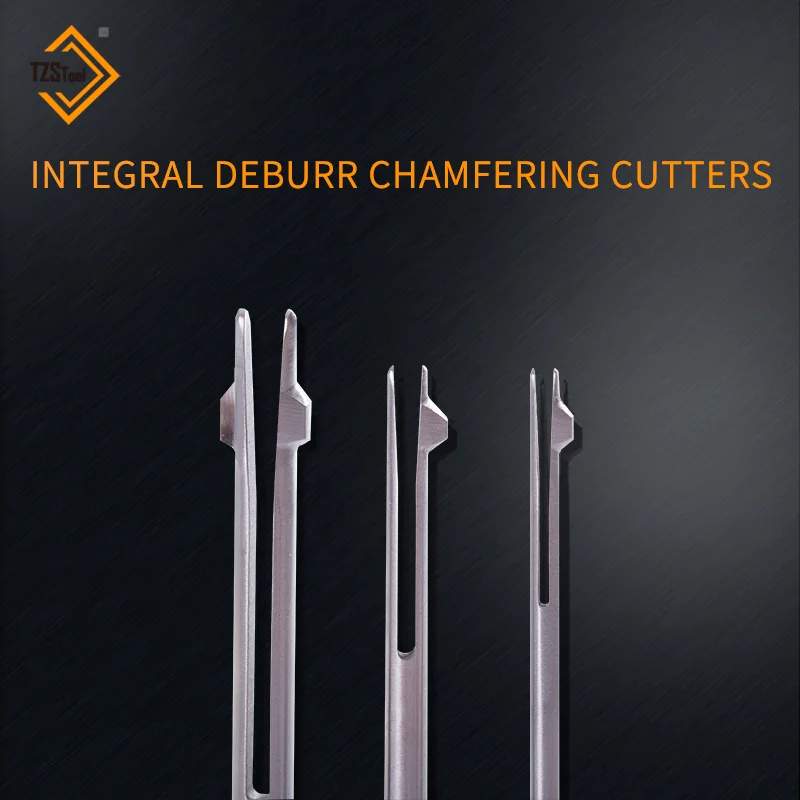

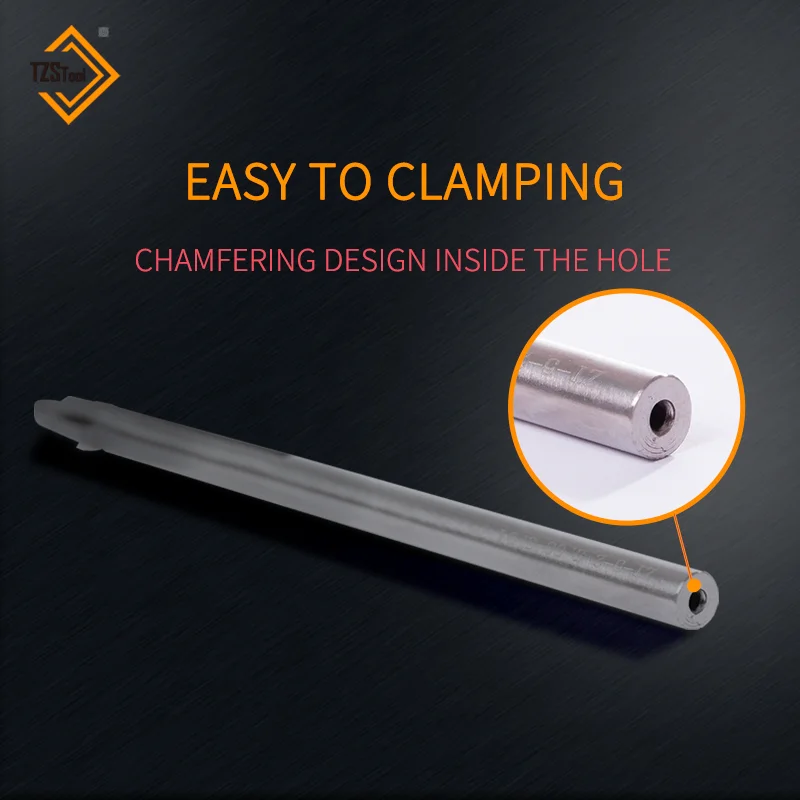

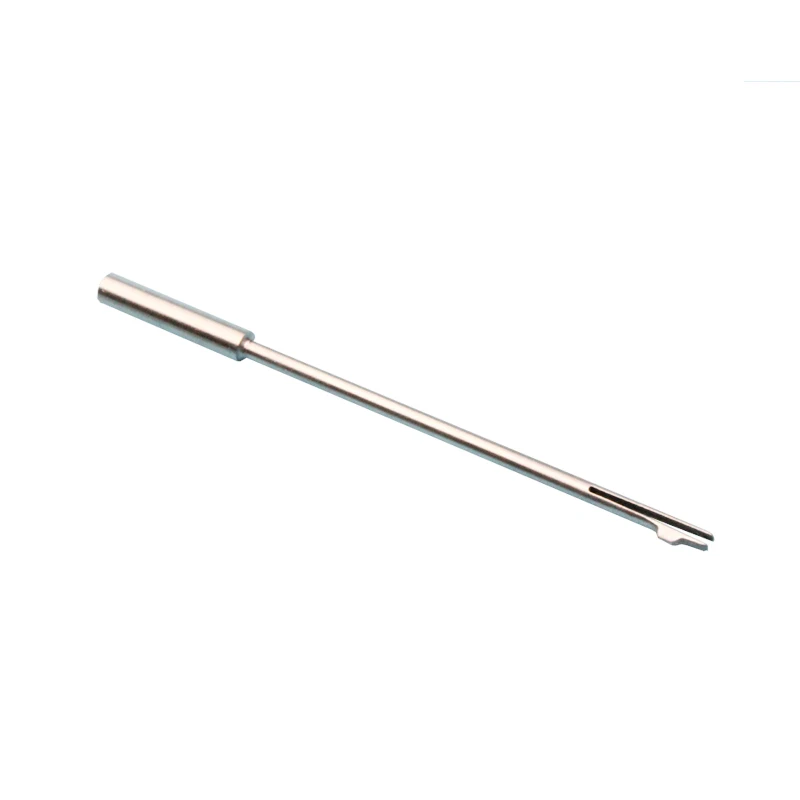

0.8 10mm High Speed Steel Inner hole both sides deburring and chamfering Cutter Hole Chamfer Deburring Tool

Will it scratch or enlarge the inner hole

Many customers concern if the cutter will scratch or enlarge the inner hole. Actually, we don’t need to worry about it at all. In
order to guarantee the production efficiency, the cutter can be rotated into the whole hole. Unless the inner hole surface
roughness reach at Ra0.8, the inner hole will not be affected at all (Aluminum or copper pieces need to choose smaller bore
diameter, for example, to process aluminum workpiece 3.2, it’s better to choose 2.8~3.18 ).

The chamfering size is too small, and the burrs can’t be removed

1. Whether the tool model is too small
2. Rotate speed and feed need to be retest

The chamfering size is too large

1. Feed is too small
2. The tool model is too large
3. The blade force is too strong(the blade strength of the split deburring and chamfering cutter can be adjusted by itself)

The working life is too short

1. Workpiece or tool clamp is fixed tightly
2. Machine tool is not stable(axial wear, etc)
3. Workpiece hardness is too high(the cutter can be applied to the workpiece with hardness lower than HRC32)
