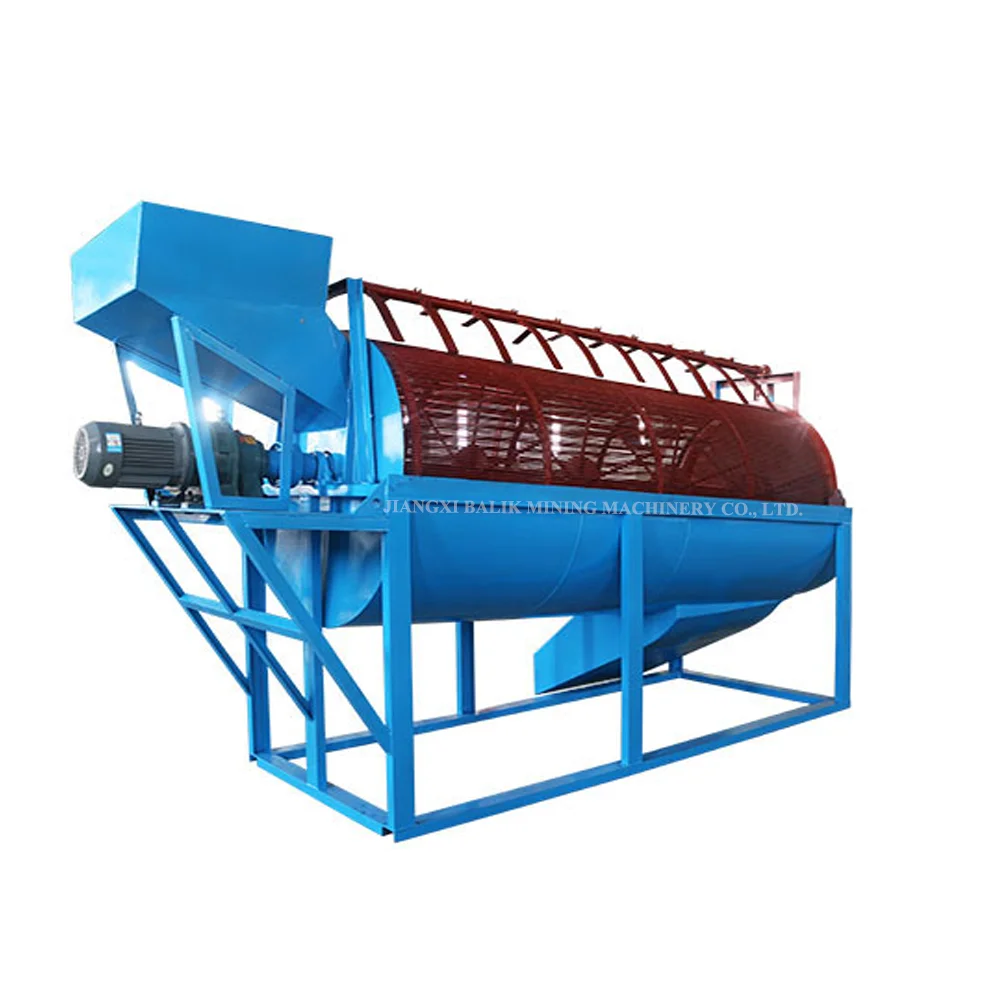

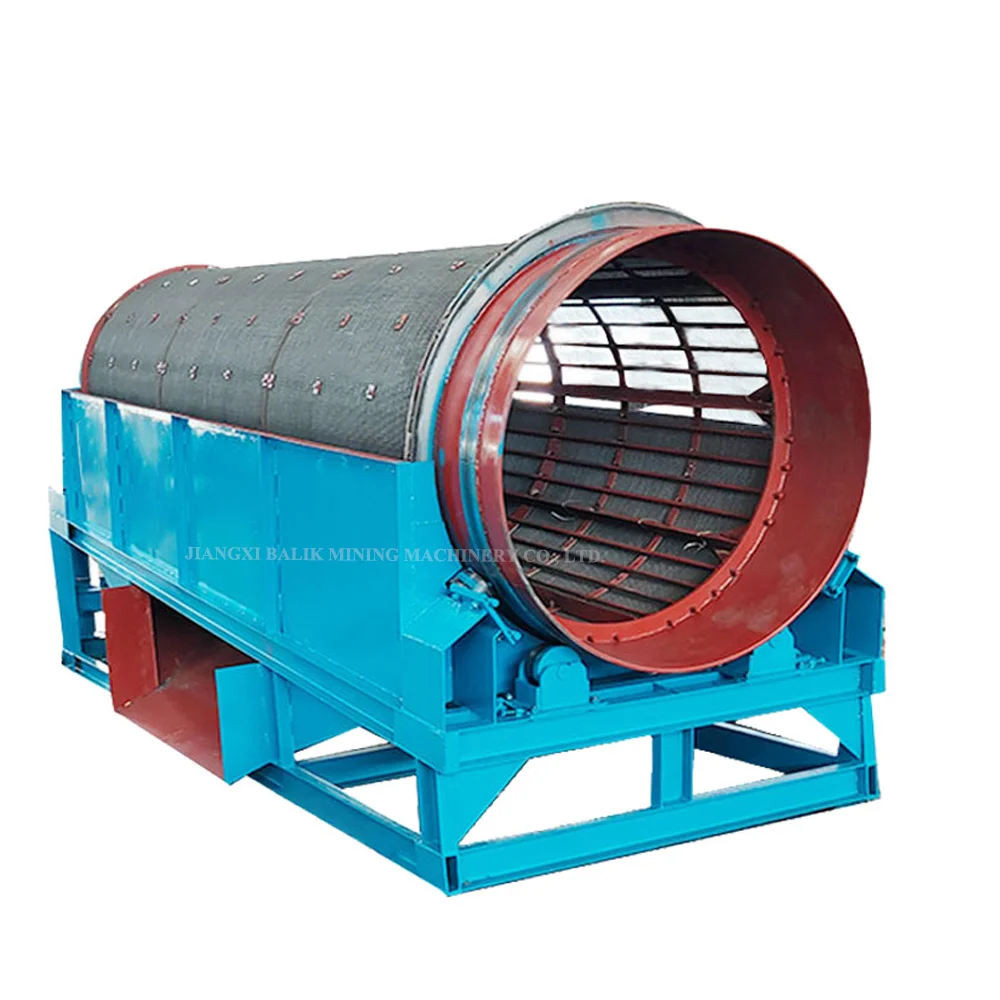

Китайское Оборудование для управления отходами, маленький мобильный ротационный песок, гравий, золотой барабан, барабан, сито, машина
- Category: Vibrating Screen >>>
- Supplier: Jiangxi Balik Mining Machinery Co. Ltd.
Share on (1600212465731):
Product Overview
Description
Product Description
China Waste management equipment compost small mobile rotary sand gravel gold tumbler trommel drum screen sieve machine
Descriptions
Material feeds into the drum, is lifted up by the rotation as it falls back down. This action is repeated with each revolution
along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.

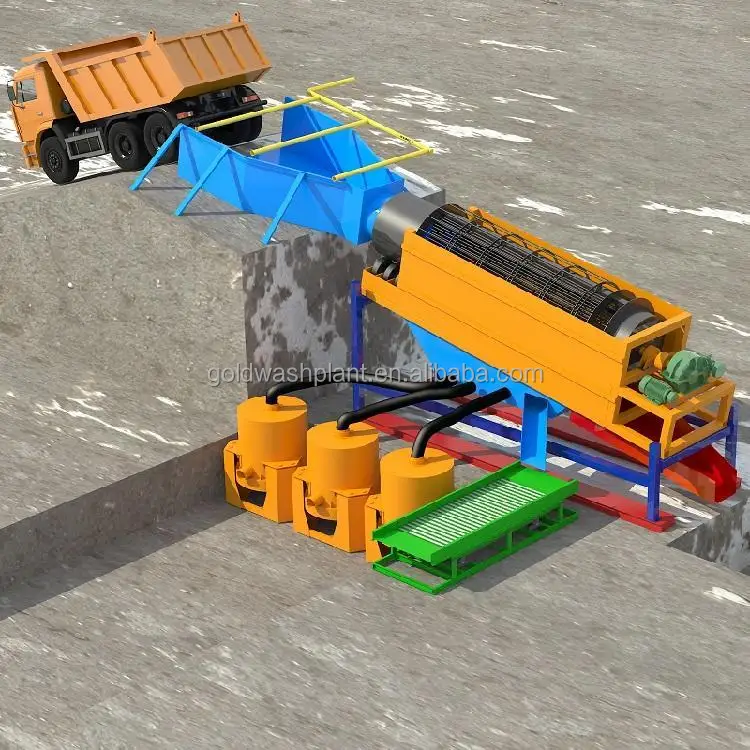

The trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spirals, jigs etc.
Advantages and Characteristics
1. Economical and efficient solution for screening;
2. Heavy duty trommel drum with lifters at the front to facilitate material break up;
3. Screen replaceable for different mesh sizes;
4. Multilayer screens;
5. Easily change screen plates;
6. High efficiency and big capacity;
7. Unique screen design, result in higher capacities, longer screen life and no material clogging;
8. Heavy duty feed hopper and Discharge chute;
9. Gear drive mechanism.
Specification
Model | Capacity | Motor Power (KW) | Drum Diameter (mm) | Drum Length (mm) | Screen hole size (mm) | Dimension Size (mm) | Weight (KG) | |||||||
GT1015 | 10-15 | 4.0 | 1000 | 1500 | <3-10 | 3000*1400*2145 | 2200 | |||||||
GT1020 | 15-25 | 5.5 | 1000 | 2000 | <3-10 | 3460*1400*2145 | 2800 | |||||||
GT1225 | 25-40 | 7.5 | 1200 | 2500 | <3-10 | 4146*1600*2680 | 4200 | |||||||
GT1530 | 60-80 | 11 | 1500 | 3000 | <3-10 | 4460*1900*2820 | 5100 | |||||||
GT1545 | 80-150 | 15 | 1500 | 4500 | <3-10 | 5960*1900*3080 | 6000 | |||||||
GT1848 | 150-200 | 22 | 1800 | 4800 | <3-10 | 6500*2300*4000 | 7500 | |||||||
GT2055 | 200-260 | 30 | 2000 | 5500 | <3-10 | 7500*2500*4000 | 8600 | |||||||
Remark: This table only shows partial models, more models information please contact us. Customized products accepted. | ||||||||||||||
Details Images

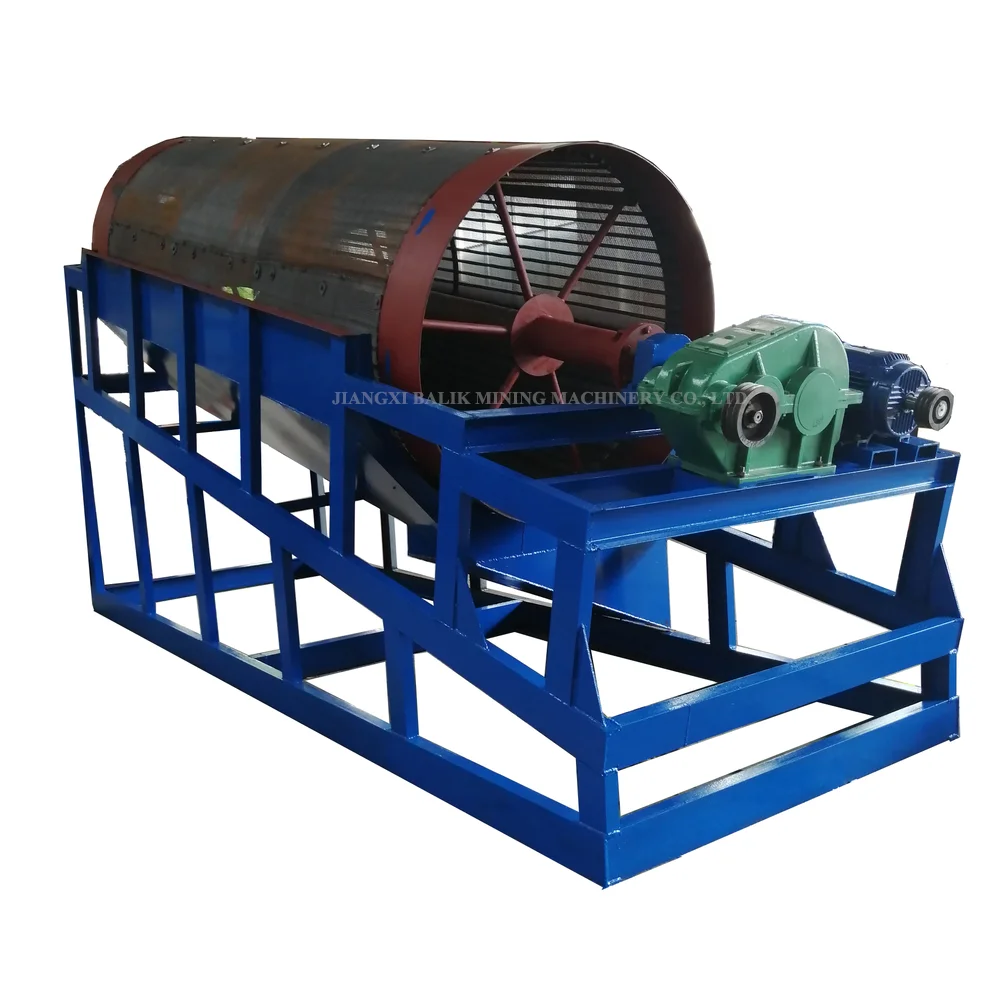

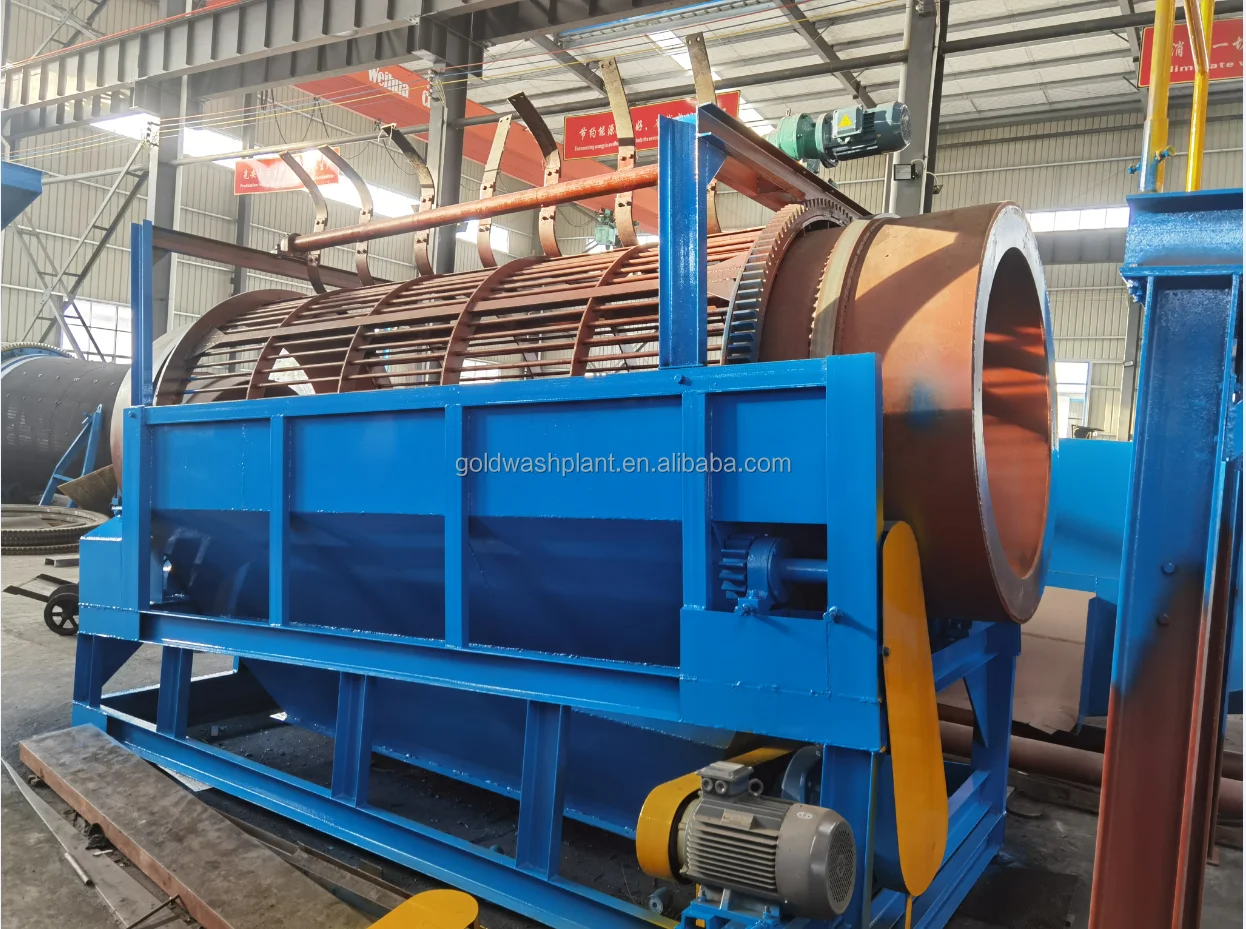

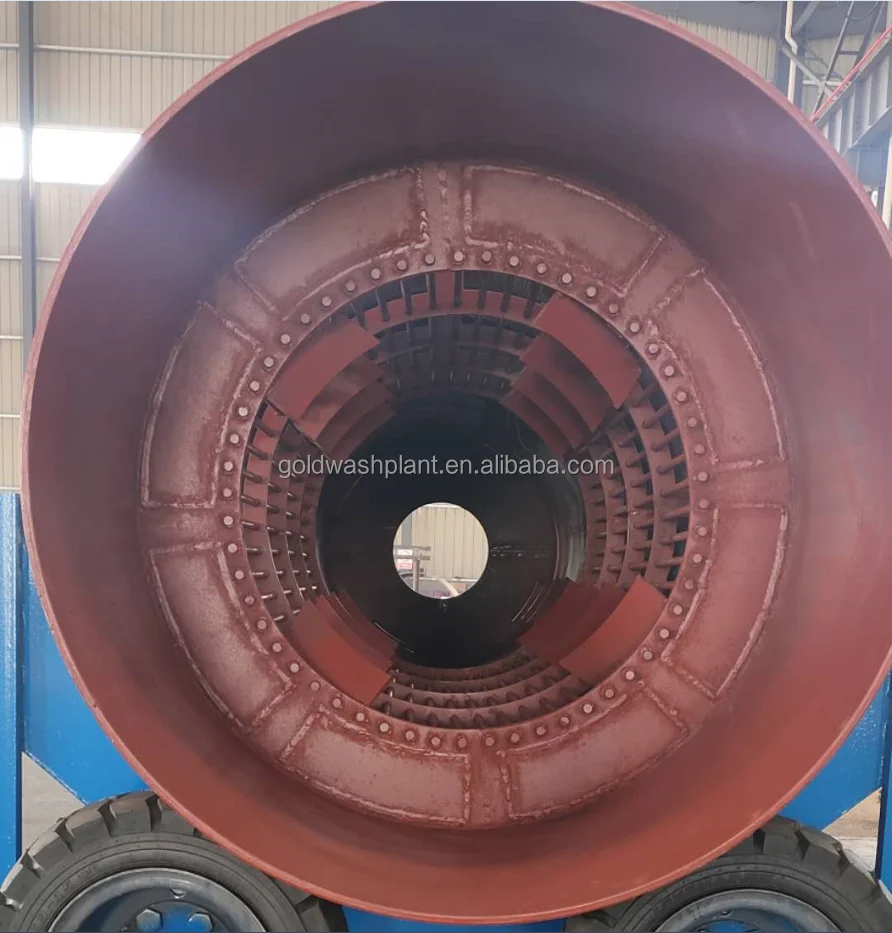

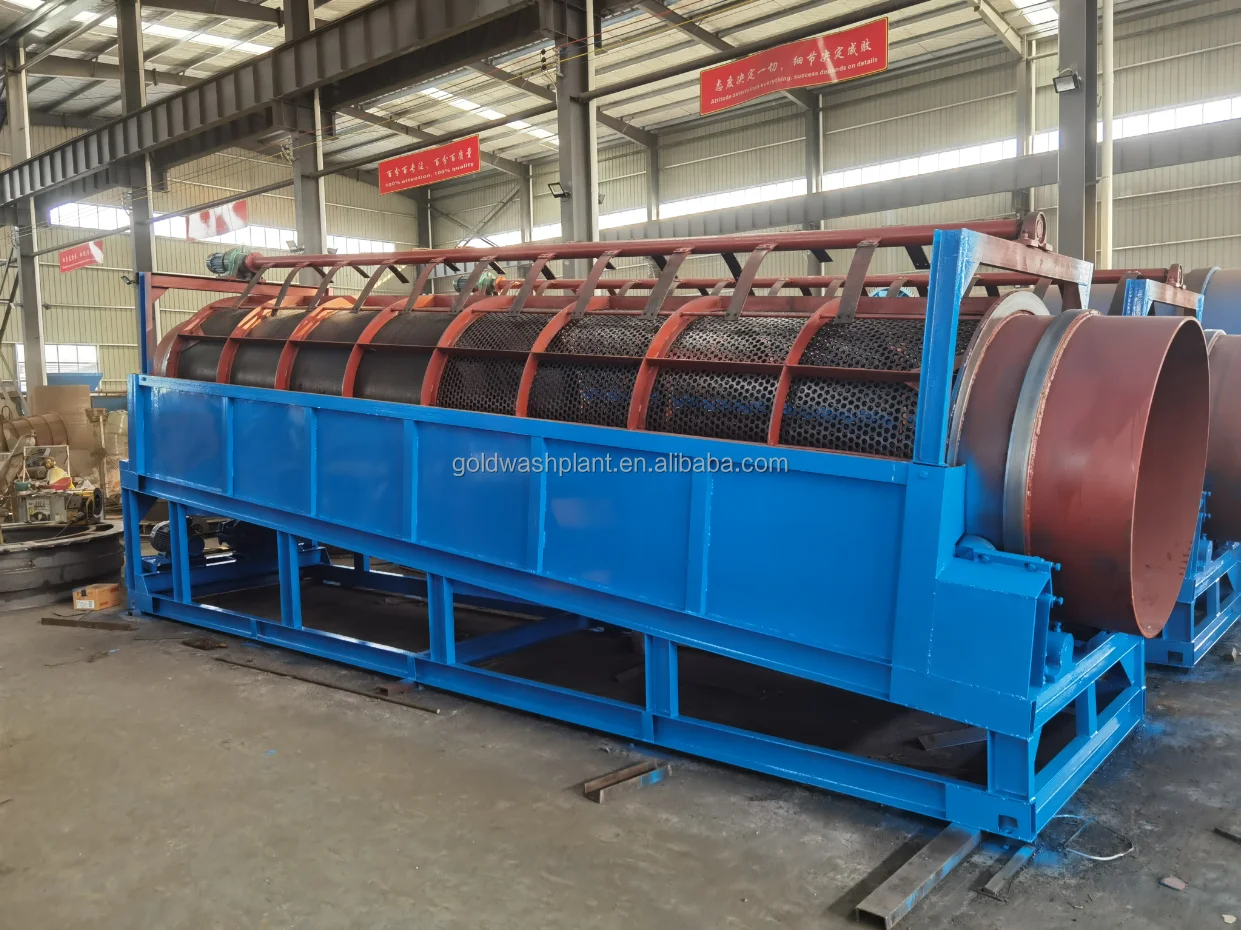

Part name: Gear Drive Trommel Screen
Origin: China
Origin: China

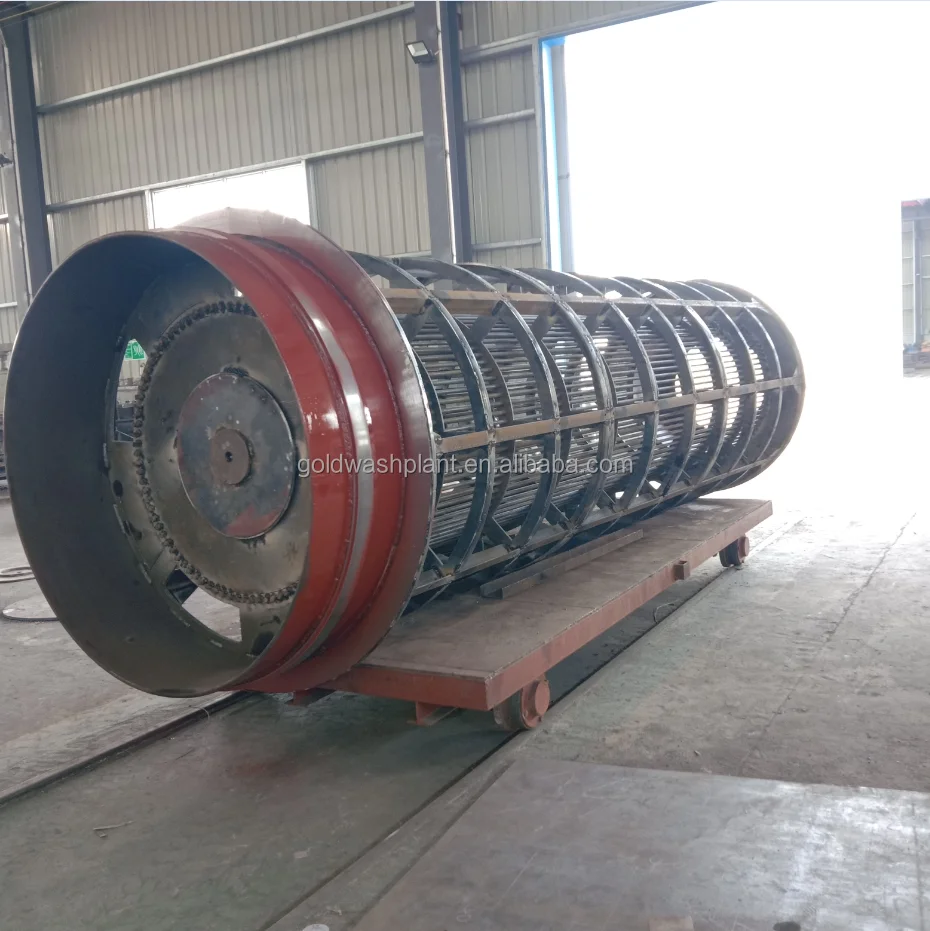

Screen mesh Material: high manganese steel mesh, polyurethane mesh, stainless steel mesh.
Mesh hole size can also be customized.

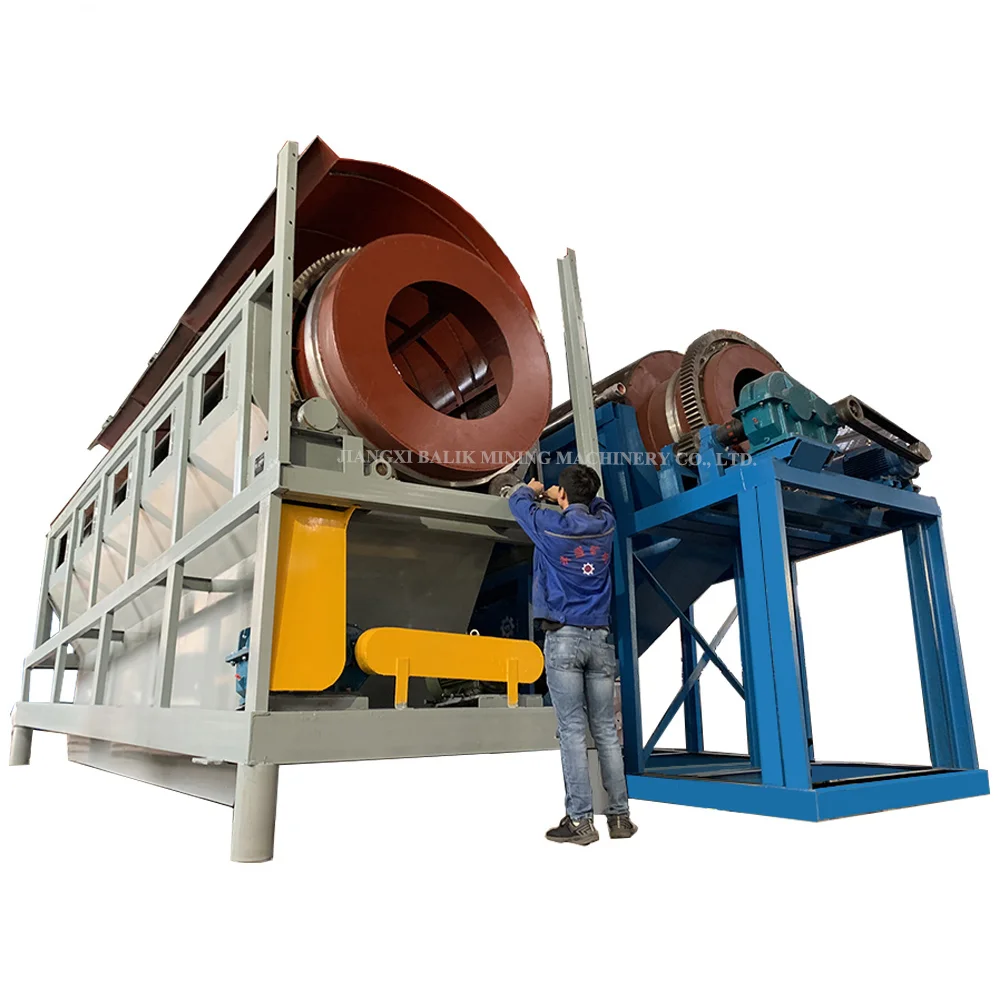

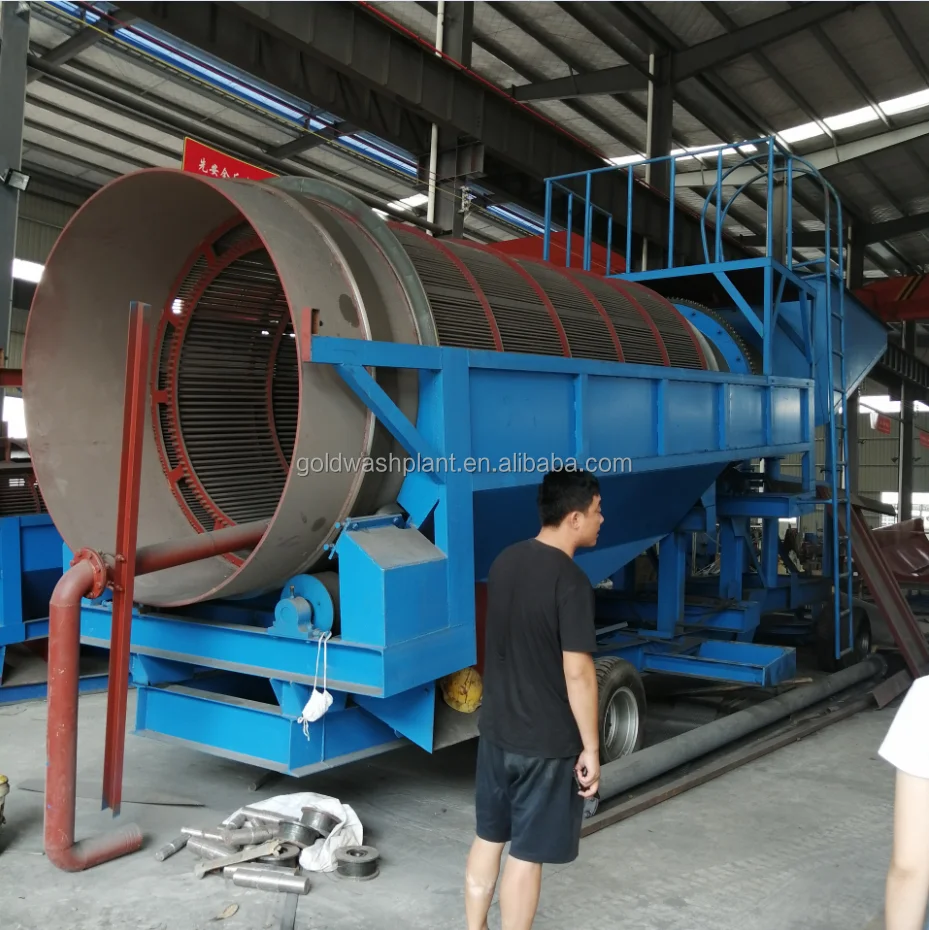

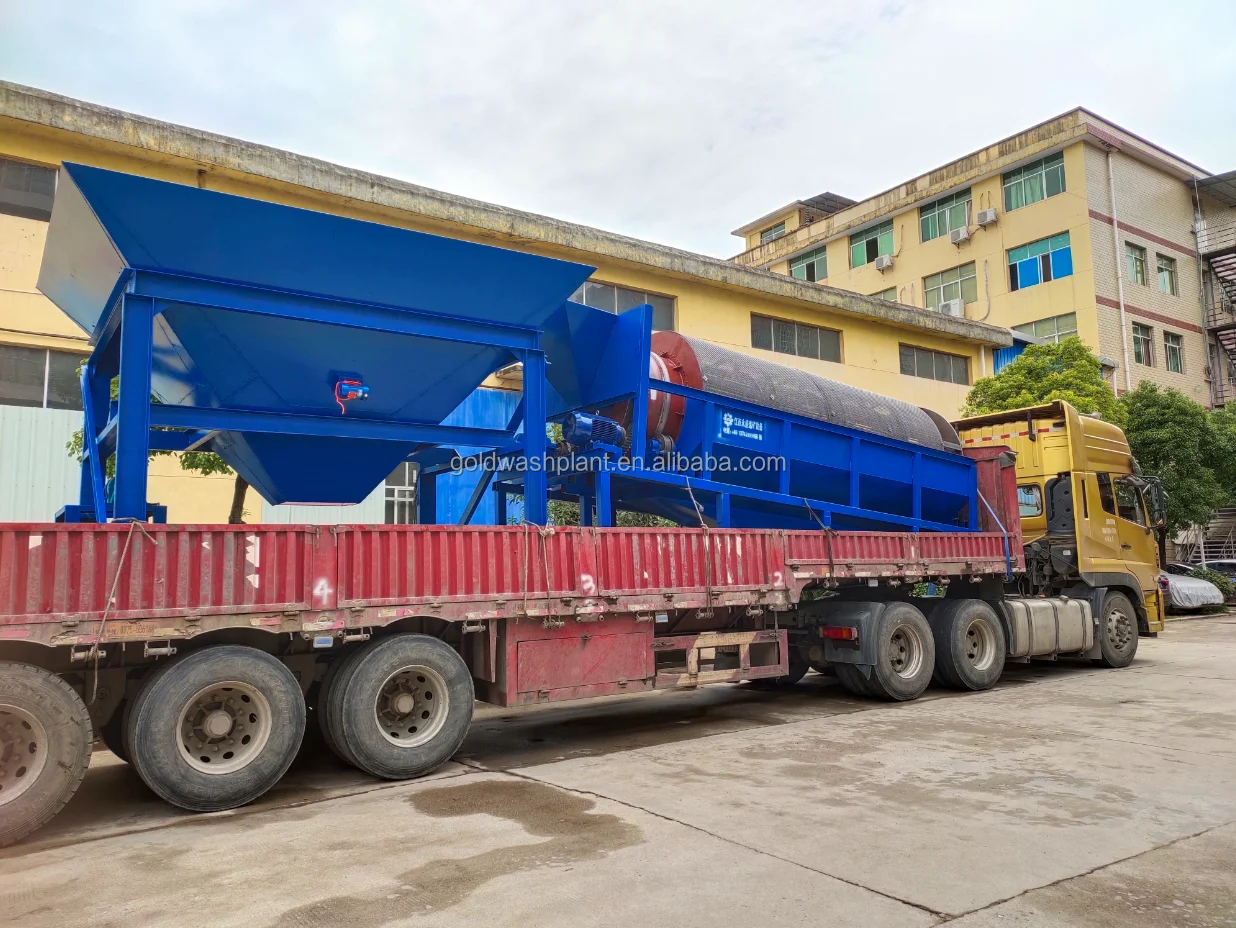

Part name: Mobile Type Trommel Screen
When dressing placer gold, cleaning and sizing of wet, sticky and troublesome materials are very important in refining gold.
Further more, as the mining site can not fix on one site, we must move from one site to another for finding a more profitable mining site. In this case, a mobile trommel screen will solve the transportation and make you mining effective.
Origin: China

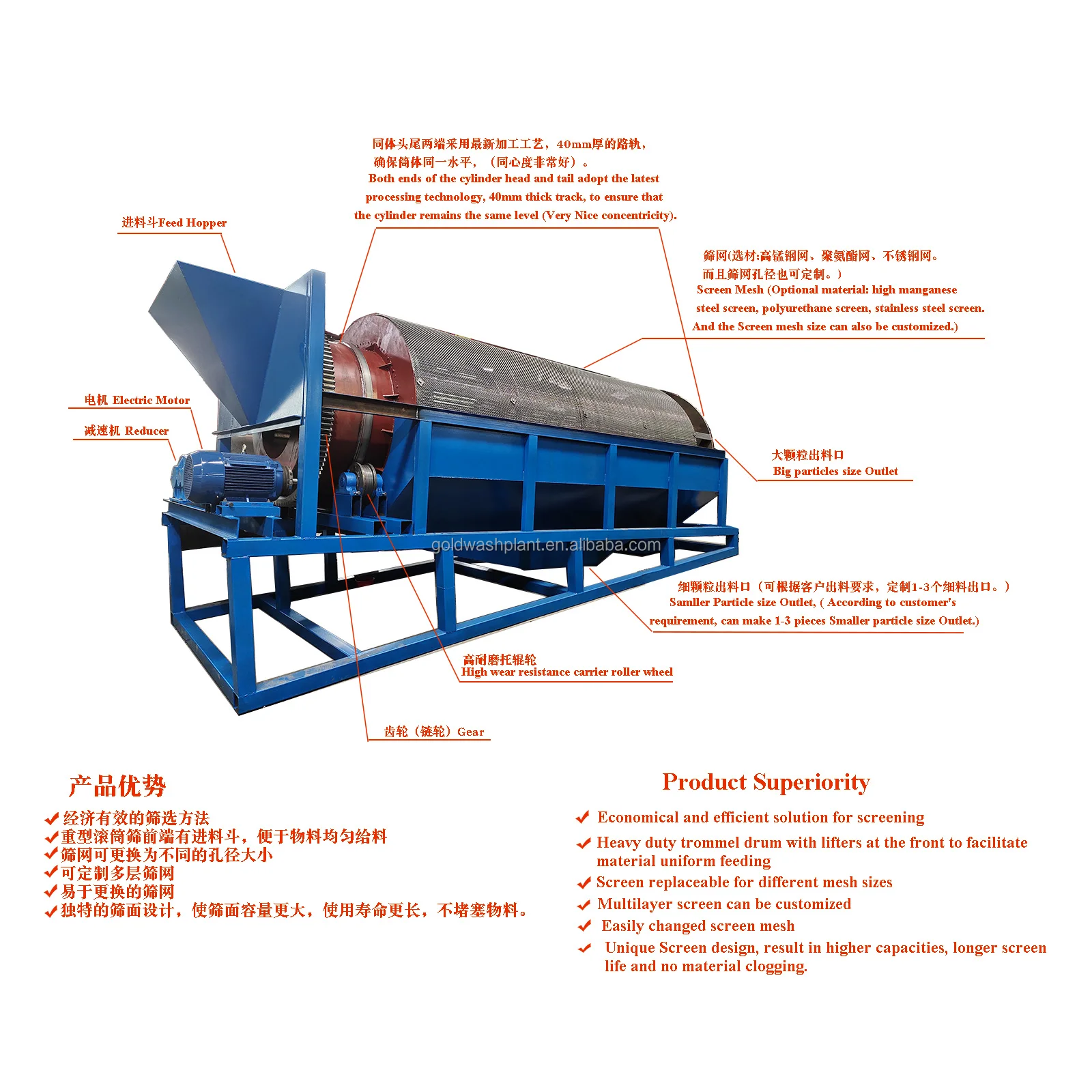

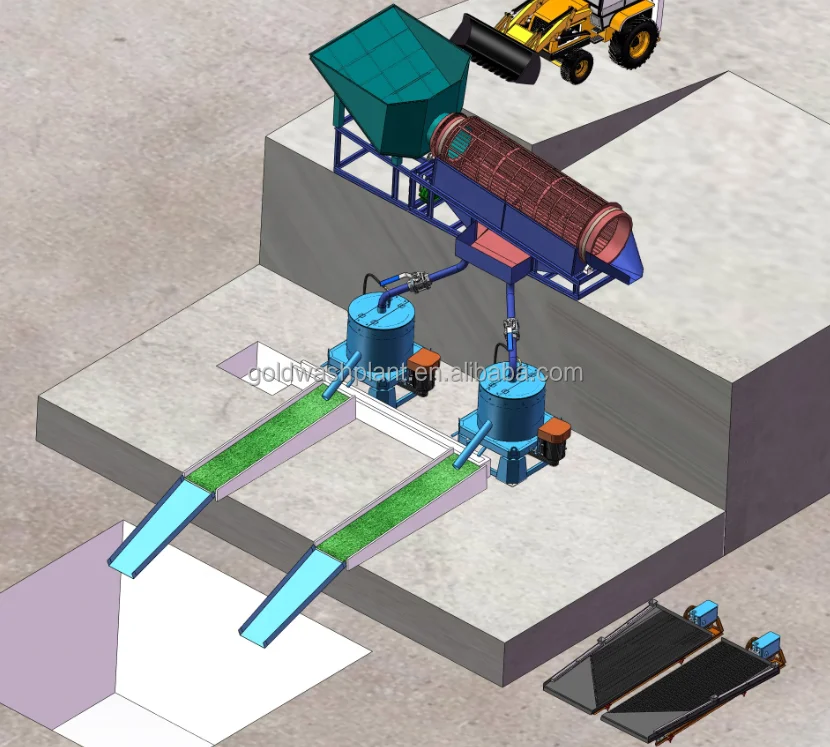

Structure
Feature and Packing

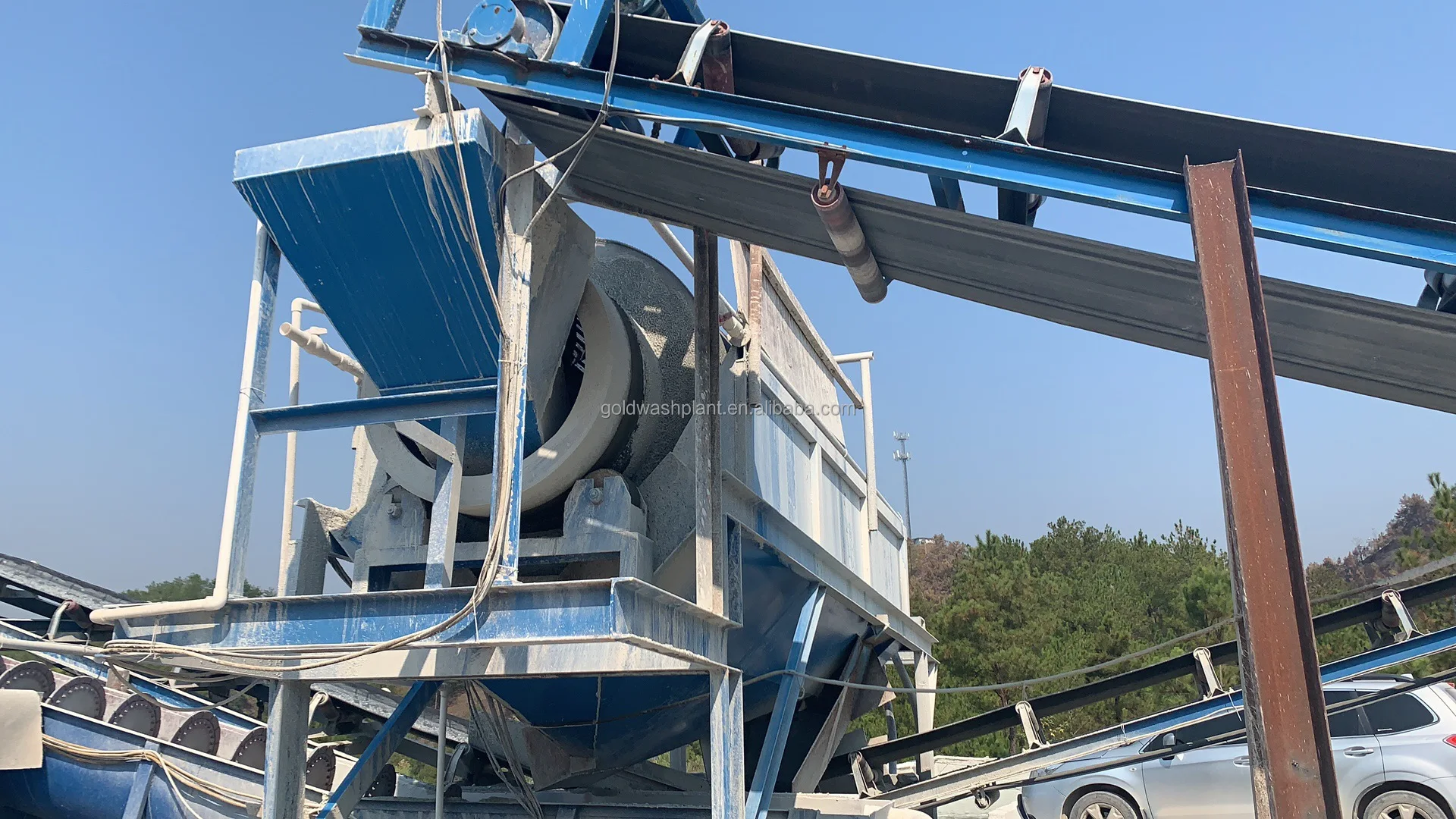

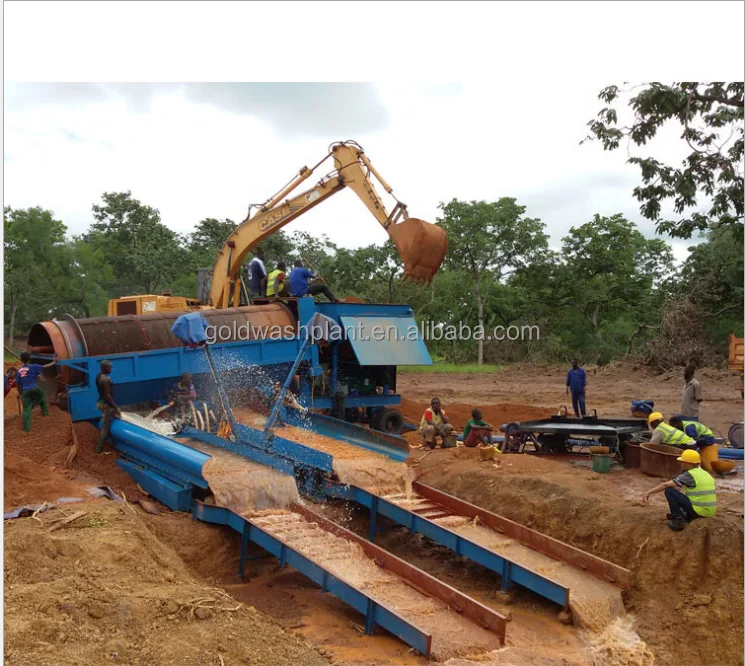

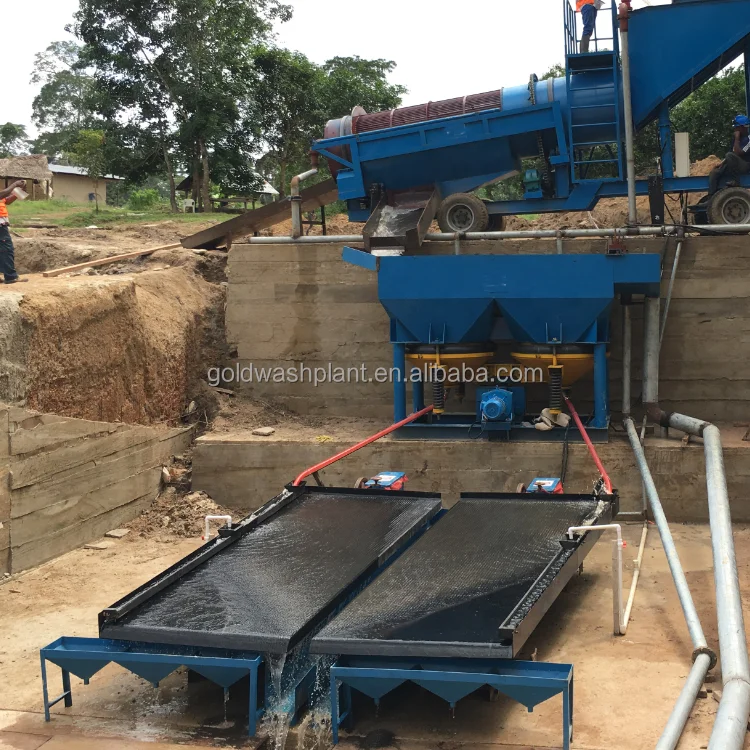

Clients use on-site pictures
FAQ
Q: What is the payment terms ?
A: 1.Total payment lower than 3000USD : 100% payment by T/T before delivery.
2.Total payment higher than 3000USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
3.Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 7-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extend.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
A: 1.Total payment lower than 3000USD : 100% payment by T/T before delivery.
2.Total payment higher than 3000USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
3.Alibaba trade assurance L/C is also acceptable in special conditions.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 7-30 working days.
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extend.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
