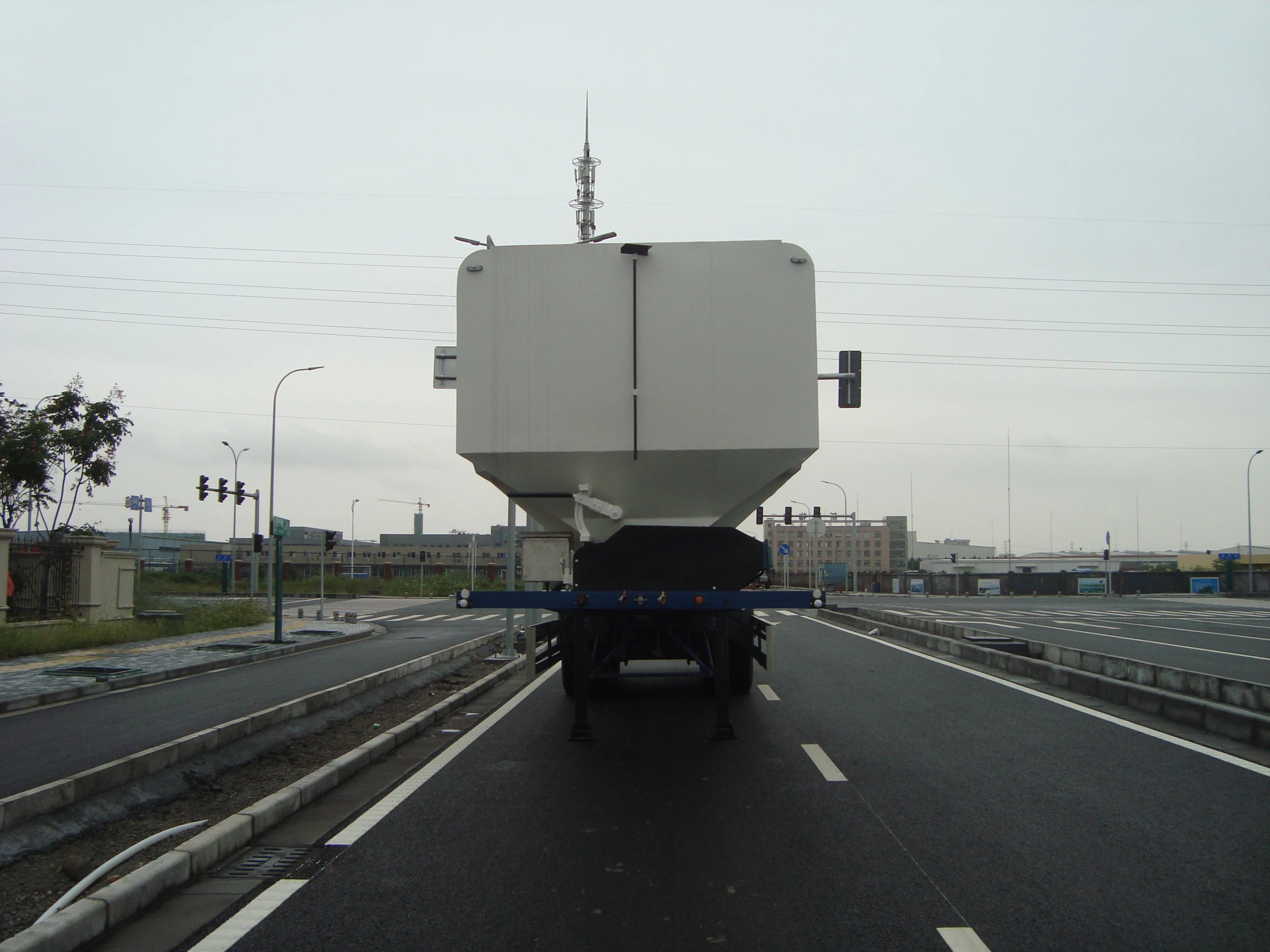

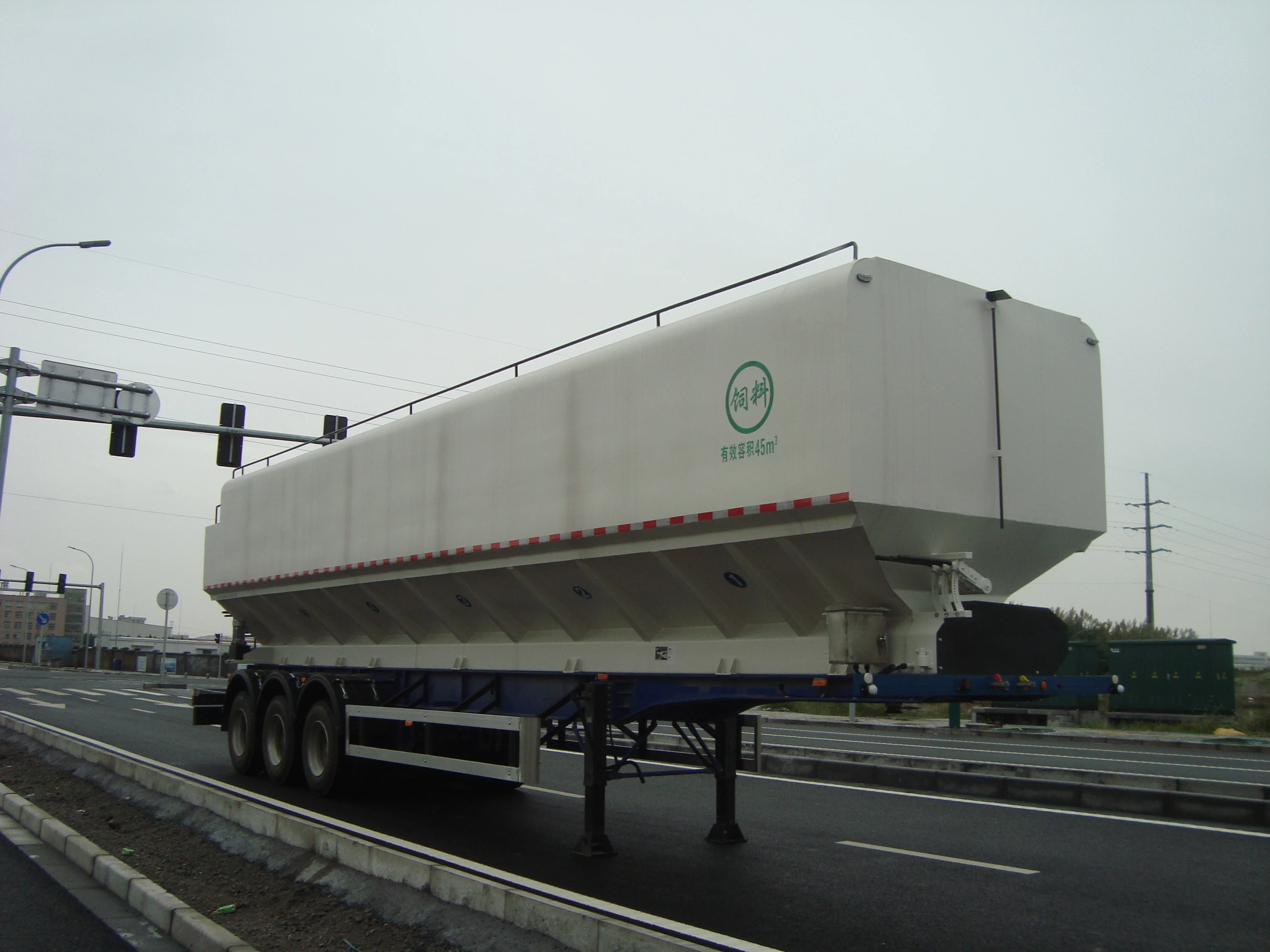

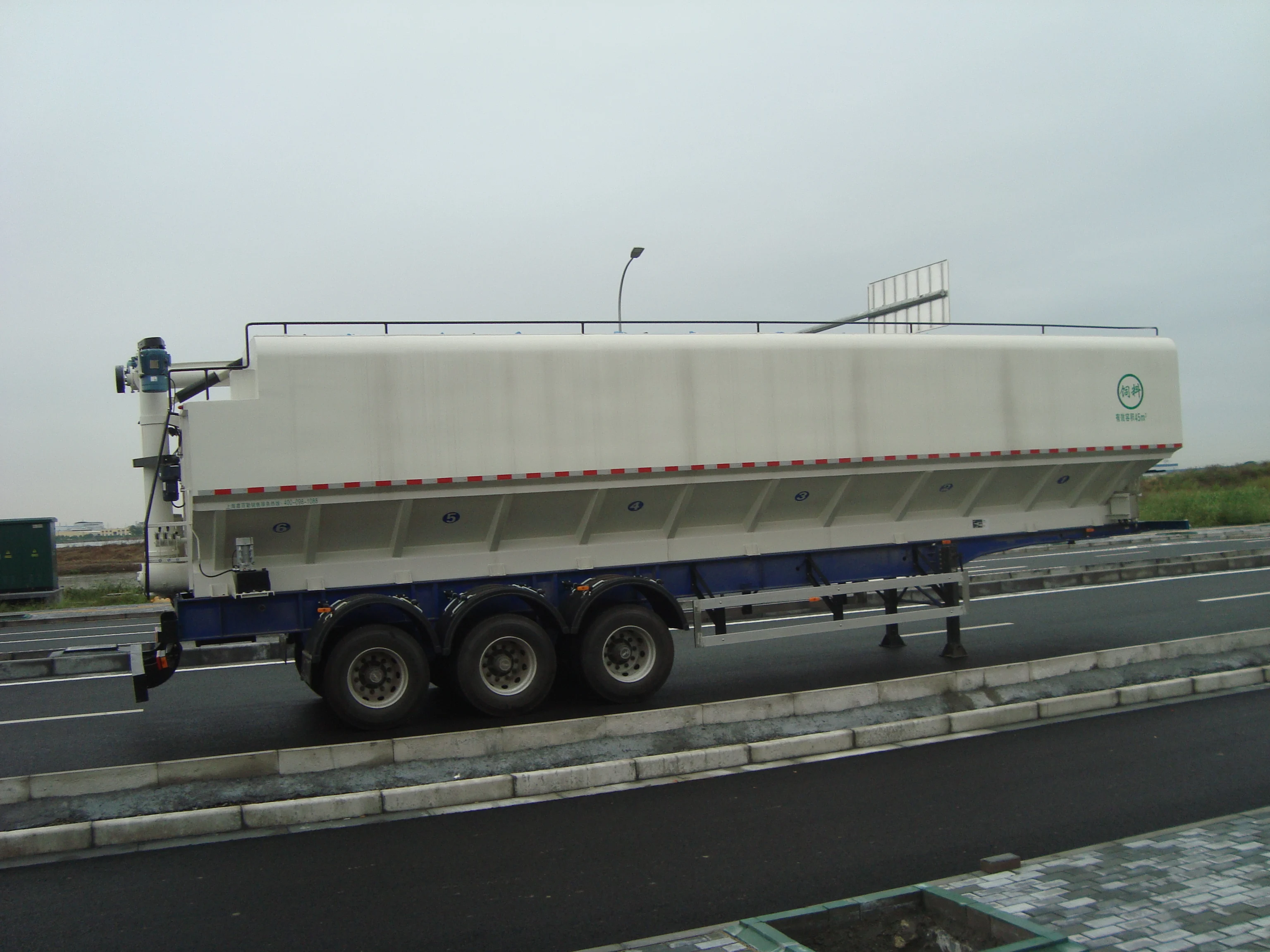

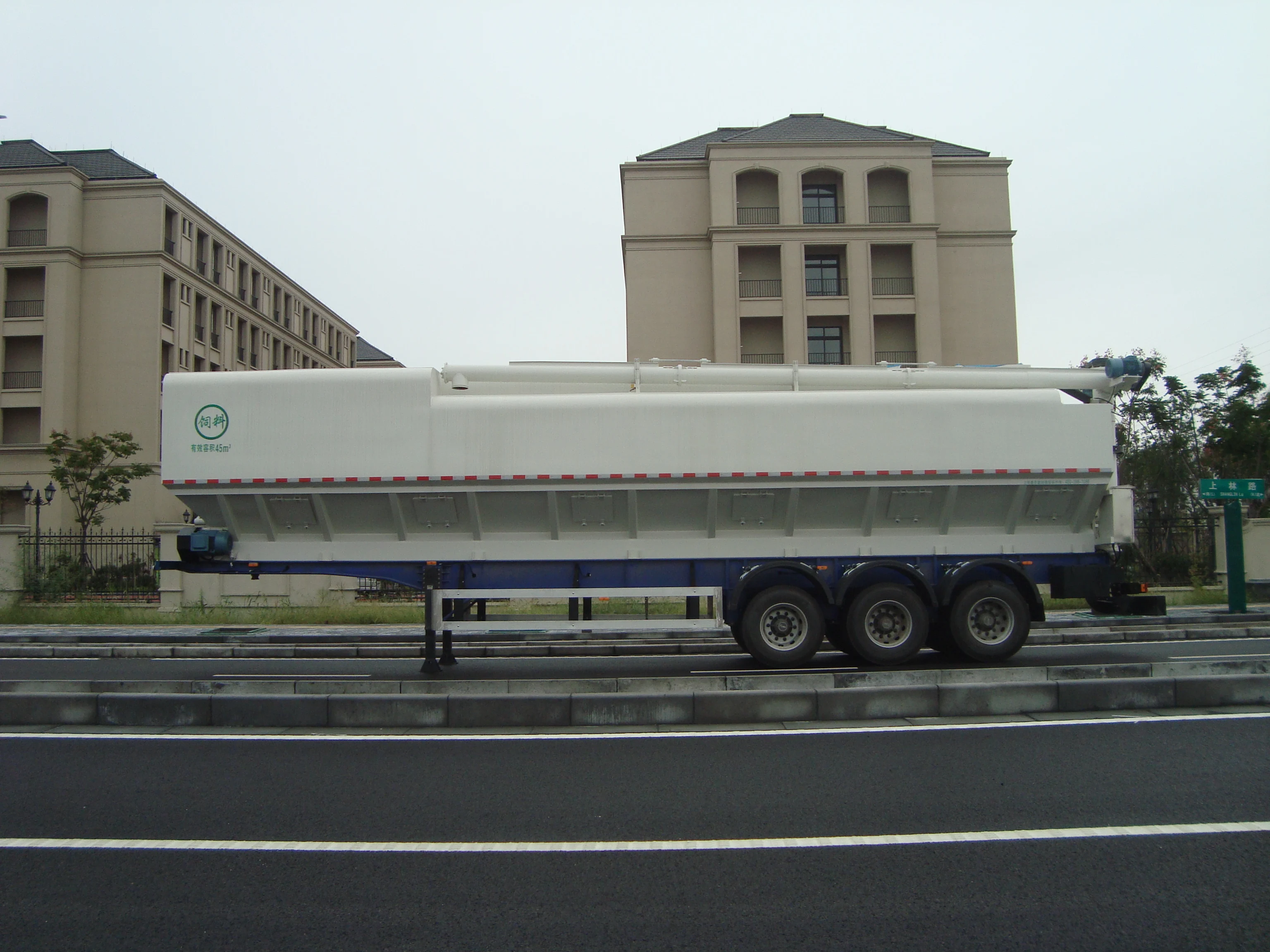

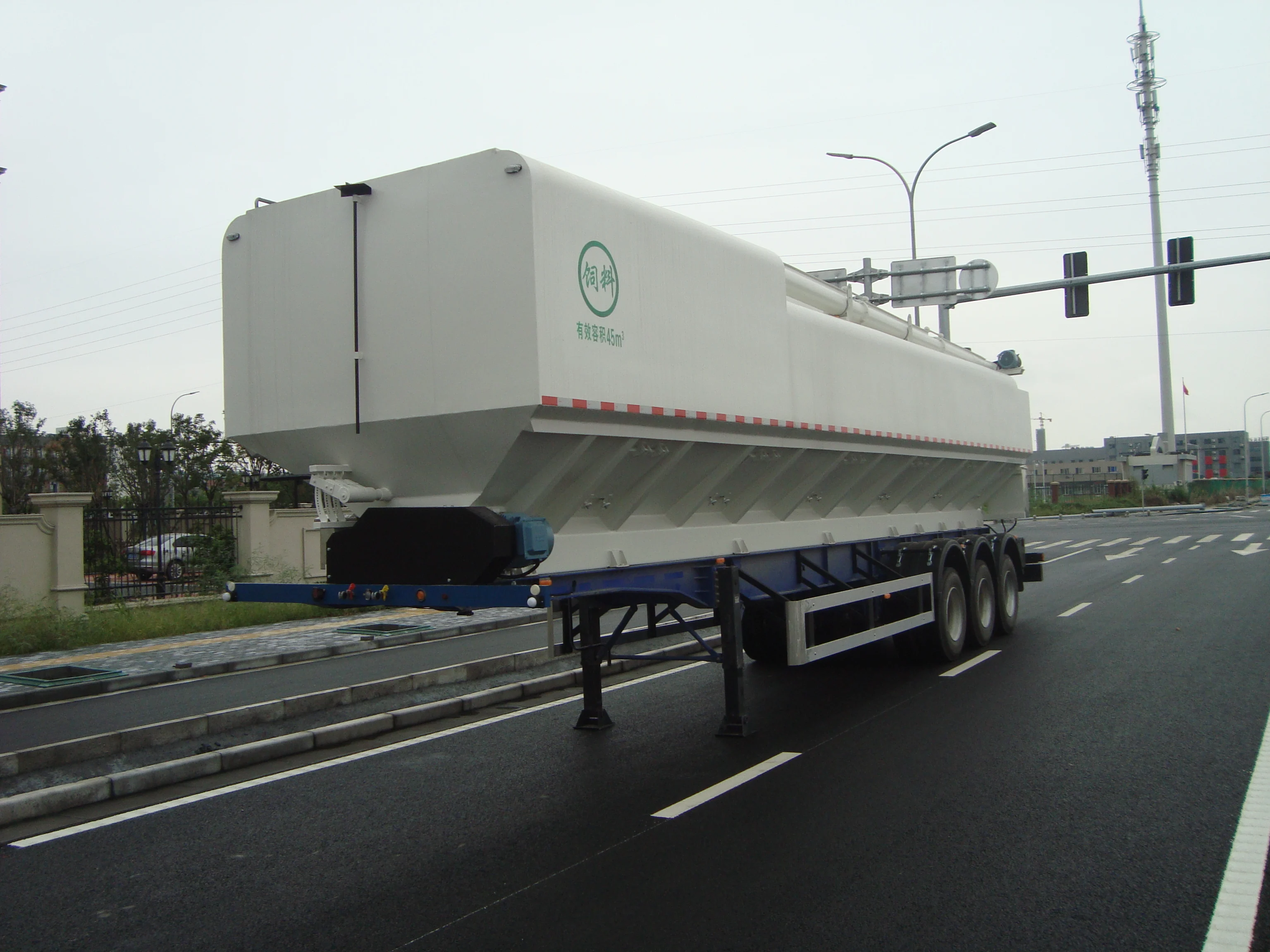

Factory supply hydraulic auger animal truck aluminum tank bulk feed trailer

Vehicle Parameters

Overall Dimensions

(L*W*H)(mm)

12955×2550×3980

Tank Dimension

(L*W*H)(mm)

12220×2540×2270

Total Mass(kg)

34850

Curb Weight(kg)

12350

Bulletin loading(kg)

22500

Theoretical loading(kg)

27000

Appearance color

White/ optional

Certification

ISO9001, 3C

Chassis Parameters

Parking brake type

Manual valve control spring brake cylinder

Driving brake system

Independent double circuit, air pressure, drum brake belt ABS

Tire specifications

11R22.5 16PR

Trailer traction pin height from the ground(mm)

1228

Trailer radius of gyration(mm)

1600

Trailer gap radius

2300

Wheelbase(mm)

7050+1310+1310

Tank Parameters

Tank gross volume (m³)

56

Space quantity

6

Conveying height(m)

10.2

Max conveying distance(m)

8.8

Discharge speed(Kg/min)

550-650

Residual rate(%)

≤0.22

Discharge by

Hydraulic auger

Tank drive form

The feed is conveyed by the lifting auger to the manual and wireless remote-control mode to realize long-distance transport and improve the level of epidemic prevention. And the external power is available.

Electrical configuration

Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V

Hydraulic auger

Use the patent of intermediate support structure,Graphite bearing;Lifting auger steering with wireless remote control

Painting

Professional anti-corrosion paint,Process: sandblasting,polishing, painting

Tank

Made of high quality carbon steel sheet;The proof is sloping, which increase the fullness and safety factor;and Strict welding process guarantees quality.
