Customized LiFepo4 Battery 12V 24V 36V 48V 60V 72V 10Ah 20Ah 30Ah 40ah Lithium Robot Battery Pack
- Category: >>>
- Supplier: Howell Energy Co. Ltd
Share on (1600212748441):
Product Overview
Description
Customized LiFepo4 Battery 12V 24V 36V 48V 60V 72V 10Ah 20Ah 30Ah 40ah Lithium Robot Battery Pack
Product Description
| Nominal voltage | 12V |
| Nominal capacity | 10Ah |
| Protection | Bulid in BMS |

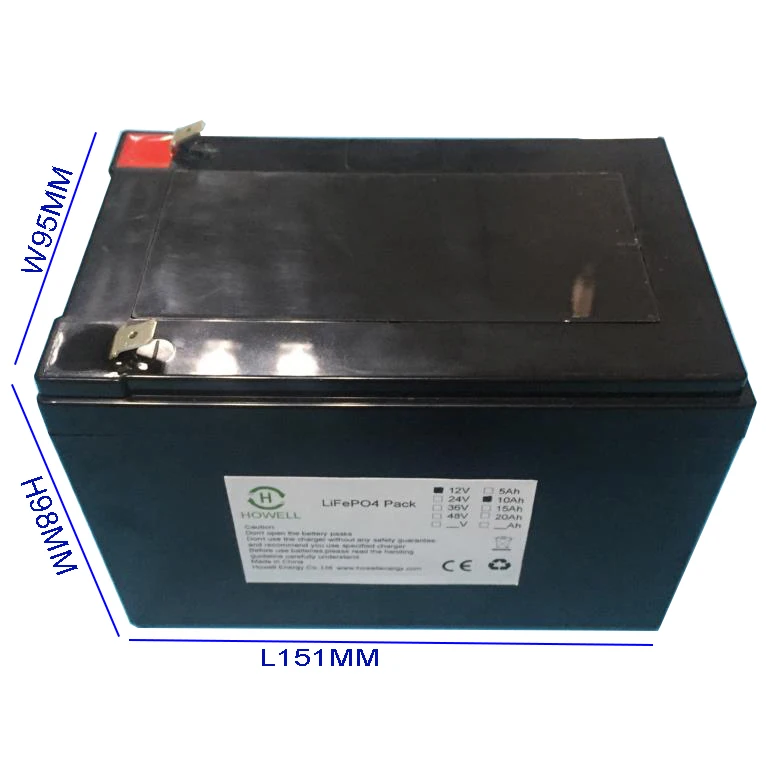

| Dimention | 151*98*95mm/33*70*290mm |
| Weight | 1.5kg |
| BMS Discharge Current Cut-Off: | 300A±5A |
| BMS Discharge Voltage Cut-Off: | 8V(2.0±0.08 vpc) |
| Charging Voltage | 15.2V |
| Max Charge Current | 1C |
| Max Discharge Current | 3C |
| Operating temperature | Charge: 0 C to 45 C Discharge: -20 C to 60 C |
| Cycle life | >3000cycles |
| Package | 1pcs/Ctn, 48pcs/Tray, 480pcs/20GP |

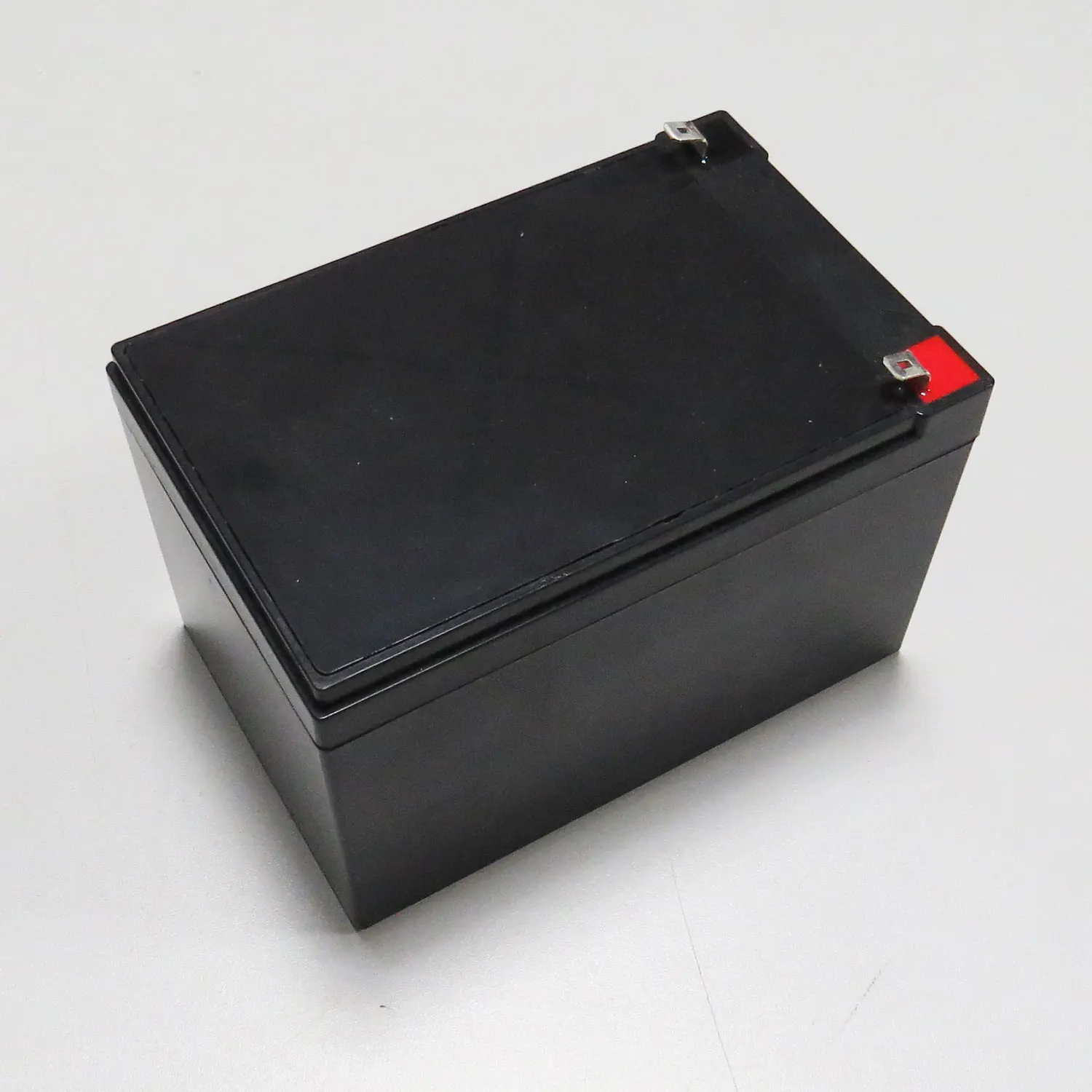

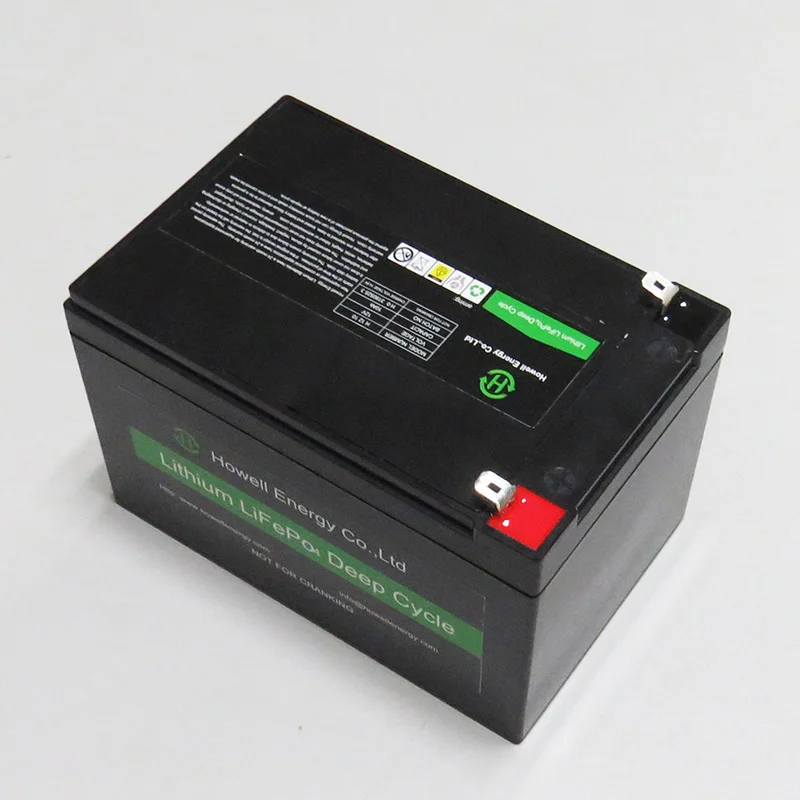

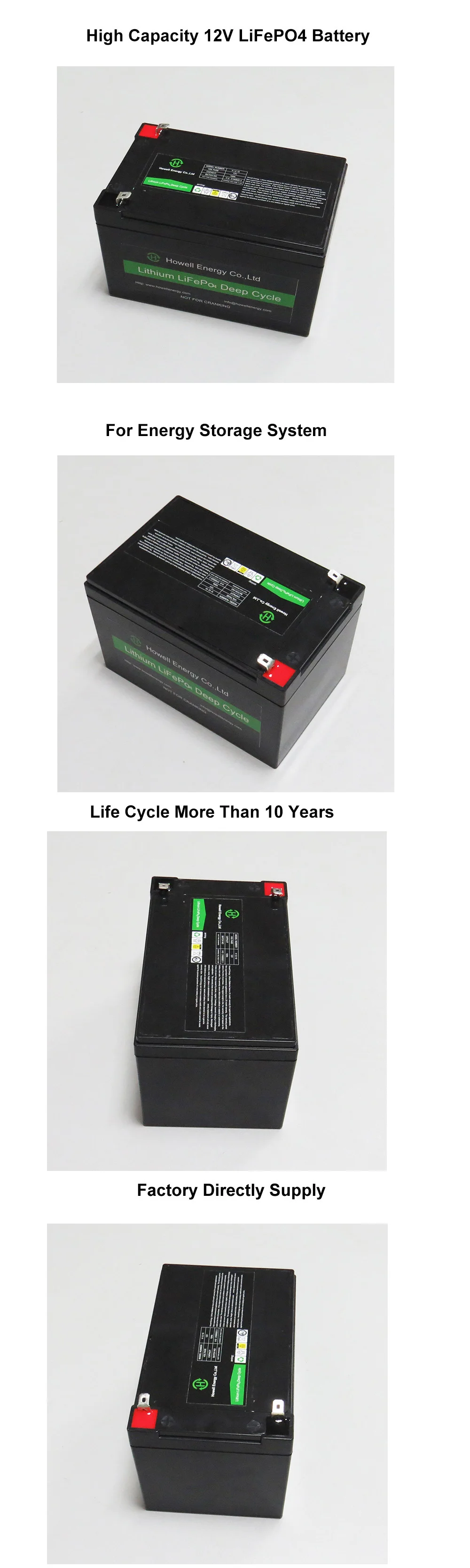

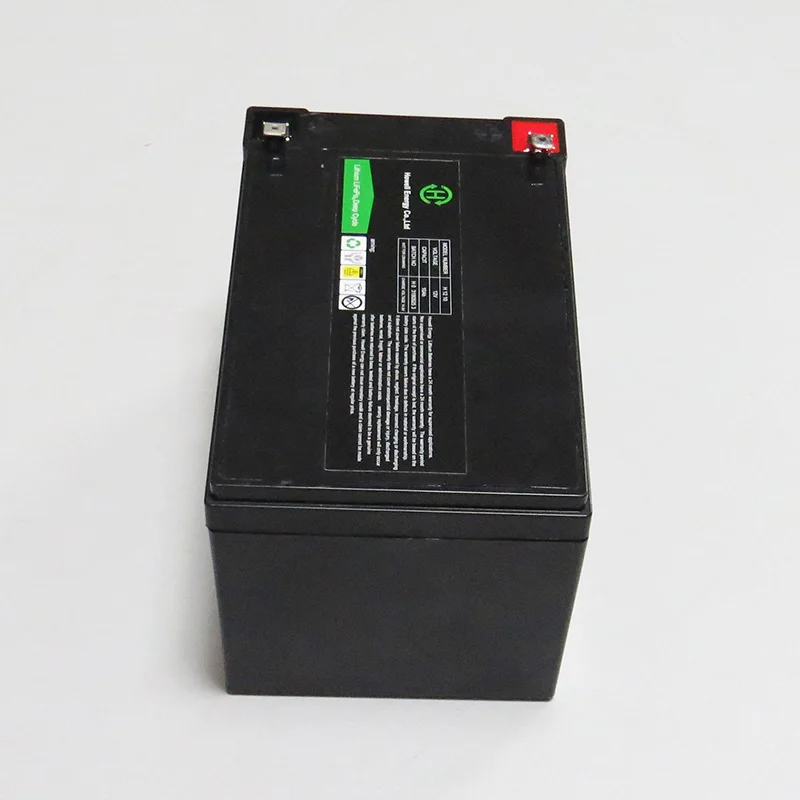

Product Display:
Advantages
1. Long life, Under 100%DOD, the life cycle is more than 3000 times
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire
Related Model
| Model | Nominal Voltage | Nominal Capacity | LiFe Cycles | Maximum Charge Voltage | Cut-off Discharge Voltage | Continuous Discharge Current | Battery weight | Measurement (T*W*L) |
| HW-4F10 | 12V | 10Ah | ≥3000 | 14.6V | 9.2V | 20A | 1.5kg | 151*98*95mm |
| HW-4F20 | 12V | 20Ah | ≥3000 | 14.6V | 9.2V | 40A | 2.8kg | 181*76*166mm |

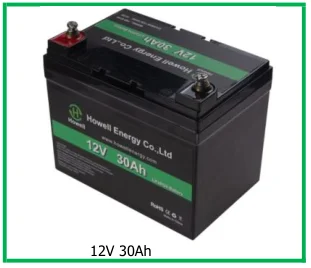

| HW-4F30 | 12V | 30Ah | ≥3000 | 14.6V | 9.2V | 60A | 3.8kg | 182*130*195mm |

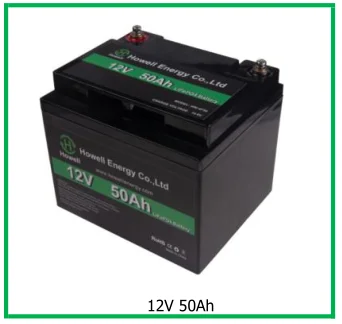

| HW-4F50 | 12V | 50Ah | ≥3000 | 14.6V | 9.2V | 75A | 6kg | 182*130*195mm |
| HW-4F100 | 12V | 100Ah | ≥3000 | 14.6V | 9.2V | 100A | 13.5kg | 305*173*225mm |
| HW-4F150 | 12V | 150Ah | ≥3000 | 14.6V | 9.2V | 100A | 20.6kg | 295*178*345mm |
| HW-4F200 | 12V | 200Ah | ≥3000 | 14.6V | 9.2V | 100A | 28.1kg | 520*269*203mm |
| HW-8F40 | 24V | 40Ah | ≥3000 | 29.2V | 18.4V | 40A | 10kg | 170*195*200mm |
| HW-8F60 | 24V | 60Ah | ≥3000 | 29.2V | 18.4V | 60A | 16kg | 255*160*250mm |
| HW-8F100 | 24V | 100Ah | ≥3000 | 29.2V | 18.4V | 100A | 34kg | 520*269*203mm |
| HW-8F200 | 24V | 200Ah | ≥3000 | 29.2V | 18.4V | 100A | 59.5kg | 420*350*298mm |
| HW-16F50 | 48V | 50Ah | ≥3000 | 58.4V | 36.9V | 80A | 28kg | 430*400*133mm |
| HW-16F100 | 48V | 100Ah | ≥3000 | 58.4V | 36.9V | 80A | 51kg | 442*420*222mm |
| HW-16F200 | 48V | 200Ah | ≥3000 | 58.4V | 36.9V | 100A | 87.5kg | 640*483*222mm |

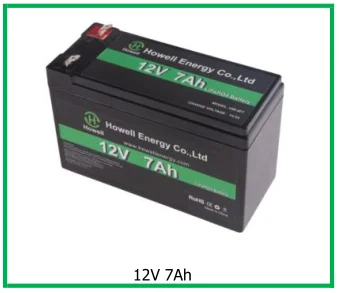

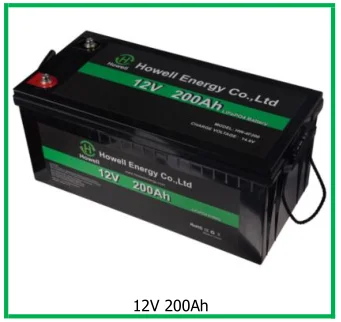

Related Product Display
FAQ
Q1. Can I have a sample order for Battery?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples in 5~10 days, 25-30 days for the bulk order.
Q3. Do you have any MOQ limit for Battery?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: For sample order, we usually ship by TNT, UPS etc., which usually takes 3~5 days to arrive. For the bulk order, Air and sea shipping are both optional.
Q5. Is it OK to print my logo on Battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
⇒ Welcome to contact us for sample testing order.
Packing & Delivery:
Packing
DG packaging for Batteries According UN38.3 requirement
Delivery
With more than 20 years for Batteries export, The Battery can ship Via Sea / Air /express.
Howell provide you with the certification which allows you to ship these batteries via air include UN38.3 /MSDS /DG.
We Can ship from Shenzhen,Guangzhou, Shanghai,Hongkong, etc.
