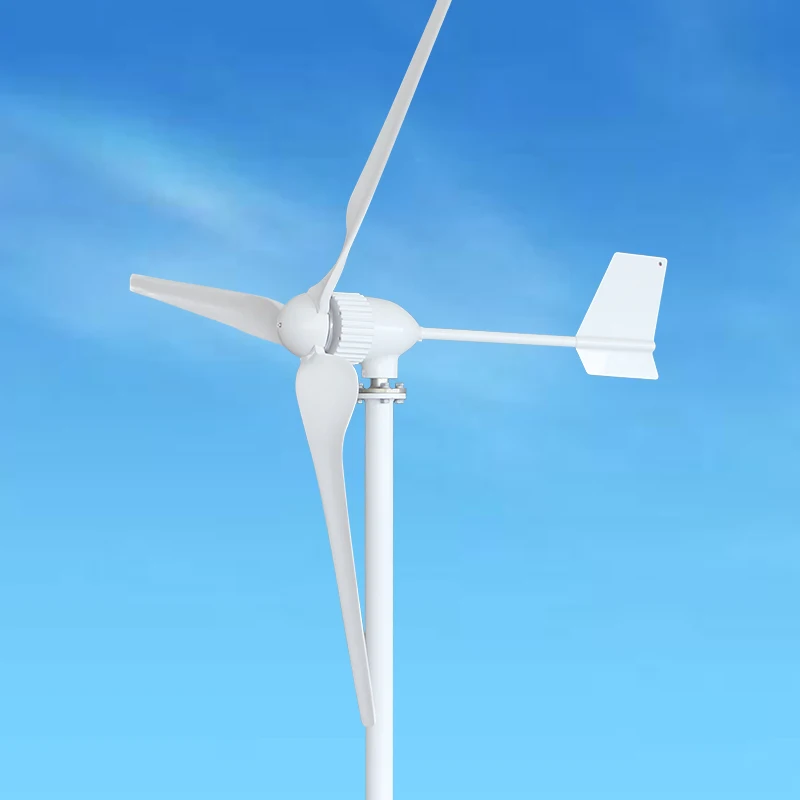

Factory wholesale Wind Turbine 3kw Horizontal Axis 96V Turbin Wind With CE
- Category: >>>
- Supplier: Wuxi Longmax Technology Co. Ltd.
Share on (1600212772964):
Product Overview
Description
Product Description
Reinforced Blades Wind Generator Wind Turbine 1kw 3000w Wind Turbine 48V 96V
1. Safety: the main stress point of the blade is concentrated on the hub, so the problems of blade falling off, fracture and blade flying out are solved;
2. Wind resistance: horizontal rotation makes it less wind pressure, and can resist the super typhoon of 40 meters per second;
3. Radius of gyration: due to the difference of design structure and operation principle, it has smaller turning radius than other forms of wind power generation, which saves space and improves efficiency at the same time;
4. Characteristics of power generation curve: the starting wind speed is lower than that of other types of wind turbines, and the rising range of generating power is relatively gentle. Therefore, in the wind speed range of 5-8m, its power generation capacity is 10% - 30% higher than that of other types of wind turbines;
Application

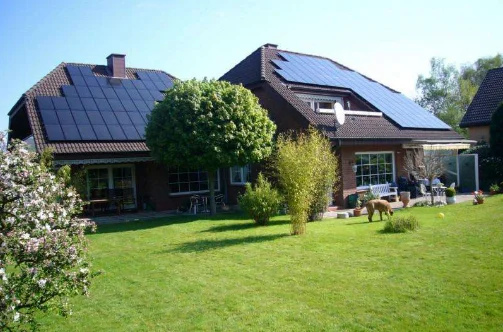

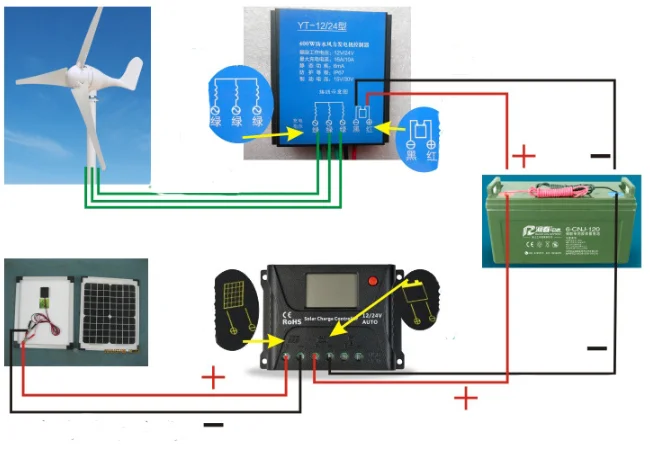

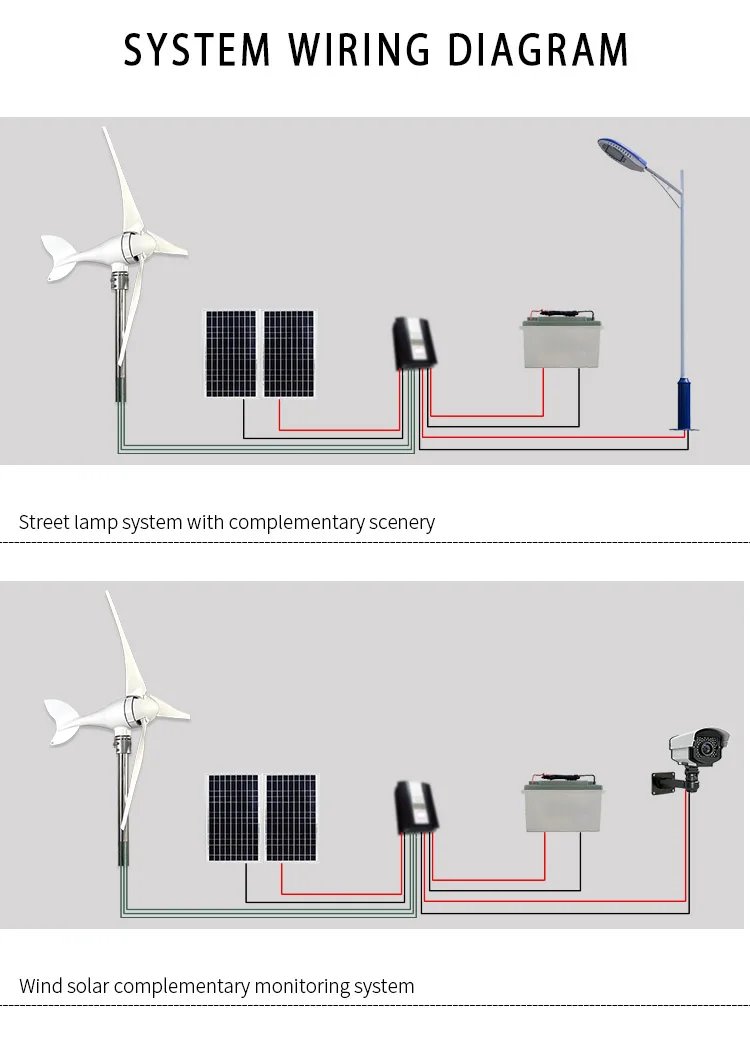

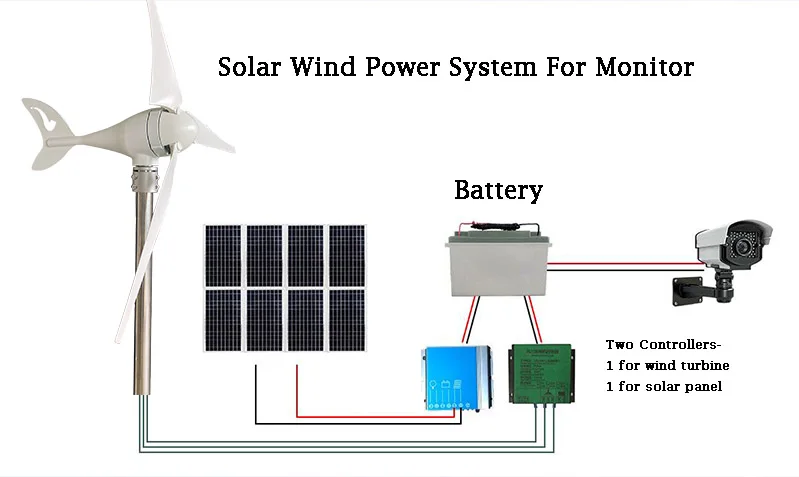

This 1kw-3kw small wind generator with CE certificate for hybrid system could be used for homes,farms,schools,small industrial mills,landscape facilities,hotels,vocational villages,bases and remote communication.
This 1kw-3kw small wind generator with CE certificate for hybrid system could be used for homes,farms,schools,small industrial mills,landscape facilities,hotels,vocational villages,bases and remote communication.
Model | XTL-1000L | XTL-1500L | XTL-2000L | XTL-2500L | XTL-3000L | ||||
Rated power | 1000W | 1500W | 2000W | 2500W | 3000W | ||||
Max power | 1200W | 1700W | 2300W | 2800W | 3300W | ||||
Nominal voltage | 48V | 48V | 48V/96V | 48V/96V | 96V | ||||
Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | ||||
Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | ||||
Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||
Wind wheel diameter | 2.7m | 3.2m | 3.7m | 4m | 4.3m | ||||
Number of blades | 3 | 3 | 3 | 3 | 3 | ||||
Net weight | 45kg | 50kg | 55kg | 60kg | 65kg | ||||
Blades material | Nylon fiber or FRP | ||||||||
Generator | Three phase ac permanent magnet generator | ||||||||
Controller system | Electromagnetict/wind wheel yaw | ||||||||
Speed regulation | The wind Angle automatically | ||||||||
Working Temperature | -40℃～80℃ | ||||||||
High temperature resistant Teflon copper wire
When the generator starts, the torque is low and the conversion rate is high
High temperature resistant Teflon wire is adopted, which is not easy to burn out when the generator is overloaded and heated
When the generator starts, the torque is low and the conversion rate is high
High temperature resistant Teflon wire is adopted, which is not easy to burn out when the generator is overloaded and heated
Oxidation treatment of hub surface
The surface of the wheel hub is sprayed with plastic oxidation treatment, which can enhance the corrosion resistance, and is beautiful and durable
The surface of the wheel hub is sprayed with plastic oxidation treatment, which can enhance the corrosion resistance, and is beautiful and durable
Double groove ball bearing is thicker, using double groove ball bearing, when the machine is running, it is not easy to shake
Convenient flange design
Use humanized flange design, convenient installation and maintenance
Use humanized flange design, convenient installation and maintenance

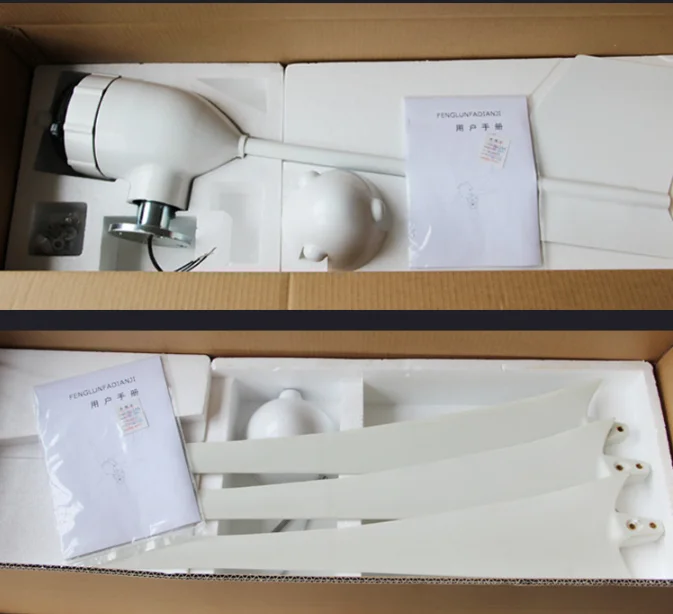

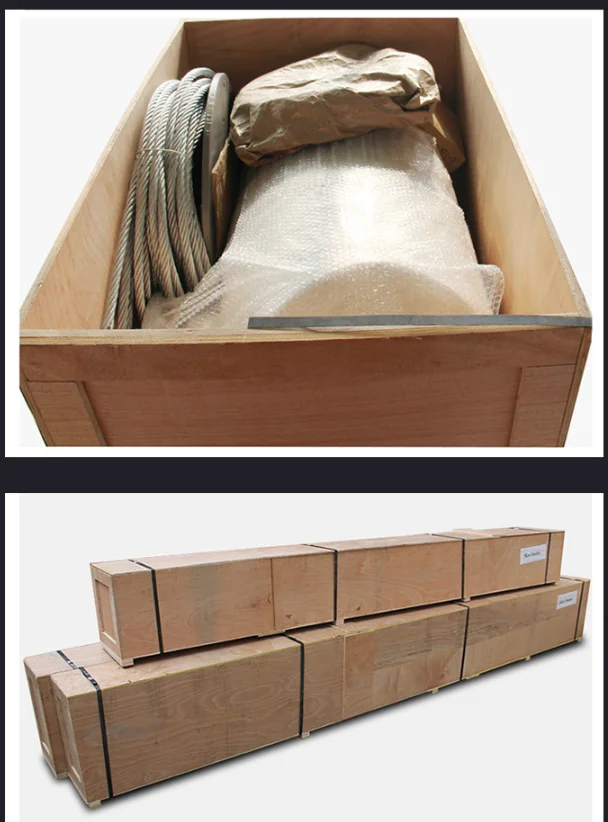

Accessories and packing
Related Products
Certificate

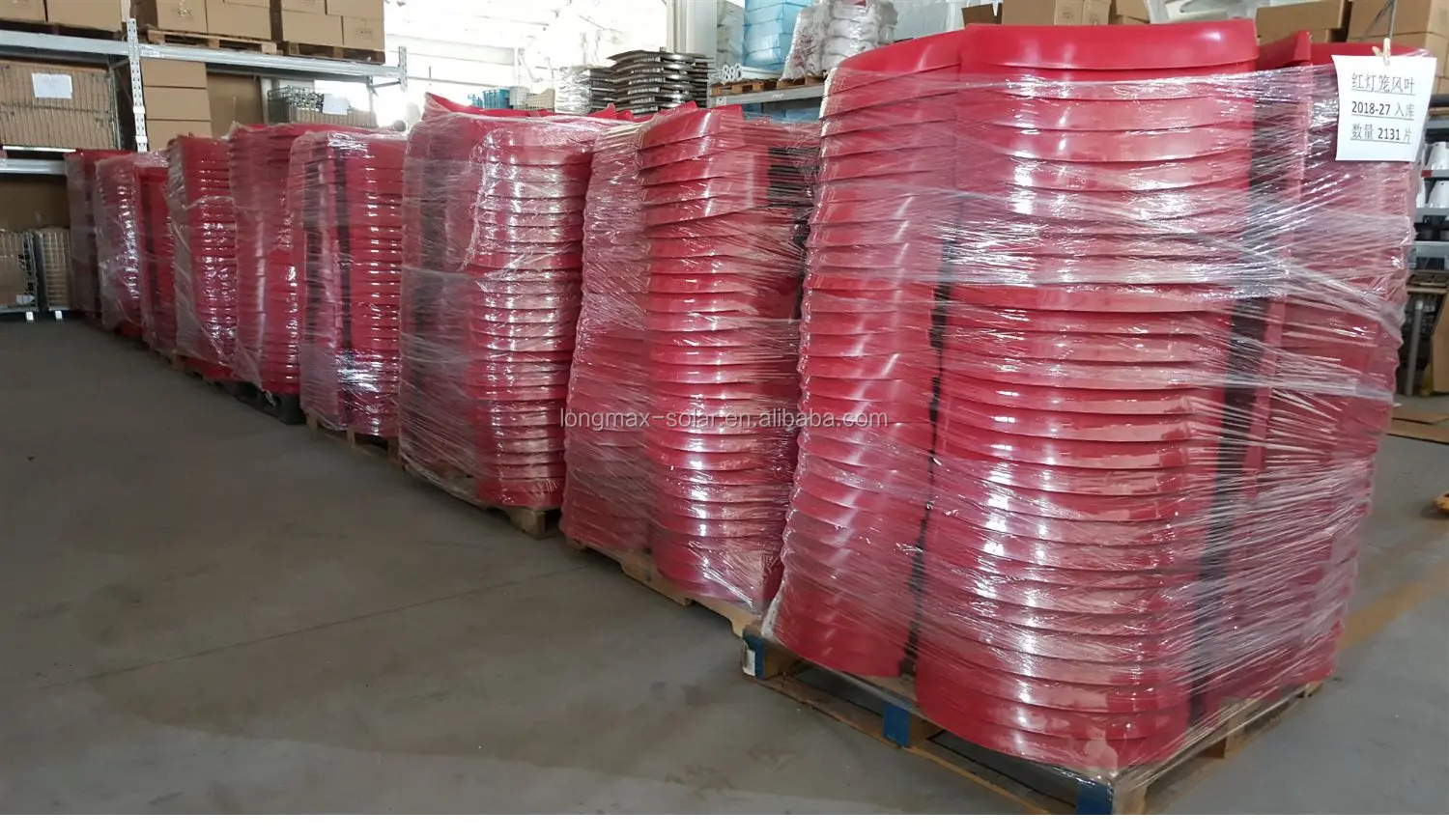

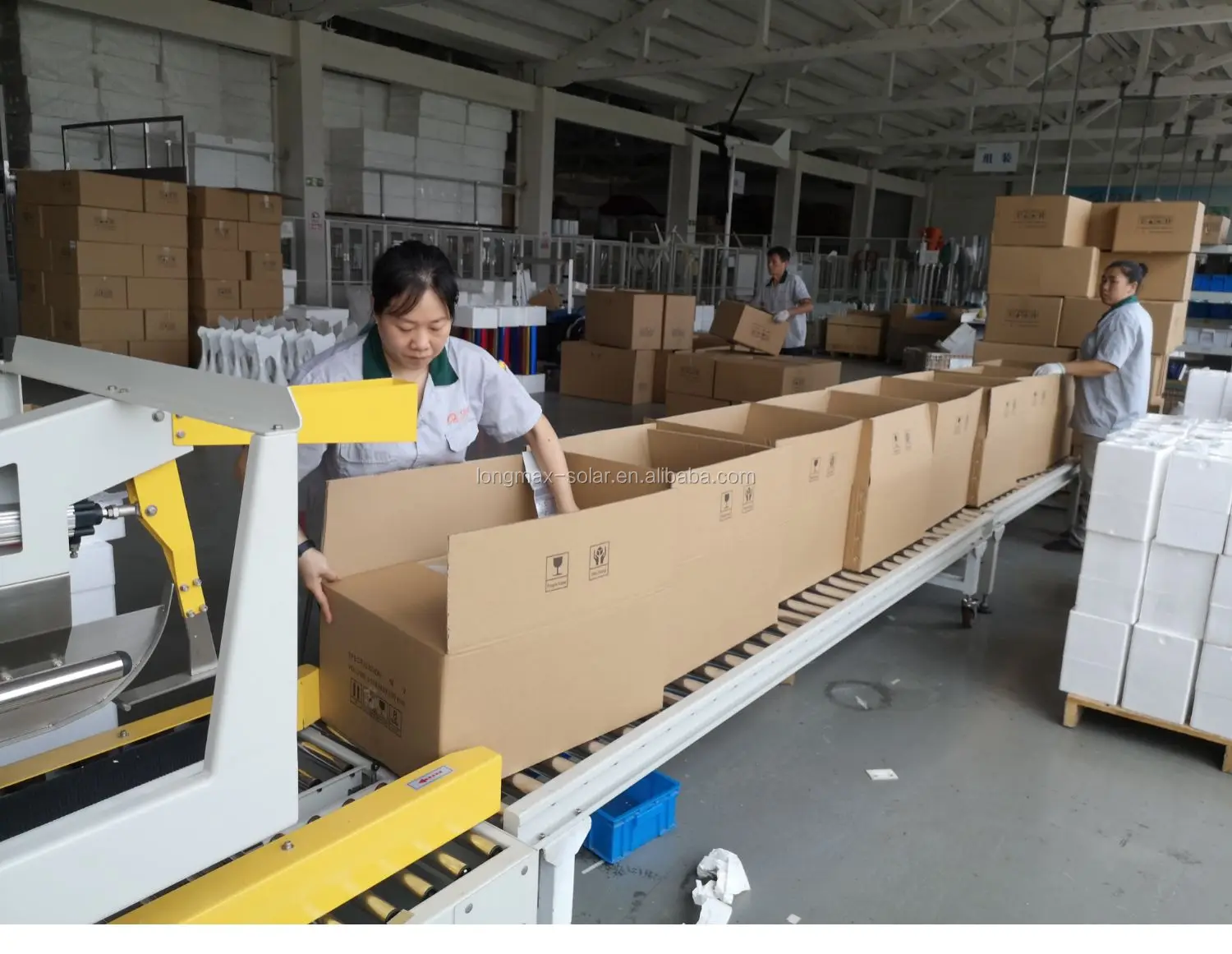

Packing&Shipping

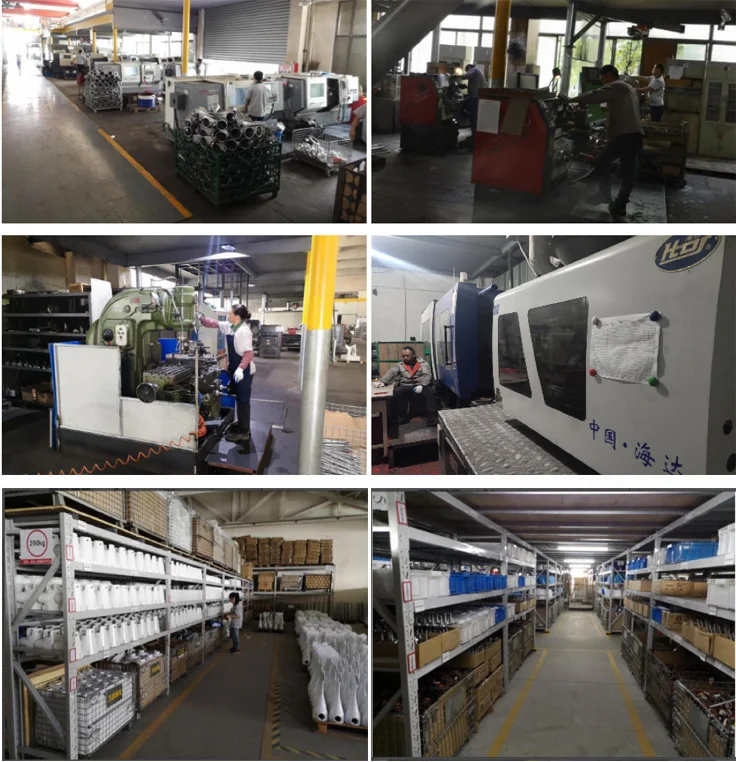

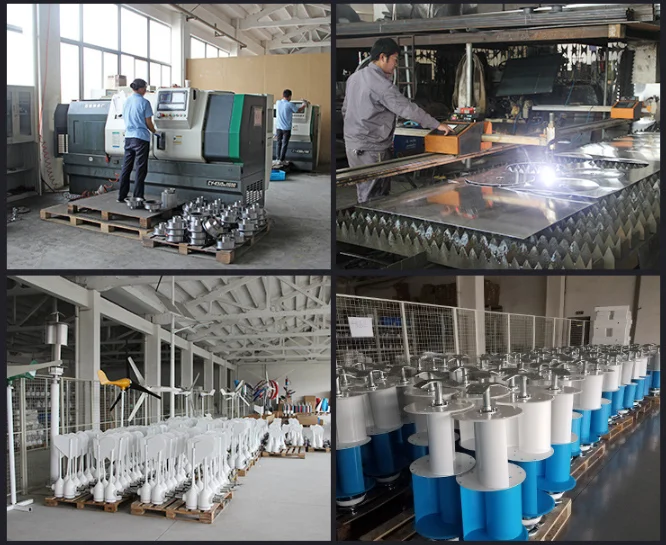

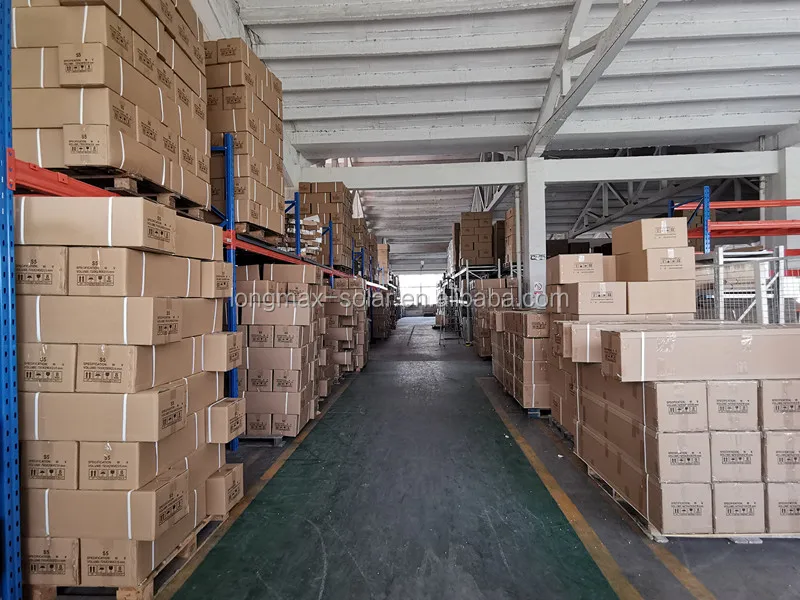

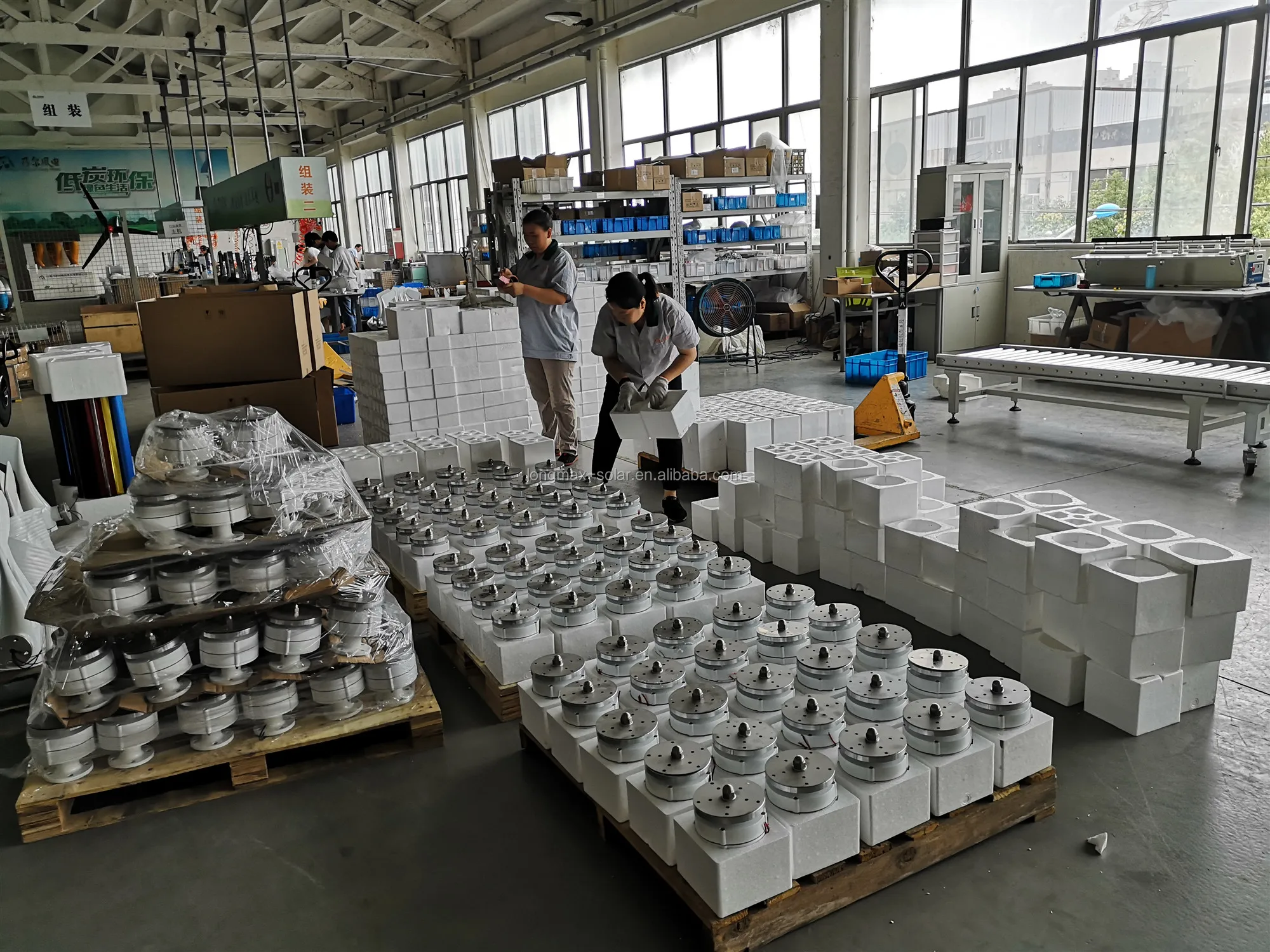

Company Introduction
