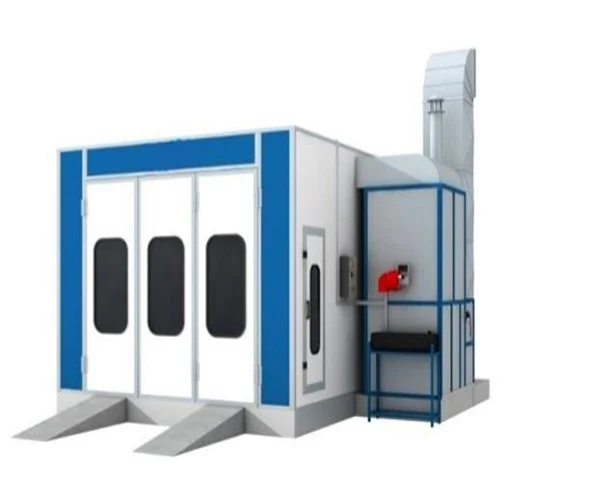

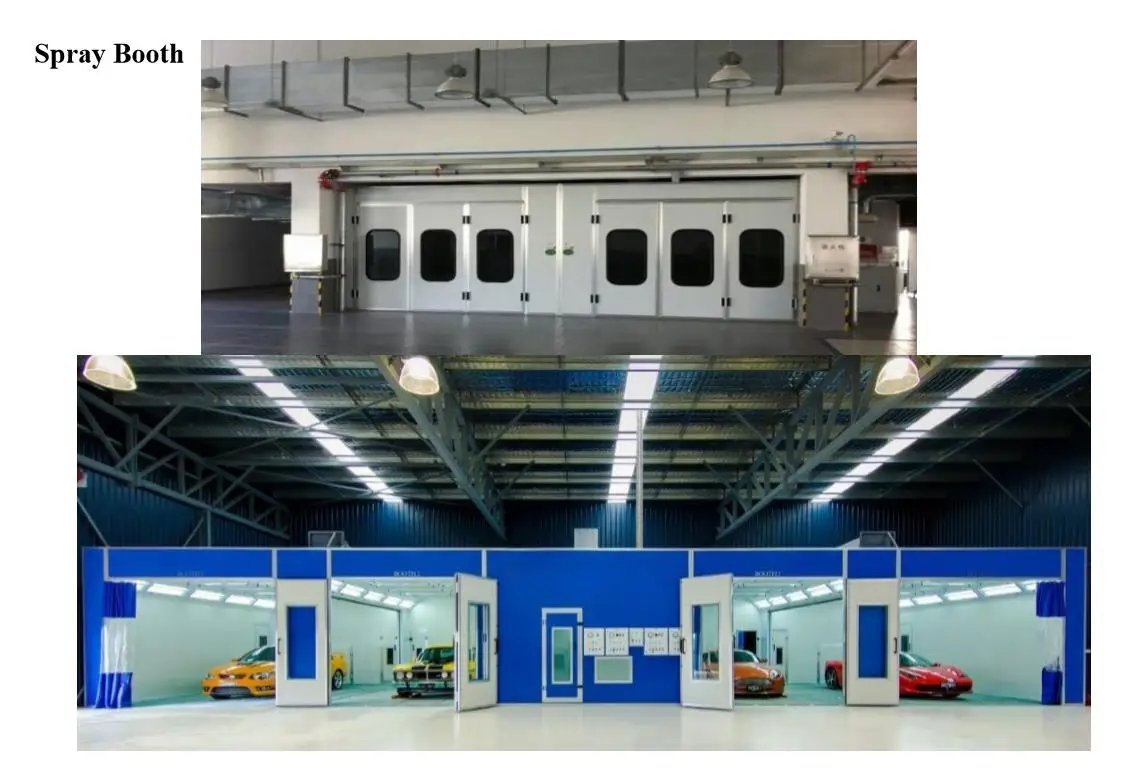

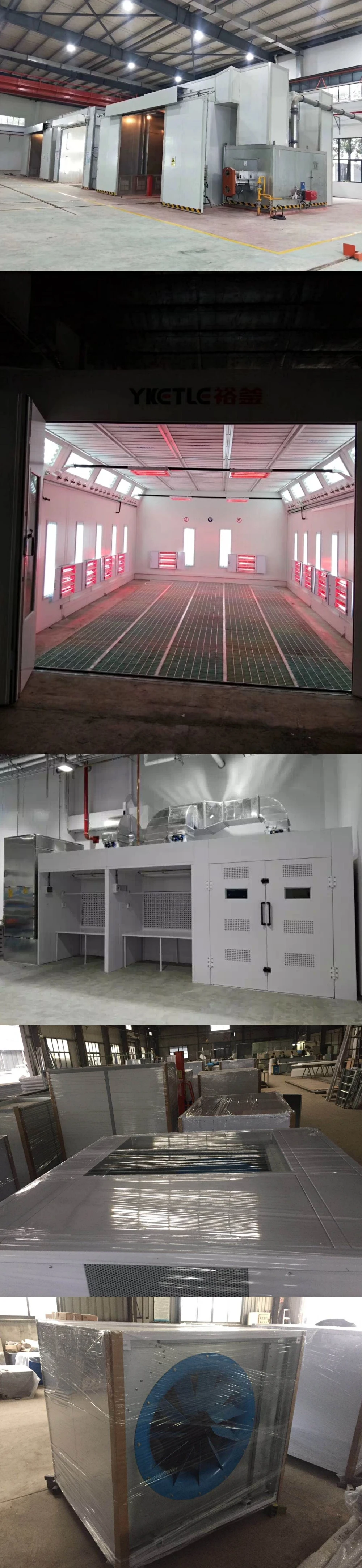

Spray booth

Outside Dimension (mm)

7006*5350*3450(L*W*H)

Inside Dimension(mm)

6900*4000*2650(L*W*H)

Front Door(mm)

3000*2600(W*H)

Service door (mm)

1800*650(W*H)

Total Power

9.5KW

Cabin system

Wall panel

50mm EPS sandwich panel, steel sheet thickness: 0.426mm

Ceiling panel

0.8mm Galvanized steel sheet.

Basement

300mm depth, two rows grids and three rows checkered plates.

Ramps

Two pieces 2000*600mm ramps

Glass

4mm safety tempered glass

Windows

Rubber glass window

Air Make-up System

Air Inlet fan system

1*7.5kw turbo fan

Exhausted fan system

For option

Ai capacity

22000m³/h

Air Flowing speed

0.25m/s in empty booth

Exhausted ducting

4meters straight ducting, one 90°elbow and one 30°elbow.

Purification System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

green fiber glass filter / G3 grade

Exhausted fan Filters

fiber glass filter and active carbon

Heating System

Heat Exchanger

SUS304 material, argon arc welding.

Heating burner:

BT14 diesel oil burner

Heating productivity

140000Kcal/h

Spray to baking switch

20N BELIMO brand electrical damper

Chimney ducting

3 meters stainless ducting and one chimney elbow

Max heating temperature

80℃

fuel consumption

6-8L/vehicle

Lighting System

Ceiling lights

8 Units, each 4 * 18W LED lamps. Total 576 W

Side lights

For option

Illumination

900LUX

Controlling system

Switched control panel

Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm
