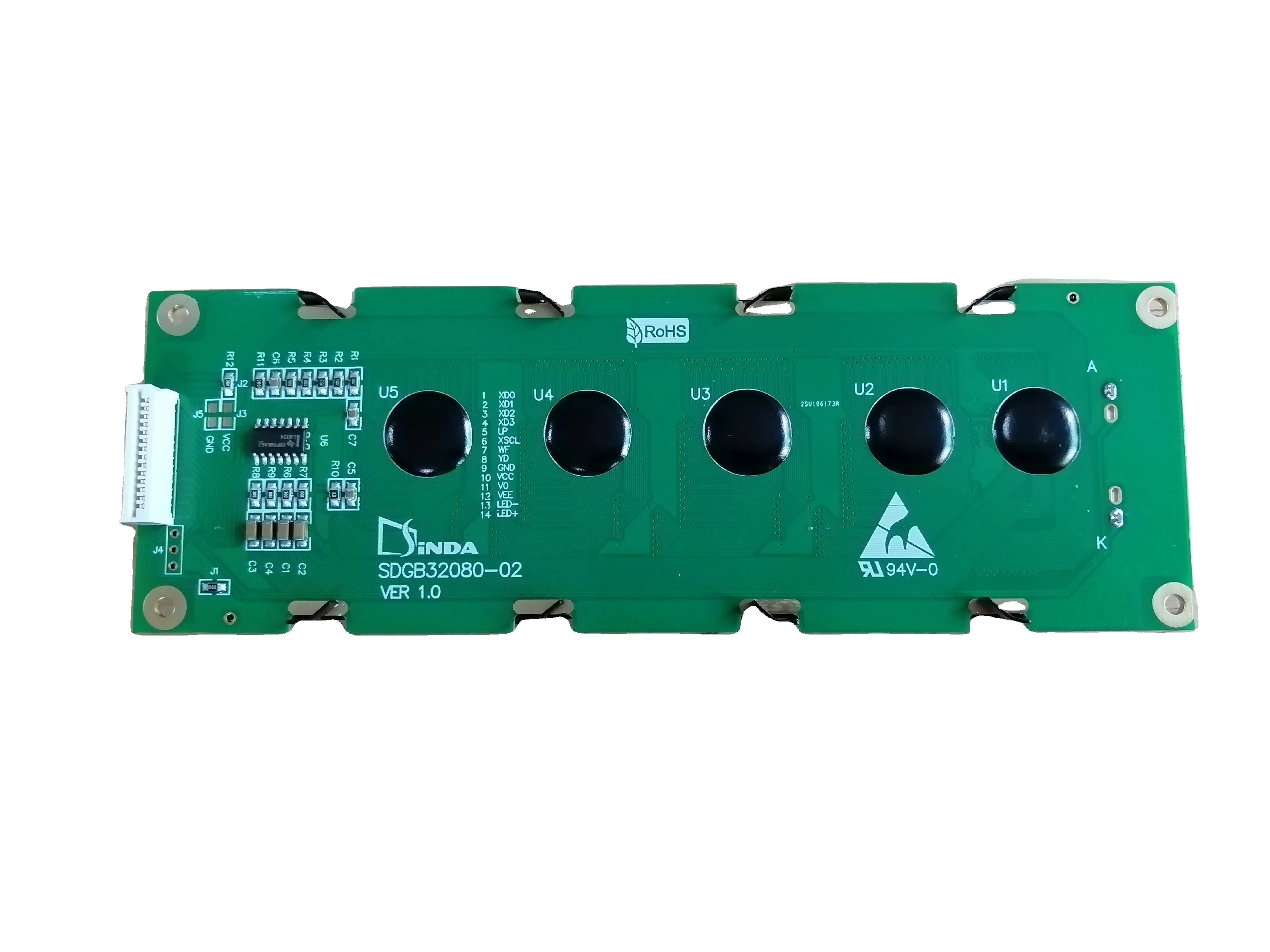

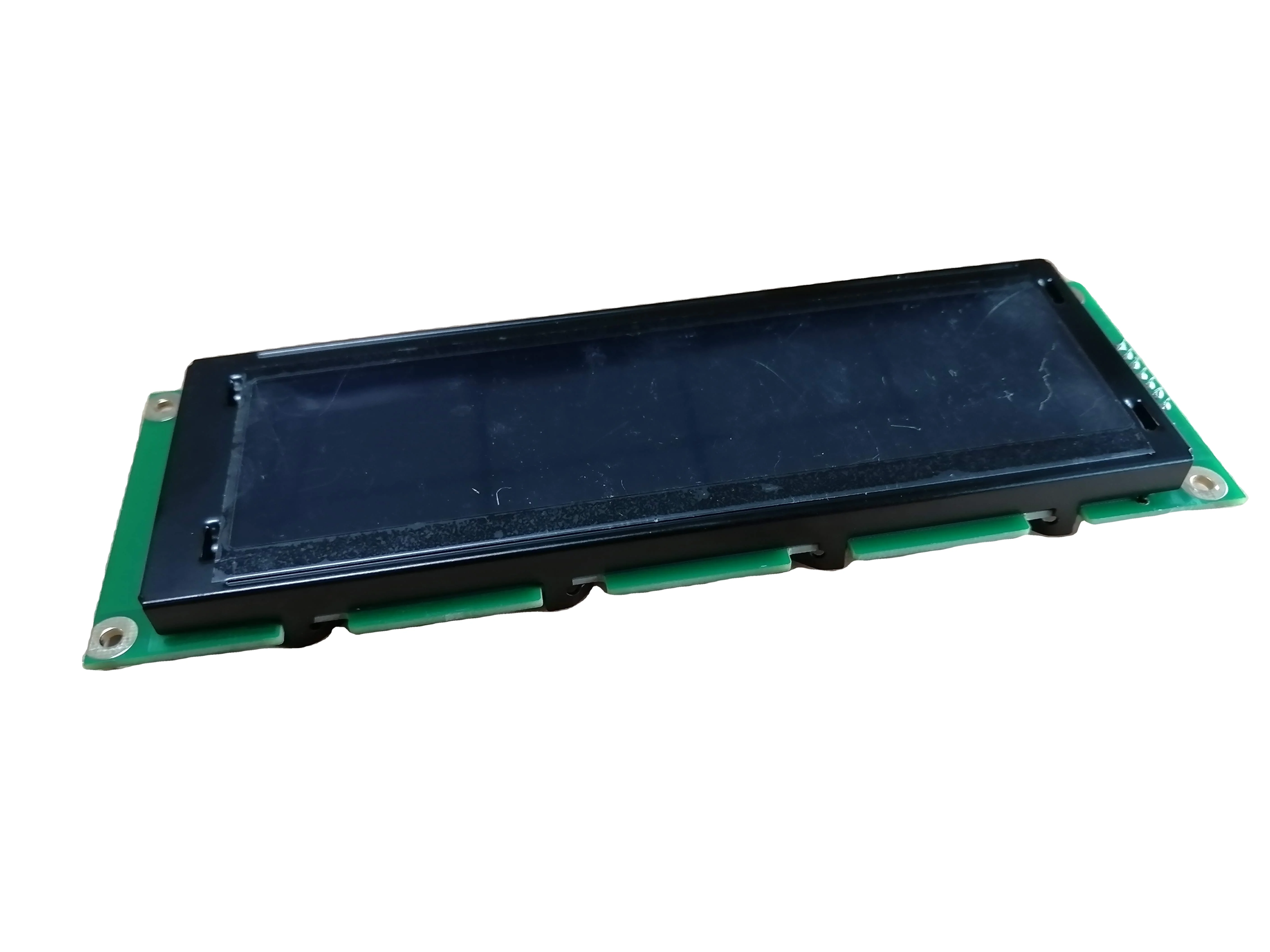

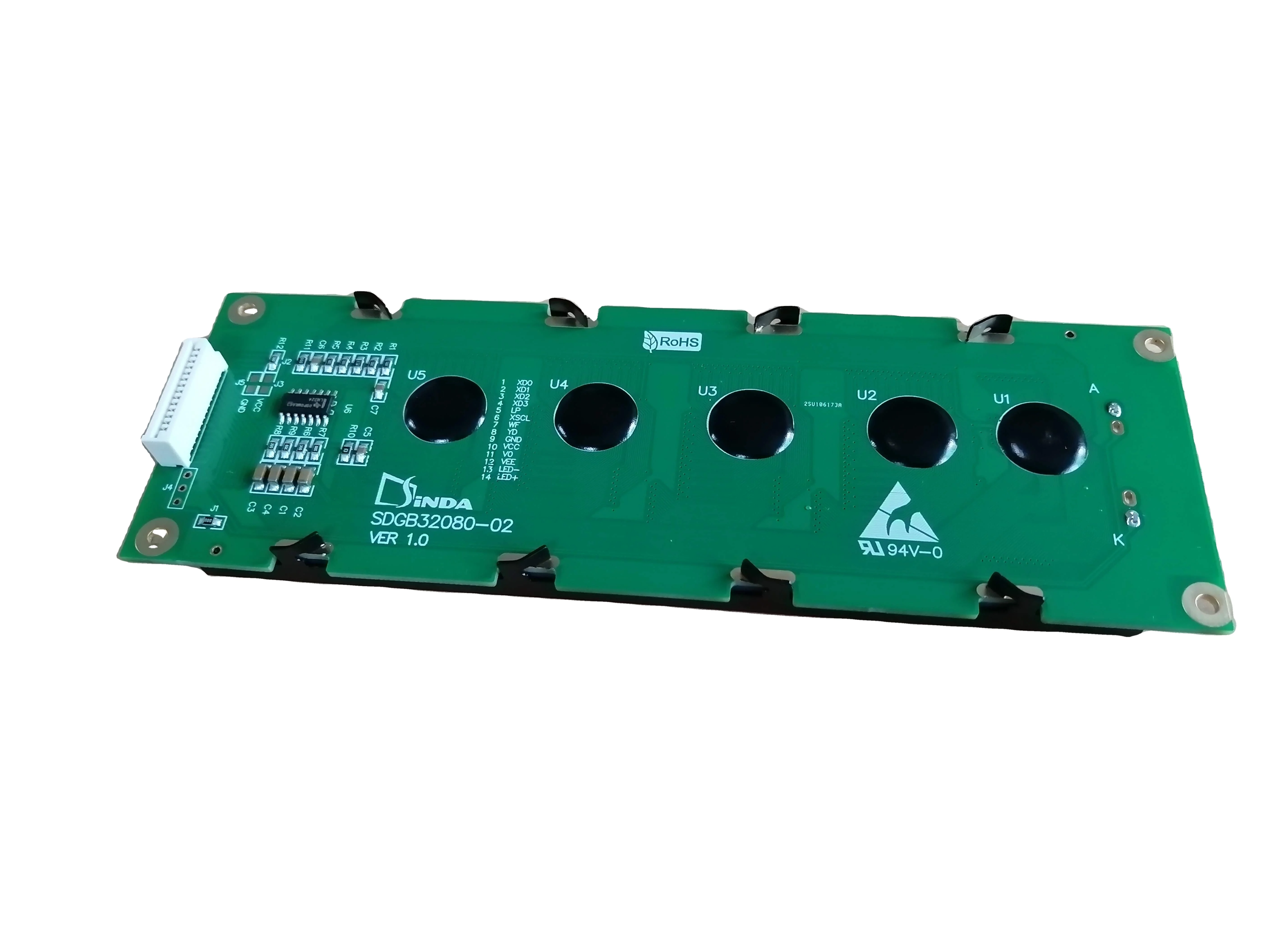

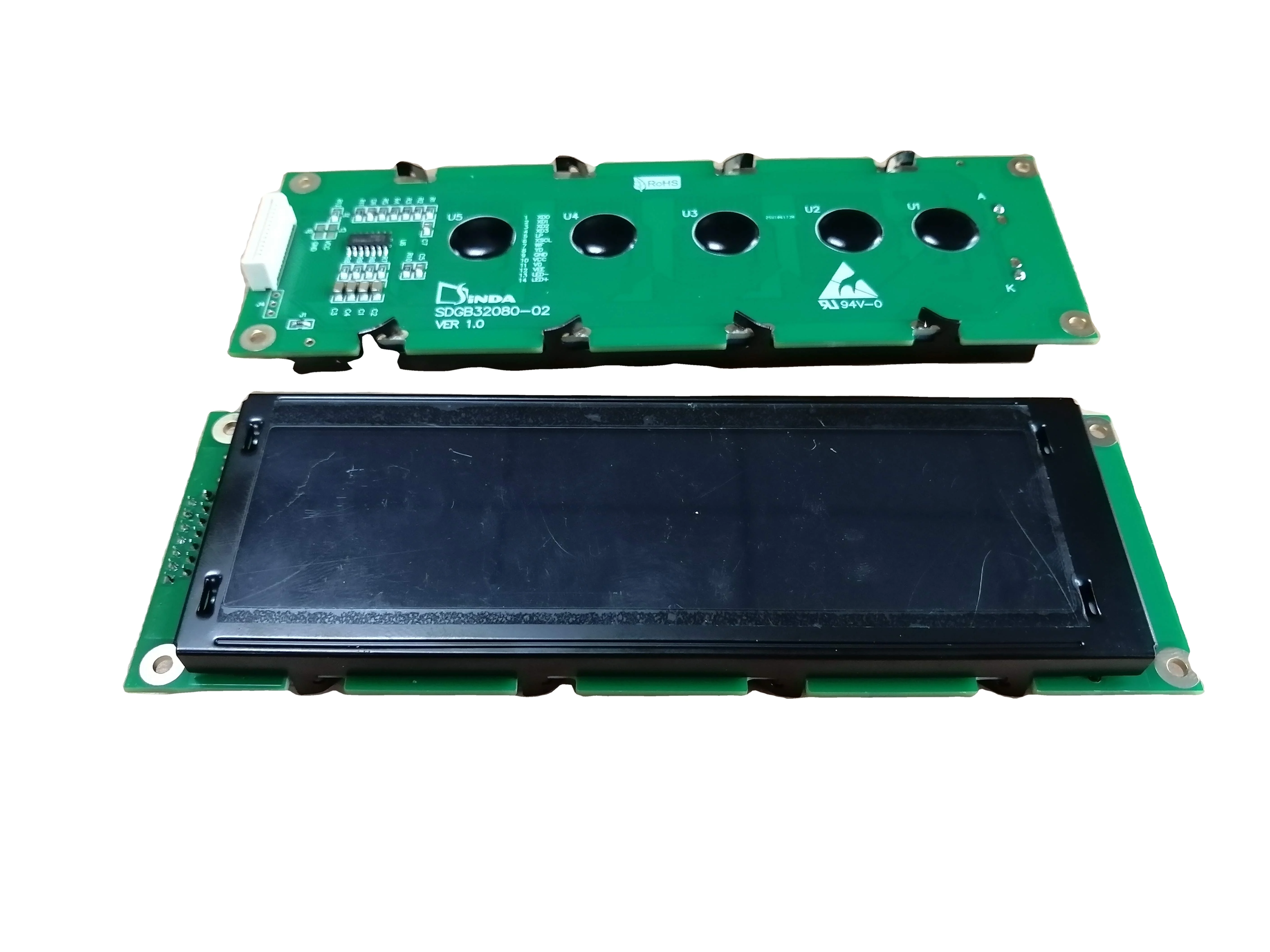

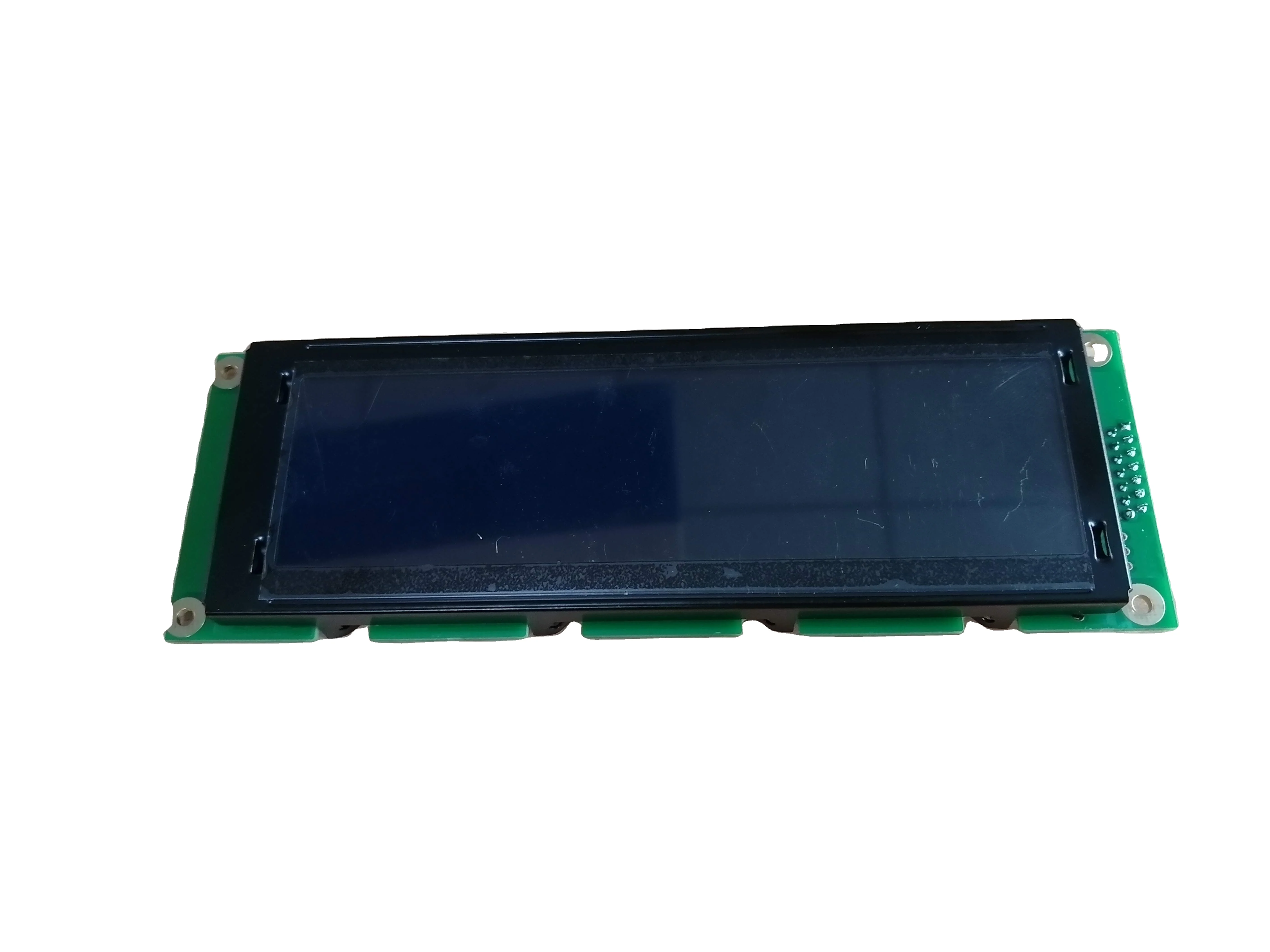

Brand Sinda COB 320x80 graphic display for roland keyboard
Details:
Manufacturer
SINDA
Model No.
SDGB32080-02
Outline dimension
165.00 × 55.00 × 13.50
Display Type
COB Graphic
VDD
5.0V
Interface
Parallel
View direction
6 O'clock
Operating Temperature
-20℃~70℃
Connection
Zebra
Storage Temperature
-30℃~80℃
Product Description
Detailed Images
Company Information
Trade Shows
FAQ
1. Q: How can I get the samples? Standard sample and Custom.
A: Custom sample : Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
2.Q: How long can I expect to get the sample?
A: Standard sample: 3 work days after confirming the order.
Custom sample: according to the draw base on 5-20 days
3.Q: Can you design the LCD in accordance with our demand?
A: Yes,.We will give you the best tooling charge.
4. Q:. What is the warranty?
A: 2 years Warranty
5.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
