Паровой нагревательный циркуляционный гидравлический подъемный гомогенизатор ZT 200 л, вакуумная эмульгирующая машина для мазь/Крема/лосьона

Product Overview

Description

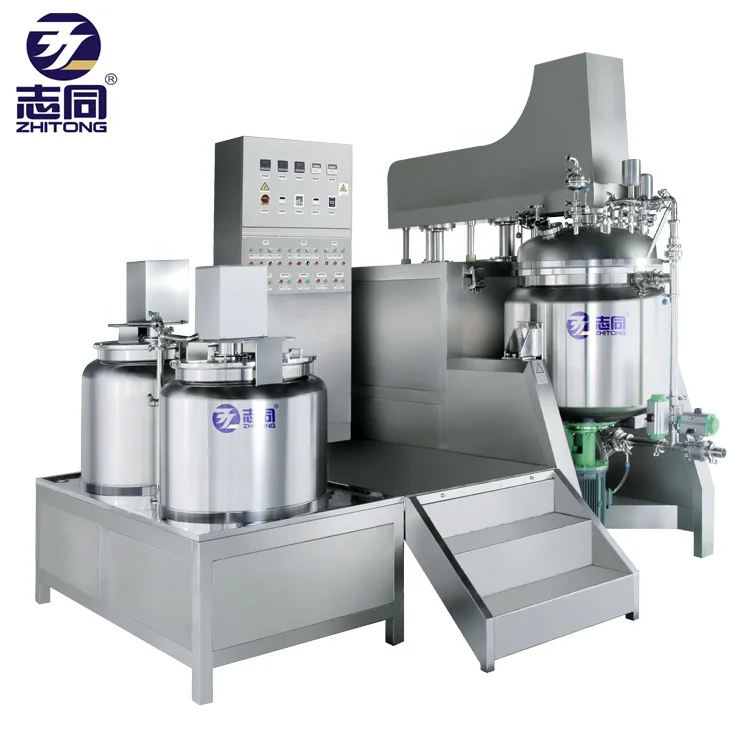

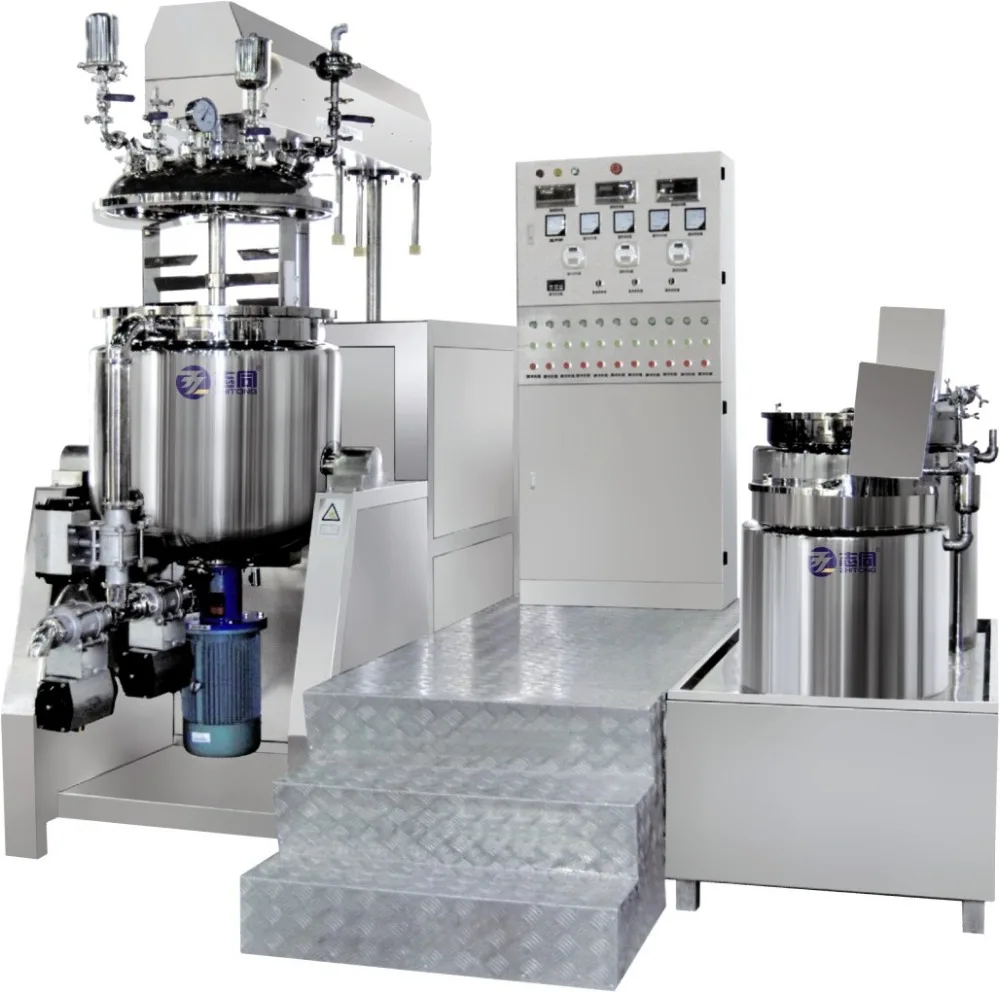

ZT- 200L Steam Heating Hydraulic Lifting Vacuum Emulsifying Machine

Internal and External Circulation Bottom Homogenizer

for Ointment/Cream/Lotion

Performances And Features

• The vacuum emulsifiers produced by our company include many varieties.The homogenizing systems include upper homogenization,lower homogenization,internal and external circulating homogenization.The mixing systems include single-way mixing,double-way mixing and helical mixing.The lifting systems include single-cylinder lifting and double-cylinder lifting.Various high quality products can be customized according to customers' requirements.


• The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.


• The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5um.


• The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking is adopted,and especially for the powder materials,vacuum sucking can avoid dust.


• The emulsifying pot lid can adopt lifting system,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.


• The pot body is welded by imported three-layer stainless steel plate.The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.


• According to technological requirements,the tank body can heat and cool the materials.The heating modes mainly include steam heating and electric heating.


• To ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the international standards.

Model	Effective	Stirrring power and speed		Homogeneous power and speed		Heating power
	Capcity	KW	R/MIN	KW	R/MIN	Electric heating	Steam heating
ZT-50	50	0.75	0-65	3	3600	6 KW	Steam heating energy conservation and environmental protection, selected according to need
ZT-100	100	1.5	0-65	1.5	3600	12 KW
ZT-150	150	1.5	0-65	1.5	3600	12 KW
ZT-200	200	1.5	0-65	3	3600	18 KW
ZT-300	300	1.5	0-65	3	3600	18 KW
ZT-500	500	2.2	0-65	4	3600	27 KW
ZT-1000	1000	4	0-65	7.5	3600	36 KW
ZT-1500	1500	4	0-65	11	3600	45 KW
ZT-2000	2000	5.5	0-65	11	3600	recommed steam heating
ZT-3000	3000	7.5	0-55	15	3600
ZT-5000	5000	11	0-55	22	3600



Guangzhou/Yangzhou Zhitong Machinery Co.,Ltd. is a producer and seller specialized in research,

development, production of cosmetic, food and distribution of cosmetic, food and pharmaceutical machinery, storage tanks, etc. With a registered capital of RMB 3 million Yuan and a land area of 13,200 m2, our company is a member of China Chemical Industrial Machinery Association. We have complete machining equipment, perfect process flow, powerful technical srength, excellent product development and dedign capability as well as rich production experience. Our company has been certificated to ISO9001:2000 international quality management system. Thanks to our excellent product quality and good afeter-sales service, our products have been exported far to USA, European Union, Asia, Southest Asia and other countries and areas.
