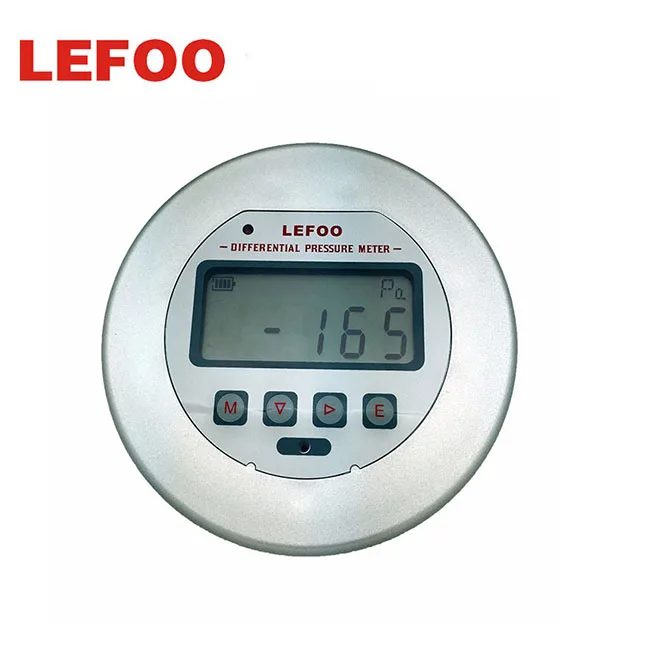

LEFOO LFM3 LCD Air Differential Pressure Transmitter Digital pressure gauge
- Category: >>>
- Supplier: Zhejiang Lefoo Controls Co. Ltd.
Share on (1600212853141):
Product Overview
Description
Product Description
LFM3 Series differential pressure gauge use imported high precision sensor and digitalization technology. They are easy
installation, LCD display, clear and accurate reading, and can be applied to measure fan and blower pressures, filter resistance,
air velocity, furnace draft, pressure drop across orifice plates and medical care equipment. This series have three optional
discrete output versions (relay, NPN and PNP), can be flexibly applied to control the external equipments.
Features:
Non-polar Input:No need to differentiate the negative or positive input voltage sourcing lead
Excellent Material: housing made of FR-ABS, satisfactory impact resistance and heat resistance etc.
Span:0~±100Pa/0~±1,000Pa / 0~±10,000Pa Accuracy:±1.0%FS
Various switchable pressure units
Big LCD screen
Manual button of zero calibration
Manual button of default reset
Max. and min pressure value to review
Settable response time
Built-in buzzer with sound-light alarm, field programmable alarm pressure value.
Imported chip
The Max. and Min. pressure range of discrete output can be set(only LFM32 Series)
installation, LCD display, clear and accurate reading, and can be applied to measure fan and blower pressures, filter resistance,
air velocity, furnace draft, pressure drop across orifice plates and medical care equipment. This series have three optional
discrete output versions (relay, NPN and PNP), can be flexibly applied to control the external equipments.
Features:
Non-polar Input:No need to differentiate the negative or positive input voltage sourcing lead
Excellent Material: housing made of FR-ABS, satisfactory impact resistance and heat resistance etc.
Span:0~±100Pa/0~±1,000Pa / 0~±10,000Pa Accuracy:±1.0%FS
Various switchable pressure units
Big LCD screen
Manual button of zero calibration
Manual button of default reset
Max. and min pressure value to review
Settable response time
Built-in buzzer with sound-light alarm, field programmable alarm pressure value.
Imported chip
The Max. and Min. pressure range of discrete output can be set(only LFM32 Series)

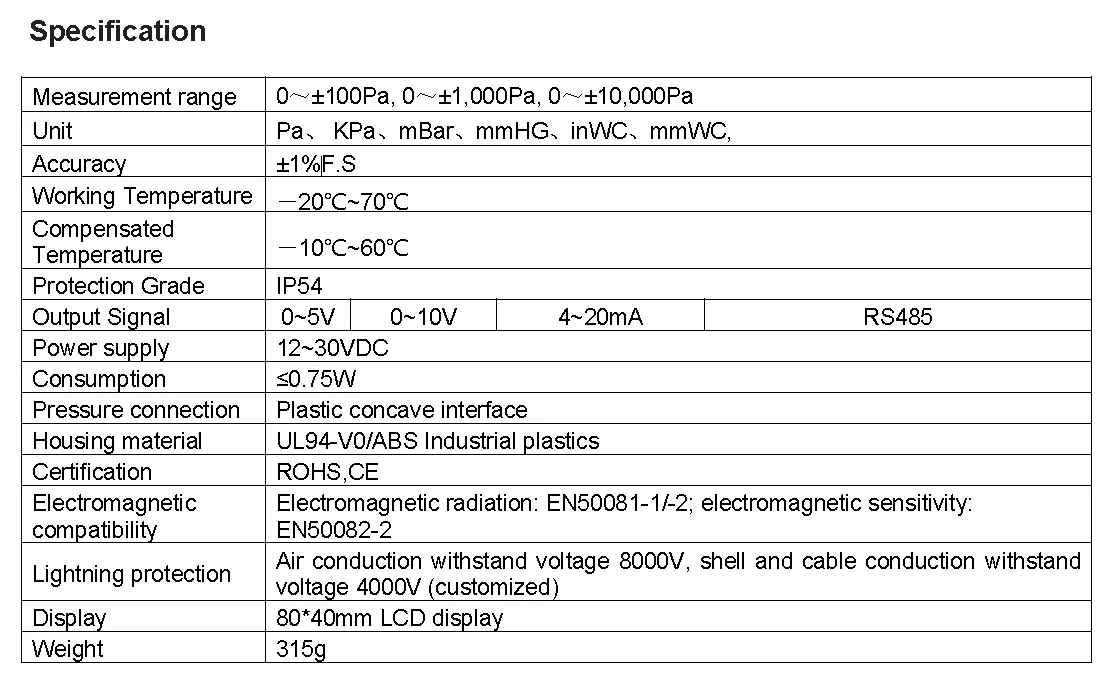

Product Specification
Measurement range | 0 ~ ±100Pa,0 ~ ±1000Pa,0 ~ ±10000Pa |
Accuracy | ±1.0%F.S |
Output | 4~20mA(3-wired),0~10V,RS485 |
Power supply | 16~30V DC/AC ,12~30V DC/AC |
Protection Grade | IP54 |
Working temperature | -20℃ ~ 70℃ |
Output signal | 0~5/10VDC\\3 wire; 4~20mA\\2-wire |
Shell material | Industrial plastic, flame retardant grade UL 94-V0 |
Certification | CE, RoHS |
Pressure connection | Metal barbed connection, 6.2 mm |
