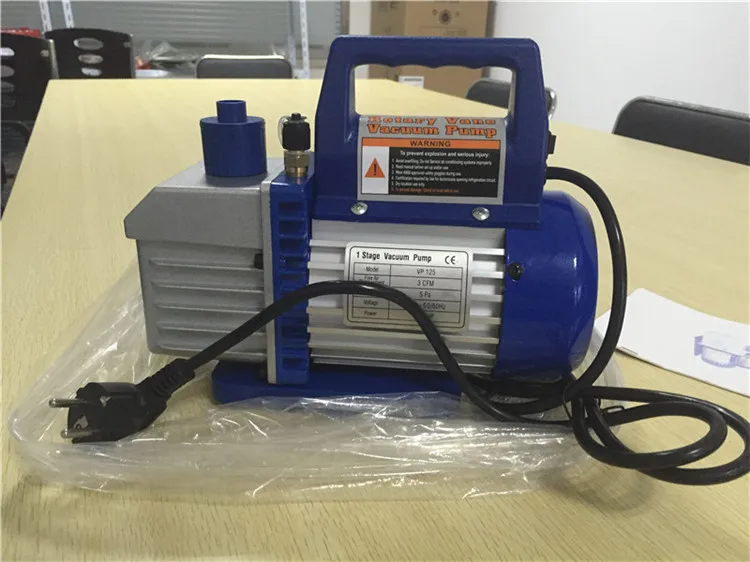

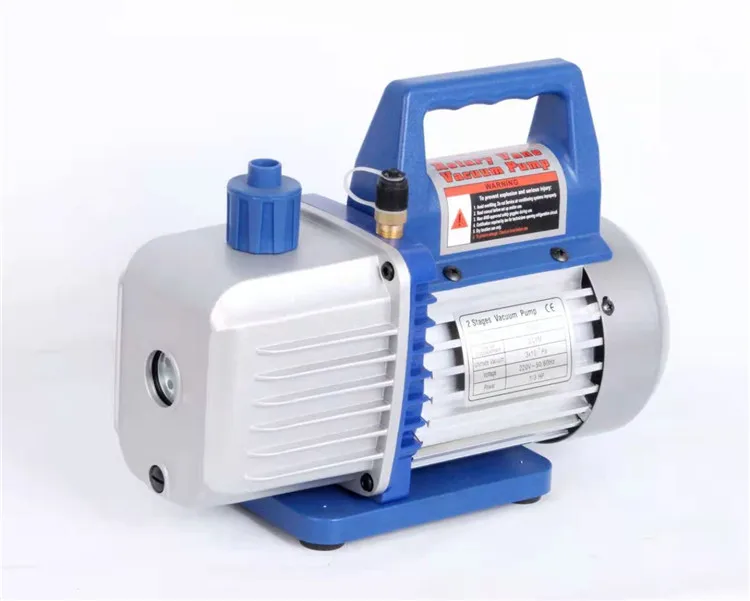

HVAC Vacuum Pump VP 160 1/2HP with CE certification Refrigerant Rotary Vane Single Stage Vacuum Pump
- Category: >>>
- Supplier: Changzhou Andwin Refrigeration Equipment Co. Ltd.
Share on (1600212859226):
Product Overview
Description
With Automatic high speed flow and compensation function under the setting pressure.Comparing with fixed displacement vane pump,it has lower consumption and heat radiation;
Stable and noiseless in operation,especially suitable for machine tool and accord to requirements of housed activities.
It contains mechanical pressure adjustment;For an arbitrary choice
Specifications:
1.CE certificate
2.LVD certificate
3.For air conditionin
4.Small,light,nicelooking.
Used for:
The vacuum pump is mainly applied in many fields, such as refrigeration maintain, printing machine, medical equipment, vacuum packing, gas analyze and thermoplastic molding ect.
Exact indication of internal system pressure on the vacuum gauge. The vacuum gauge can equip on all models of vacuum pump.
Technical parameters:
Item NO. | VP115(VP-1) | VP125(VP-1.5) | VP135(VP-2) | VP145(VP-2.5) | VP160 (VP-3) | |
Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM |
42 L/min | 70 L/min | 100 L/min | 128 L/min | 170 L/min | ||
60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | |
50 L/min | 84 L/min | 114 L/min | 142 L/min | 198 L/min | ||
Ultimate vacuum |
| 5Pa | 5Pa | 5Pa | 5Pa | 5Pa |
| 100 microns | 100 microns | 100 microns | 100 microns | 100 microns | |
Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | |
Inlet Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8"Flare | |
Oil Capacity | 280ml | 240ml | 350ml | 350ml | 450ml | |
Dimensions(mm) | 260x122x220 | 260x122x220 | 270x122x220 | 270x122x220 | 320x134x235 | |
Weight | 4.6kg | 5kg | 5.5kg | 6kg | 6kg | |

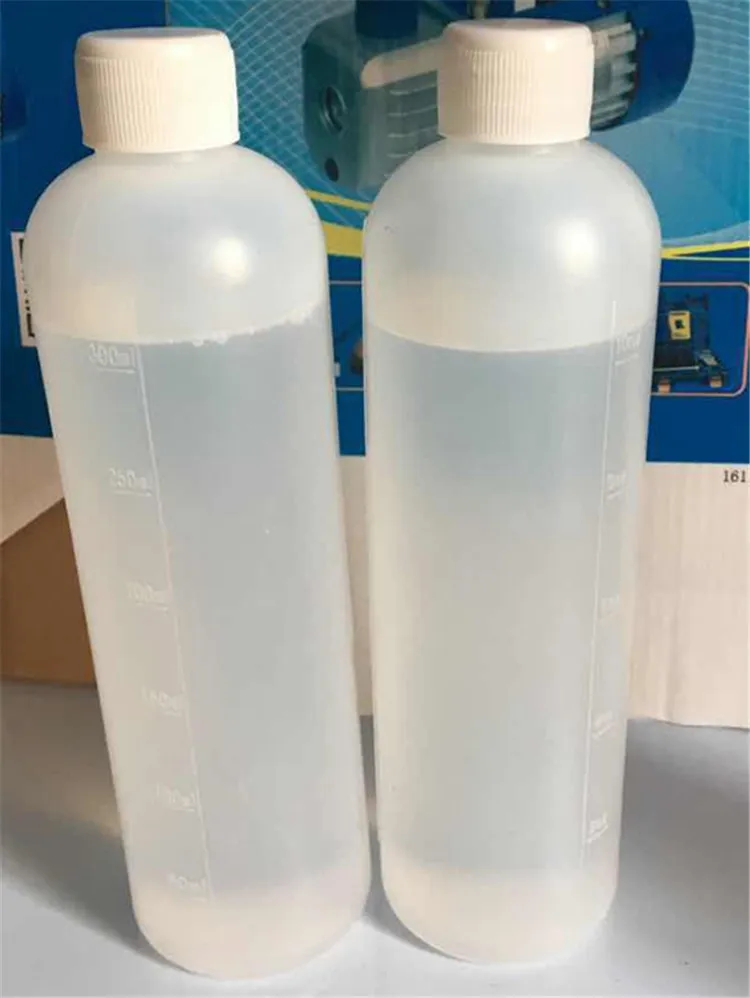

Pump oil:
