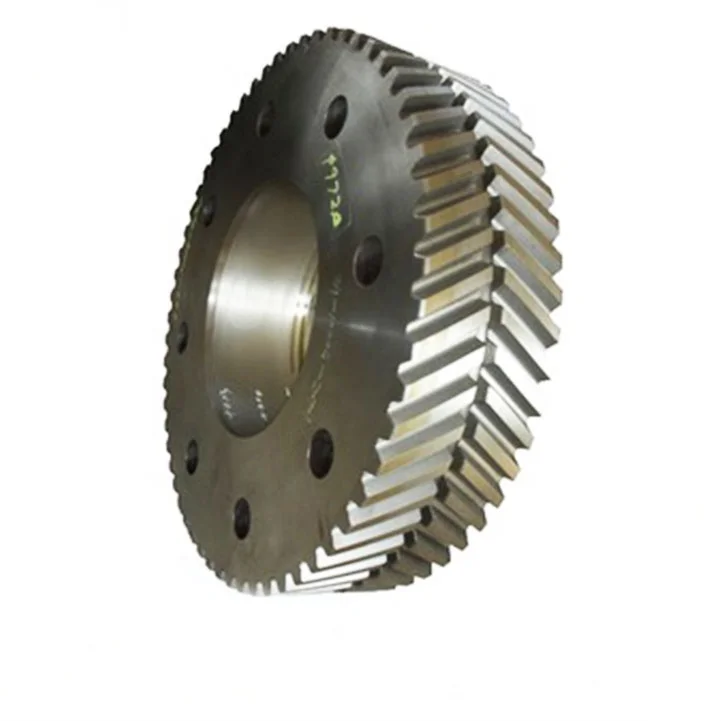

Цены по прейскуранту завода изготовителя изготовленные на заказ в наличии винтовая зубчатая передача коническая винтовая зубчатая передача

Share on (1600212973264):


Price:

Quantity:


Product Overview

Description



Product Description


We are mainly committed to producing advanced custom gear parts




Material
Alloy Steel like, 42CrMo, 18CrNiMo7-6, 17CrNiMo6, 40CrNiMo, 42CrMo4 and so on.
Color
nickel white
Standard or Nonstandard
Nonstandard
Brade
Rock
Thread
coarse, fine
Used
building industry machinery

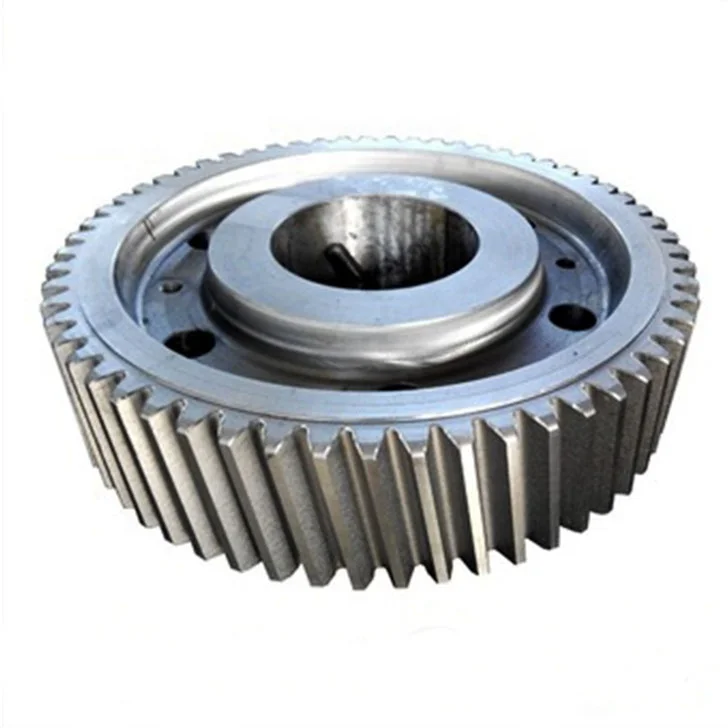

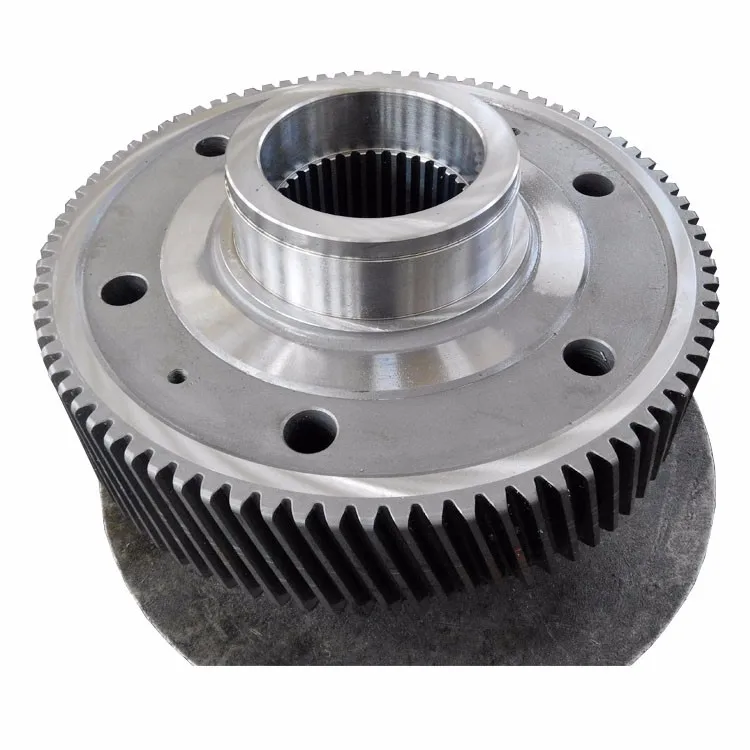

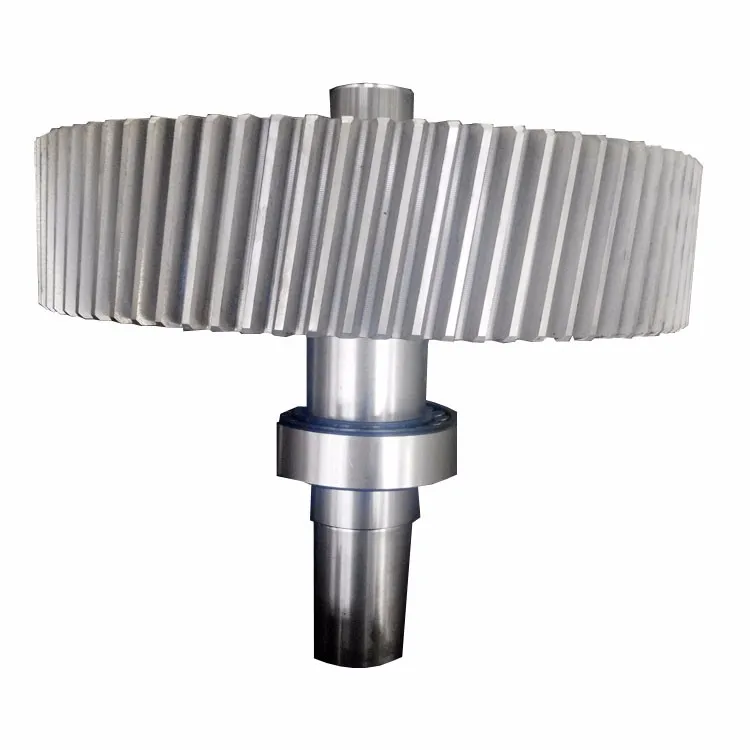

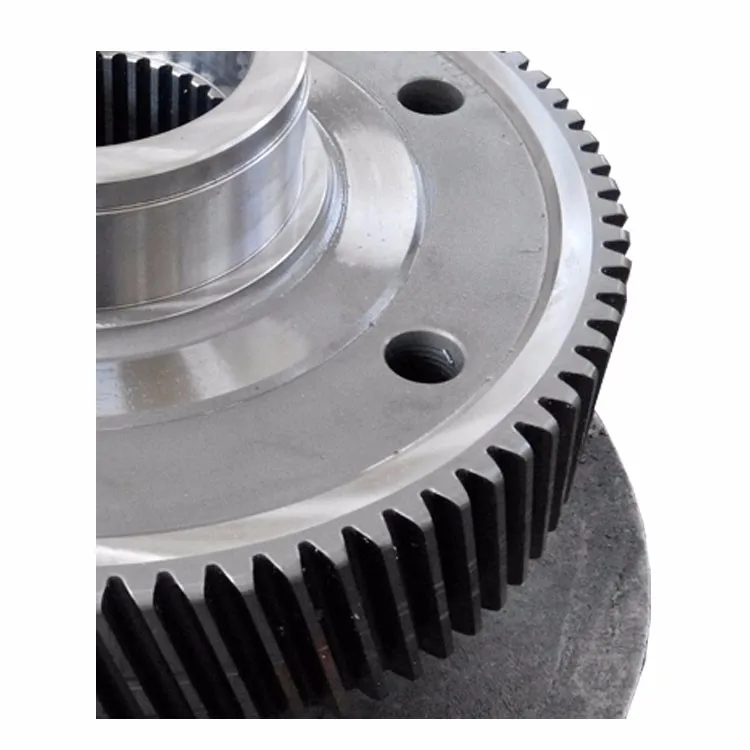

Details Images




Reference technical parameters


INTERNAL GEARS AND INTERNAL SPLINES

Teeth Milling
Teeth Shaping
Teeth grinding
Maximum O.D.
2500mm
2500mm
2500mm
Minimum I.D.
650mm
50mm
100mm
Maximum Face Width
500mm
500mm
500mm
Maximum Diametral Pitch
DP1
DP1
DP0.5
Maximum Module
26mm
26mm
45mm
AGMA Grade / DIN Grade
DIN grade 8
DIN grade 8
DIN grade 4
Tooth Finish
Ra 3.2
Ra 3.2
Ra 0.6
Maximum Helix Angle
±22.5°
±22.5°
±45°


EXTERNAL GEARS AND EXTERNAL SPLINES
Maximum O.D.
1250mm
2500mm
2500mm
Minimum I.D.
20mm
200mm
20mm
Maximum Face Width
500mm
500mm
1480mm
Maximum Diametral Pitch
DP 1
DP 1
DP 0.5
Maximum Module
26 mm
26 mm
45 mm
AGMA Grade / DIN Grade
DIN grade 8
DIN grade 8
DIN grade 4
Tooth Finish
Ra 3.2
Ra 3.2
Ra 0.6
Maximum Helix Angle
±45°
±45°
±45°


Welcome you to map processing custom


Recommend Products

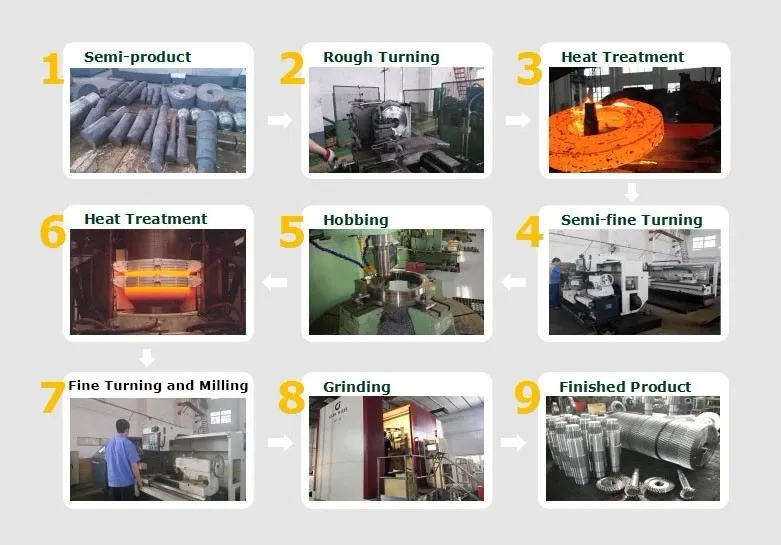

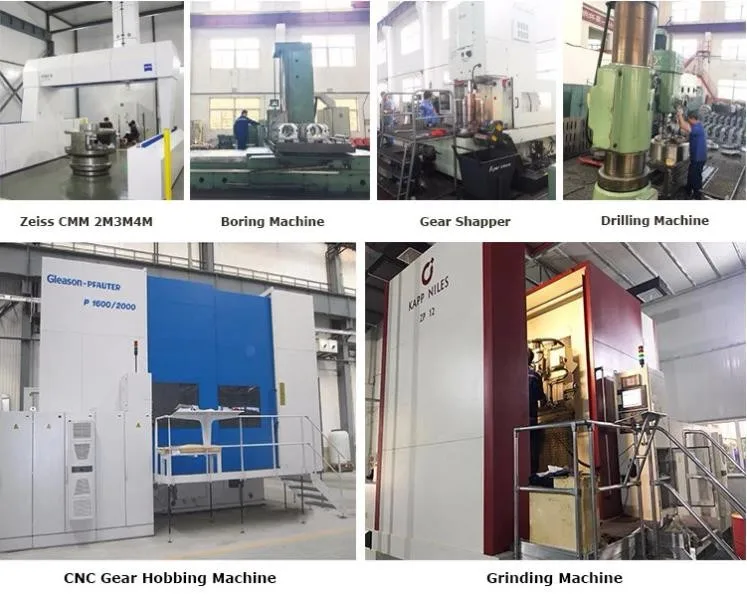

Technical Process

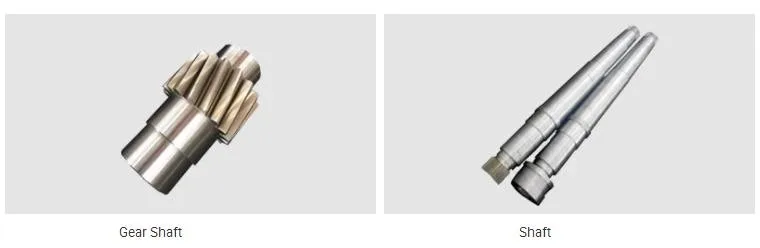

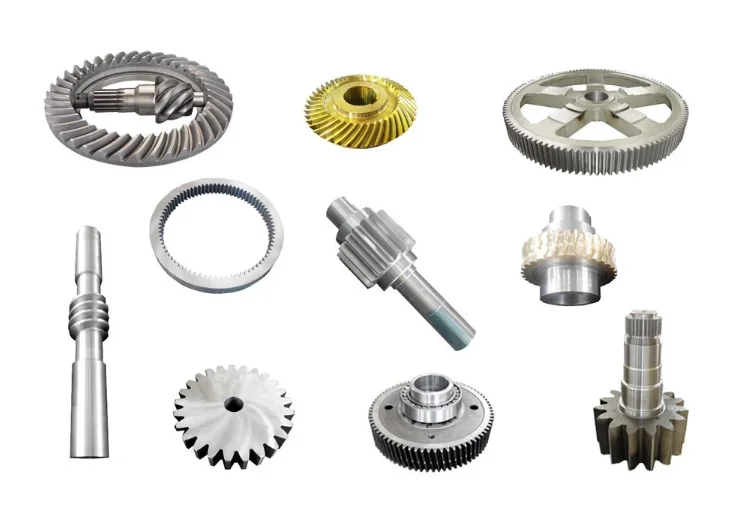

Product Categories


GEAR




SHAFT

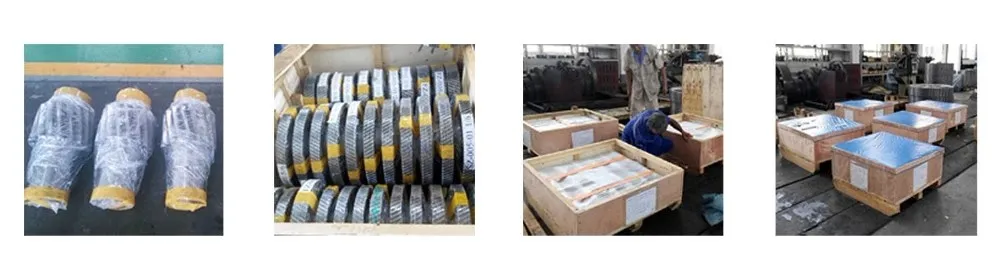

Packing & Delivery


Our requirements:
1. All packing prepares product for shipment in a manner deemed to be safe, preventing damage or corrosion to product, and satisfying customer requirements.
2. Unpainted surface are to be coated or packaged to prevent corrosion or damage.
3. At a minimum, product will be skidded, blocked, and banded down or constrained in a manner to prevent shifting and undesirable movement in transit.
4. When blocking product it is required that all blocks/ supports be placed under stationary features and will not shift during transit. Straps/Chains from the truck should then be placed over those supports when applicable.
5. Konic Gearbox representative must verify that the load, chains/straps and tarp are assembled in such a way to avoid damage to the product during transit.

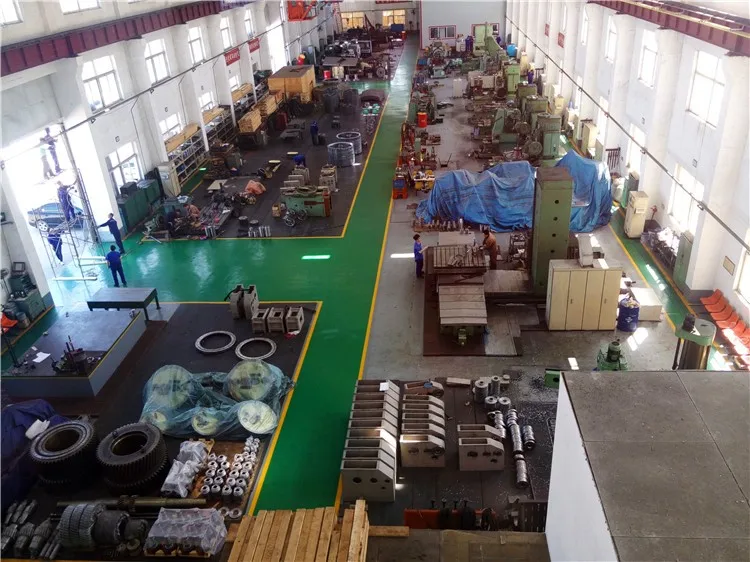

Our Company




Konic Gearbox (Dalian) Co.,Ltd. Manufacturer which experienced in providing OEM service for processing customized nonstandard gearbox and gearbox parts according to the drawings and related details. We manily produce steel mill helical gearbox, planetary gearbox, bevel gearbox, concrete mixer, double gear, helical gear, planetary gear, coupling winch, anchor winch gearbox reducer and so on.
• Professional Engineering
• Reasonable Price
• Design Service
• Prompt Delivery
• Stable Quality
• Small Orders Accepted
• Maintenance service
• Professional Service

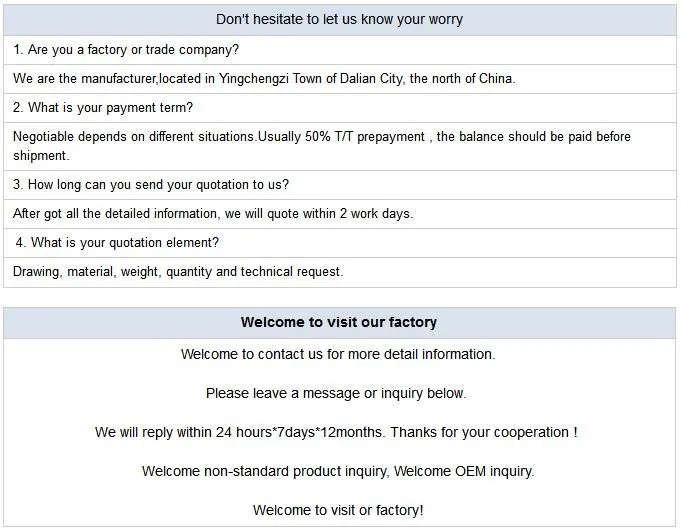

FAQ
