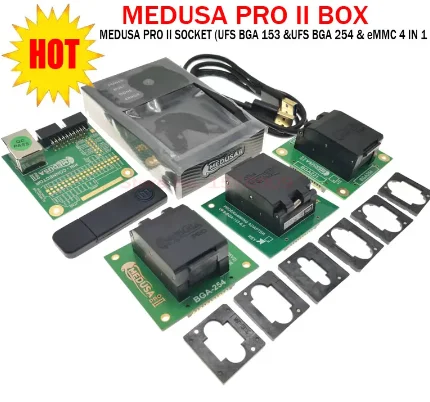

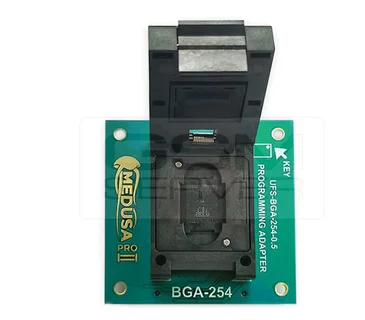

Original Medusa Pro 2 MEDUSA PRO II BOX Full Set WITH UFS BGA 0153 SOCKET UFS BGA 254 SOCKET EMMC 4 IN 1 SOCKET



What`s new:

Hardware

New ergonomic design

More powerful hardware base that can be easily enhanced

Faster interaction with PC (USB 3.0)

Wide range of voltage regulation

Introduced ISP method for UFS flash memory without desoldering

Identification of external expansion boards (UFS, eMMC sockets, PIN-CONNECTOR, etc.)

capable to work with other peripherals by means of PIN-CONNECTOR

Advanced multicolor indication of operation modes

Software

UFS

UFS operation modes: slow (PWM) and fast (HS)

Read Android build info

Main features:

Read

Write

Wipe Data

UFS Service Operations

Distribute UFS Storage

Configure UFS descriptors, attributes, flags

Save/Write Config descriptors

Save/Write attributes

Save Flags

Write OEM ID

Format UFS (all active LUN)

Read RPMB Counter

Factory Repair of UFS flash memory

MMC

Introduced ability to work with MMC by means of 8-bit bus

Increased MMC data transfer speed

Detection of eMMC socket connection

BGA153/169

BGA162/186

BGA 529

BGA 221

Medusa PRO II Box - All Features:

Medusa PRO II - Hardware Features:

Fast USB 3.0 high-speed mode (+USB 2.0 compatibility)

UFS data transfer speed 55 MB/s (writing) / 100 MB/s (reading) and more

depends on PWM/HS working mode and flash storage speed

1-bit, 4-bit and 8-bit MMC buses supported (40 MB/s and more)

speed depends on bus width and flash storage speed

In System Programming (ISP) now possible for MMC and UFS flash memory types

without desoldering, if there is a technical capability to solder by means of PIN-CONNECTOR expansion board

All output voltages (VCC, VCCQ, VCCQ2) regulation within operation range 1.2…3.3V

Medusa PRO II - Software Features:

Full-featured professional software

Supports all operations (Read, Write and Edit) with any required memory partition via UFS, MMC, and USB interfaces.

Service operations with UFS memory

Divide flash memory into LUN units

Work with descriptors, attributes, flags

Write OEM ID

Erase memory on all active LUN

Read RPMB Counter

Service operation with MMC flash memory

Edit: geometry, partitions, CID, CSD and other data registers

Restore/Update flash memory firmware

Read/View Extended CSD registers

Format flash memory

Simple intuitive GUI interface suitable for both beginners and experts

Quick device restoration by means of SRF files

SRF files contain partition data as well as other useful information (help files and diagrams)

SRF data are compressed (to increase performance)

Built-in Partition Manager

Partition Manager allows you to edit the required partitions and save changes thus improving user experience. Plus, you will be able to open Full Flash binary files, edit the file content and save the edited file back on the device.

Simple operation for each partition separately (Read, Write, Erase, Edit) on the specific storage devices

Built-in Smart-Repair-File Constructor with Partition Manager for creating your own SRF files

SRF file can be taken from the device or read from Full Flash binary file. This functionality allows user (without developer’s assistance) add devices to the list of supported models, which are not officially supported yet. User can upload the custom SRF file into separate section of Support Zone and submit it for further analysis of the developers. If this custom SRF file is considered legitimate and correct, name (or nickname) of the author will be credited within the next update. Thus, user has the opportunity to participate in the development of Medusa PRO II and become known in certain circles.

Built-in Download Manager allows you to download files directly from the software

Devices with NAND, OneNAND and eMMC memory types are supported via USB interface

Devices with eMMC memory type are supported via MMC interface

Software is compatible with Windows 10

Medusa PRO II Box - Supported UFS Types:

KLUDG8J1EB-B0B1  SAMSUNG 119.19 GB

KLUDG8V1EE-B0C1  SAMSUNG 119.19 GB

KLUDG8J1CB-B0B1  SAMSUNG 119.19 GB

KLUCG4J1CB-B0B1  SAMSUNG 59.60 GB

KLUCG4J1EB-B0B1  SAMSUNG 59.60 GB

KLUCG4J1ED-B0C1  SAMSUNG 59.60 GB

KLUBG4G1CE-B0B1  SAMSUNG 29.81 GB

KLUDG4U1EA-B0C1  SAMSUNG 119.20 GB

KLUBG4G1BD-E0B1  SAMSUNG 29.81 GB

THGAF8T1T83BAIRB  TOSHIBA 238.37 GB

THGAF8T0T43BAIRB  TOSHIBA 119.20 GB

THGAF8G9T43BAIRB  TOSHIBA 59.61 GB

THGAF4G9N4LBAIRB  TOSHIBA 59.61 GB

THGBF7G8K4LBATRC  TOSHIBA 32GB

THGAF8G8T23BAILB  TOSHIBA 29.82

THGAF4G9N4LBAIRA  TOSHIBA 60 GB

SDINDDH4-32G  SANDISK 32GB

H28U74303AMR (hC8aM1)  SKHYNIX 60 GB

H28U74301AMR (hC8aL1)  SKHYNIX 60 GB

H28U62301AMR (hB8aL1)  SKHYNIX 29.81 GB

Comparison Table:

Hardware Medusa PRO II Medusa PRO Medusa

USB 3.0 High-speed mode

+

compatible with USB 2.0

USB 2.0

USB 2.0

Support of UFS

+

-

-

Transfer speed via UFS interface

Reading - 100 MB/s

Writing - 55 MB/s

-

-

In-System Programing (ISP) of UFS

+

-

-

eMMC support up to MMC 5.1 standard

+

+

-

1-bit, 4-bit and 8-bit MMC bus modes supported

+

1-bit and 4-bit modes

-

Transfer speed via MMC interface with 8/4/1-bit bus

40/21/5.5 MB/s



- /7.6/2.6

-

JTAG support for ARMv5, ARMv6, ARMv7

-

+

+

Up to 24MHz JTAG speed

-

+

12 MHz

Transfer speed via JTAG interface

-

1 MB/s

225 Kb/s

USB CCID smart card reader

+

Embedded

+

Software Medusa PRO II Medusa PRO Medusa

Partition Manager

+

+

-

SRF Constructor

+

+

-

JTAG PIN Finder



Content Extractor

(except Android versions with encryption enabled)

+

+

Limited

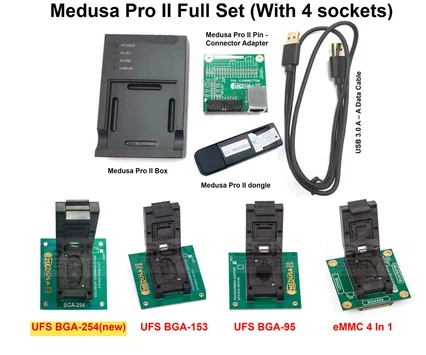

Medusa Pro II (Full Set) - Package Contents:

Medusa Pro II Box - 1 pc.

Medusa Pro II Smart Card Reader with Smart Card - 1 pc.

Medusa Pro II Pin - Connector Adapter - 1 pc.

USB 3.0 A – A Data Cable - 1 pc.

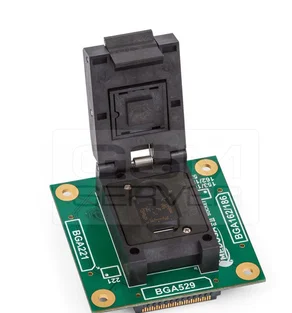

Medusa Pro II eMMC 4 In 1 Socket Adapter - 1 pc.

Medusa Pro II UFS 095 Socket Adapter - 1 pc.

Medusa Pro II UFS 153 Socket Adapter - 1 pc.
