Product Overview
Description
Product Description

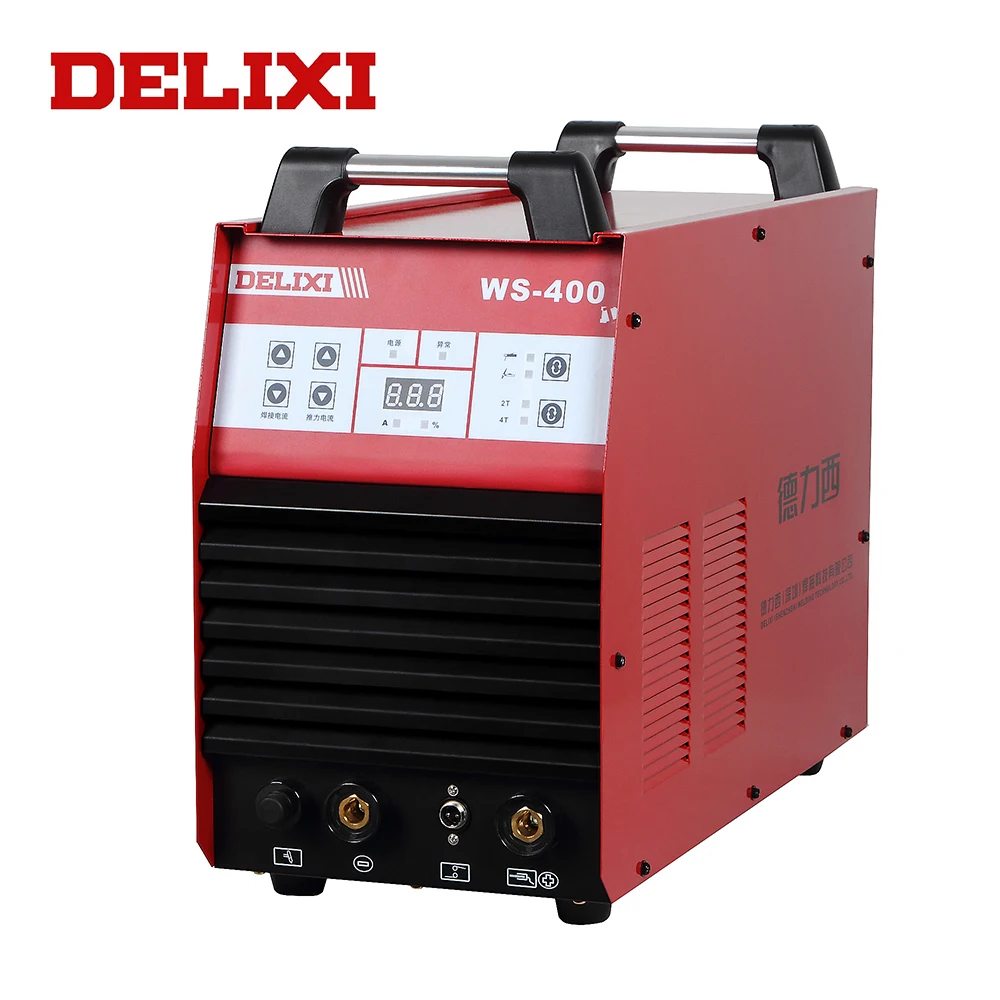

DELIXI WS 400 TIG MMA Welding Machine for Heavy Industry
| Item | WS-400I | Accessories |
| Input voltage | 380V±15% | 1. TIG torch with 5m cable; 2. Earth clamp with 2m cable; |
| Frequency(HZ) | 50HZ | |
| Rated input power(KVA) | 17.2 | |
| Output current(A) | 30-400 | |
| Current at 60% duty cycle(A) | 400 | |
| Current at 100% duty cycle(A) | 310 | |
| No-load voltage(V) | 64 | |
| Efficiency(%) | 85 | |
| Power factor | 0.93 | |
| Insulation class | F | |
| Protection class | IP21S | |
| Usable electrode(mm) | 2.5-5.0 | |
| Weight(KG) | 21 | |
| Measurement(MM) | 585*310*415 |
features
1. Advanced IGBT inverter technology, low consumption and high output
2. Adopt high frequency and pulse to ensure 100% arc starting
3.Digital control improves the reliability
4.Sufficient welding current, high cost performance
5. Effective welding process with 2T/4T selections
6. Both TIG and MMA functions
7. Wide range of power grid adaptation(AC323-437V), high duty cycle, suitable for factory to work continually
8. High no load voltage, smooth and stable welding performance with minimal spatter
9. High speed fan brings effective dissipation and high duty cycle
10. Over-current, over-voltage and over-heat protection
