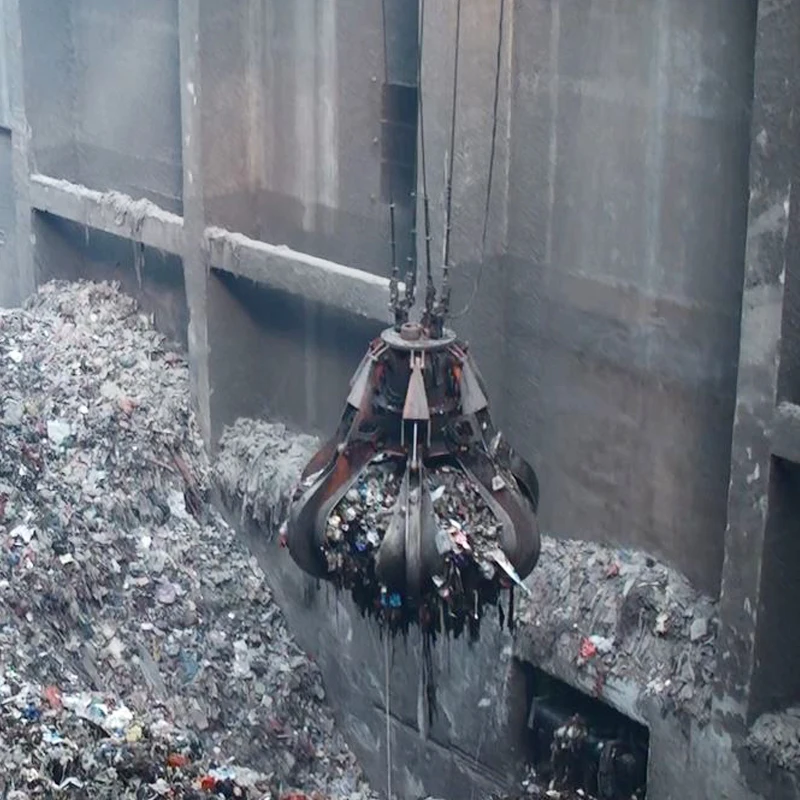

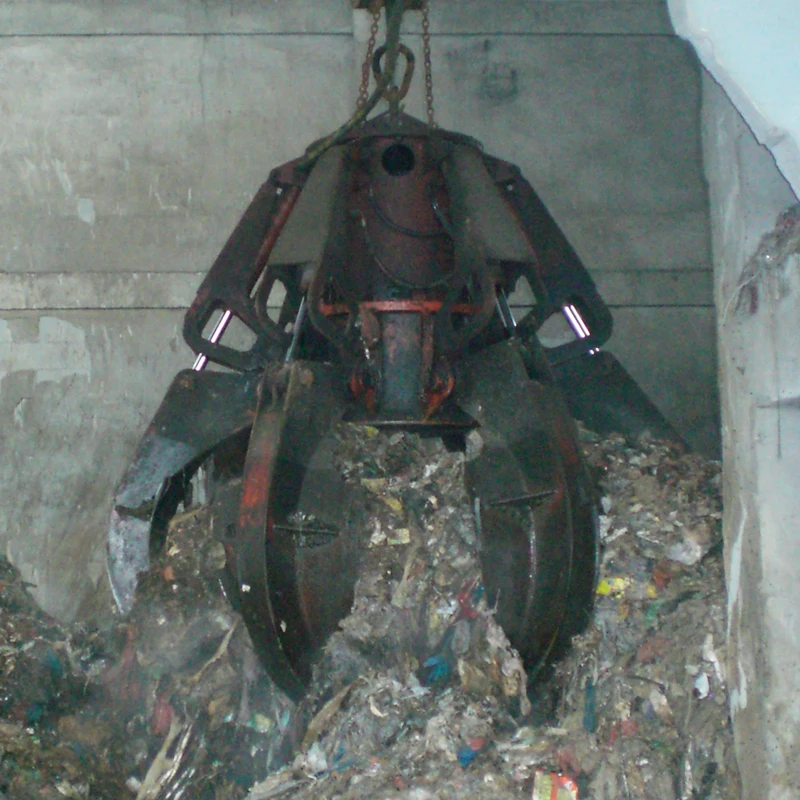

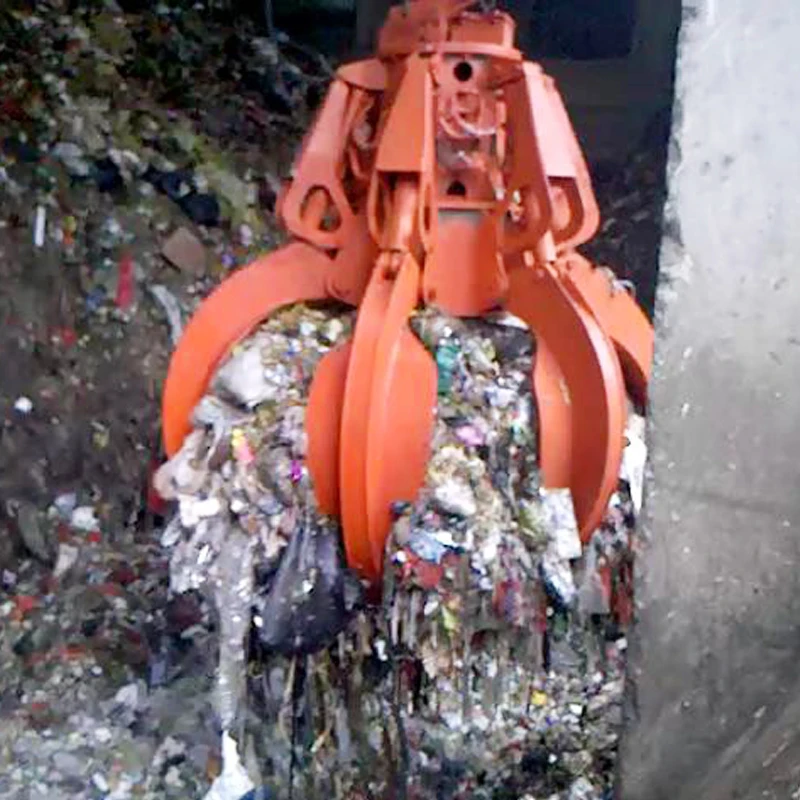

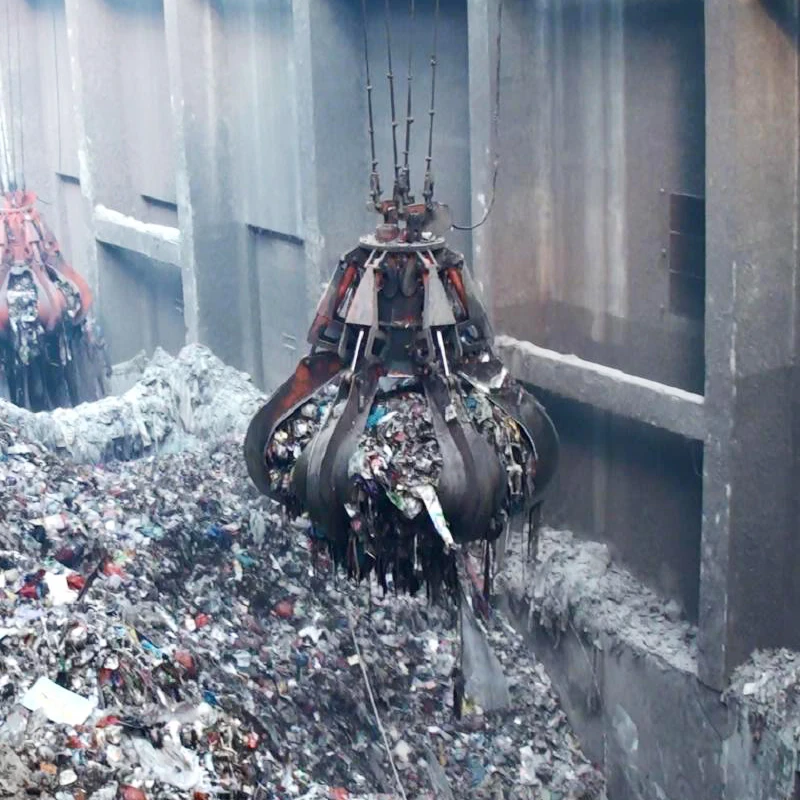

Custom garbage handling 8 ton hydraulic orange peel grab for overhead crane wholesale

Custom garbage handling 8 ton hydraulic orange peel grab for overhead crane wholesale

Category: Grapples >>>
Supplier: Shanghai Janus Grab Co. Ltd. [Shanghai China]Shanghai

Price:RUB 2,697,271.50 - RUB 3,853,245.00

Quantity:

Product Overview

Description

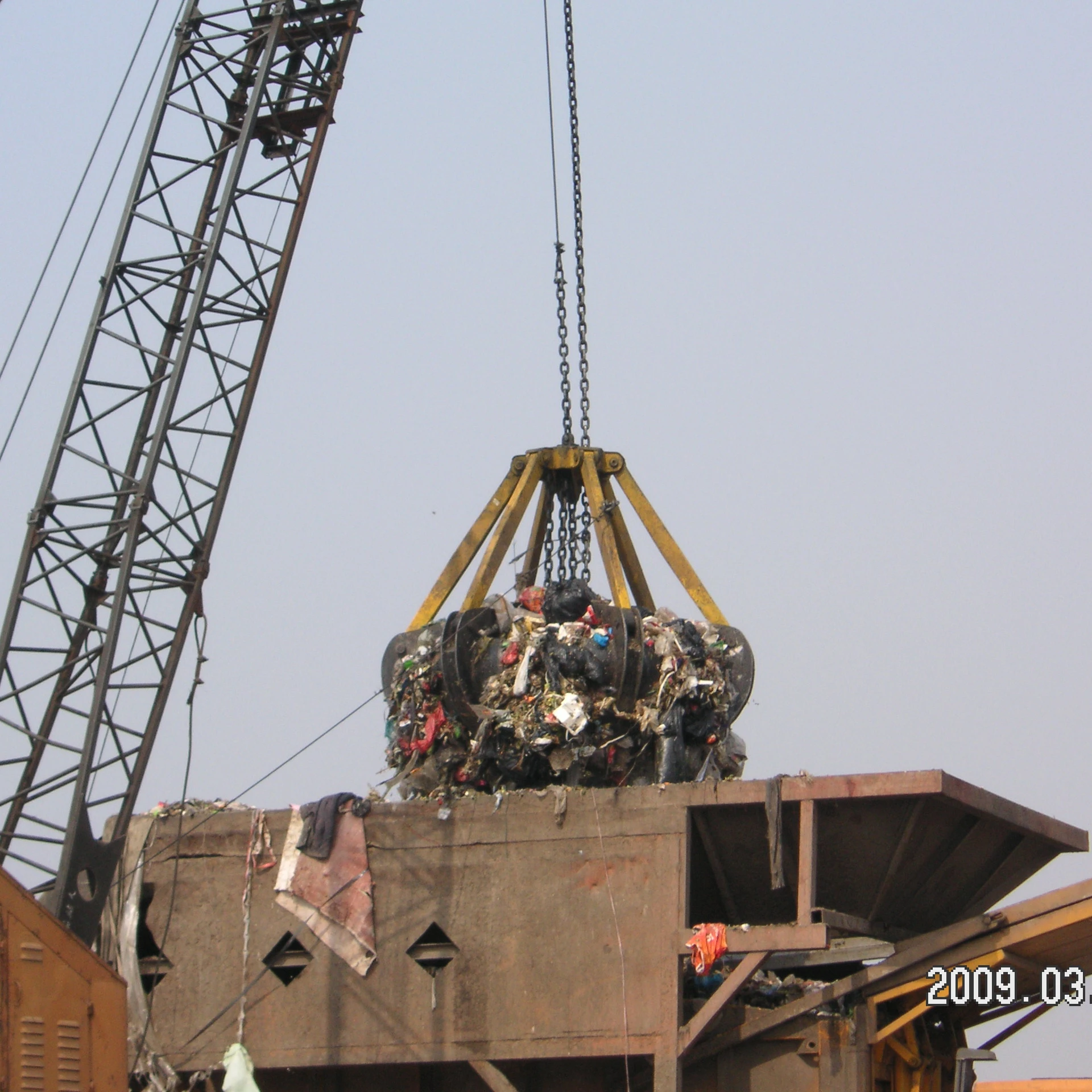

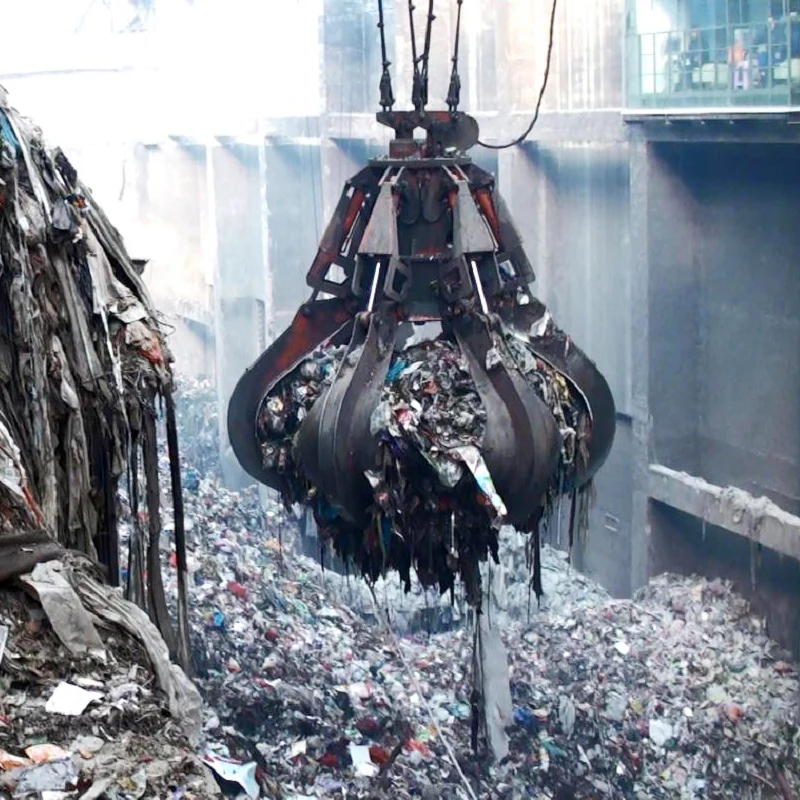

Custom garbage handling 8 ton hydraulic orange peel grab for overhead crane

wholesale

Type and Size	Volume m³	Dimensions				Empty Weight			Power		s Close time	Kg/cm² Pressure	SWL
Type and Size	Volume m³	A	B	C	D	Full open	Half open	Full close	380V 50Hz	440V 60Hz	s Close time	Kg/cm² Pressure	SWL
DYD5[2.5]2.6	2.5	2247	3572	3214	2895	2450	2600	2800	18.5	21	17	200	5
DYD8[3.2]3.5	3.2	2604	3683	3214	2876	3300	3500	3700	18.5	21	20	200	8
DYD10[5]4.5	5	3060	4420	3720	3295	4300	4500	4800	22	26	19	200	10
DYD16[8]5.6	8	3463	5288	3930	3294	5300	5600	5900	30	35	16	200	16
DYD20[12]8	12	3960	5850	4560	4100	7800	8000	8300	37	43	25	200	20
DYD25[17]9	17	4200	6100	4780	4400	8700	9000	9400	45	52	25	200	25

Note:1.As the products have been improved, we will not advice another.

2.We can design and produce the grab according to user’s demand.
