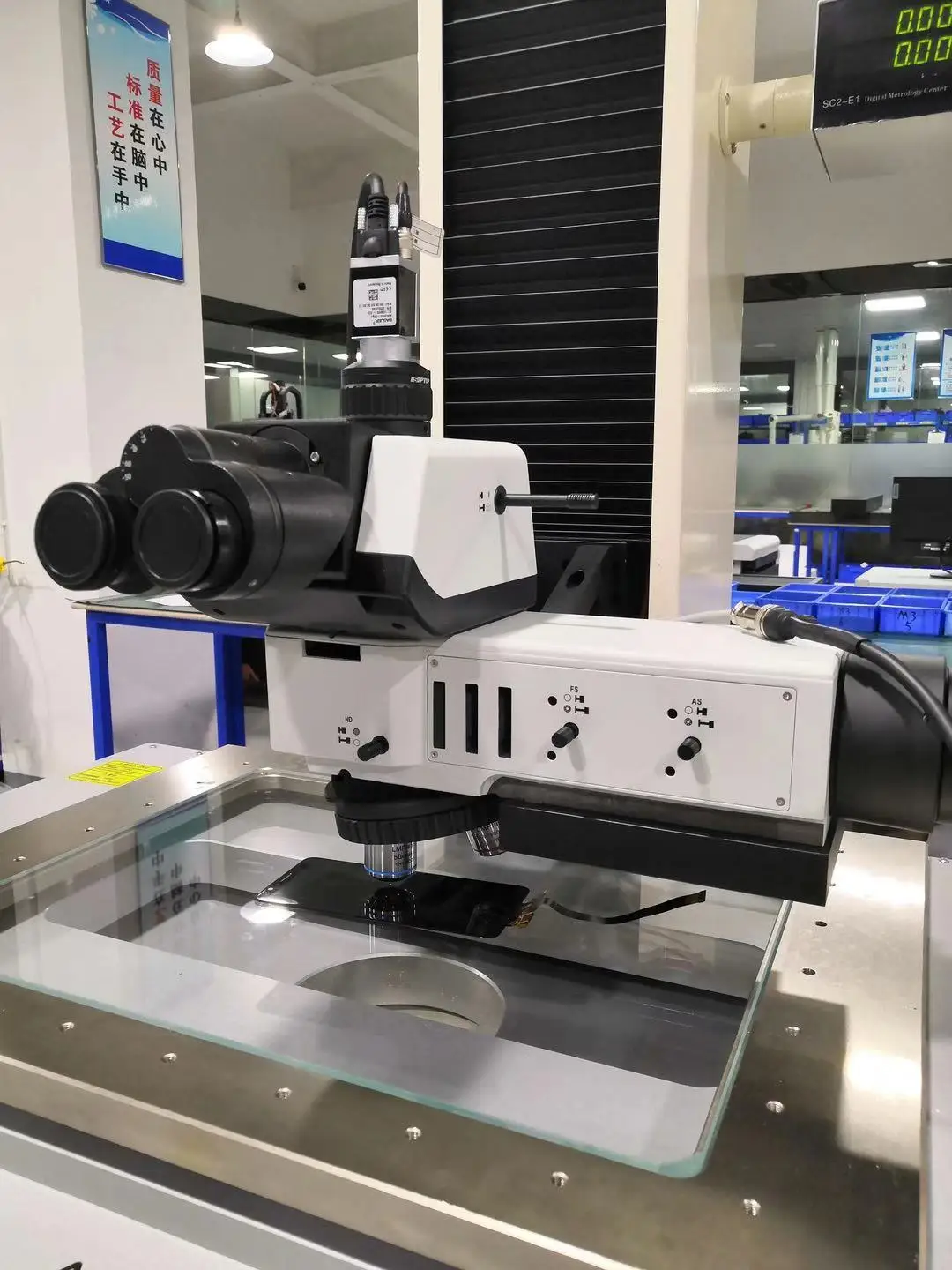

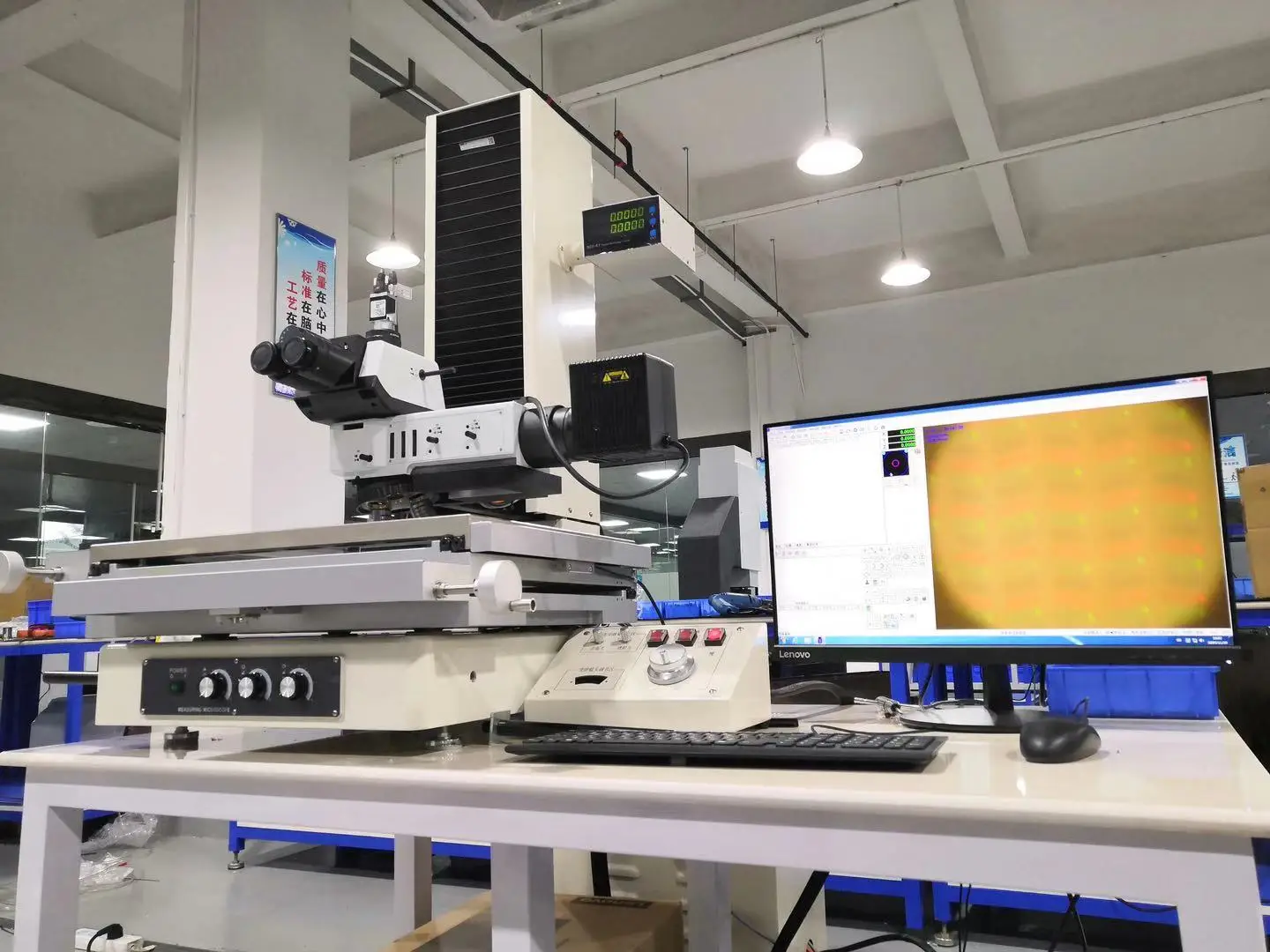

Jinuosh Metallographic Tool Maker Microscope For PCB/LED Display Measuring Inspection
- Category: >>>
- Supplier: Guangdong Jinnuo Technology Co. Ltd.
Share on (1600213202029):
Product Overview
Description
Insturment features
Features
Video Measuring Microscope, is an integrated high-magnification, micron-industry-aimed measuring instruments developed by Jinuosh.
Combined with powerful microscopic inspection technology, has been widely applied in many fields as follows:
1. Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
2. To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance,engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
3. To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.
4. With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.
Video Measuring Microscope, is an integrated high-magnification, micron-industry-aimed measuring instruments developed by Jinuosh.
Combined with powerful microscopic inspection technology, has been widely applied in many fields as follows:
1. Used as observational microscope to inspect the surface finish of work-piece by comparative law, identify ore samples in metallurgical industry, photomechanical print test, inspection of textile fibers and so on.
2. To measure length in Cartesian coordinates. For example, measuring pitch, the base surface distance, engraved line distance,engraved line width, slot width, slit width, the outer diameter of the through-hole and so on.
3. To measure angle, for example, angle measurement for dials, templates, gauges, drilling template and those parts with complex structure.
4. With PC and powerful metrology software, not only a microscope, but also a vision measuring system, can achieve professional measurement data management.
Specifications and parameters
Model | X2010 |
Base and focusing system | X2010 base and focusing system |
Measuring Range | X-axis: 200mm minimum |
Y-axis: 100mm minimum | |
Z-axis: 200 mm minimum | |
Minimum resolution | 0.5/0.1μm |
Optical Part | Professional differential interference optical head |
Multilayer coating technology ensures clarity | |
Light path and high power objective lens observation | |
It is equipped with LED surface light and bottom light. | |
Transmisson System | Precision Grinding of C3 ball screw |
Camera | DS-Vil Color Camera Head 2 million pixel HD CCD |
Objective lens | M Plan Apo HL 5X |
M Plan Apo HL 10X | |
M Plan Apo HL 20X | |
M Plan Apo HL 50X | |
Stage | 100x100mm Precise Stsge |
Product Overviews
Company Profile
Guangdong Jinuosh Technology Co. LTD
Guangdong Jinuosh Technology Co., Ltd. is a state-level high-tech enterprise engaged in R & D, production and sales of precision
measuring instrument, optical microscope, experimental equipment and various optical elements and components for 16yrs.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die
cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We
provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
measuring instrument, optical microscope, experimental equipment and various optical elements and components for 16yrs.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die
cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We
provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
Partial cooperative enterprises
certificate display
Our services
Technical training:
1、Purpose: The system operator of the measuring machine provides basic training on the use of the system and coordinate measuringtechnology
2、trainee should have the knowledge of basic measuring, computer application.Especially,AUTOCAD
3、Attendee: The buyer’s quality supervisor and relevant testing operator
Maintenance:
1、 Hardware maintenance: The bargainor provide good technical counseling by telephone and net to helping solve measurement the
various problems encountered.
2、 Within guarantee：In the condition of the buyer proper use following manual, quality problem (don’t include disassembly and
damage by the buyer) within 90days from the product is signed in. the bargainor will replace other set for free. Within 18 months
from sign for, the bargainor will keep in good repair for free, maintenance in all lifetime.
3、 Out of the guarantee：The bargainor provide the technical counseling in lifetime. And yearly implement system
checking,debugging,proofreading to ensure the instrument stability
The bargainor provide the service of repairing in lifetime base on cost price
The bargainor have the store house, provide the store in lifetime base on cost price
The bargainor provide the technical upgrade, updated in lifetime base on preferential price
3、Attendee: The buyer’s quality supervisor and relevant testing operator
Maintenance:
1、 Hardware maintenance: The bargainor provide good technical counseling by telephone and net to helping solve measurement the
various problems encountered.
2、 Within guarantee：In the condition of the buyer proper use following manual, quality problem (don’t include disassembly and
damage by the buyer) within 90days from the product is signed in. the bargainor will replace other set for free. Within 18 months
from sign for, the bargainor will keep in good repair for free, maintenance in all lifetime.
3、 Out of the guarantee：The bargainor provide the technical counseling in lifetime. And yearly implement system
checking,debugging,proofreading to ensure the instrument stability
The bargainor provide the service of repairing in lifetime base on cost price
The bargainor have the store house, provide the store in lifetime base on cost price
The bargainor provide the technical upgrade, updated in lifetime base on preferential price
FAQ
1. What's the warranty statement?
Jinnuo warrants all the products manufactured by Jinnuo to free from defects in material andworkmanship under normal use of a period of 12 months or 36months after the date of the original purchase price if repair orreplacement is not possible of practical, Jinnuo warranty covers ONLY the product itself. Jinnuo will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored only when the product has been installed
and used properly as deemed byJInnuo, Jinnuo will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
and used properly as deemed byJInnuo, Jinnuo will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinnuo .
3. How about in case of breakage?
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinnuo .
3. How about in case of breakage?
Jinnuo will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow: Returns must be first acknowledged by Jinnuo PRIOR to return, Please contact the related salesman in charge.
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A
lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made
in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return. 4. How
about the after-sales service? 24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door
service Life-long maintenance service for the product Thanks for your support to Jinnuo !
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A
lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made
in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return. 4. How
about the after-sales service? 24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door
service Life-long maintenance service for the product Thanks for your support to Jinnuo !
