2021 Hot Sale Low Price 90Hp 100Hp Farm Crawler Tractor
- Category: >>>
- Supplier: Zhengzhou MIC HT Industry Co. Ltd
Share on (1600213245992):
Product Overview
Description
Hot Sale Low Price 90Hp 100Hp FCrawler Tractor :
Product Description
Using the domestic industry leading technology,the design of a new triangular track structure,passs freely and does not destroy the bottom of field.
Equipped with hydraulic stepless speed change system,safe and comfortable operating platform,driving operation is flexible and convenient, and strong applicability.

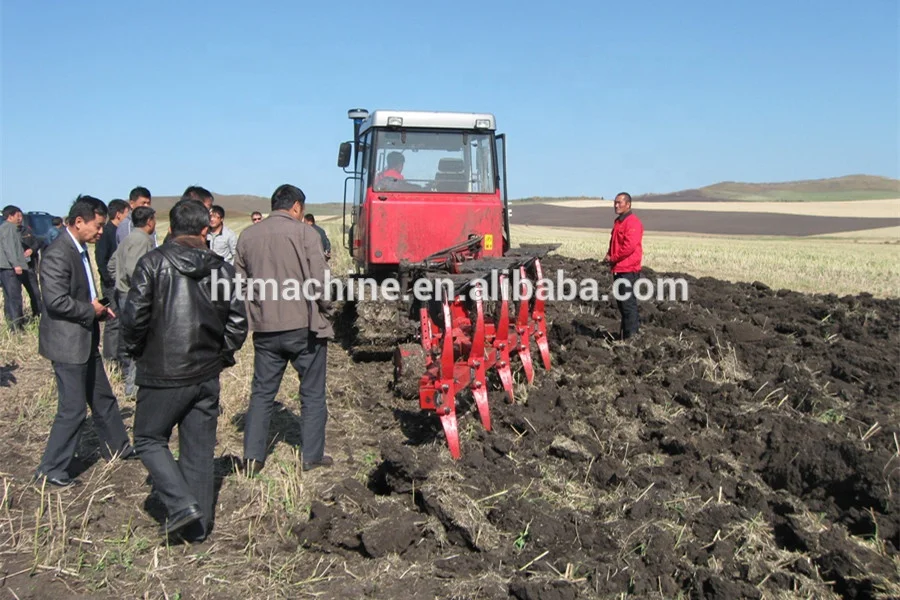

Supporting a variety of farm tools, to complete the plowing, rotary till, ditch, ridging, drilling and other operations.
Since the machine is on the market,it favored a lot by the users.
Features :
1 Comfortable and convenient operation.
2 Triangle track design, making the chassis elevation, more adapted to the paddy field.
3 Protect arable land,caterpillar tractor does not hurt the field or deepen mud.
4 Compared with the wheeled tractor,farmers are more favorite to crawler tractor.
5 Widely used : dry land, soft fields, silt, slope, light track tractors can be competent.
Specifications Of 90Hp :
Crawler Wheels Tractor – 90Hp (C902 Model) | |
Overall dimensions LxWxH (mm) (with dozer blade) | 4870x2462x2766 |
Min. operating weight (Kg) | 6890 |
Track gauge (mm) | 1435 |
Wheel base (mm) | 1622 |
Track width (mm) | 390 |
Engine | |
Engine model | LR6B5-22 |
Type | Water-cooled ,inline,four-strokes |
Rated speed (r/min) | 2200 |
Gearbox | |
Number of speed gear (forward/reverse) | 4/2 |
Speed range(Km/h) forward/reverse | 3.67~9.03/3.51~5.59 |
PTO shaft power (KW) | 56 |
PTO speed(r/min) | 750 |
Clutch | Double disk, single acting |
Working Force | |
Type of linkage | Double-point linkage or Three-point linkage Category II |
Depth control method | Height adjustment |
Lifting force(KN) | 14 |
Fob Price (Qingdao Seaport) Without Dozer Blade | 28000 USD |
Fob Price (Qingdao Seaport) With Dozer Blade | 29500 USD |
Specifications Of 100Hp :
Crawler Wheels Tractor – 100Hp (1002J Model) | |
Overall dimensions LxWxH (mm) (with dozer blade) | 4650x2462x2940 |
Min. operating weight (Kg) | 6900 |
Track gauge (mm) | 1435 |
Wheel base (mm) | 1622 |
Track width (mm) | 390 |
Engine | |
Engine type | LR6A3-23 |
Rated power output (kW) | Water-cooled ,inline,four-strokes |
Rated speed (r/min) | 2300 |
Gearbox | |
Number of speed gear (forward/reverse) | 6/2 |
Speed range(Km/h) forward/reverse | 3.78~10.55/3.71~5.46 |
PTO shaft power (KW) | 65 |
PTO speed(r/min) | 540/1000 |
Clutch | Double disk, single acting |
Working Force | |
Type of linkage | Double-point linkage or Three-point linkage Category II |
Depth control method | Height adjustment |
Lifting force(KN) | 14 |
Fob Price (Qingdao Seaport) Without Dozer Blade | 29500 USD |
Fob Price (Qingdao Seaport) With Dozer Blade | 31000 USD |

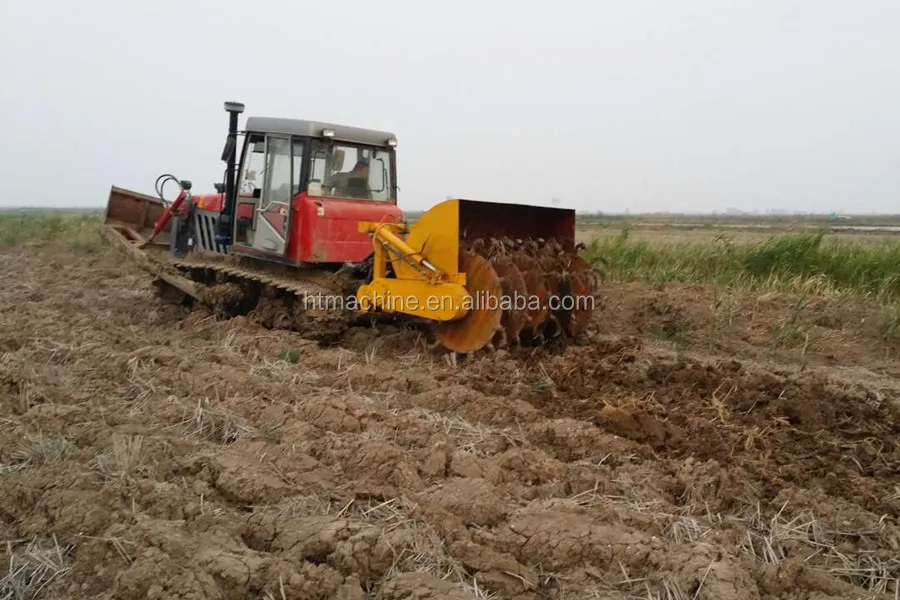

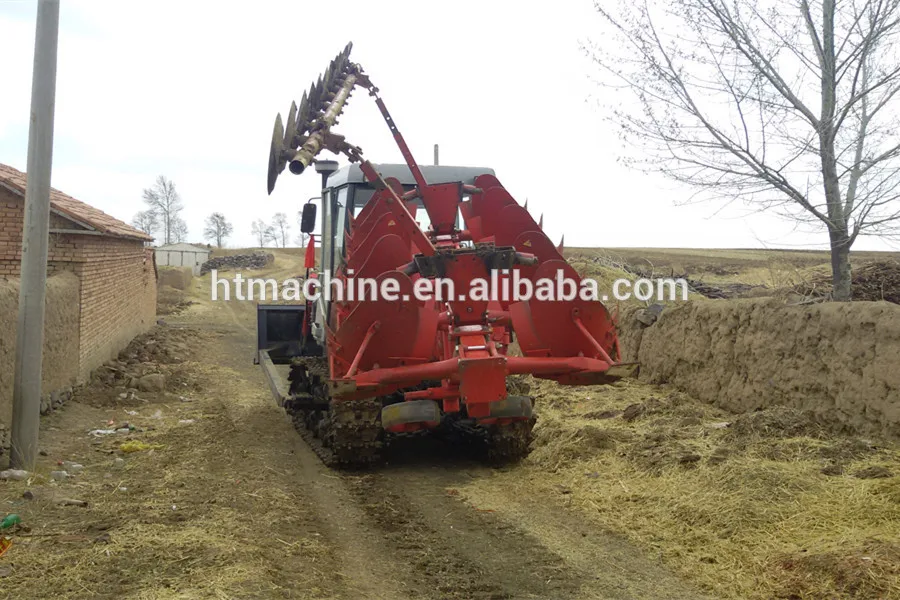

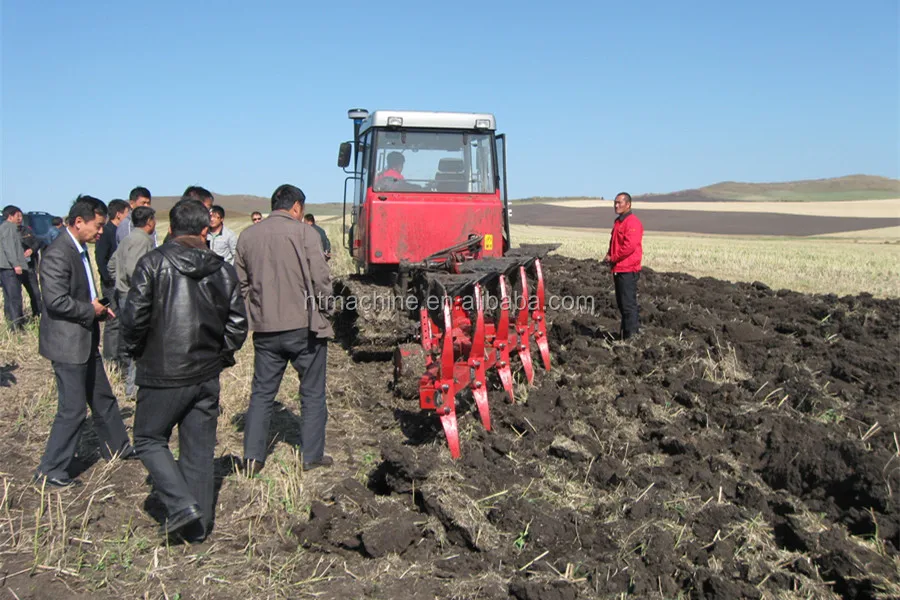

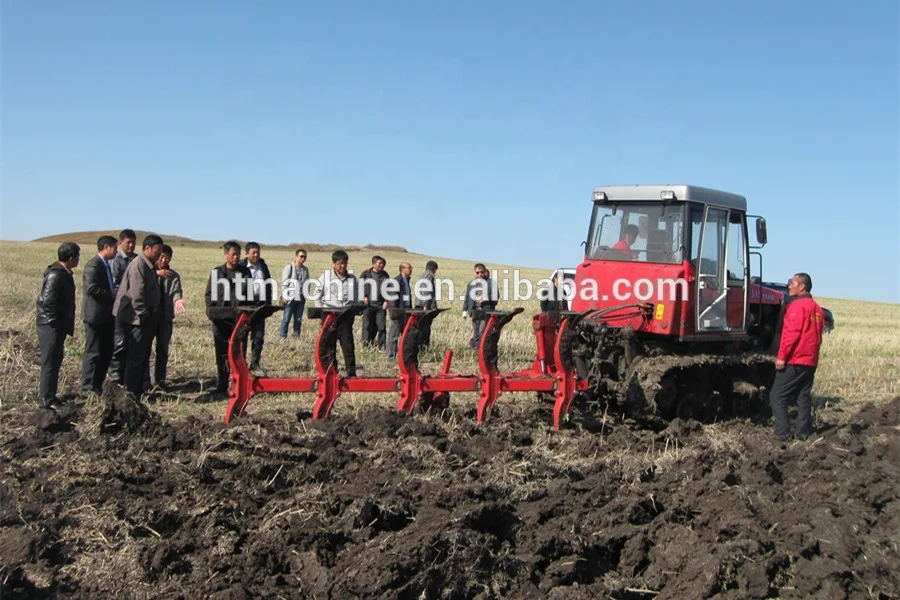

Photo Shows

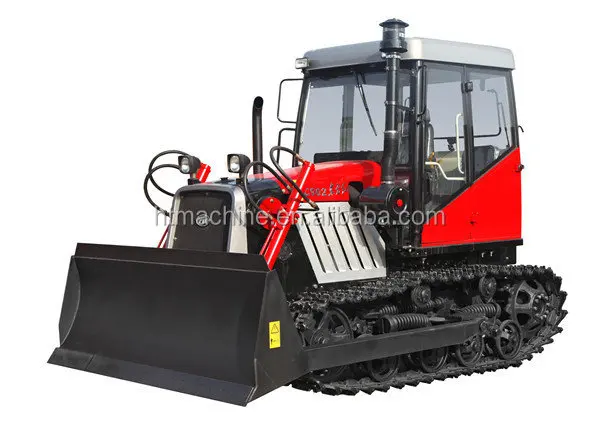

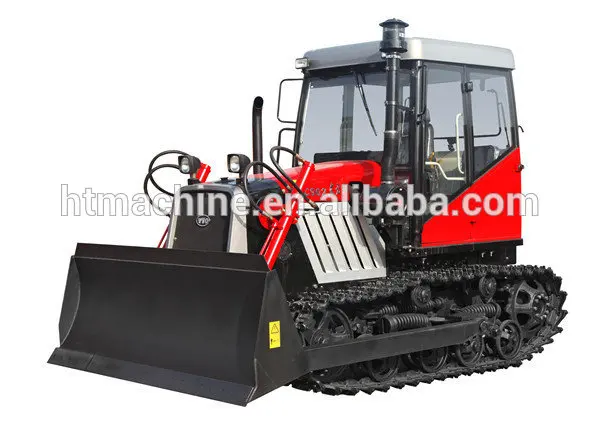

90Hp

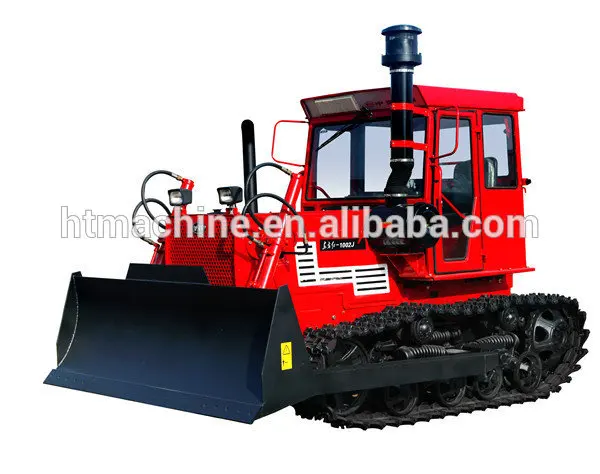

100Hp

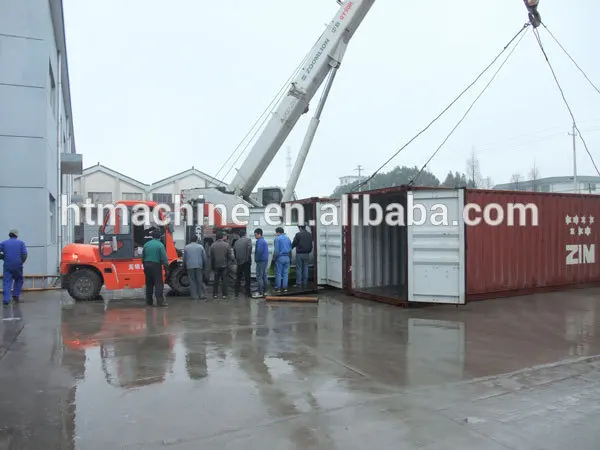

Packaging & Shipping
Shipped by one 20ft container
FAQ
| 1 How about the quality of machines? |
| Our machines adopt advanced technology. Moreover, we carry out strict supervision during production and make sure every finished product with high quality. |
| 2 About the delivery time. |
| Generally, it will be about 20-25 days days after your deposit, which also will be on basis of your order. |
| 3 About warranty. |
| We provide 12 months for warranty. |
| 4 Which kind of payment is available for us? |
| T/T, L/C and Western Union are common for us. |
| 5 How about the service? |
| Provide overseas installation, debugging and training the relating work . |
Our Services
High quality with low price :
Focus on water filter area,our factory has more than 20 years of professional experience,the price is directly from factory to our clients.
Multiple delivery choice :
We have big discount with forwarder,keep the goods reach yourside fast and safety.
Customer First, Credit-based :
7 x 24 hours service,every equiry will be treated carefully by us with authentic and quick replying.
