In stock Fast delivery Building Integrated Photovoltaics 360w solar panel roof tiles Monocrystalline Silicon modules bipv
- Category: >>>
- Supplier: Boyang Energy Technology Co. Ltd.
Share on (1600213344726):
Product Overview
Description
Product Description

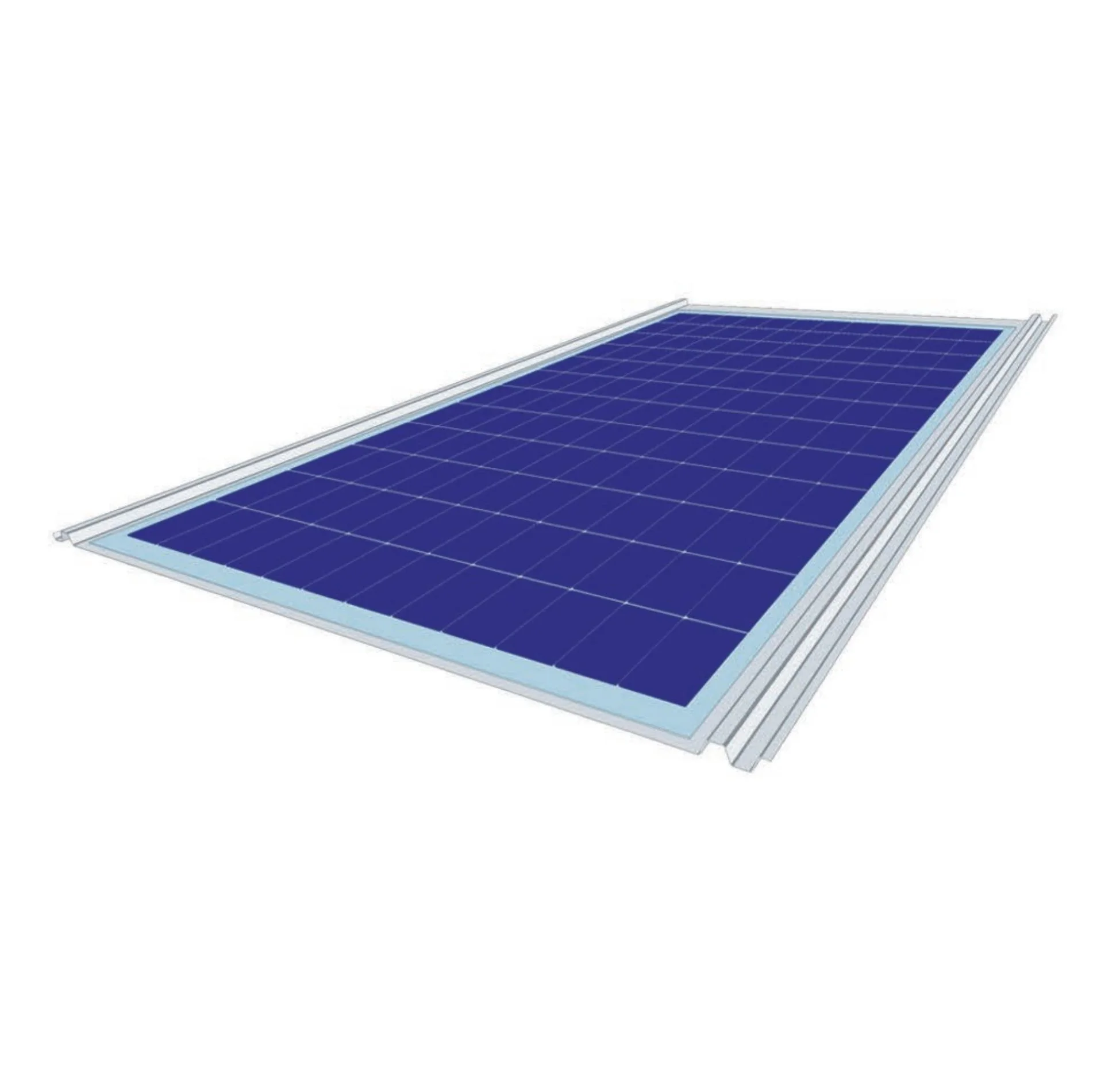

BIPV=Building integrated photovoltaics
BIPV photovoltaic tiles can replace traditional color steel tiles, with fire-proof, waterproof, leak-proof, and moisture-proof functions. Especially in building features such as facades, roofs or skylights, and provide solar power for the building.
It can walk and trample, achieve higher strength and longer-lasting weather resistance.
Obtained all required certificates
TUV Certificate
CQC Certificate
Fire protection certificate
Specification
Technical Specification of BIPV mono-crystalline silicon solar cells-360W
Material specification | ||
External Size | 2100*1140mm | |
Effecitive Size | 2000*1100mm | |
Thickness | 3.90mm | |
Effective PV Area | 2.20m2 | |
Weight | 23Kg | |
Effective Width | 1100mm | |
DC wire | BRV-1x4.0mm2 | |
DC Connector | MC-4 | |
Solar Cell Type | Mono Crystalline Silicon | |
Front/Back Plate Material | Toughened Glass, Galvanized/AI Metal Sheet | |
Frame | N/A | |
Back Plate Colour | Gold/Black/Silver/Silver Gray | |
Mounting Accessories | ST5.5self tapping, cover plate | |
Fire Rating(TUV) | Class A | |
Working parameter of BIPV | ||
Operating Temperature | -40~+85°C | |
Power Tolerance | 0~+5W | |
NOCT | 45 °C | |
Temperature Coefficient(STC) | ||
Temperature Coefficient of Isc | +0.05%/°C | |
Temperature Coefficient of Voc | -0.31%/°C | |
Temperature Coefficient of Pmax | -0.40%/°C | |
Load capacity | ||
Maxium Static load, front | 3600Pa | |
Maxium Static Load, back | 1600Pa | |
System parameters | ||
System DC Voltage (Maxium) | <52Vdc | |
System Output Voltage | 220Vac/380Vac | |
Electrical performance parameter | ||
Model | HPH144360M | |
Test Conditions | STC | |
Maximum Power(Pmax/W) | 360 | |
Peak Voltage(Vmp/V) | 26.6 | |
Peak current(lmp/A) | 13.6 | |
Open-Circuit Voltage(Voc/V) | 32.2 | |
Short-Circuit Current(lsc/A) | 15 | |
STC: irradiance 1000W/m2, battery temperature 25°C, specturm AM 1.5. | ||

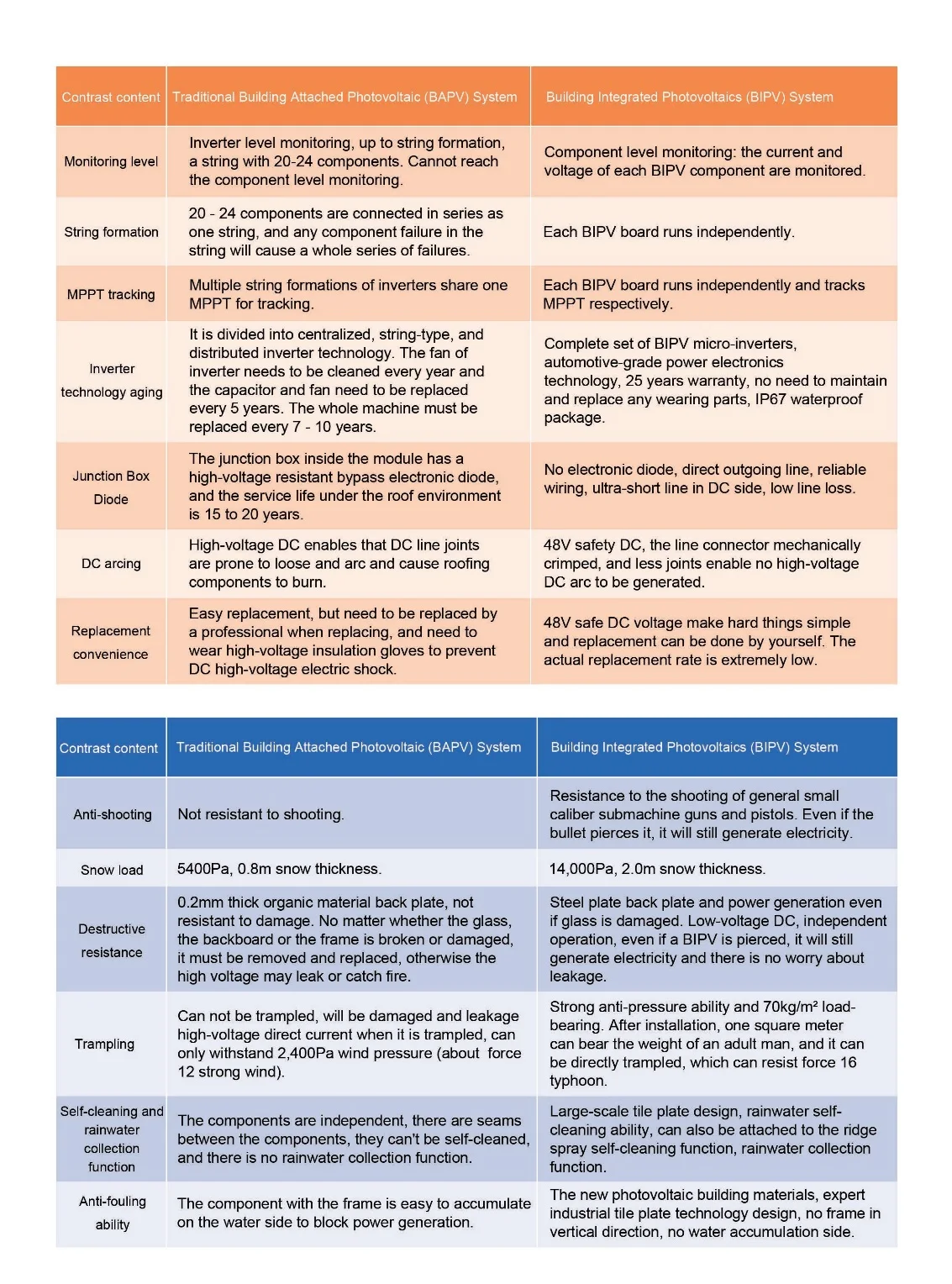

Advantages
1. Higher Safety Performance
- Full metal backing design
- Safe low-voltage DC power generation technology
- No diode design
- Frameless design
2. Higher Life Time
- The roof is designed to last for 25 years usage and 30 years lifespan
- Easy stepping roof structural design
3. Higher Roof (Power) Efficiency
- Better low light performance
- Higher roof utilization
4. AI is smarter with Internet of things
- Module-level MPPT
- Module-level monitoring
- Maintenance-free design
- Full metal backing design
- Safe low-voltage DC power generation technology
- No diode design
- Frameless design
2. Higher Life Time
- The roof is designed to last for 25 years usage and 30 years lifespan
- Easy stepping roof structural design
3. Higher Roof (Power) Efficiency
- Better low light performance
- Higher roof utilization
4. AI is smarter with Internet of things
- Module-level MPPT
- Module-level monitoring
- Maintenance-free design

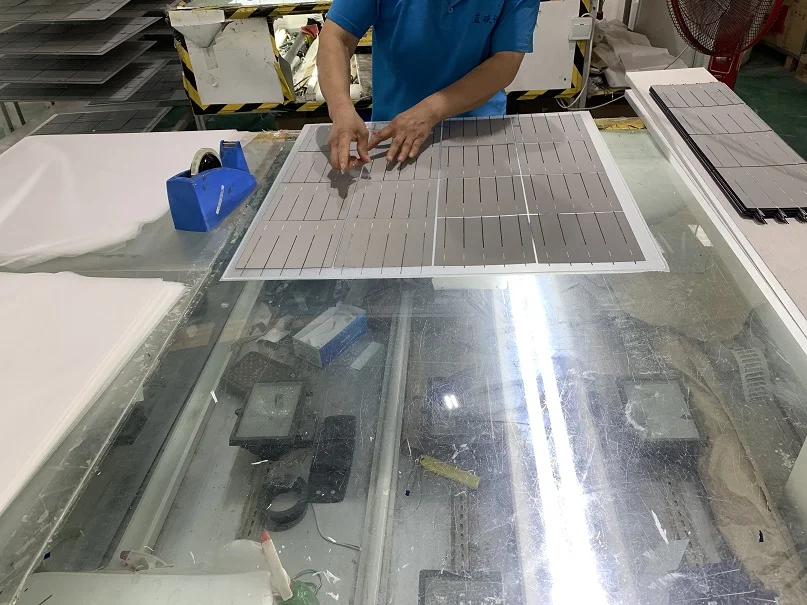

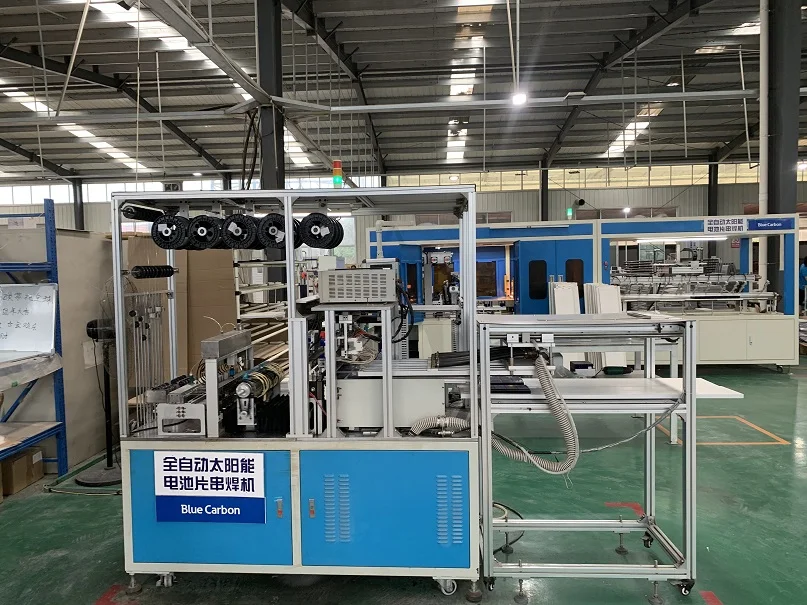

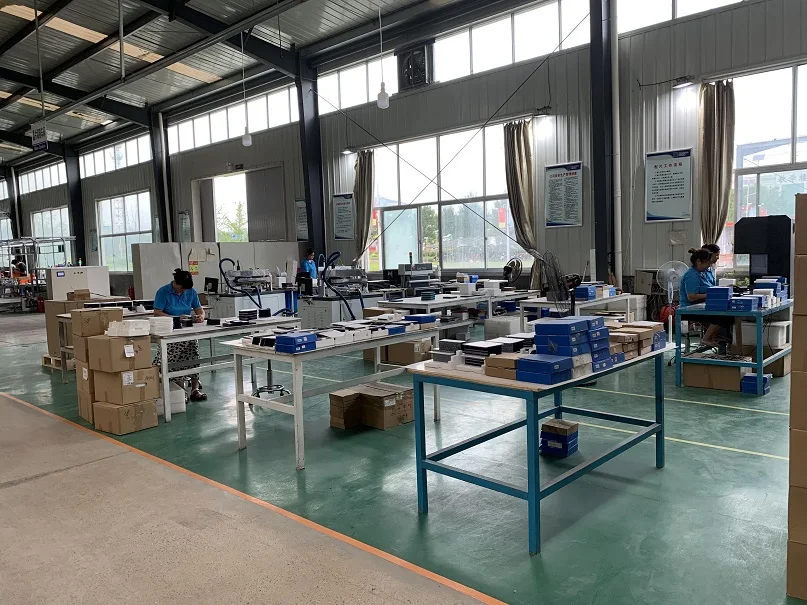

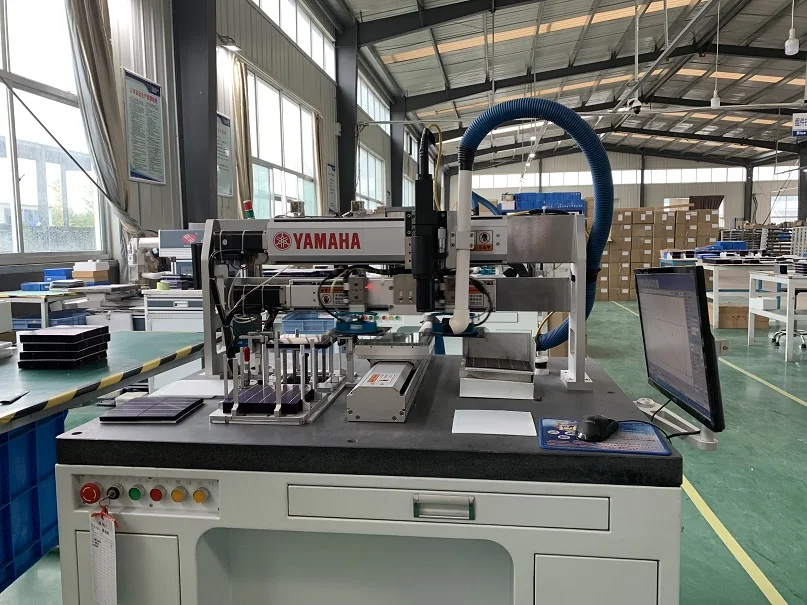

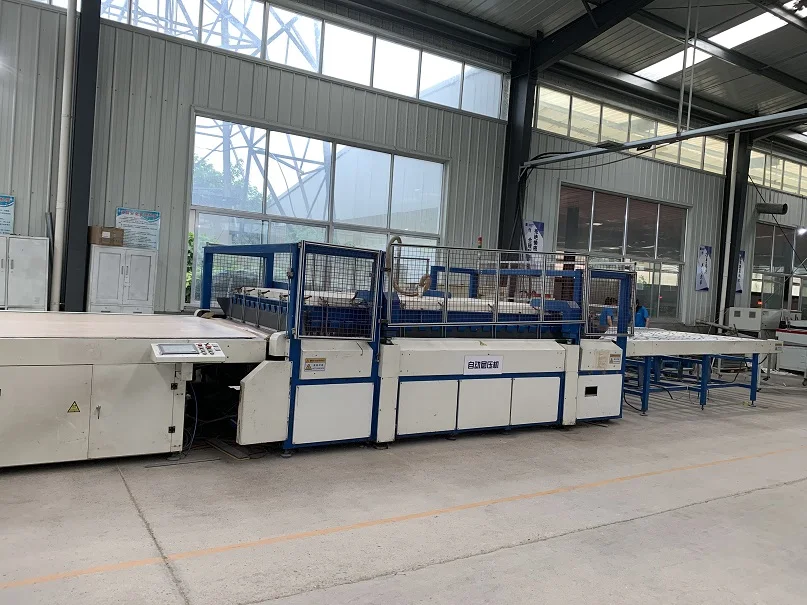

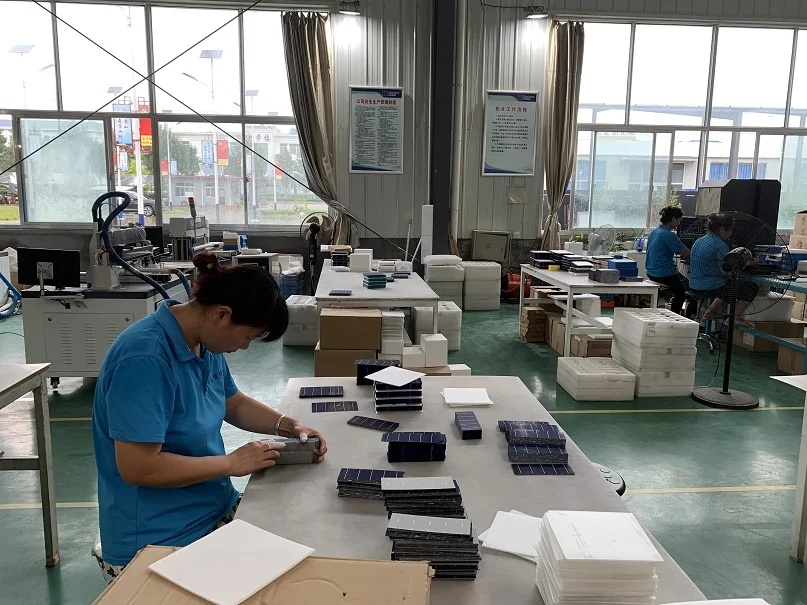

Advanced Manufacture Production Capacity

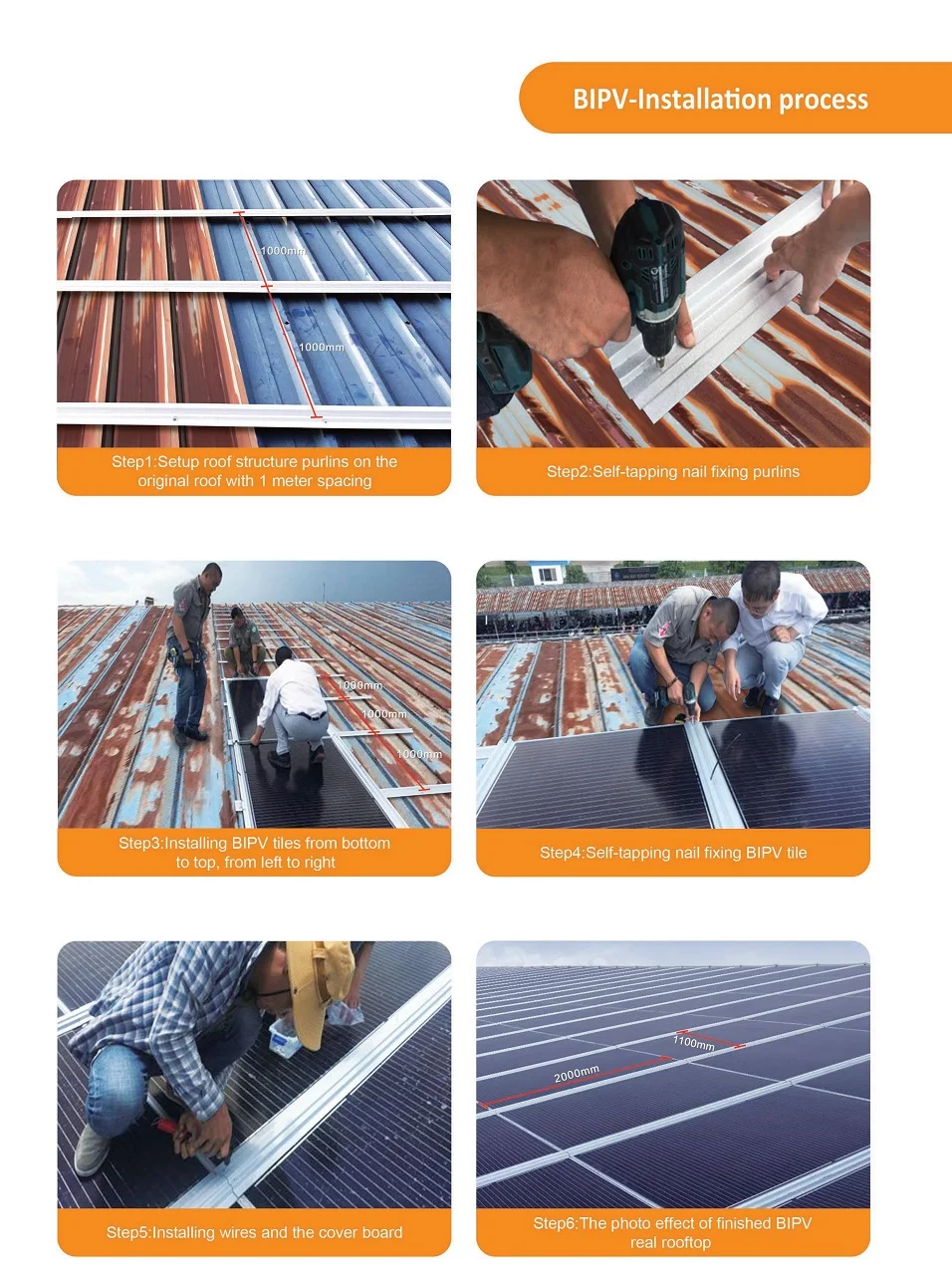

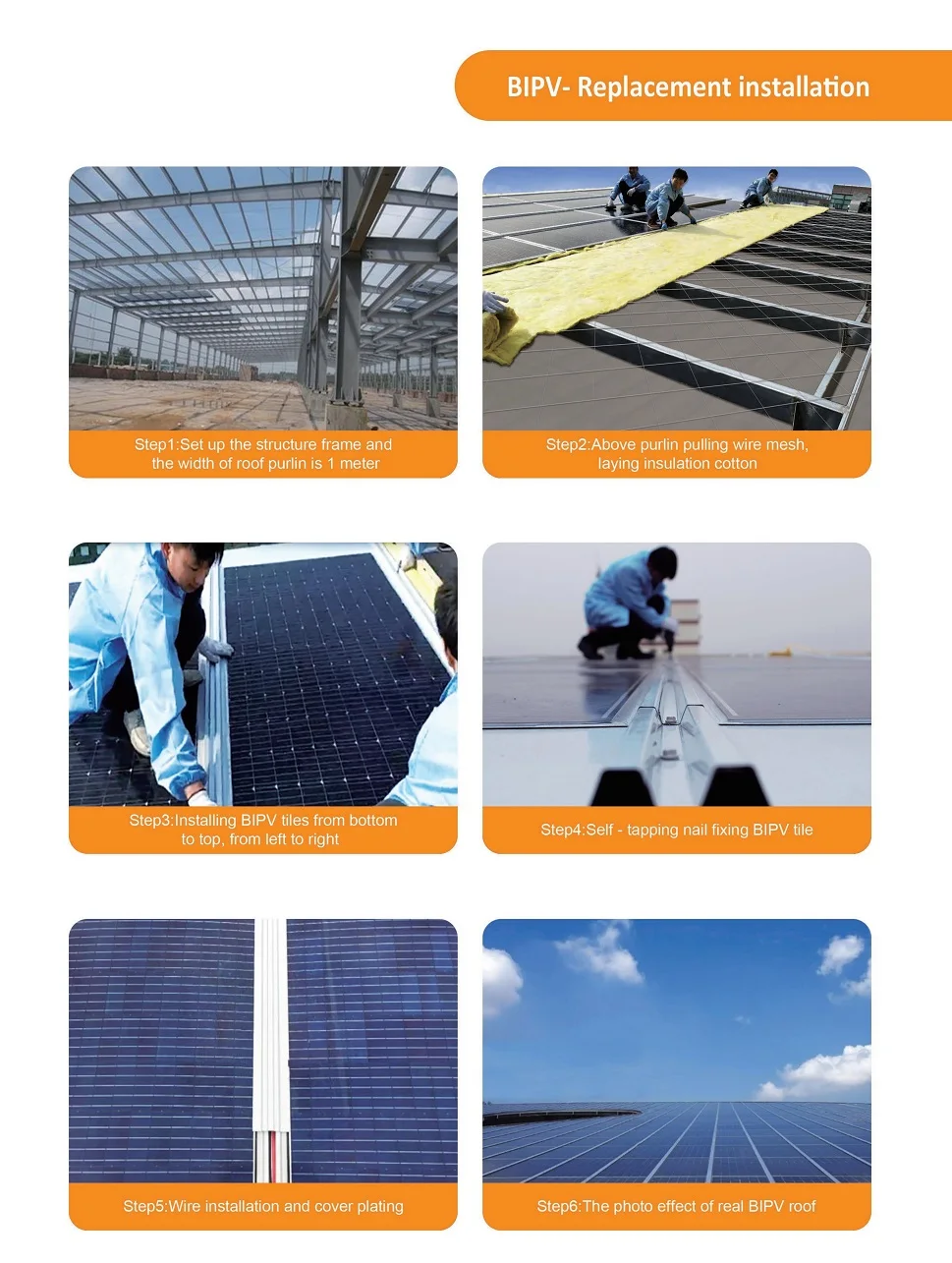

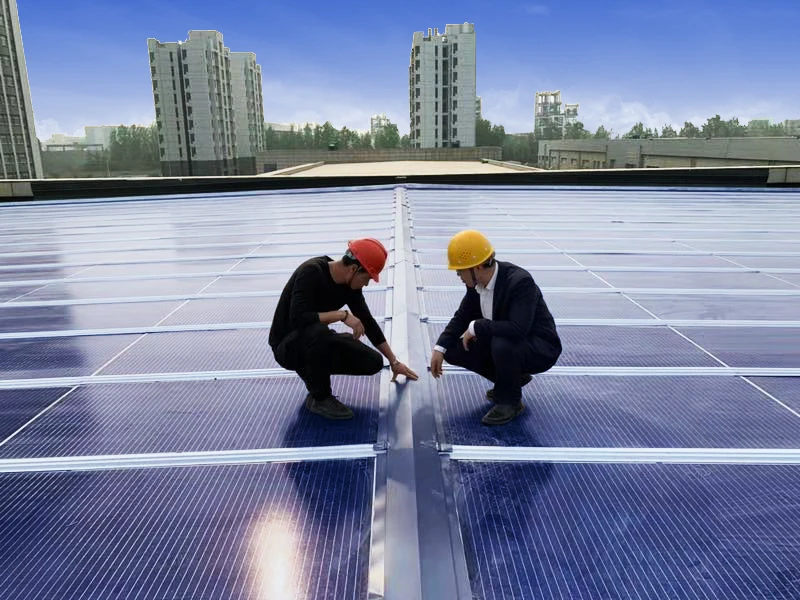

Installation

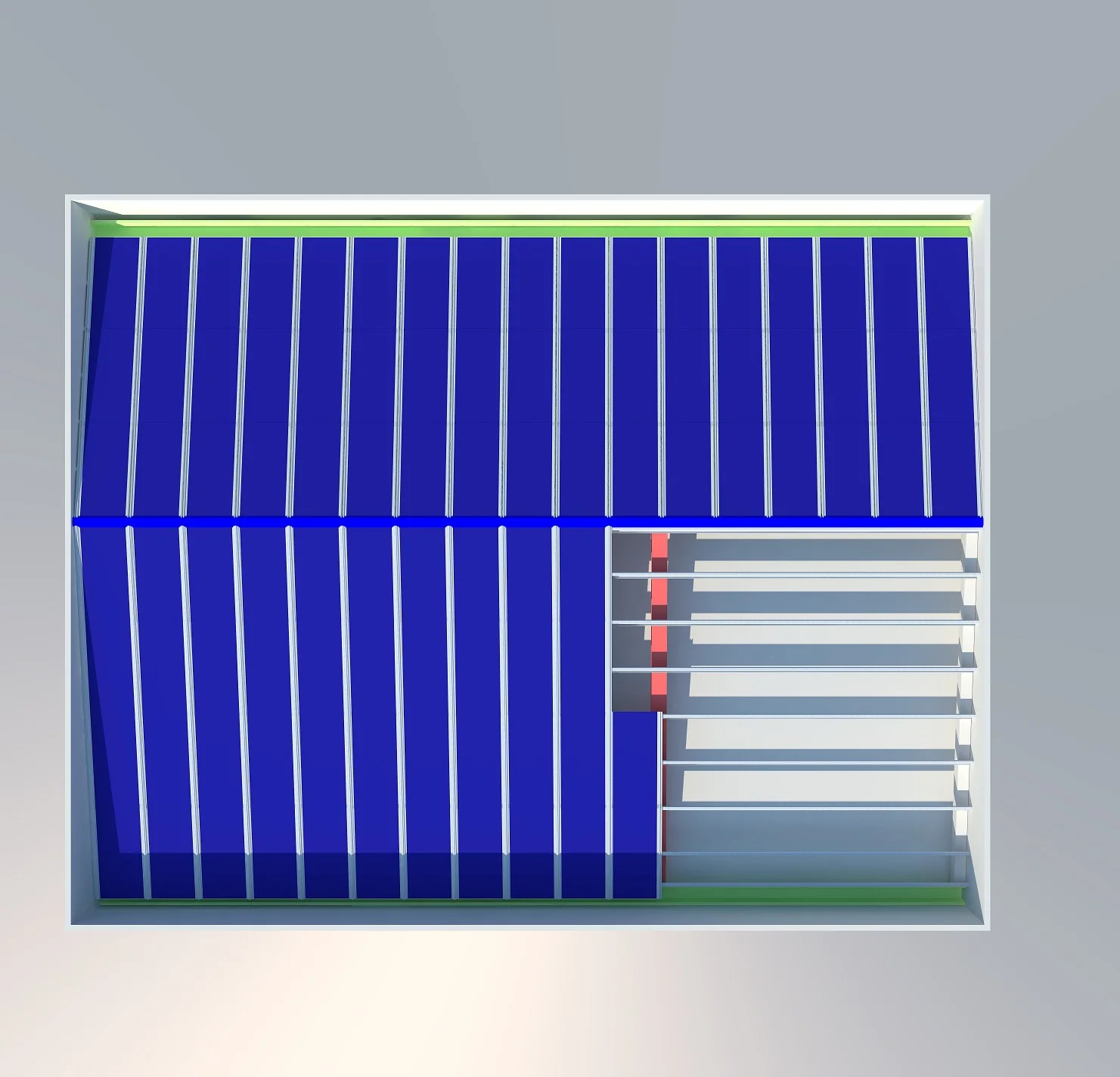

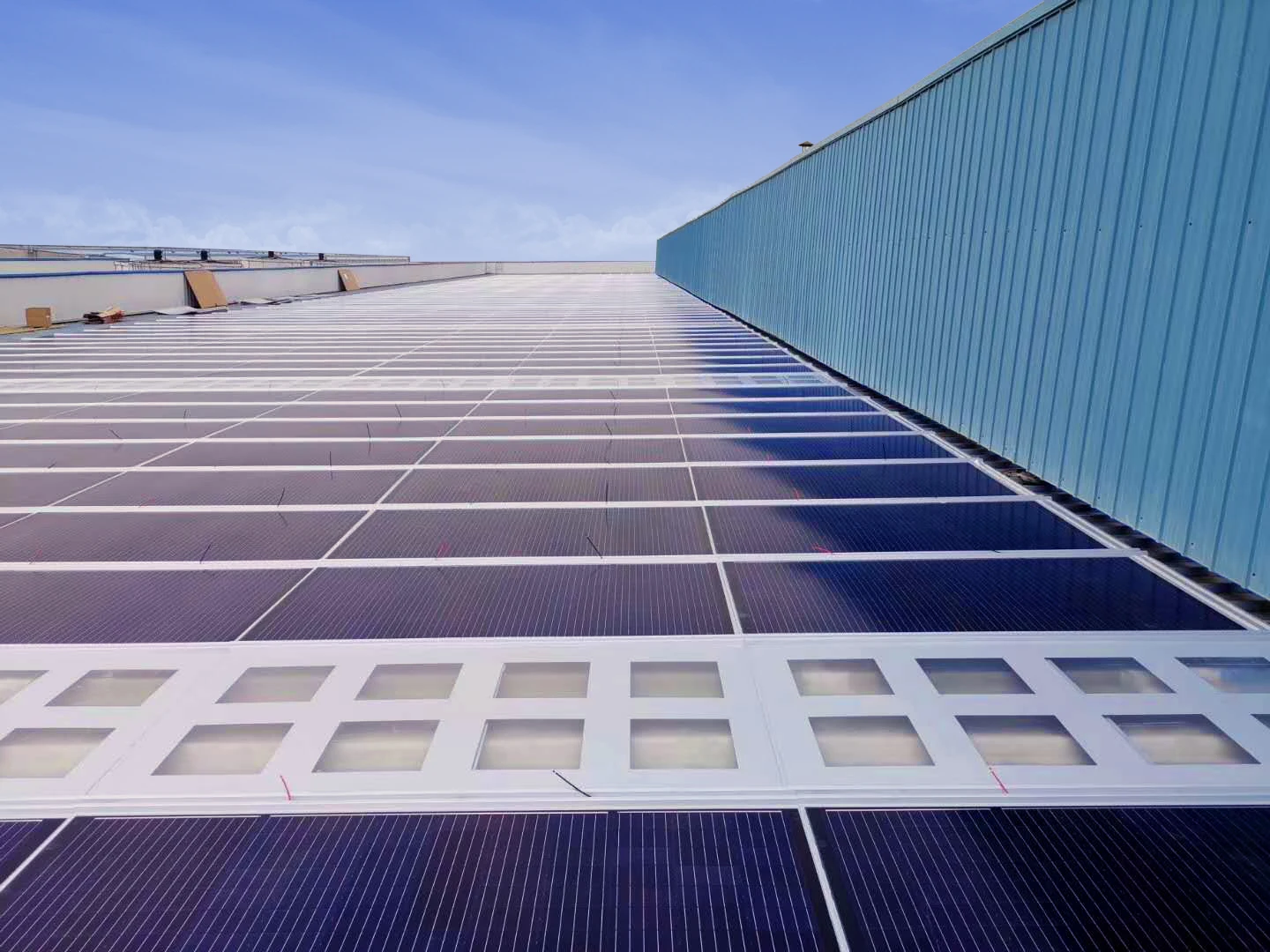

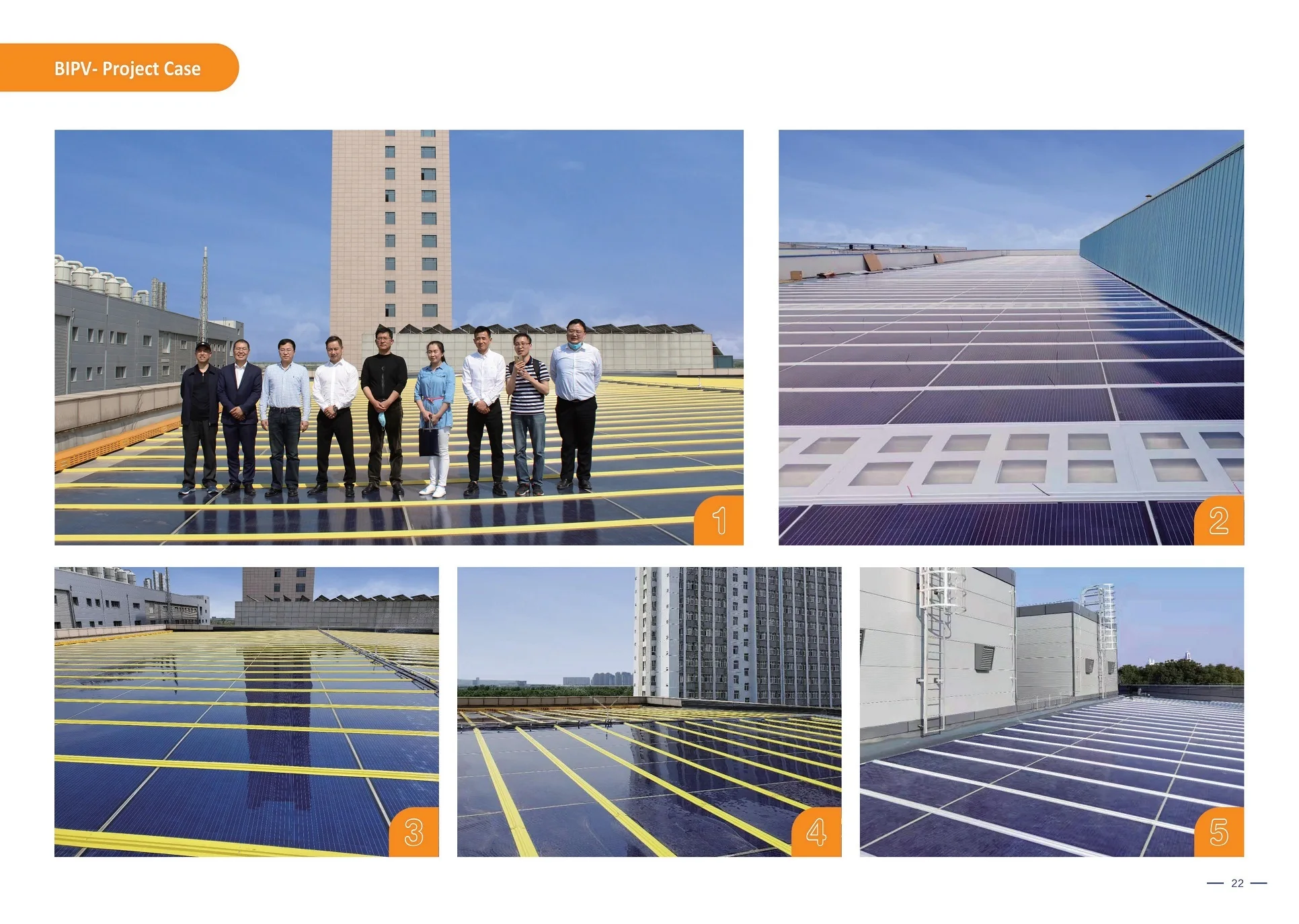

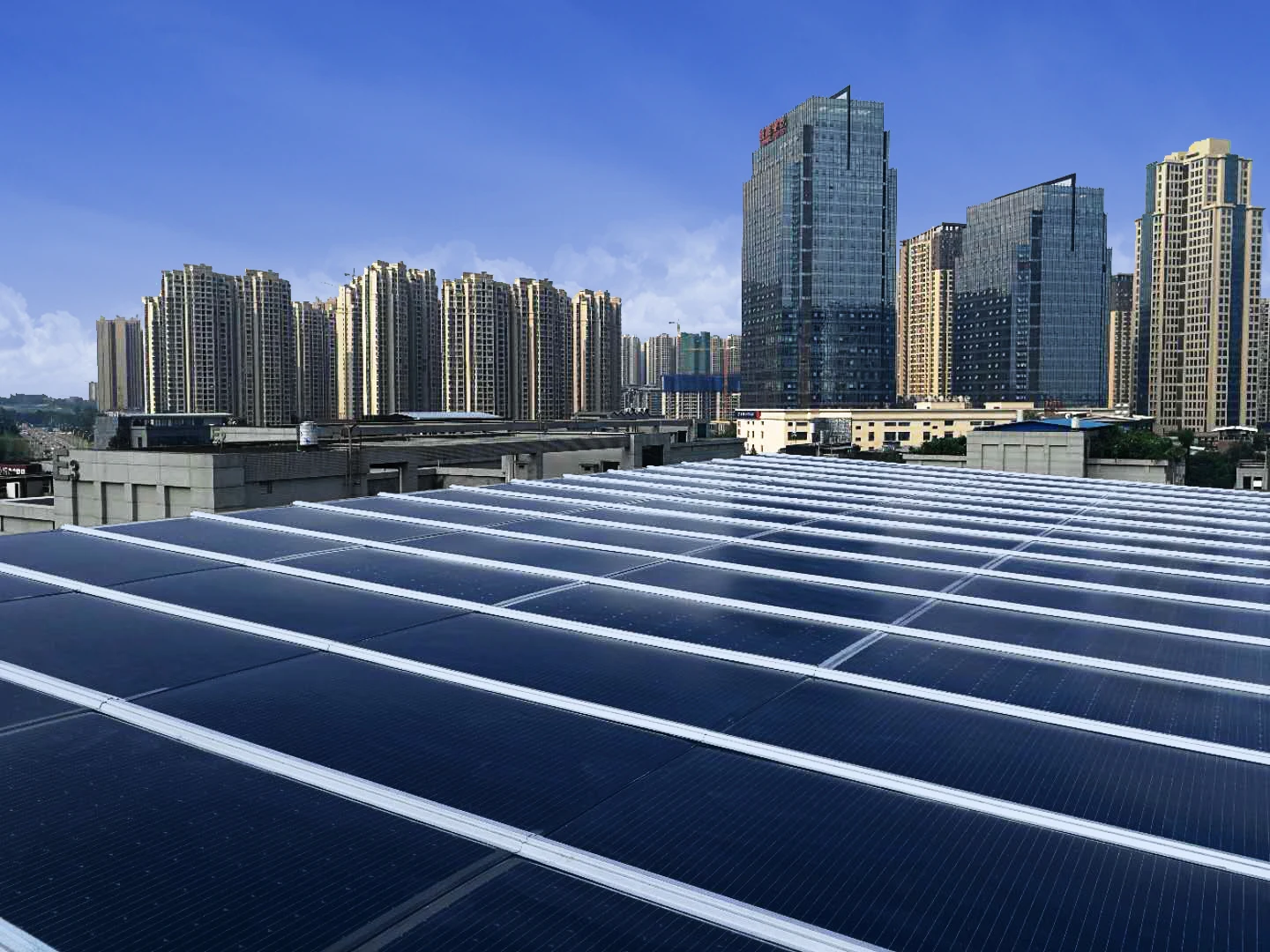

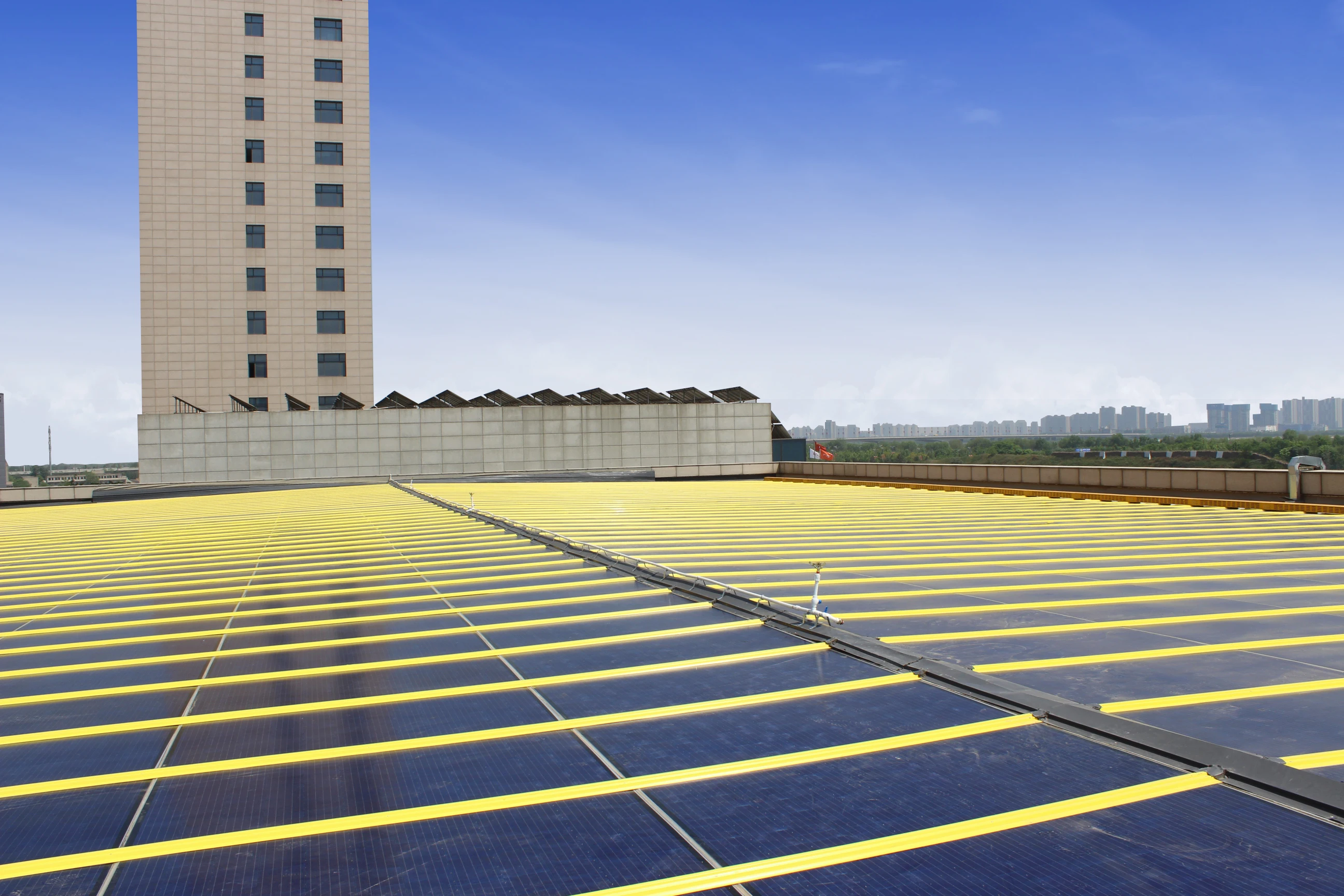

Project
Company Profile
Boyang Energy is located in Xi’an, China. It is a science and technology company with new energy products and solutions as its main business, committed to become an excellent provider of new energy solutions.
With distributed energy solutions and new energy generators as the core, we can provide standard power supply schemes in the off-micro grid scenarios of industry and commerce, household, municipal service, agriculture and island. The independently invented new energy generator can be widely used in areas without electricity or with unstable power supply, providing clean electricity for families, small businesses and outdoor people. Boyang has a complete system of agents and partners, and has already set up localization companies in Hong Kong, Philippines, Nigeria, Kenya and other regions. We can provide customers with perfect localization services and support, to meet customers' various needs for power solutions and equipment.
Boyang has R&D bases in Xi 'an, Suzhou and Shandong, and the technical R&D team account for more than 1/3 of the total number of the company’s employees. We have a number of invention and utility model patents, and have passed the ISO9001, CE, RoHS and other certifications. We have a perfect management system, first-class capabilities of research, development, design and service, and many new energy strategic partners. Upholding the core values of "equality, struggle, fraternity", adhering to customer-centered principle, we provide clients with competitive, safe, reliable products, solutions and comprehensive services.
With distributed energy solutions and new energy generators as the core, we can provide standard power supply schemes in the off-micro grid scenarios of industry and commerce, household, municipal service, agriculture and island. The independently invented new energy generator can be widely used in areas without electricity or with unstable power supply, providing clean electricity for families, small businesses and outdoor people. Boyang has a complete system of agents and partners, and has already set up localization companies in Hong Kong, Philippines, Nigeria, Kenya and other regions. We can provide customers with perfect localization services and support, to meet customers' various needs for power solutions and equipment.
Boyang has R&D bases in Xi 'an, Suzhou and Shandong, and the technical R&D team account for more than 1/3 of the total number of the company’s employees. We have a number of invention and utility model patents, and have passed the ISO9001, CE, RoHS and other certifications. We have a perfect management system, first-class capabilities of research, development, design and service, and many new energy strategic partners. Upholding the core values of "equality, struggle, fraternity", adhering to customer-centered principle, we provide clients with competitive, safe, reliable products, solutions and comprehensive services.

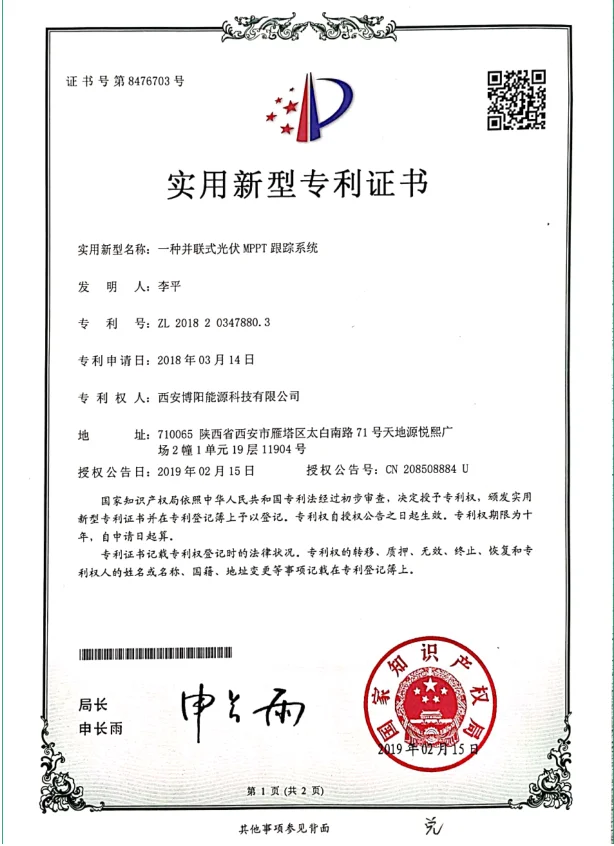

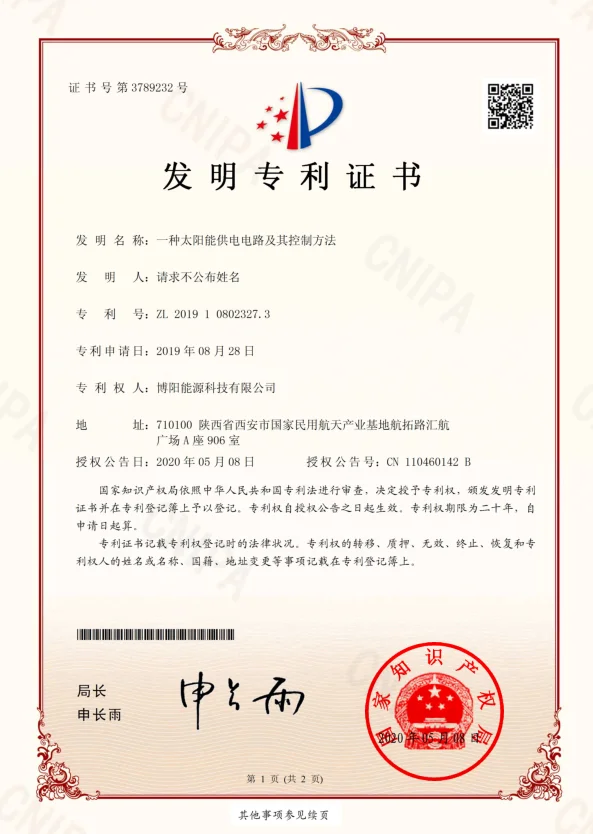

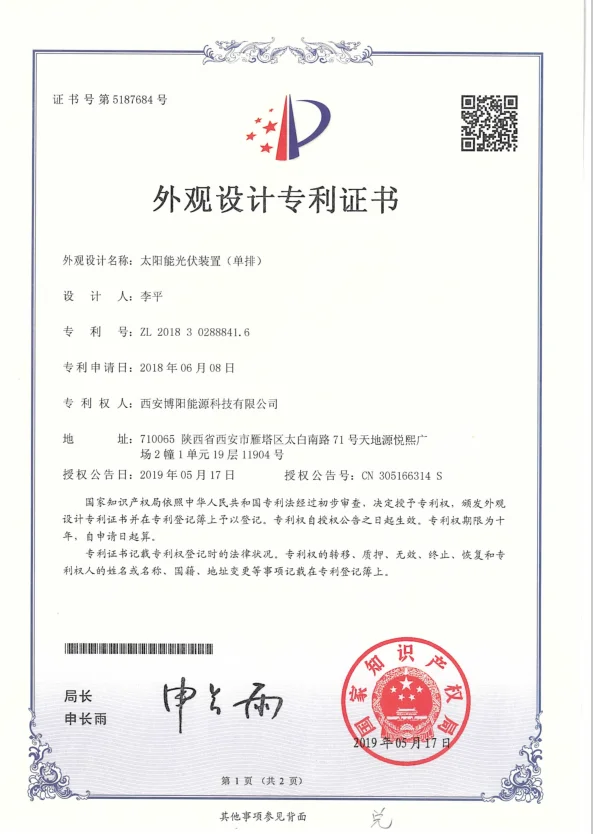

Patents
