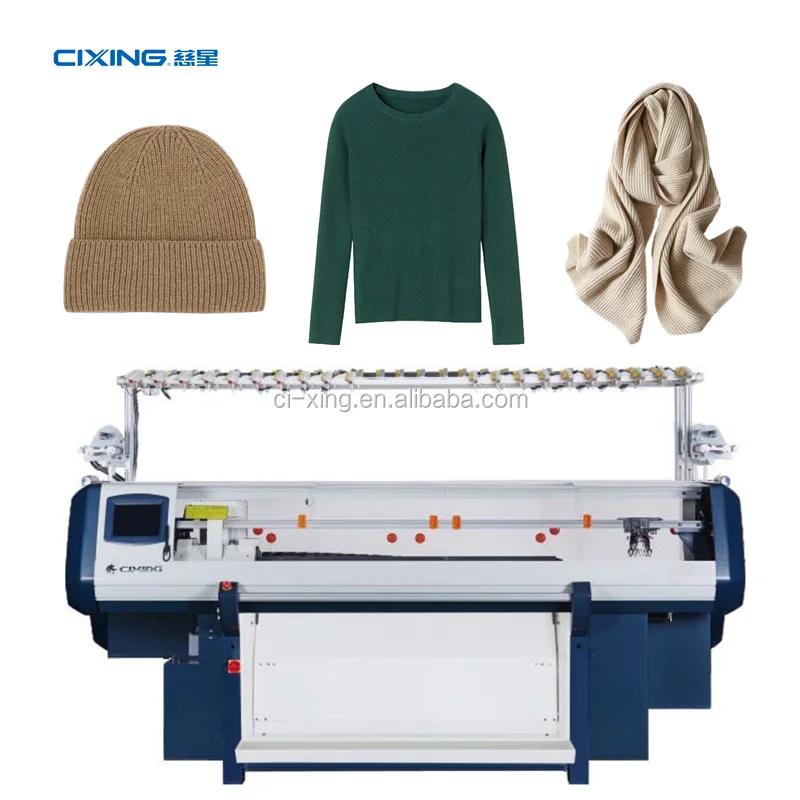

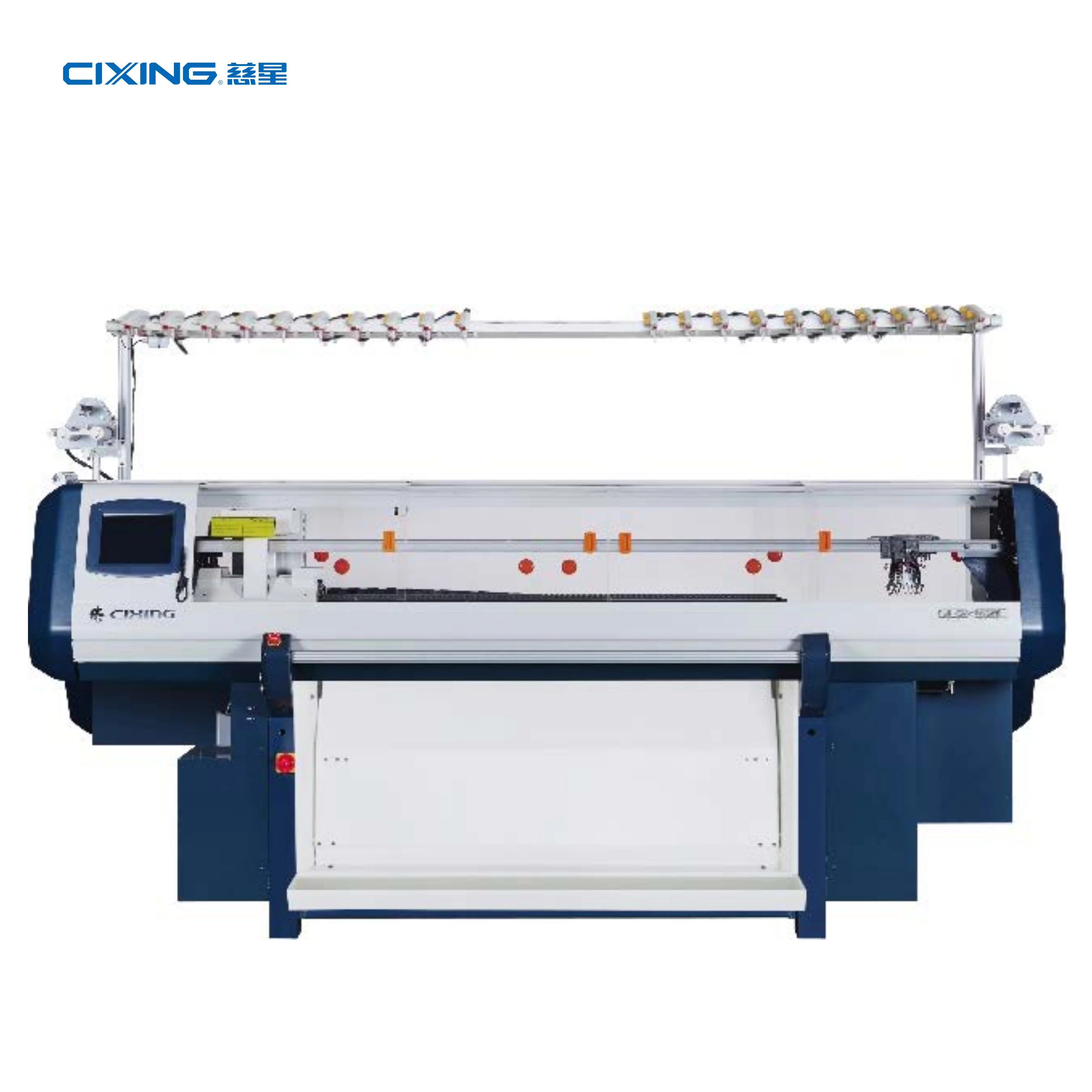

1+1 system double carriage collar flat knitting machine
US $6500-$6800
Трикотажная Машина Steiger, компьютеризированная плоская, 16 калибров, три системы, 45 дюймов
- Category: Knitting Machines >>>
- Supplier: Ningbo Cixing Co. Ltd.
Share on (1600213348115):
Product Overview
Description
Single carriage with double/rip le systems，the series machines are allequipped with the advanced comb device and clip&cutter，Our R&Dsurmount the technical of great challenge of two devices，and achievesto international advanced level.The comb device adopts activityreleasing theorem，which achieves the compound needle to pick up yarn or release yarn.The comb with clip&cutter is complement to eachother，both to cooperate with eachother，which gives full pay completely due action and reduce the waste yarn and increase theproduction efficiency.
These series are used digital technology to achieve the patterns oftransfer，tuck，pointel，intarsia，jacquard，apparent shape，hidden shape and other regular pattern knitting functions，can knit basic single ordouble jersey plain fabric，irregular multi-colors jacquard，intarsia， cable and pointel structure patterns.
These series are used digital technology to achieve the patterns oftransfer，tuck，pointel，intarsia，jacquard，apparent shape，hidden shape and other regular pattern knitting functions，can knit basic single ordouble jersey plain fabric，irregular multi-colors jacquard，intarsia， cable and pointel structure patterns.

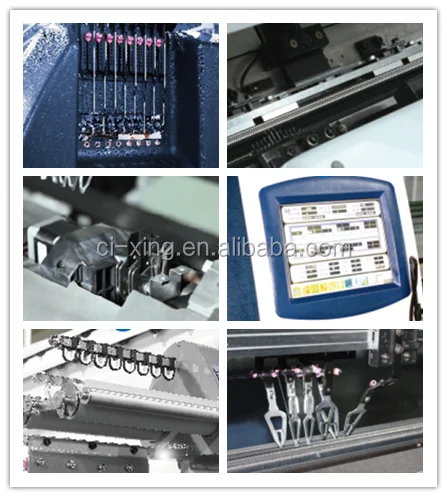

Sideline Frame
It uses the high quality spring to effect the yarn picker.Besides the tension control function，it can also pullback the
superfluous yarn occurs when thecarriage moves reversely to tighten theyarn in theuniform tension which is to guarantee the normalknitting.
superfluous yarn occurs when thecarriage moves reversely to tighten theyarn in theuniform tension which is to guarantee the normalknitting.
Sinker System
Flat knitting machine for knitting needle movement inthe rise and fall with the regularity of the moment，to achieve the stitch transfer，stitch press off，stitch knit，stitch tuck such as knitting effects，need to help latch needle from sinker to complete，Improve the capacity of weaving.Sinker control system make the functionof sinker adjustable to achieve， adjusted as needed of knitting to control，the function of sinker and presser foot are very similar，but more reliable andpractical than the presser foot
Scissors and clips
When knitting，scissors and clips complement eachother，yarn connected with the fabric and yarn oftemporarily unused will becut.It can avoid waste andproduct damage and，possible existence of yarnwinding and so hazards because of long thread.Wasted time of hand-cut yarn will be saved andincrease efficiency，and easier to production management.
Display Screen
It adopts industry LCD displayer with graphic touchcontrol，multi color， all time monitoring function. The data of knitting amount，time，speed， roller， density，yarn carrier， etc， is clearly shown and can be adjusted in the process. It is most convenient and efficient way to amend the data.
Yarnstorage
Yarn storage can effectively reduce the resistance ofthe conveyor yarn， especially suitable for less flexible or brittle fabric，such as cashmere， rabbit fiber，making the fabric even and smooth，improvingmachine knitting efficiency.
Yarn feeder
8yarn feeders'position can be adjusted according tothe knitting width of fabric，also can be adjusted by programmable fine tune according to the carriage'srunning speed. It has the technical characteristics ofreacting fast and positioning accurate.
GE3-45C | |
Gauge | 6G |
Knitting grange | 45inch |
Knitting system | Single carriage with triple systems |
Shifting | Using AC servomotor control， theshit range of up to 2 inches，with aprecise adjustment function |
Sinker system | Stepping motor control，can be adjusted according to different fabrics to achieve a pluralityofcollectingandputting effects. |
Knitting speed | 24 section，the maximum speed of 1.6m/s，controlled by AC servomotor， servomotor using digital signal processorwith highspeed precision feedback control and operation ability(DSP) ，IGBT control to generate accurate output current； |
Function | Transfer，tuck，pointel，intarsia，jacquard，apparent shape，hidden shape and other regular pat tem knitting functions |
Read pin signal | Advanced encoder reader |
Rib transfer | Triangle composite design，single synergy，knit，paintel，fabric， achieve efficient production |
Stitch | Controlled by stepping motor，36 segment density selection，using subdivision technology，adjustablerange：0-730，more accurate control of the length of the fabric |
Comb device (C series) | Using closed Ushape compound needle，this special compound needle Contains activated releasing principle to effectivelyrealizeyarn hanging and the yarn removing function |
Scissors and Nips(C series) | Including 2 scissors，4clips，by the six motor control，the program instructions can be carried out simultaneously or separately， improve work efficiency，reduce yarn waste； |
Batching system | program instructions，stepper motor control，24 segment tension selection，adjustablerange：0-100； |
Color changing system | The 2*8yarn feedergroupisarranged on the left and the right sidesof the 4doublesideguiderails，can switch the position of the tip of theyarn in warp |
Probe alarm system | Probe alarm |
Network function | Highspeed Ethernet(ETHERNET) network can accommodate up to 254 fiat knitting machine，weaving data can be uploaded，downloaded and shared； |
Powersupply device | Single phase 220V/three-phase 380V，using advanced CMOS technologyhas the memory and the recovery function in the power cut moment |
Language choice | Multilanguage version：support Chinese， English， Arabia and other languages，but also according to customer needs to increase the requiredlanguage |
Size | L 2910 |
W 940 | |
H 2010 | |
Weight | 1155kg |
