Automated Tissue Homogenizer and Cell Lyser with ball mill tissuelyser Samples Tissue Grinding Machine Grinder DH 2019

Product Overview

Description

 Laboratory Bead Mills Homogenizer

Features:



Bead Mills DH-2019 is not only suitable for fine grinding and fine grinding of hard, medium-hard and brittle samples, but also suitable for soft, elastic and fibrous materials.

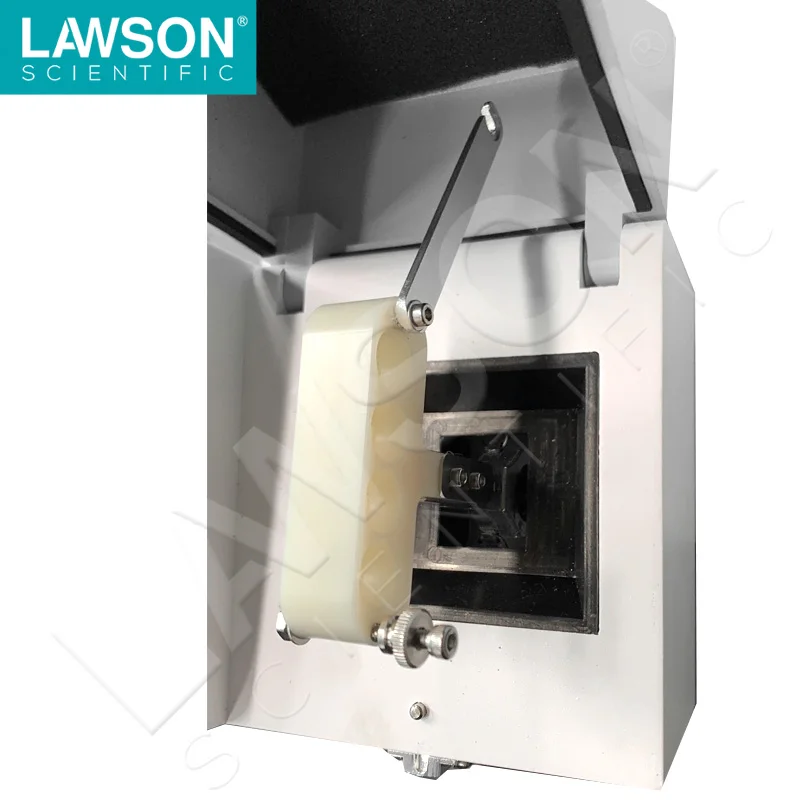

This machine performs a "8" shape three-dimensional vibration in the horizontal direction. The inertia of the grinding balls/beads drives them to hit the sample material on the inner surface of the arc with high energy, so as to achieve the effect of crushing and grinding.

The movement of the adapter can be superimposed with the movement of the inner ball to fully mix the sample. The mixing effect can be further improved by using multiple small diameter grinding balls.

Using multiple small-diameter grinding balls during grinding can greatly improve the grinding effect. The huge impact and friction between the ball and the ball can effectively achieve the fragmentation of the sample.



Typical Samples:
- Human, animal, plant cells
- Micro-organisms
- Soil and sediments
- Swabs and feces
- Drugs, polymers, lotions, etc.



Features:
1. LCD display, time can be set arbitrarily.

2. The setting parameters have self-memory function.

3. Circulate in the shape of "8".

4. Safety design, the machine stops working as soon as the upper cover is opened during the working process to ensure safe operation.

5. Comply with ergonomic design.

6. Low noise operation, automatic alarm reminder.

7. Simple operation, easy maintenance, and uniform oscillation.







Applications: Tissue grinding, homogenization, cell disruption, homogenization, material dispersion, preparation, sample mixing, oscillation, etc.

1) Power supply voltage: DC 24V, 5A;

2) Motor power: 100W;

3) Grinding speed: 5000rpm;

4) Timing range: arbitrarily set according to experimental requirements;

5) Adapter: 2ml*4 is standard, and 2ml*3, 5ml*2 can also be adapted;

6) Noise at work: no more than 65 dB;

7) The weight of the whole machine: 5.2kg;

8) Dimensions: 210*240*170 mm

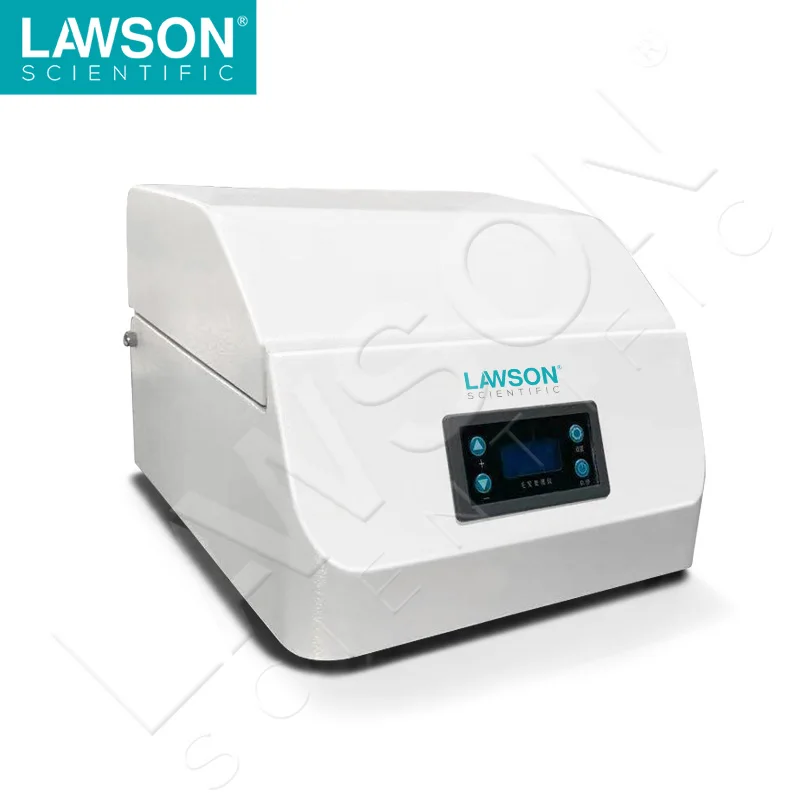

Host  DH-2019

Adapter Ø2ml *4



Grinding bead A bottle

Grinding tube 100Pcs





Grindable sample:

1. Plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.

2. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestine, lymph nodes, muscles, bones, etc.

3. Fungal bacteria: Yeast, E. coli, etc.

4. Food and medicine: various types of food, tablets, etc.

5. Volatile Samples: Coal, oil shale, wax products, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.
