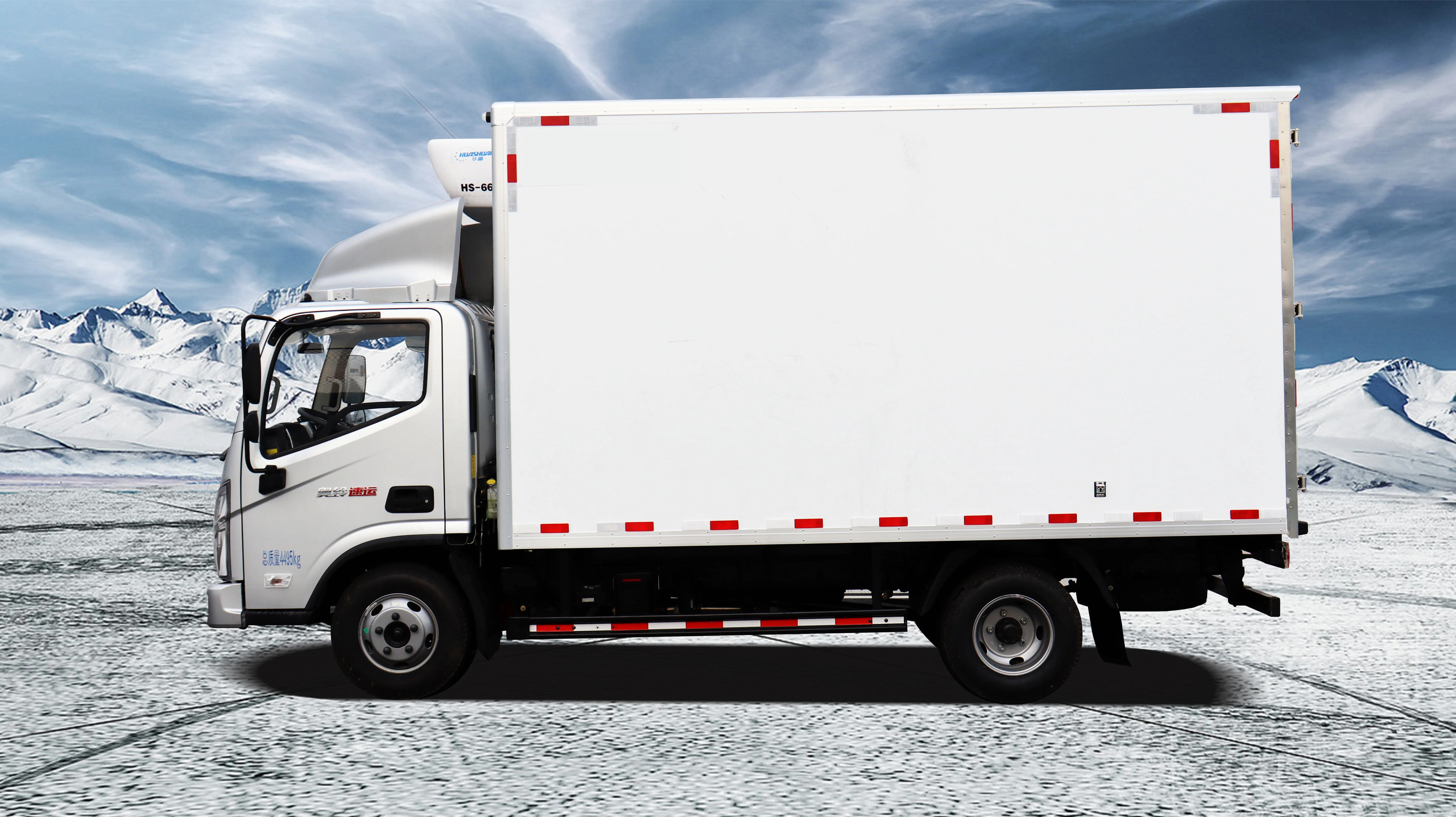

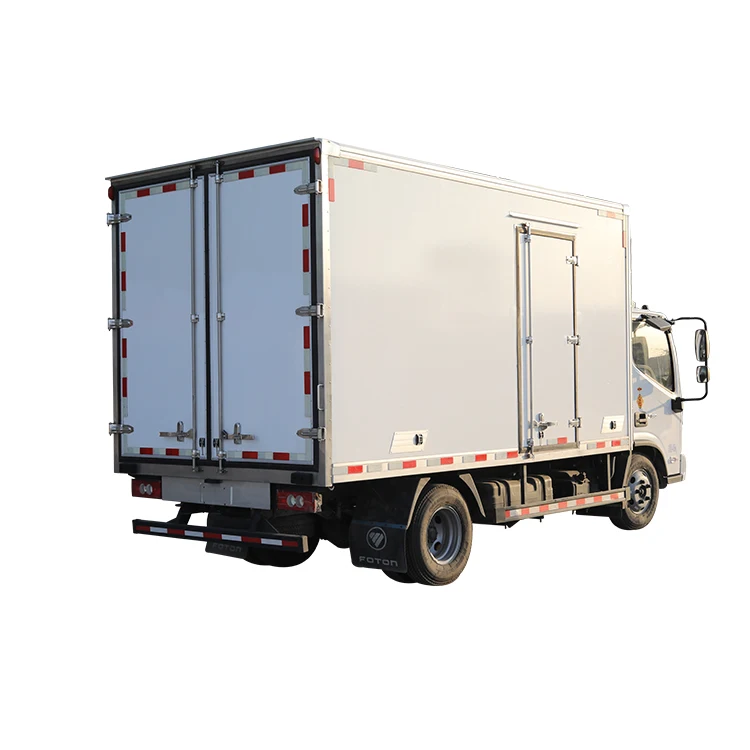

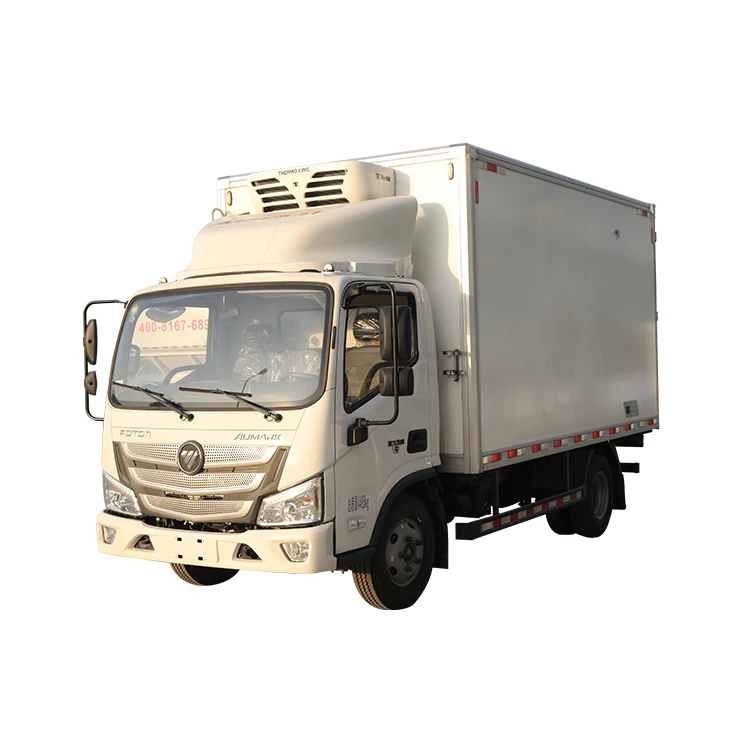

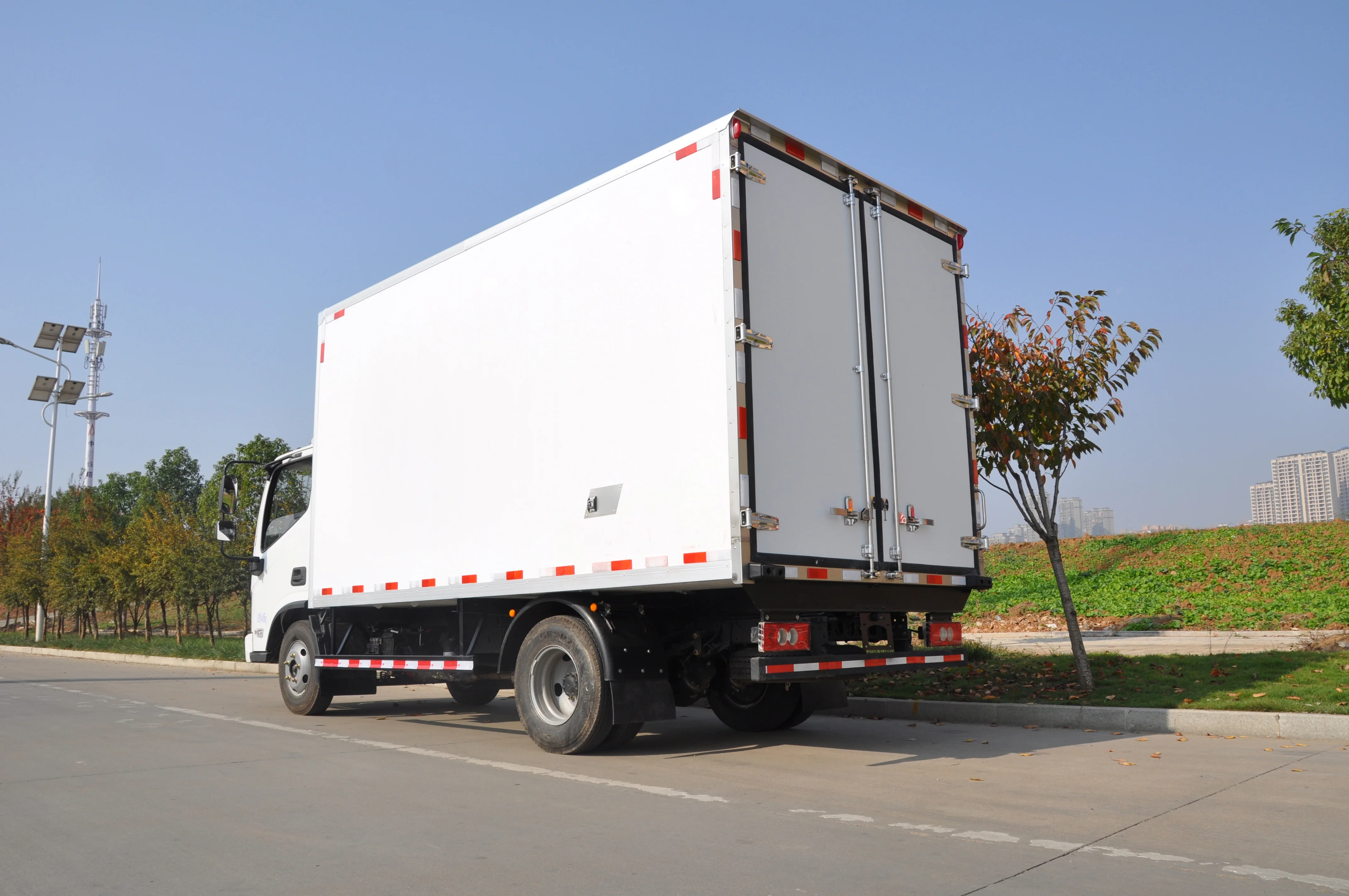

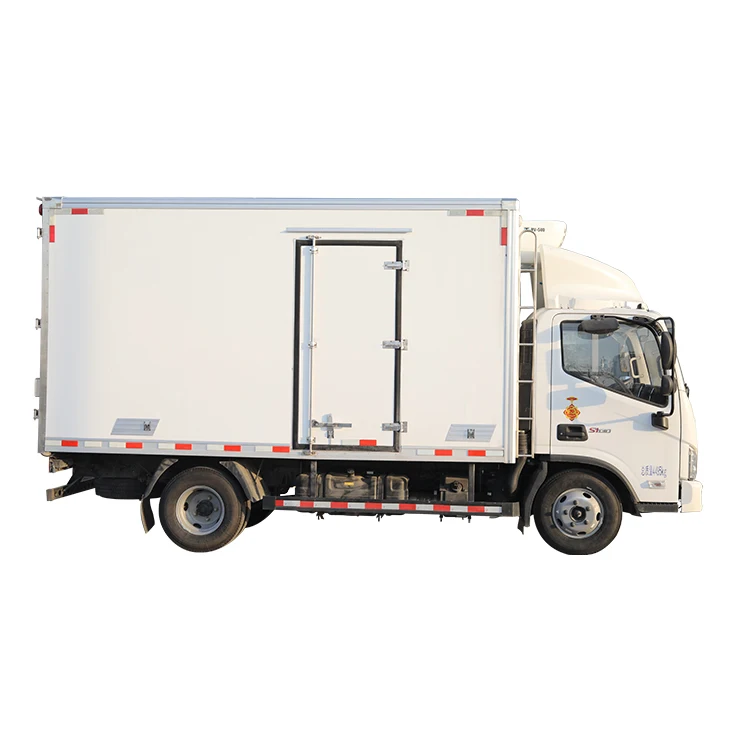

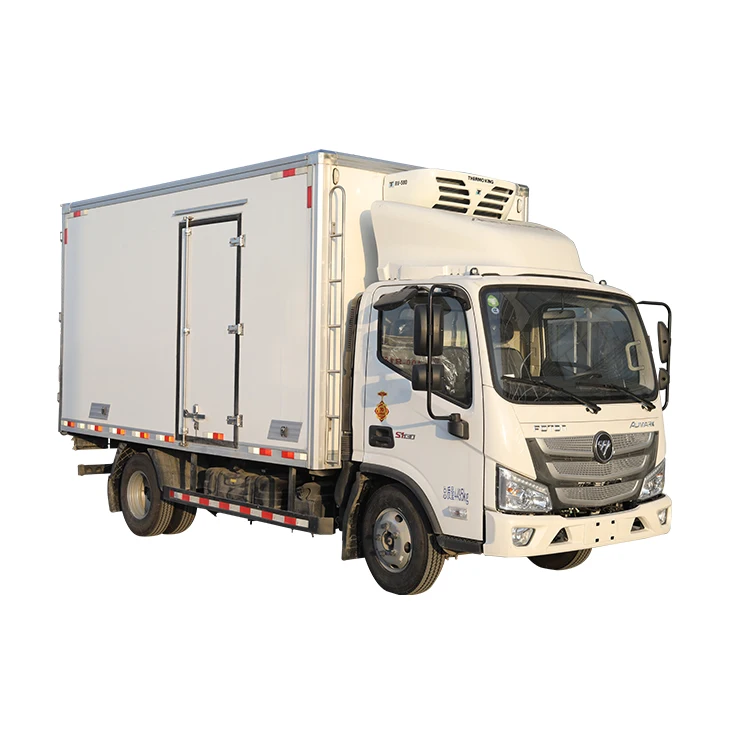

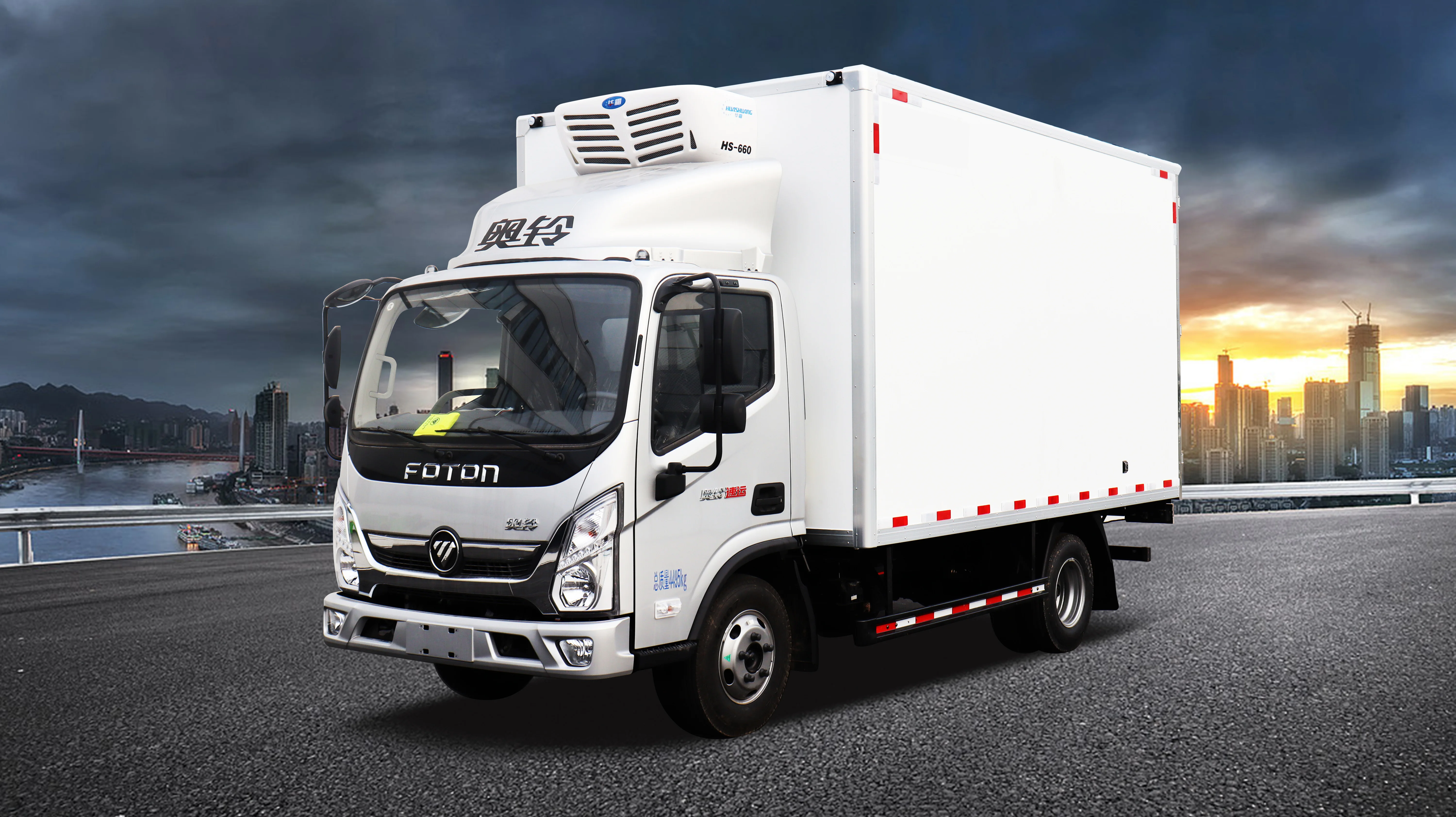

Foton Ollin 4x2 4.2m 130hp Freezer Food Cooling Van Refrigerated Truck for Vegetable and Fruit

Vehicle Parameters

Overall Dimensions(L*W*H)(mm)

5995×2210×3250

Total Mass(kg)

4495

Curb Weight(kg)

3200

Bulletin loading(kg)

1100

Fuel consumption (l/100km)

12.3

 Max speed(km/h)

105

Approach angle/Departure angle(°)

20/16

Chassis Parameters

Chassis Model/ Manufacturer

BJ1048V8JEA-FA/Foton Motor Group

Engine model / manufacturer

ISF2.8s5129T /BeiJing Foton Cummins Engine Co.,Ltd.

Transmission model / manufacturer

ZheJiang Wanliyang Co.,Ltd.

Drive Mode:

4×2 rear wheel drive

Wheelbase(mm):

1590/1590

Cab Type:

Single Cab 1880mm

Axle base(mm):

3360

Engine capacity(L)

2.78

Maximum torque and rated speed (n.m)/(r/min)

300N.m

Rated power (kw)

96

Tire specifications

7.00R16

Frame outside width (mm)

750

Longitudinal member section:

180x65x4.5

Passengers:

2,3

Emission standard:

Euro 4

Drive axle speed ratio: 4.875, front and rear drum brakes, manual adjustment, diversion cover, integrated heating and cooling, manual air conditioning, central lock + power window + remote control, MP3 + four-spoke, MP3 multi-function steering wheel, no cargo compartment, air brake.

Special device parameters

Fitted carriage (m):

4.2m

Applicable unit:

Carier C500

Kingtec MK580

Unit type:

Non-independent unit

Refrigerating capacity:

0℃/30℃

-20℃/30℃

The inner and outer skins are food-grade FRP, and the insulation material is made of German Bayer rigid polyurethane foam. The hardware is made of stainless steel. The thickness of the compartment board: the top and bottom plates are 85mm, the side and door panels are 75mm, and the thermal insulation performance exceeds the national standard GB29753-2013 Class I standard with a total heat transfer coefficient less than 0.4. The external profile is a rivet hidden design, the back door is sealed with a buckle aluminum profile bead and airbag type sealing, ultra-thin LED lighting, and a new flat power switch device.
