Youpin Viomi Internet Smart Door Lock Link ZigBee Version Biometric Fingerprint Smart Lock Password Keyless Door Lock
- Category: >>>
- Supplier: Quanzhou Ruichi Technology Co. Ltd.
Share on (1600213699391):
Product Overview
Description
Warehouse
Products Description
Specification:
Brand
VIOMI
Name
VIOMI Interconnection Intelligent Door Lock Link
Model
MS120-01 (left opening)
MS120-02 (right opening)
Main material
Aluminum alloy body + IMD film

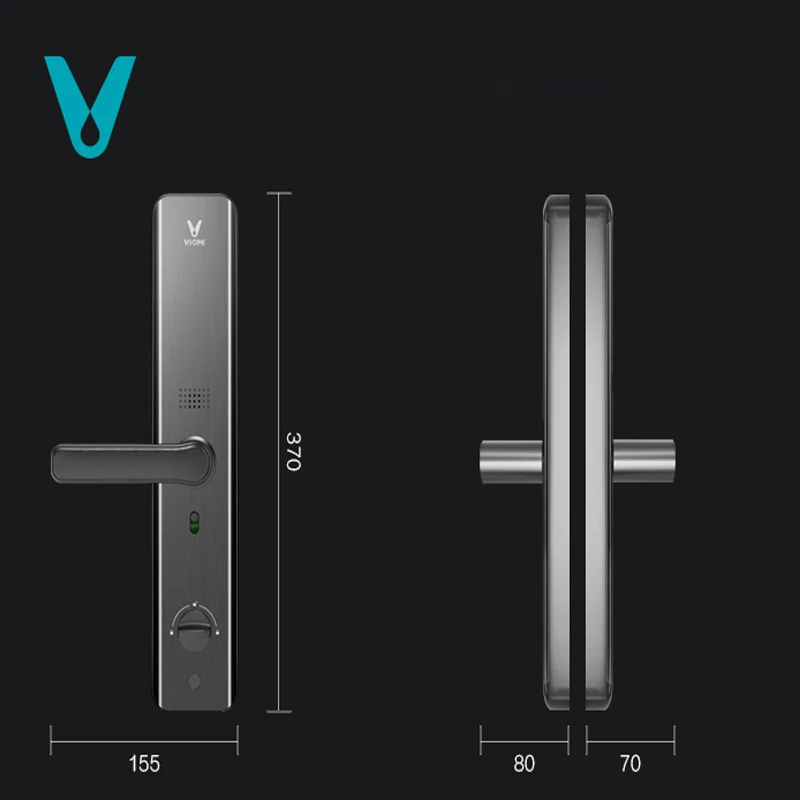

Size
(width x depth x height)
Front panel: 78 x 31.5 x 378mm
Rear panel: 78 x 26 x 378mm
Lock opening mode
Living fingerprint, password, swipe card, remote unlock of mobile phone, linkage unlock of refrigerator(need to match gateway)
Password length
8 bits
Emergency power supply
5V Micro USB
Standby time
Over 12 months
(1. According to switch 10 times per day;
2. The battery life of door lock is affected by the battery quality;
3. It is recommended to replace 4 batteries at the same time to
avoid mixing old and new batteries.)
Operating ambient temperature
-20 °C ~ 55 °C
Applicable door thickness
40-110 mm
Password capacity
30 groups
Fingerprint capacity
100 fingerprints
Fingerprint collector type
Semiconductor fingerprint head
Main power supply
4x No.5 (1.5V) high-energy alkaline batteries
Low power alarm mode
Push to the mobile terminal through the gateway
(If there is no gateway, the door lock voice prompt)
Pry door alarm mode
When it's triggered, sirens go off
Number of fingerprint test-ban
Freeze the fingerprint lock for 3 minutes after 5 consecutive errors, and the fingerprint will not be identified within 3 minutes
Number of password test-ban
Freeze the password lock for 3 minutes after 5 consecutive errors, and the fingerprint will not be identified within 3 minutes
Features:
●Virtual password protection. No occlusion required, safe input
●Support 5 ways to open doors. Passwords, magnetic CARDS, emergency keys, etc

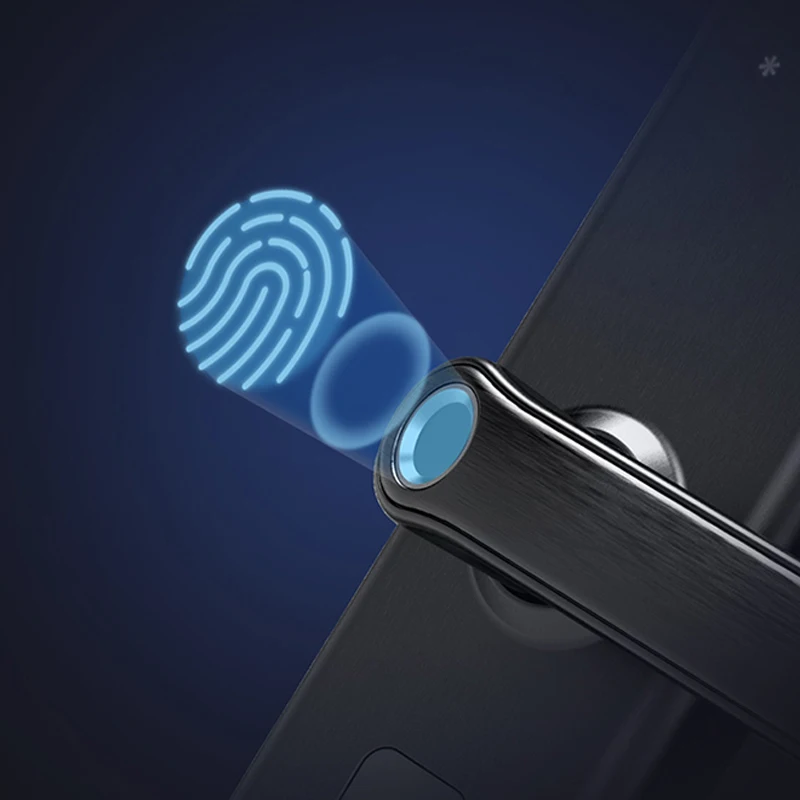

●VIOMI intelligent door lock adopts high-precision living biological fingerprint module to prevent false fingerprint, while
built-in VIOMI intelligent algorithm, fingerprint self-learning.

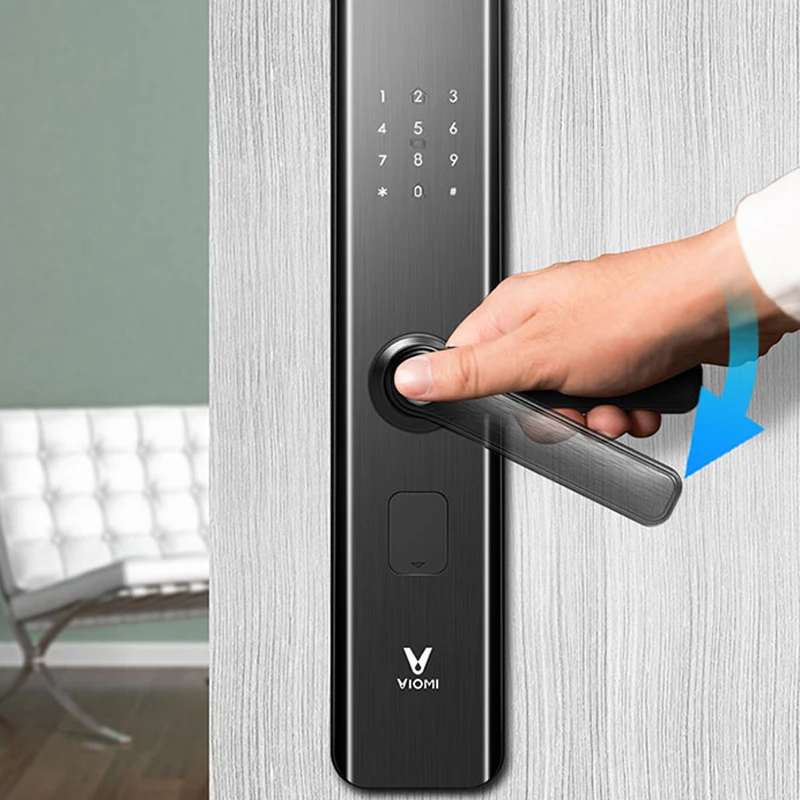

●Fingerprint identification design of hidden handle, fingerprint identification module naturally melts into the handle.
●APP remote unlocking. No need to wait for long time.

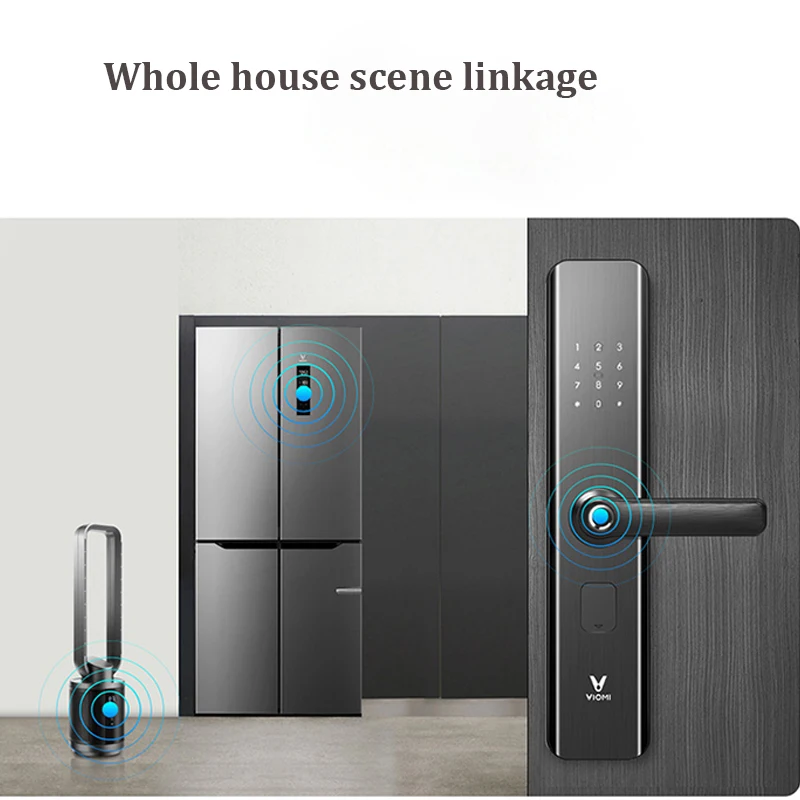

●The Door lock of VIOMI can interact with the whole house smart home and home appliances through the intelligent gateway.
●Through VIOMI AI speaker infrared remotes control covers more appliances, such as TV, air conditioner, air purifier, etc.

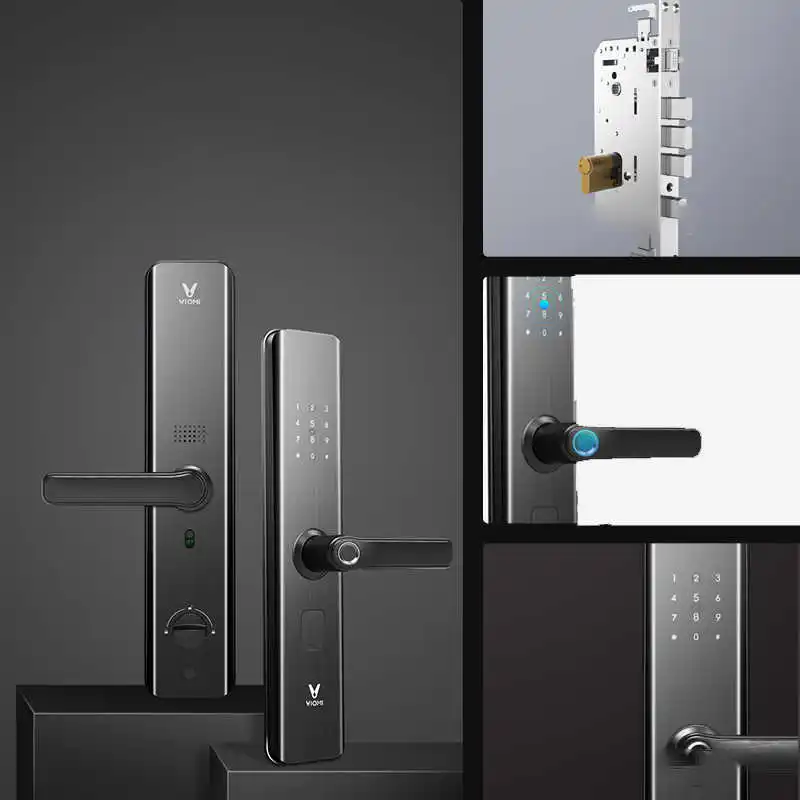

●In order to improve the overall security level of the lock, VIOMI adopts the true core inserting mechanical lock body and the C
grade lock core key.
●Metal case + IMD coating. 3 protection lock body, anti-riot, anti-pry, anti-saw unlock
●Anti coercion alarm & false password alarm & anti picklock alarm.

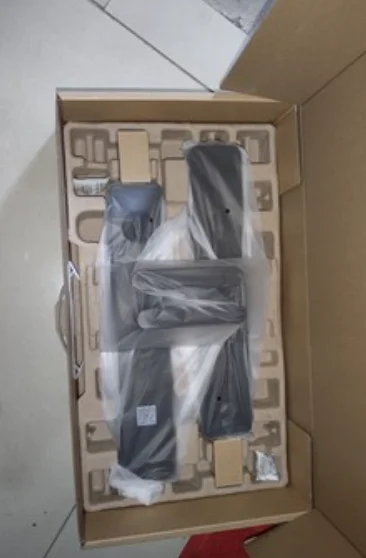

Package Includes
1x VIOMI Door Lock
Please determine the installation condition of the door lock before purchase
1. Wooden doors, security doors, stainless steel doors and armored doors can be installed. Special doors such as wrought iron
doors, double-locked doors, glass security doors and hidden locks cannot be installed;
2. The position width of the door lock panel is less than 130mm, or the distance between the inner and outer doors is less than
160mm, cannot be installed.
3. The applicable door thickness is 40-110mm;
4. Determine the opening direction, left or right (please refer to the picture below);
5. The installation of this door lock is not supported for doors of Brands such as Wang Li, Panpan and Xiaoshuai.
6. Do not use this product in the open environment, avoid being exposed to rain, direct sunlight, ice and snow frostbite, etc.
How to judge the direction of openning door
Stand outside and open the door. If the handle faces left, it is left opening. If not, it is right openning.
Brand
VIOMI
Name
VIOMI Interconnection Intelligent Door Lock Link
Model
MS120-01 (left opening)
MS120-02 (right opening)
Main material
Aluminum alloy body + IMD film
Size
(width x depth x height)
Front panel: 78 x 31.5 x 378mm
Rear panel: 78 x 26 x 378mm
Lock opening mode
Living fingerprint, password, swipe card, remote unlock of mobile phone, linkage unlock of refrigerator(need to match gateway)
Password length
8 bits
Emergency power supply
5V Micro USB
Standby time
Over 12 months
(1. According to switch 10 times per day;
2. The battery life of door lock is affected by the battery quality;
3. It is recommended to replace 4 batteries at the same time to
avoid mixing old and new batteries.)
Operating ambient temperature
-20 °C ~ 55 °C
Applicable door thickness
40-110 mm
Password capacity
30 groups
Fingerprint capacity
100 fingerprints
Fingerprint collector type
Semiconductor fingerprint head
Main power supply
4x No.5 (1.5V) high-energy alkaline batteries
Low power alarm mode
Push to the mobile terminal through the gateway
(If there is no gateway, the door lock voice prompt)
Pry door alarm mode
When it's triggered, sirens go off
Number of fingerprint test-ban
Freeze the fingerprint lock for 3 minutes after 5 consecutive errors, and the fingerprint will not be identified within 3 minutes
Number of password test-ban
Freeze the password lock for 3 minutes after 5 consecutive errors, and the fingerprint will not be identified within 3 minutes
Features:
●Virtual password protection. No occlusion required, safe input
●Support 5 ways to open doors. Passwords, magnetic CARDS, emergency keys, etc
●VIOMI intelligent door lock adopts high-precision living biological fingerprint module to prevent false fingerprint, while
built-in VIOMI intelligent algorithm, fingerprint self-learning.
●Fingerprint identification design of hidden handle, fingerprint identification module naturally melts into the handle.
●APP remote unlocking. No need to wait for long time.
●The Door lock of VIOMI can interact with the whole house smart home and home appliances through the intelligent gateway.
●Through VIOMI AI speaker infrared remotes control covers more appliances, such as TV, air conditioner, air purifier, etc.
●In order to improve the overall security level of the lock, VIOMI adopts the true core inserting mechanical lock body and the C
grade lock core key.
●Metal case + IMD coating. 3 protection lock body, anti-riot, anti-pry, anti-saw unlock
●Anti coercion alarm & false password alarm & anti picklock alarm.
Package Includes
1x VIOMI Door Lock
Please determine the installation condition of the door lock before purchase
1. Wooden doors, security doors, stainless steel doors and armored doors can be installed. Special doors such as wrought iron
doors, double-locked doors, glass security doors and hidden locks cannot be installed;
2. The position width of the door lock panel is less than 130mm, or the distance between the inner and outer doors is less than
160mm, cannot be installed.
3. The applicable door thickness is 40-110mm;
4. Determine the opening direction, left or right (please refer to the picture below);
5. The installation of this door lock is not supported for doors of Brands such as Wang Li, Panpan and Xiaoshuai.
6. Do not use this product in the open environment, avoid being exposed to rain, direct sunlight, ice and snow frostbite, etc.
How to judge the direction of openning door
Stand outside and open the door. If the handle faces left, it is left opening. If not, it is right openning.

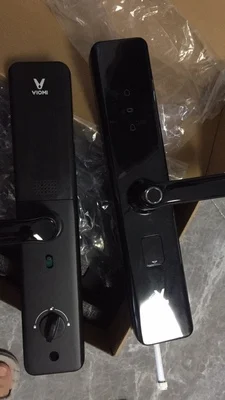

Details Images
Name Card
