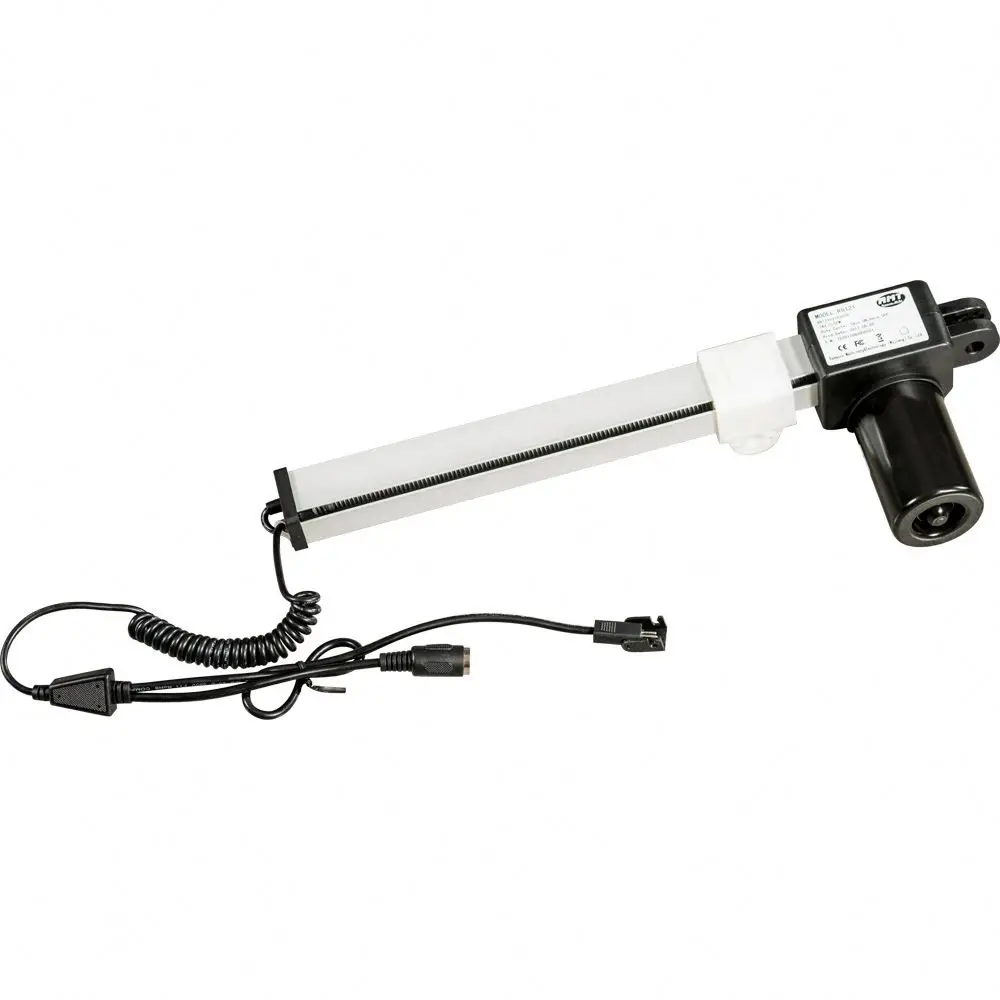

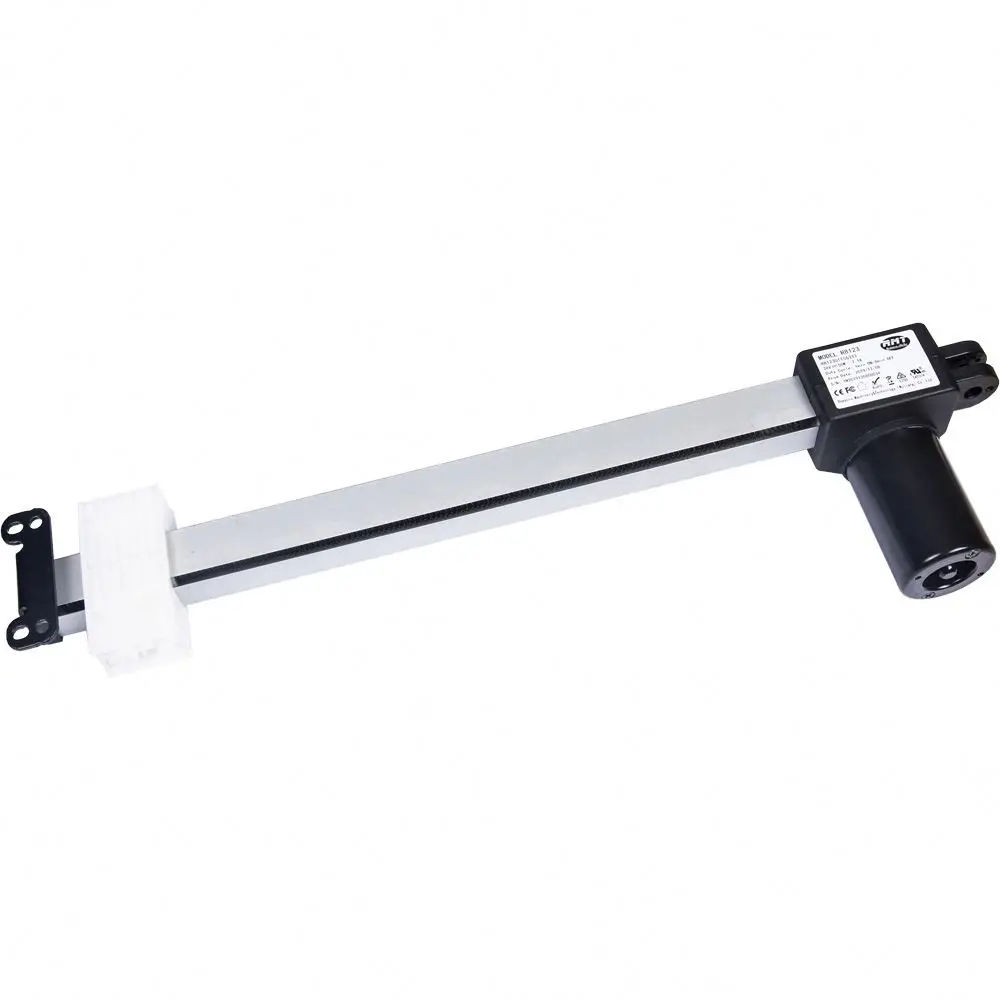

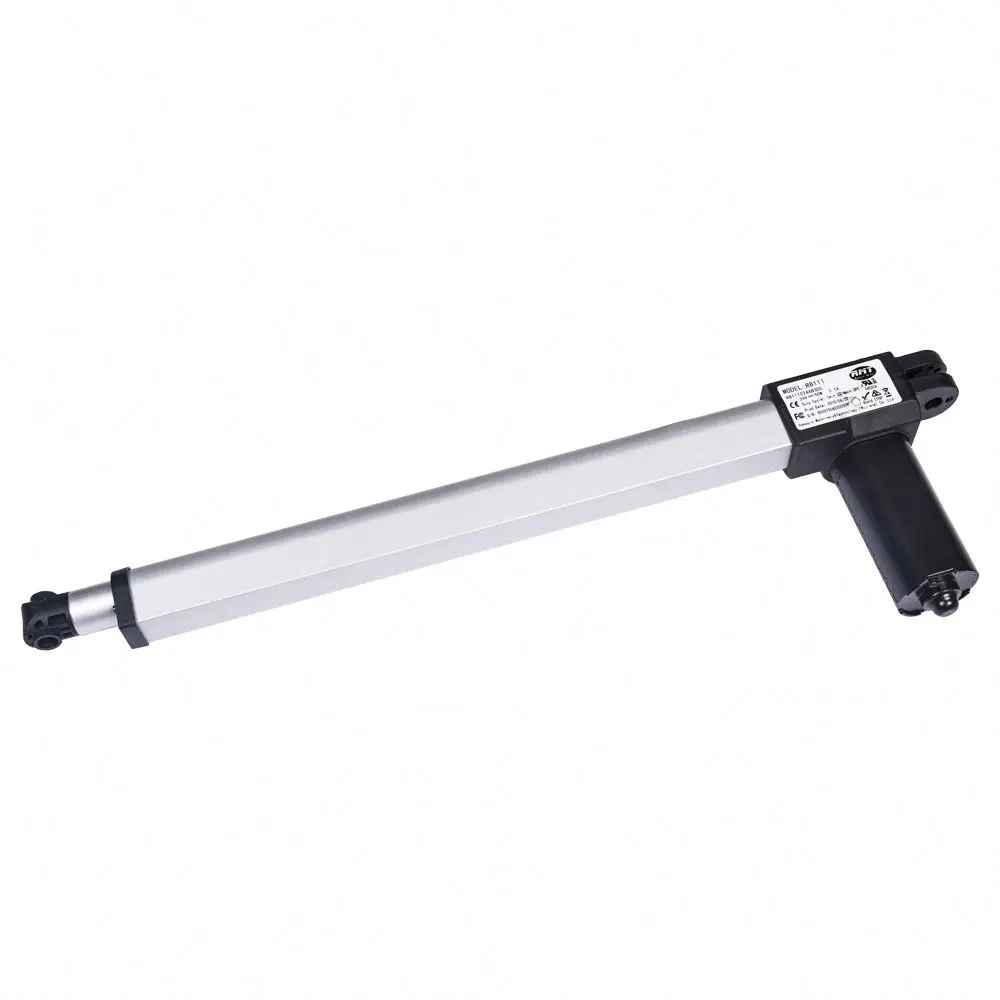

High Speed Hospital Bed Electric Linear Actuator 12V 24V DC Motor
- Category: >>>
- Supplier: REMACRO TECHNOLOGY CO. LTD.
Share on (1600213768008):
Product Overview
Description
Product Description
Linear Actuator | ||||||||||
Product code | R812301/ R812302 | R812101/ R812102 | R811T02 | R811202 | R811T01 | |||||
Motor | Low voltage DC motor (24V) | |||||||||
Stroke | 500mm max | 500mm max | 500mm max | 500mm max | 130mm max | |||||
Install dimension (min.) | 156mm min | 130mm min | 150mm min | 165mm min | 130mm min | |||||
Load | 1000N max | 1500N max | 2000N max | 8000N max | 2000N max | |||||
Run speed | 48mm/s | 20mm/s | 20mm/s | 6mm/s | 8mm/s | |||||
Mounting hole option | Ø5.5mm | Ø10mm | Ø10mm | Ø10mm | Ø10mm | |||||
Stroke control | Stroke size is controlled by the limit switch, and the tolerance is ± 2mm | |||||||||
Colour | Black/Silver | |||||||||
Operating frequency | ON 1 min, OFF 8 min | |||||||||
Application

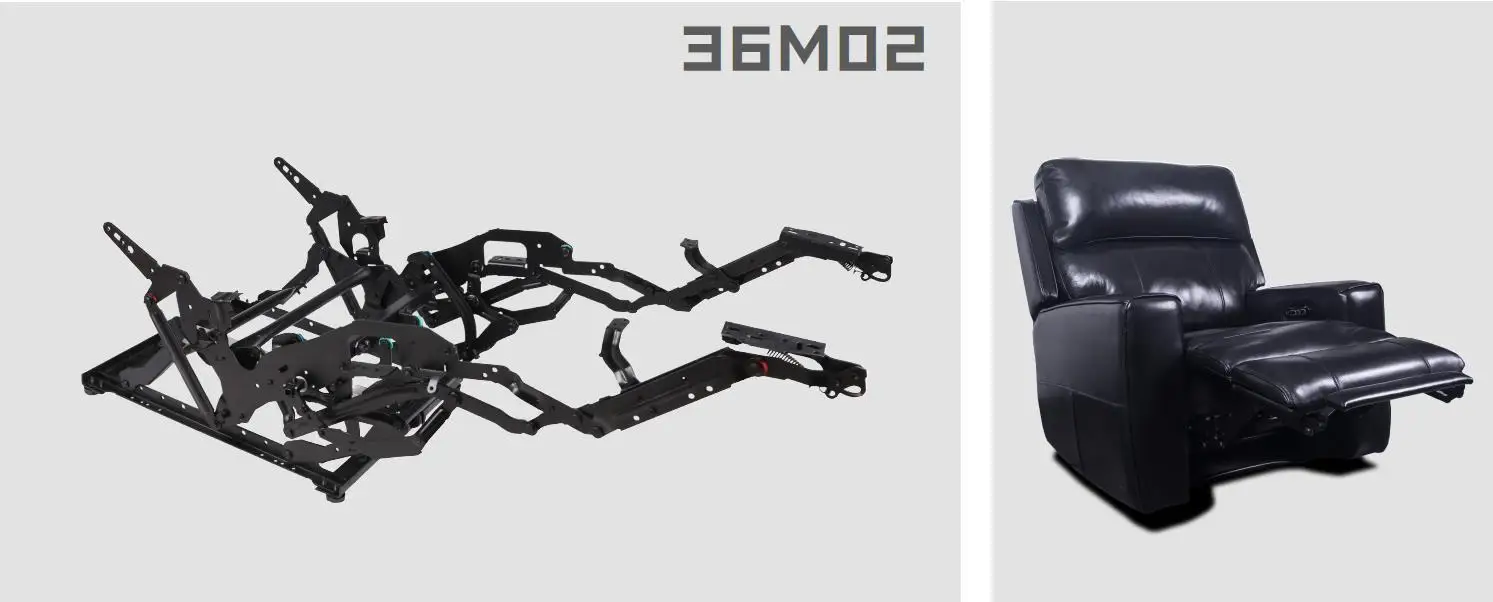

RMT Electric Linear Actuator for Recliner Sofa Chair
Recommend Products
Company Profile
Remacro Machinery &Technology(Wujiang) Co.,Ltd.
RMT is founded in 2011 covering an area of 25,000 square meters, and located in Wujiang, Suzhou city, 50 minutes’ drive from Shanghai.
RMT specializes in the designing and manufacturing the high quality home furniture hardware products including recliner motion mechanisms (Zero Wall, Glider,Rocker,Push on the Arms,etc.),
RMT specializes in the designing and manufacturing the high quality home furniture hardware products including recliner motion mechanisms (Zero Wall, Glider,Rocker,Push on the Arms,etc.),
motors (UL listed actuators and electric accessories such as DC cable, power supply and switches) and
upholstery-related accessories (Seat Box, Angle lron, KD Sleeve & Clip, etc.).
RMT provides upholstery maufacturers with the ideal solution in various creative motion products & services.
RMT provides upholstery maufacturers with the ideal solution in various creative motion products & services.
Why Choose Us
1 RMT covers all the processes from master coil slitting to stamping progressively punching, riveting & finally assembling with
complete world-leading equipments under one roof.
2 RMT is the only manufactuer in the industry who has its own slitting line, that improves the yielding rate of steel
considerably.
3 RMT is the only one in industry making incoming inspection on all materials: steel, fasteners, washers, bushings, paint etc.
4 Motor produciton line and plastic part produciton line in place to further drive down cost.
RMT strives to work together with all same-common recliner sofa manufacturers to offer healthy, intelligent & comfortable home
furnishing products.
complete world-leading equipments under one roof.
2 RMT is the only manufactuer in the industry who has its own slitting line, that improves the yielding rate of steel
considerably.
3 RMT is the only one in industry making incoming inspection on all materials: steel, fasteners, washers, bushings, paint etc.
4 Motor produciton line and plastic part produciton line in place to further drive down cost.
RMT strives to work together with all same-common recliner sofa manufacturers to offer healthy, intelligent & comfortable home
furnishing products.

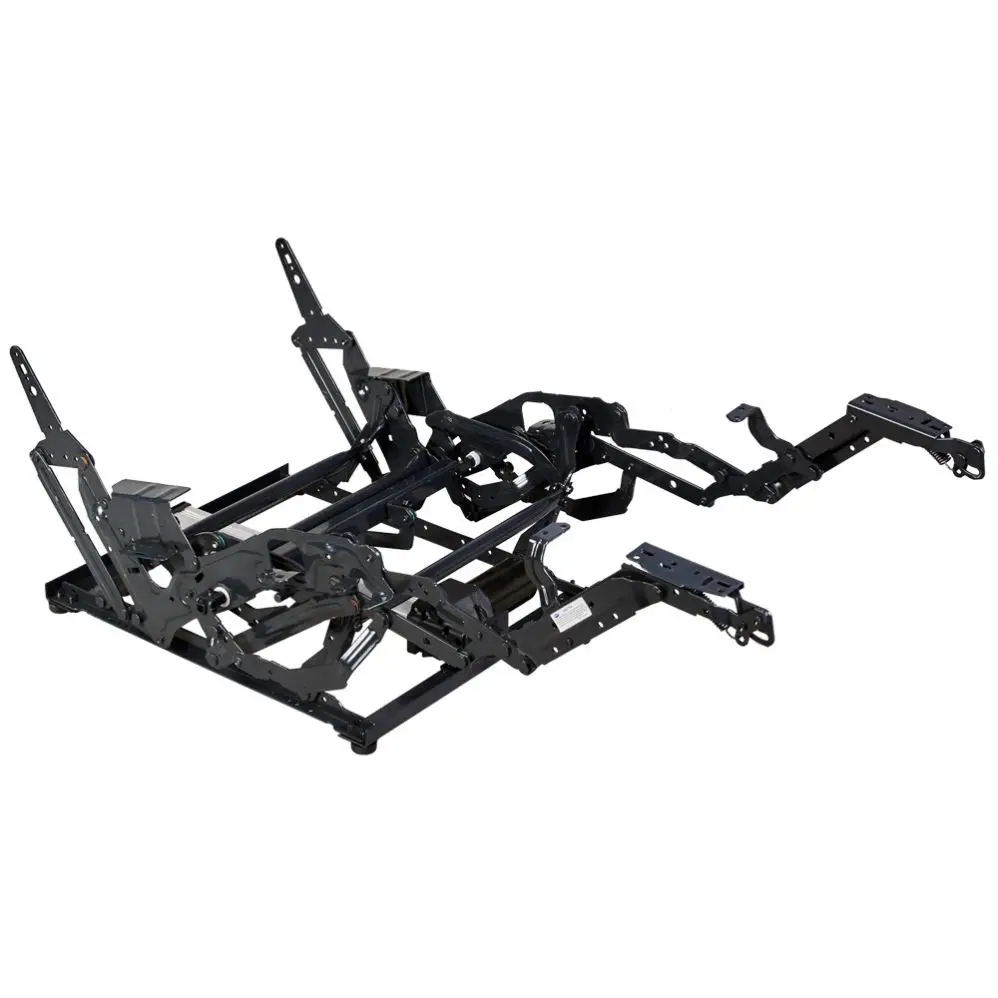

Recliner Mechanism line
Recliner Mechanism line
Recliner Mechanism line

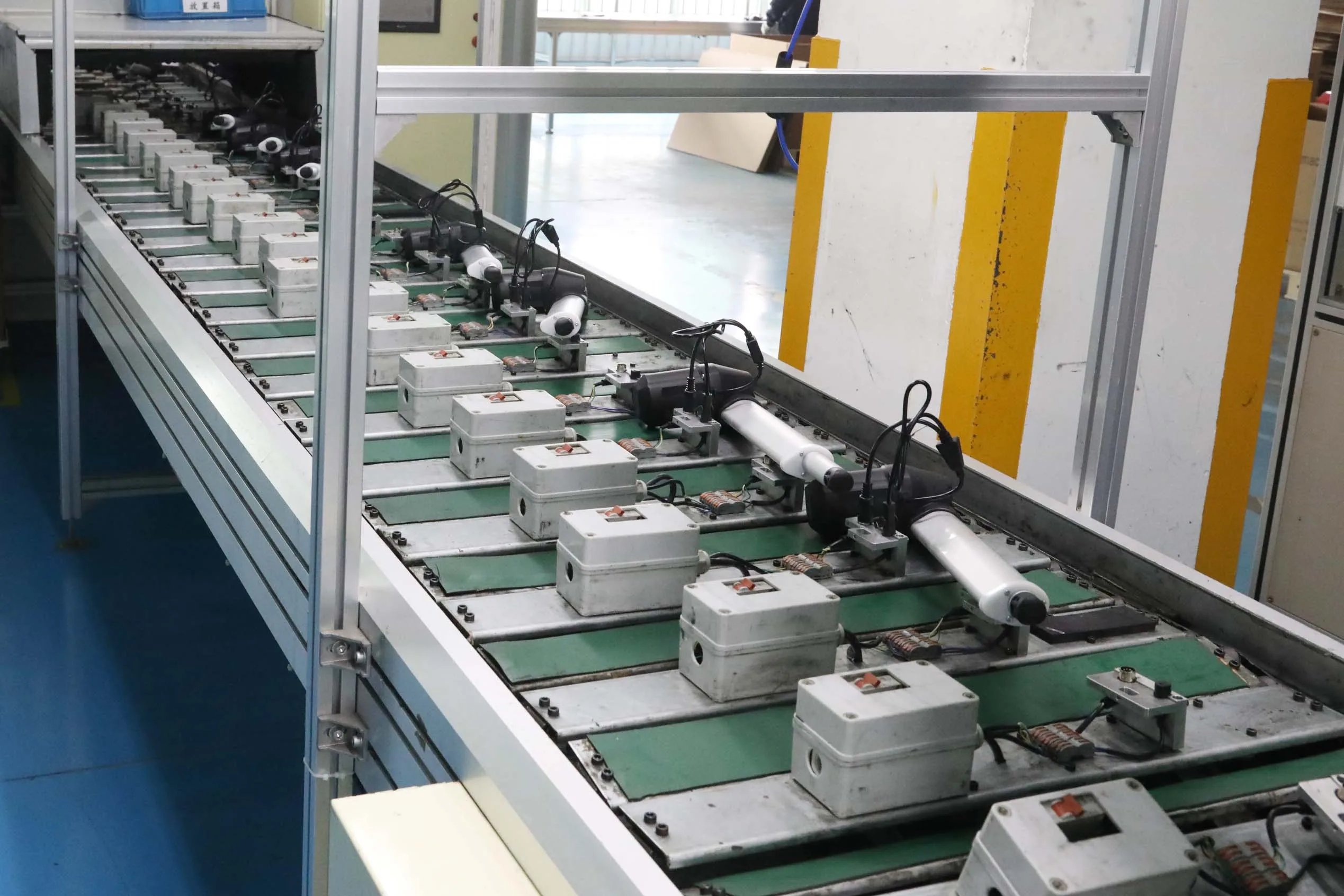

Motor Production Line
Motor Production Line
Motor Production Line
Smart Adjustable Beds Line
Smart Adjustable Beds Line
Smart Adjustable Beds Line
Exhibition
FAQ
Q1:Where is your factory?
A: Wujiang Economic Development Zone (Suzhou),1.5 hrs drive from Shanghai downtown, 2 hrs drive from Shanghai PVG Airport.
Q2:How do you control the quality?
A: RMT covers all the processes from master coil slitting to stamping progressively punching, riveting & finally assembling with complete world-leading equipments under one roof.
• ISO9001 has been well implemented in RMT;
Q2:How do you control the quality?
A: RMT covers all the processes from master coil slitting to stamping progressively punching, riveting & finally assembling with complete world-leading equipments under one roof.
• ISO9001 has been well implemented in RMT;
• Testing lab for longevity tests (first one in industry making pneumatic endurance testing), SGS is now duplicating the
test as a standard that was created by RMT;
test as a standard that was created by RMT;
• As the innovator of the industry, RMT has applied over 32 patents in year 2017 alone;
• RMT is the only one in industry making incoming inspection on all materials: steel, fasteners, washers, bushings, paint
etc.
Q3:Do you have own motor production line?
A: Yes, Motor produciton line and plastic part produciton line in place to further drive down cost.
• RMT Motor has been UL listed in June 2017.
etc.
Q3:Do you have own motor production line?
A: Yes, Motor produciton line and plastic part produciton line in place to further drive down cost.
• RMT Motor has been UL listed in June 2017.
• Current capacity: 5 assembly lines, about 150,000 motors per month;
• In-house production for plastic accessories and raw motor;
• World-class testing lab for incoming material and finished goods inspection.
