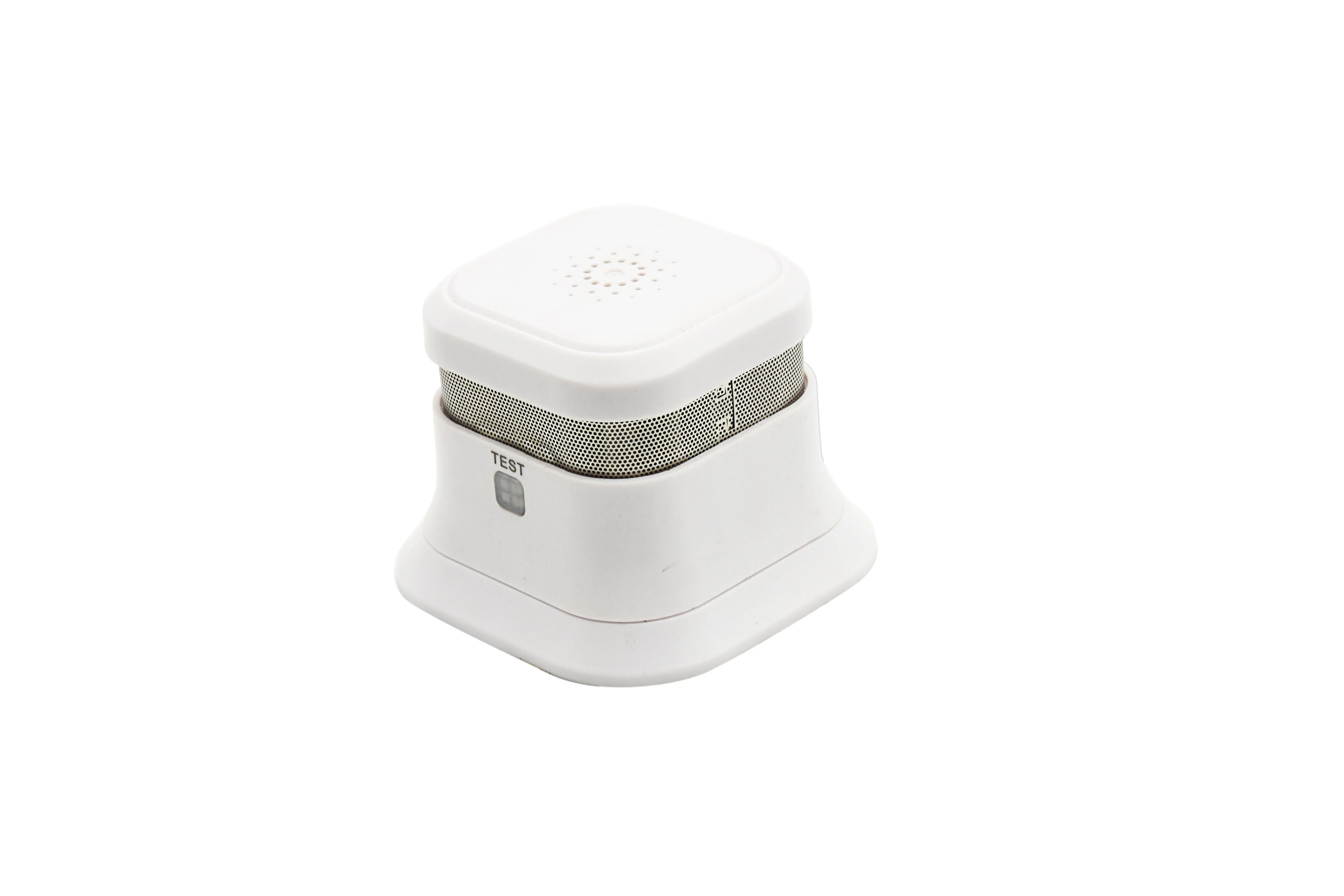

mini design zigbee smoke alarm household fire alarm

Product Overview

Description

mini design  zigbee smoke alarm household fire alarm





 PRODUCT INTRODUCTION



  The product is a 10-years lithium battery smoke detector, hereinafter called detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function. It reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc..



 PRODUCT FEATURE

•     2*1.5V AAA Battery or 10-years lithium battery


•    Wireless Interconnection Alarm (Optional)


•    Low-battery warning


•    Auto-Reset after trigger


•    Infrared Photoelectronic Sensor


•   Sound & Flash Alarm & LED indicating Alarm


•   SMT Manufacture Technology, Reliable Stability


•   Dust-proof, Mothproof and Anti White light interference

TECHNICAL PARAMETER



Model No.	JKD-502
Power Supply	2*1.5V AAA Battery or CR17335 battery
Static current	≤3.5uA
Alarm current	≤30mA
Sensitive level	2.06%/ft ± 1.3
Alarm indication	LED circularly    flashes in Red
Alarm Sound	85dB/3m
RF	315MHz/433MHz (Wireless TYPE)
Transmitting Distance	200 meters (Open)
Temperature	-10~50 ℃
Relative Humidity	≤95%RH
Dimensions	69*53mm
Execution standard	GB4715-2005, En14604, UL217
Detecting area	80 at 6-12m installation height; 60 at installation height <6m

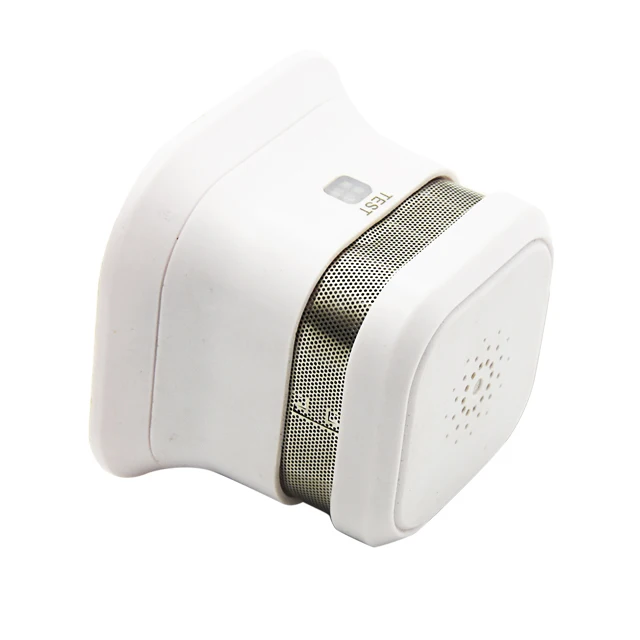

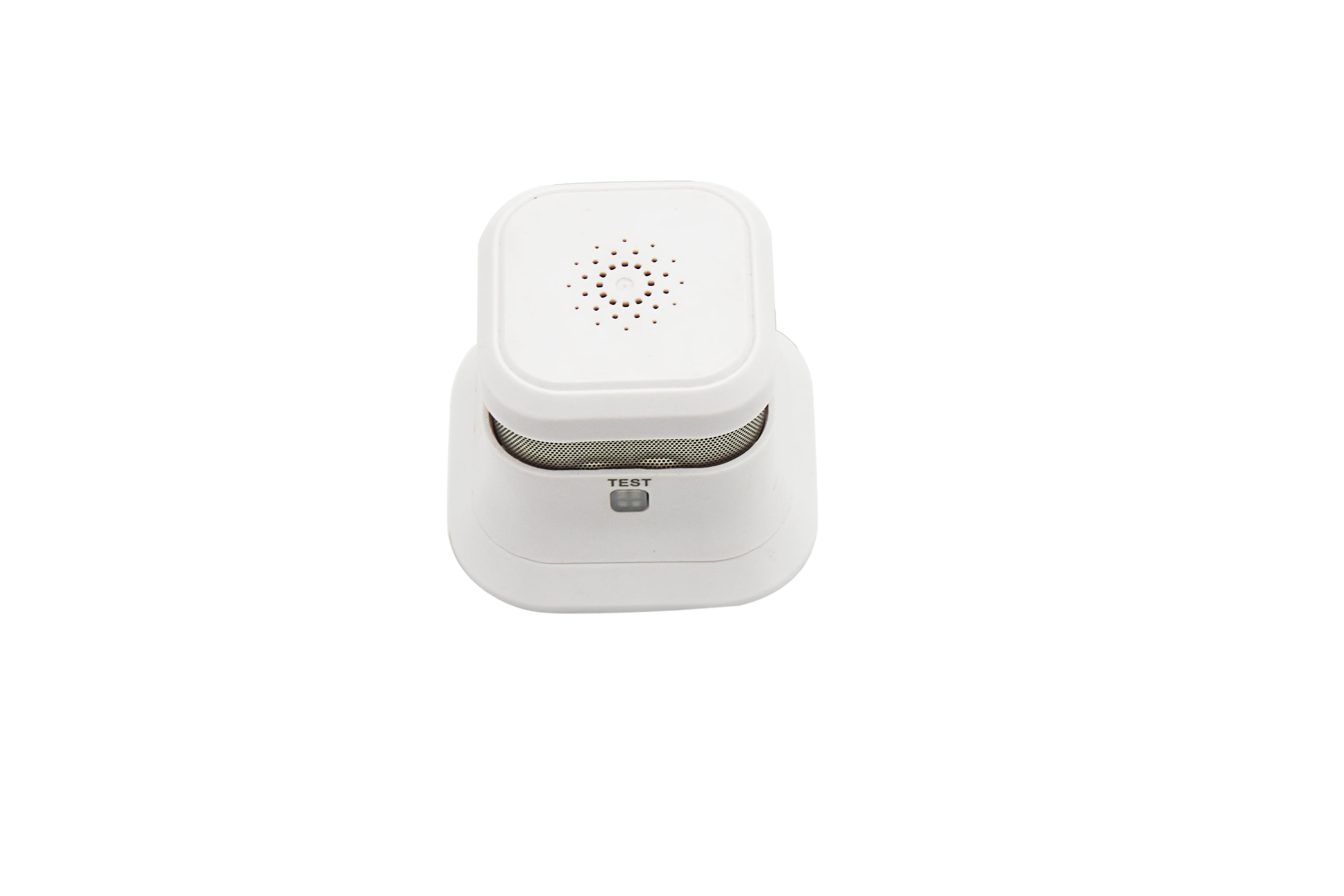

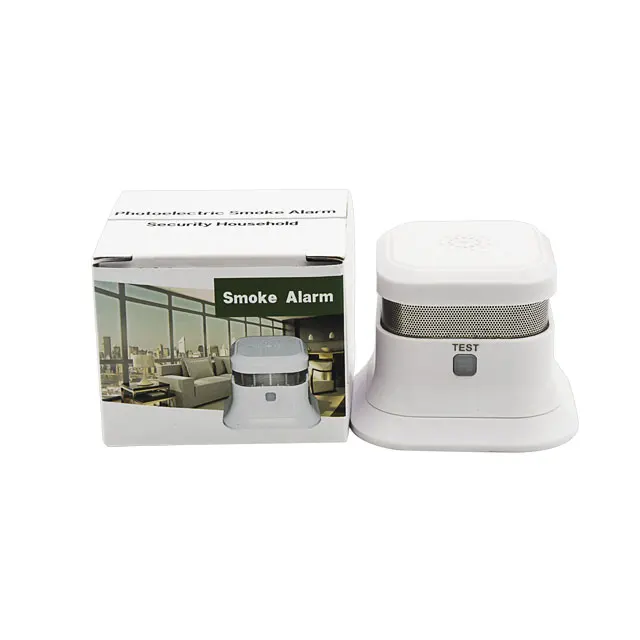

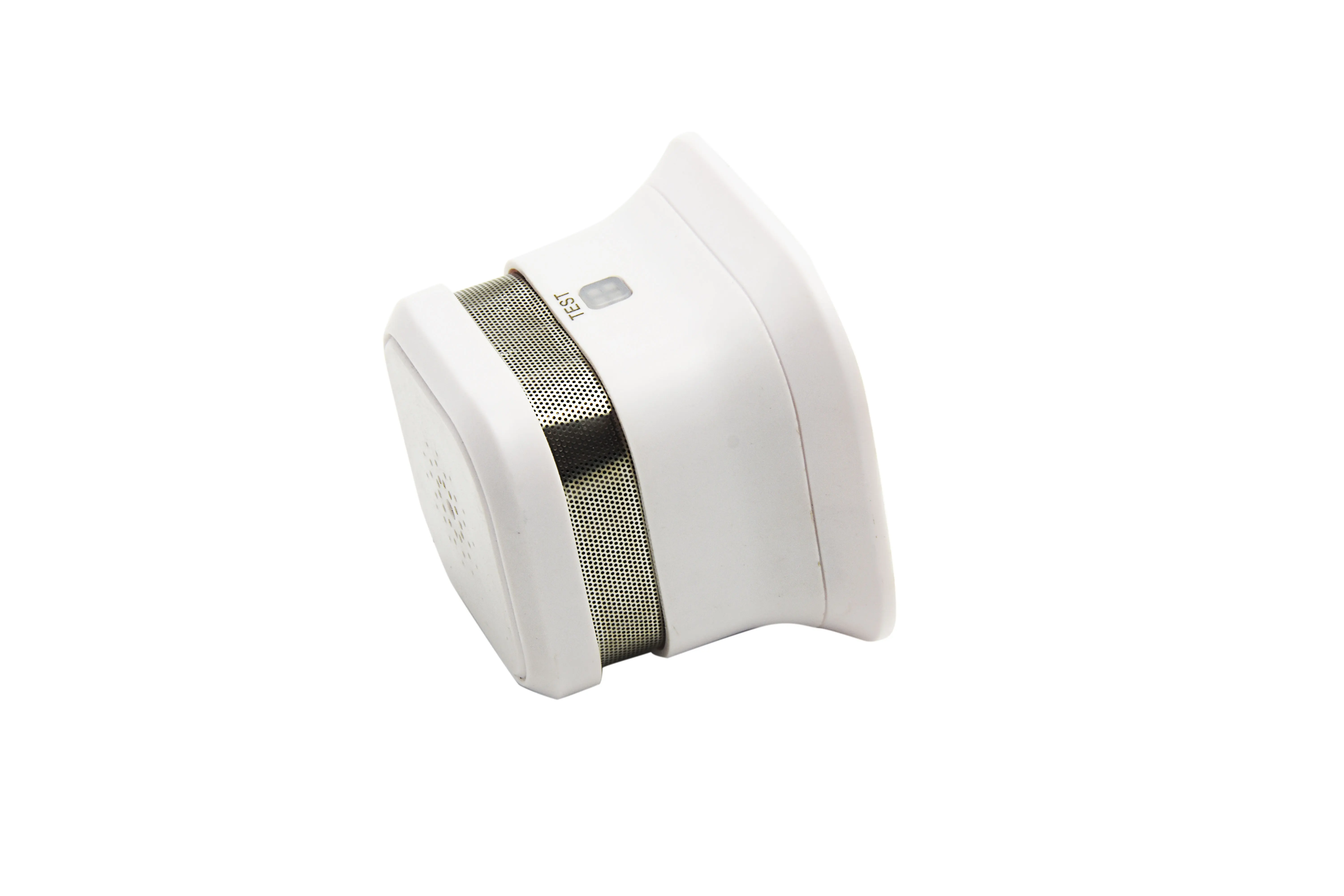

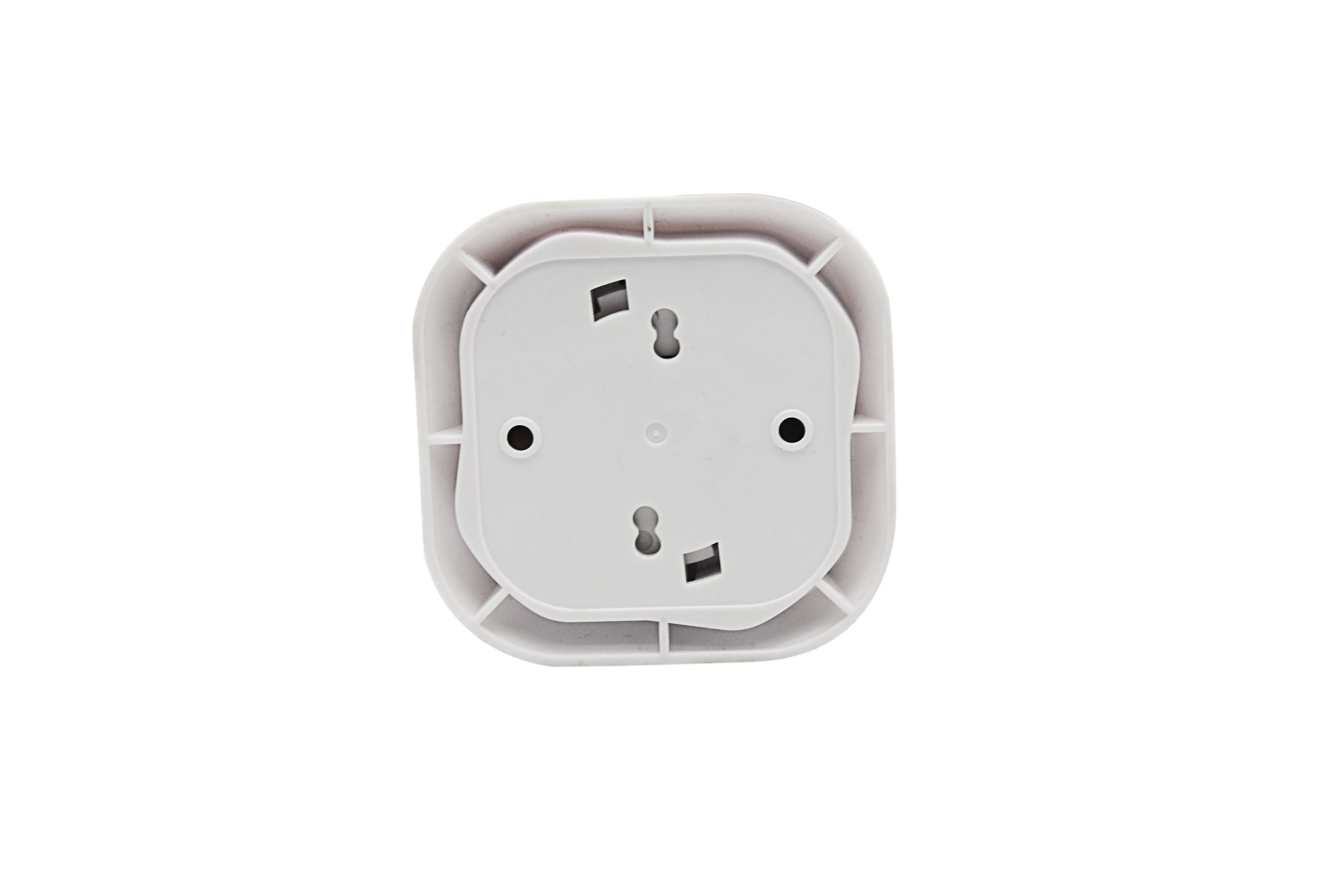

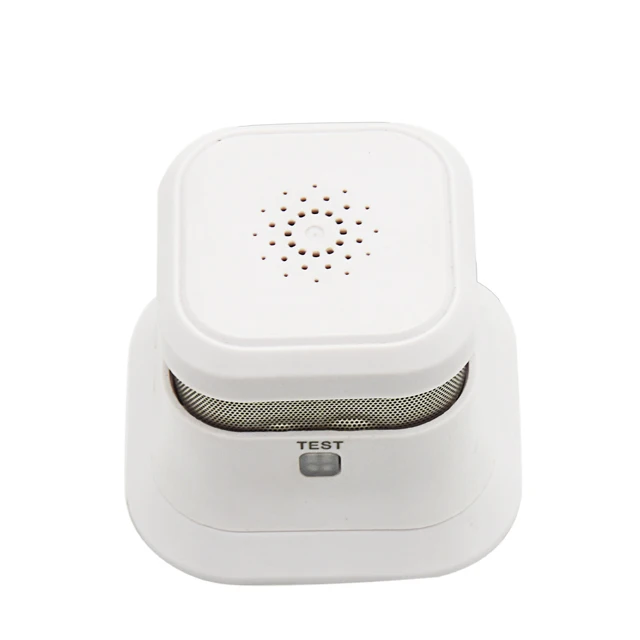

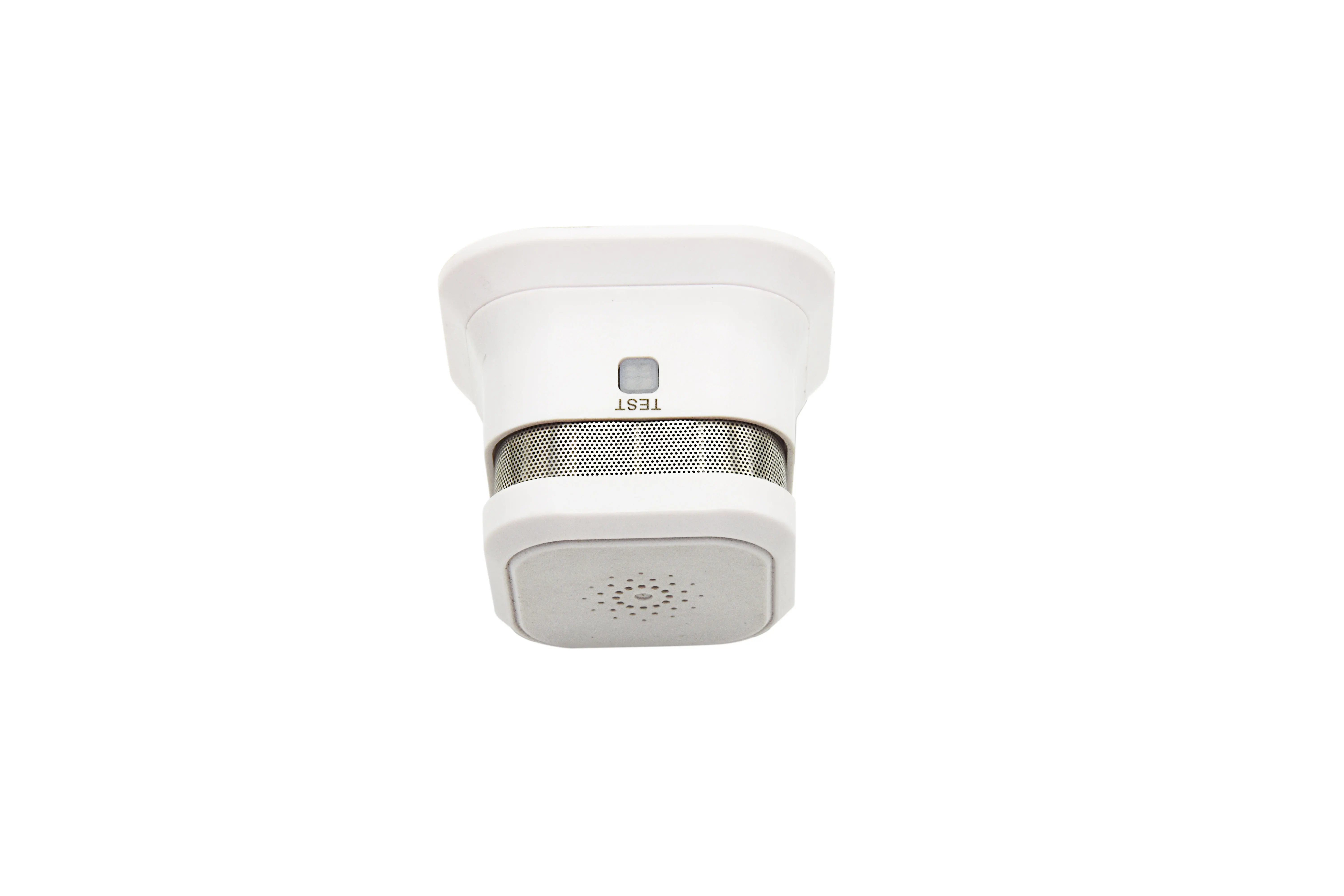

PICTURE SHOW



























CERTIFICATES:





PAYMENT TERMS:



  * Payment:  Western Union, T/T, L/C, Paypal





SHIPPING:



* Shipping: DHL, UPS,TNT, EMS, and  other courier available as required.

* Delivery time: 7-15 days after your full payment



 COMPANY INFORMATION:











Why choose us?



-NO limit MOQ

-OEM or ODM Service

-Fast delivery with top quality

-Flexible payment method, Paypal can be accepted

-1 Year free warrenty of all the products

-Professinal after-sale service
