unmanaged 8 poe 100M port with 1*100M uplink RJ45 Ethernet port smart poe switch for cctv camera
- Category: >>>
- Supplier: Liao Ning OPT Optical Communication Co. Ltd.
Share on (1600213848643):
Product Overview
Description

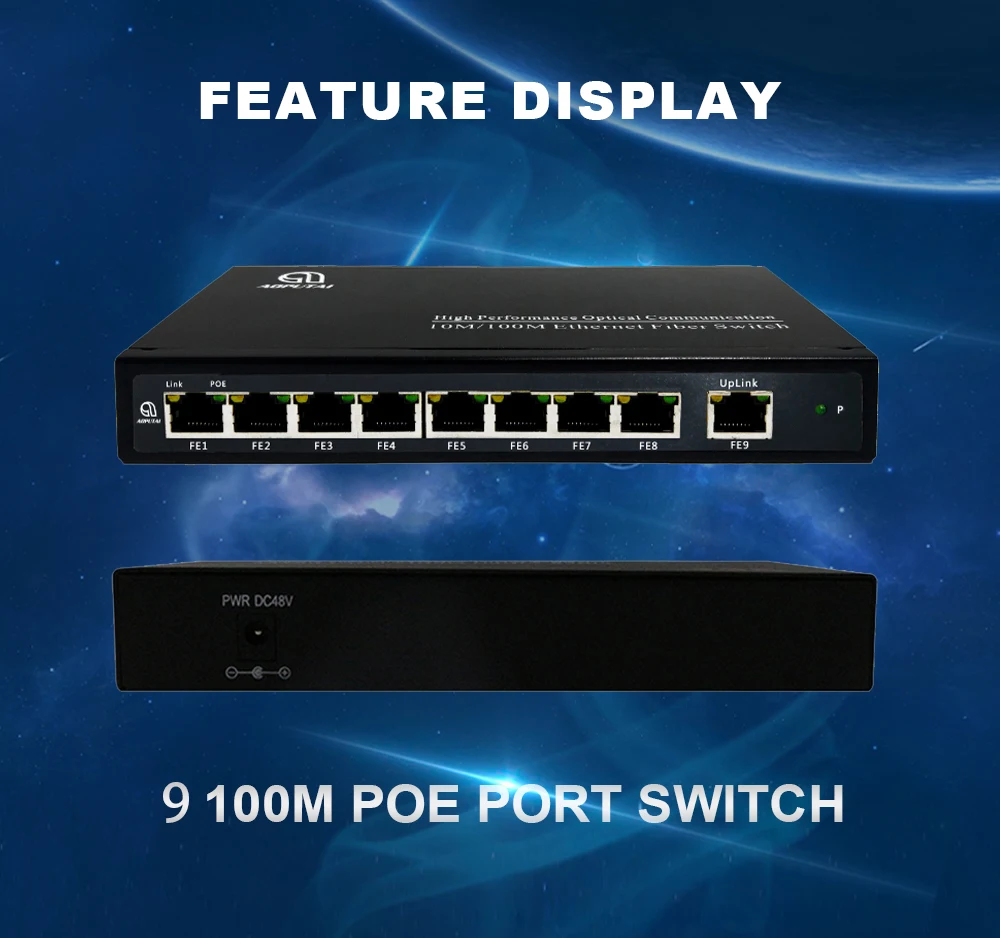

AOPUTAI Industrial Switch
9 100M POE Port Unmanaged Switch
Product Name | PoE Switch |
Product Model | OPT DT/R 9FE-P-Ⅱ |

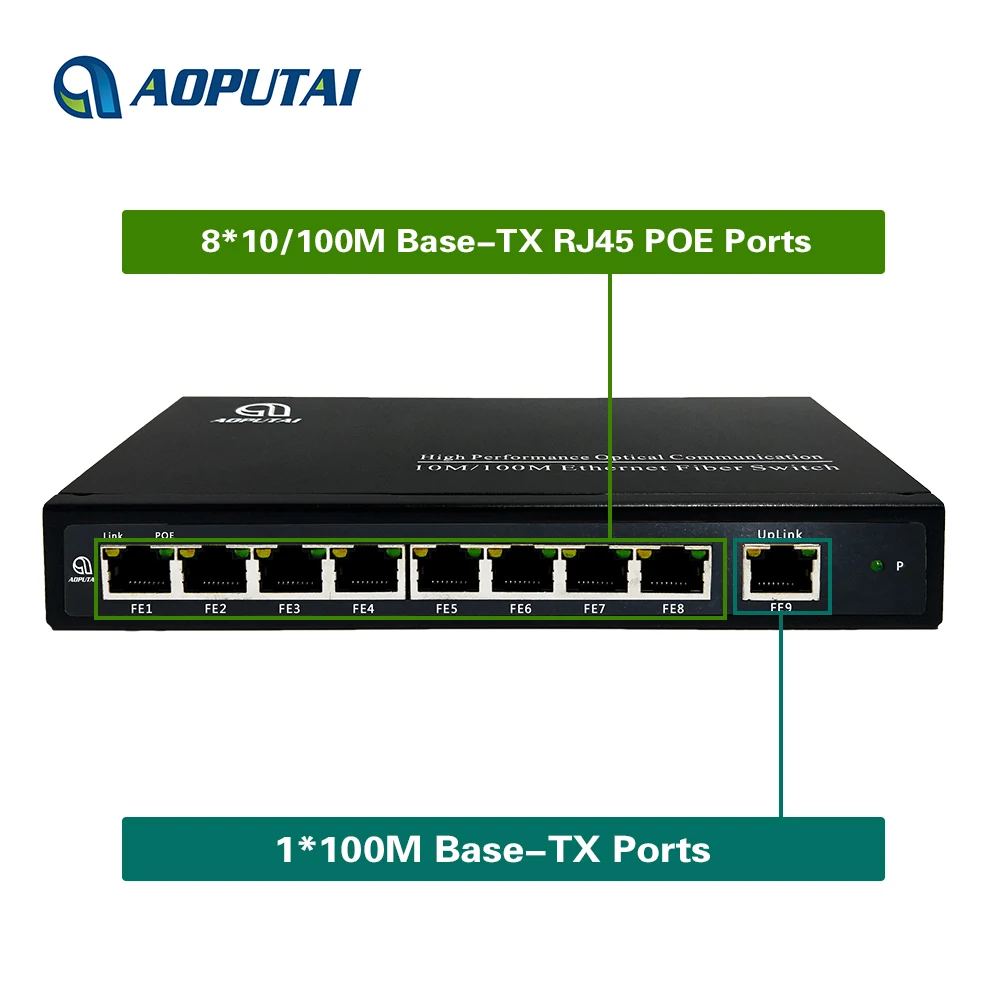

Port Definition | 8*10/100M PoE Ports + 1*100M Base-TX RJ45 port (up) |
Network Protocols | IEEE802.3 |
IEEE802.3u | |
IEEE802.3z | |
IEEE802.3x | |
POE Parameters | POE Standard: IEEE 802.3af/IEEE 802.3at |
Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) | |
Max:96 W | |
Exchange level | layer 2 |
Bandwidth | 2G |
Packet forwarding rate | 2Mpps |
MAC | 4K |
MTBF | 100000 hours |
Working Environment | Operating temperature: -10~60℃ |
Humidity: 0%~90 % ( No condensation) | |
Product Dimensions (L×W×H) | 190mm×97mm×28mm |
Package Dimensions (L×W×H) | 320mm×220mm×50mm |
Certification | CE FCC ROHS IOS |
Protection level | IP40 |
Working Environment | Operating temperature: -40~75℃ |
Humidity: 0%~90 % ( No condensation) | |
Standard | EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS: IEC61000-4-2/3/4/5/6(ESD/RS/EFT/CS) IEC60068-2-6 IEC60068-2-27 IEC60068-2-23 IEEE802.3i IEEE802.3x IEEE802.3u |
Product Dimensions (L×W×H) | 106mm×88mm×37mm |
Package Dimensions (L×W×H) | 250mm×160mm×50mm |
Certification | CE FCC ROHS IOS |
Products Description
1. Follow 802.3 at or 802.3 af protocol, single port maximum power supply 35W
2. The port has its own indicator light, and supports the port auto-flip function, every port could be the uplink port
3.All ports have full wire-speed forwarding capability to ensure non-blocking forwarding
4.Adopting SMT patch technology, the volume and weight of patch components are only one tenth of traditional plug-in components
3.All ports have full wire-speed forwarding capability to ensure non-blocking forwarding
4.Adopting SMT patch technology, the volume and weight of patch components are only one tenth of traditional plug-in components
While transmitting data signals, it can also provide DC power supply technology for such devices. The POE technology can ensure the normal operation of the existing network while ensuring the safety of the existing structured cabling, minimizing costs.
Customized
2.Packaging can be customized
3.Technical parameters can be customized
4.Interface can be customized
What is poe?

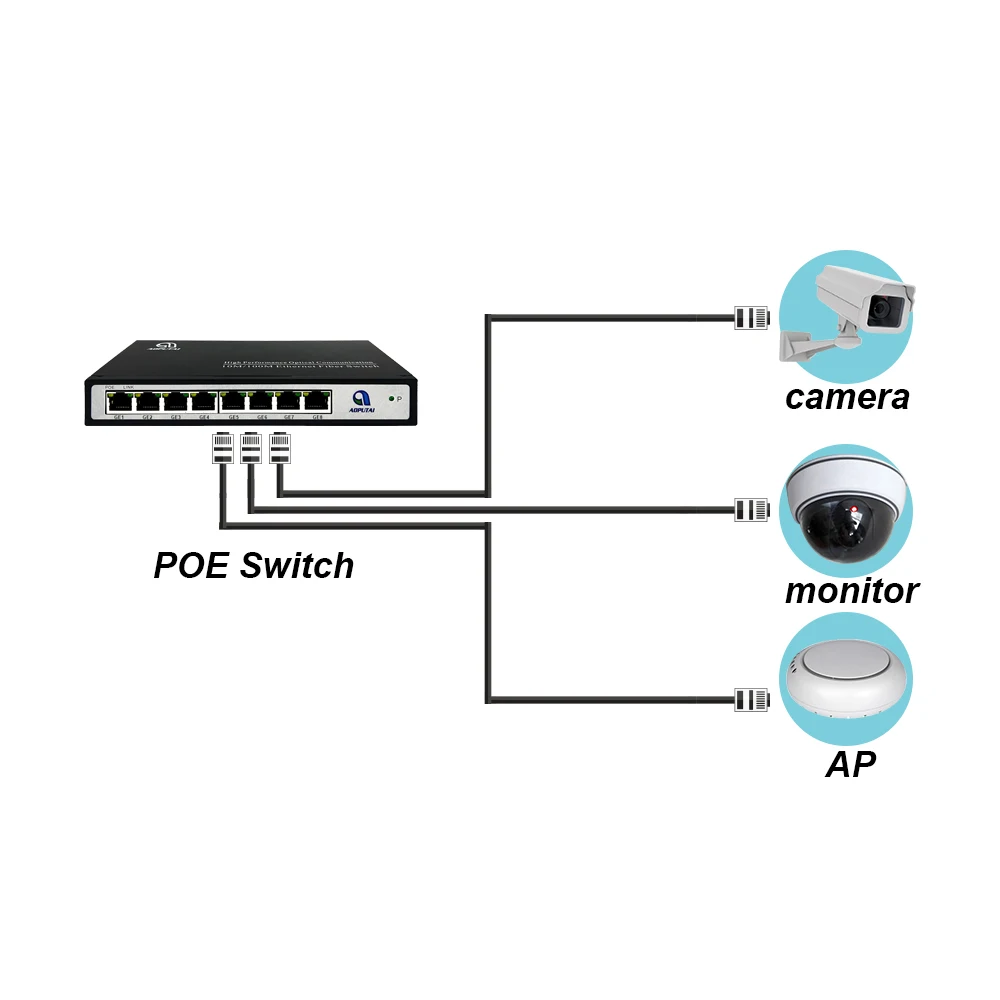

PoE (Power Over Ethernet) refers to the existing Ethernet Cat.5 cabling infrastructure without any changes, for some IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras Etc.) While transmitting data signals, it can also provide DC powered technology for such devices.

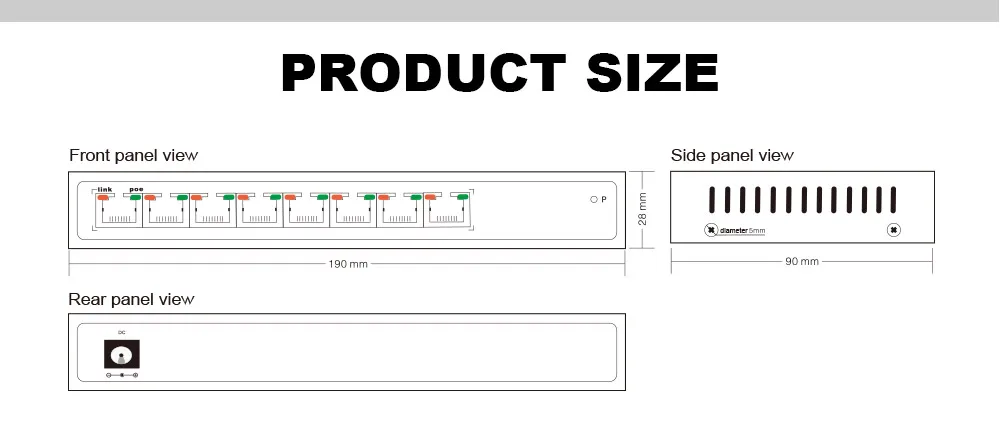

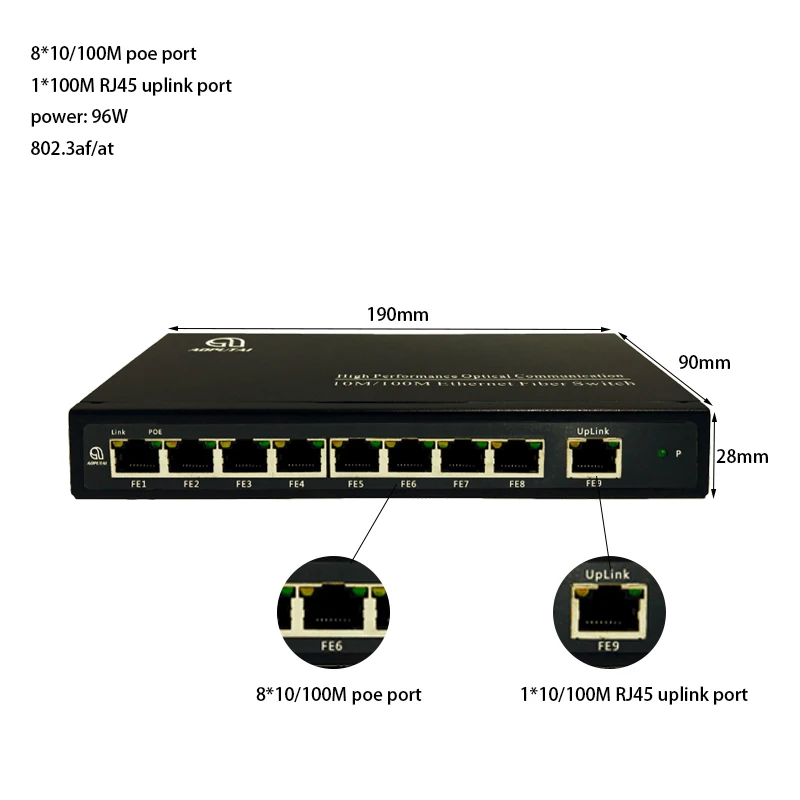

length : 190mm
width : 90mm
height : 28mm

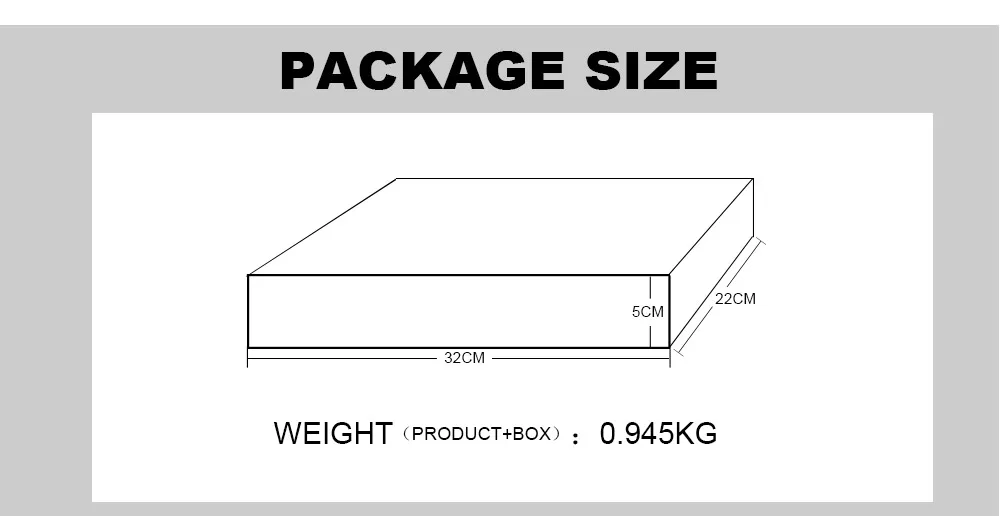

length : 320mm
width : 220mm
height : 50mm
width : 220mm
height : 50mm
weight : 0.945KG
Why Choose Poe Switch
1. Cost saving: The POE switch only needs to install a network cable to provide power and transmit data signals, which can save expensive power cables and sockets
2. Safe power supply: The power supply terminal equipment of the POE switch will only supply power to the equipment that needs power supply. Only when the equipment that needs power supply is connected, there will be current, thus eliminating the risk of leakage on the line
3. Stable performance: The POE switch has direct power supply, fewer wiring links, and more stable performance
4. Convenient management: When the remote device is connected to the network during use, it can be remotely controlled, reconfigured or reset; in a wireless local area network, POE can simplify the task of RF testing, and the access point can be easily moved and accessed
2. Safe power supply: The power supply terminal equipment of the POE switch will only supply power to the equipment that needs power supply. Only when the equipment that needs power supply is connected, there will be current, thus eliminating the risk of leakage on the line
3. Stable performance: The POE switch has direct power supply, fewer wiring links, and more stable performance
4. Convenient management: When the remote device is connected to the network during use, it can be remotely controlled, reconfigured or reset; in a wireless local area network, POE can simplify the task of RF testing, and the access point can be easily moved and accessed
