Class 100 Cleanroom Dust Free Customized Passbox

Product Overview

Description

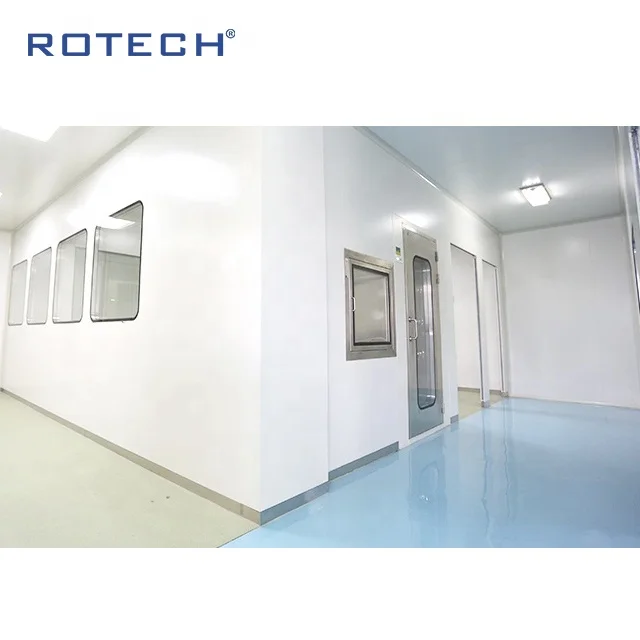

Clean room description



Clean room is also called dust-free workshop, which refers to the air within a certain space range of micro-particles, harmful air, bacteria and other pollutants, and indoor temperature, cleanliness, indoor pressure, airflow velocity and airflow distribution, noise vibration and lighting, electrostatic control within a certain demand range, while given a specially designed room. That is, no matter how the external air condition changes, the room can maintain the original requirements of cleanliness, temperature, humidity, pressure and other properties.



Our clean room decoration mainly includes: all kinds of steel sandwich panel for walls and ceiling, clean room use floor, clean room use doors and windows, air shower, interlocks, clean room telephone, installation of ventilation pipes, wind valves, air filtering system (HEPA), HVAC system, air exhausting system, power supply, electrical control system, alarm system, thunder-arresting and electrical ground system, cooling equipment etc. It also includes: air conditioner in the centre of testing centre, air purifying of aseptic testing rooms and raw material sampling room.

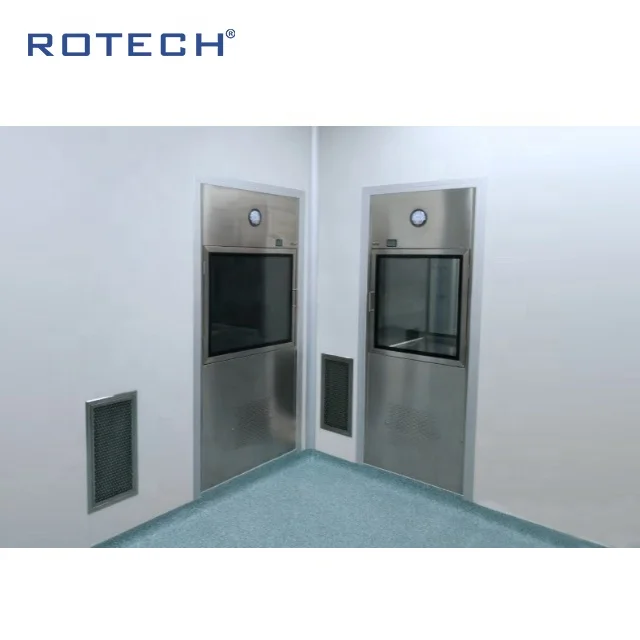

Pass box

Main description

Pass box is an auxiliary equipment of clean room, normal type is mainly used between clean room and non-clean room for the transfer of small matter in order to reduce the door open times of clean room and reduce the risk of contamination to lowest.

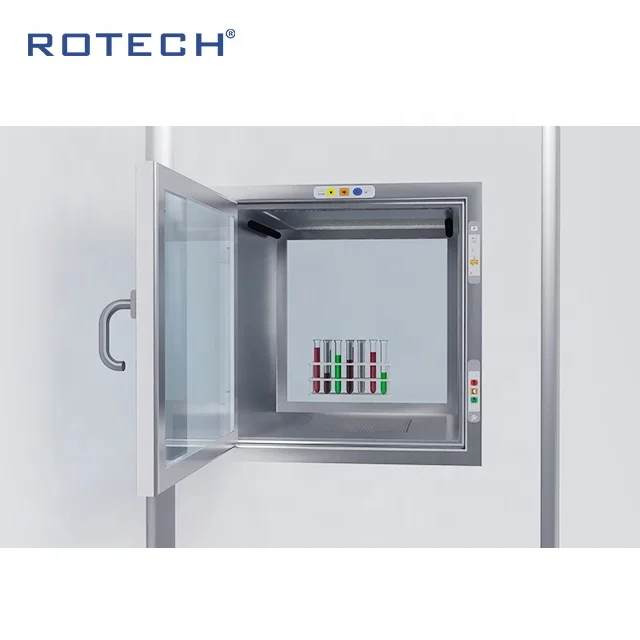

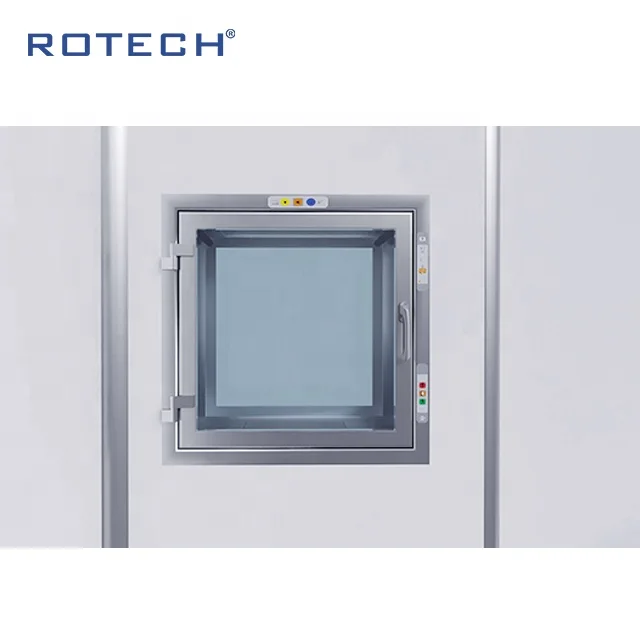

Structure of a pass-through chamber

1. Mechanical interlocking device: The internal interlocking is realized by mechanical means. When one door is opened, the other door cannot be opened, and the other door must be closed before another door can be opened.

2. Electronic interlock device: internal use of integrated circuit, electromagnetic lock, control panel, indicator light, etc. to achieve interlocking, when one of the doors is open, the other door open indicator light is not bright, telling that the door can’t be opened, and electromagnetic The lock action implements interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator light illuminates, indicating that the other door can be opened.



Main features

1.  Working platform and chamber are made of stainless steel, flat , bright and clean.  2.  Two sides doors have mechanical or electronic interlock device, the two doors can’t open at the same time.

3.  Electronic interlock pass box has door opening signal lamp on two sides of chamber, can obtain the opening status of opposite door.

4.  Pass box has dedicated sealing rod to ensure air tight.

5.  Can add indoor lamp and sterilizing lamp according to different applications

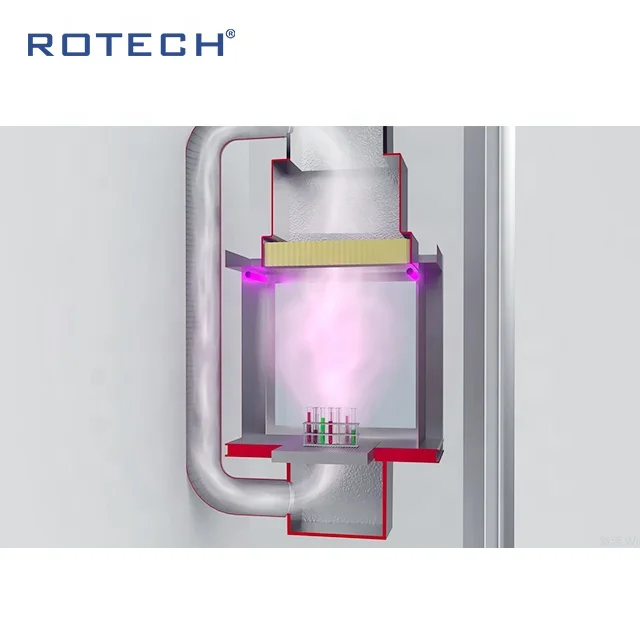

6.  Can process to self-cleaning clean pass box or with other specifications and models according to user’s requirement.



Technical parameters

Model		CD-500	CD-600	CD-800
Working dimension (W×D×H)		500×500×500	600×600×600	800×800×800
Mechanical interlock	Normal type	620×560×580	720×660×680	920×860×880
	Clean type	620×560×990	720×660×1090	920×860×1290
Electronic interlock	Normal type	620×560×580	720×660×680	920×860×880
	Clean type	620×560×990	720×660×1090	920×860×1290
