Factory Price Water filter commercial RO membrane 3213 600 gpd for machine
- Category: >>>
- Supplier: Zhenjiang Hid Membrane Co. Ltd.
Share on (1600213859608):
Product Overview
Description
Product Specification

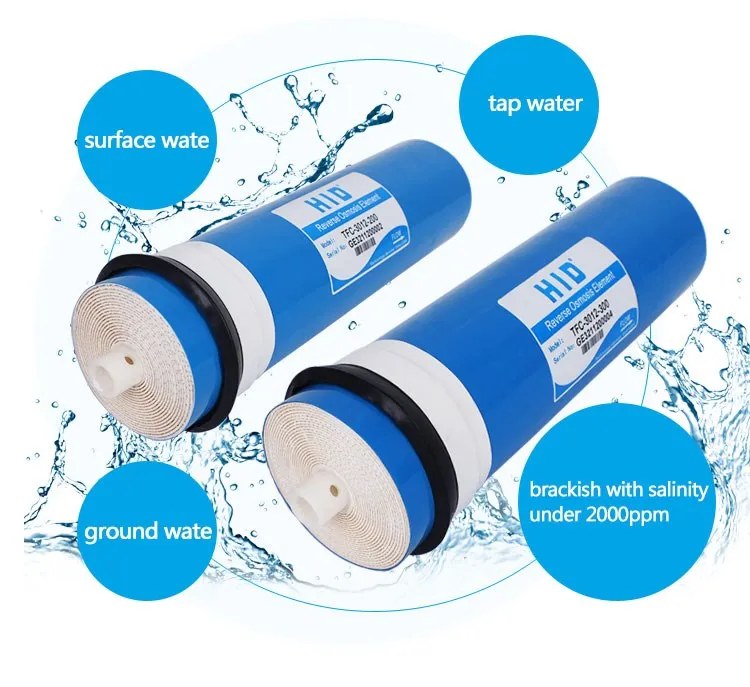

High Performance 3213 RO Membrane
Main Features:
★ HID high rejection quality sheet;
★ Long service life for reducing the cost;★ High stabilized rejection with realized nominal flux;
★ Sanitary qualified elements;
★ Stringent in-house inspection & testing control.
Products Details

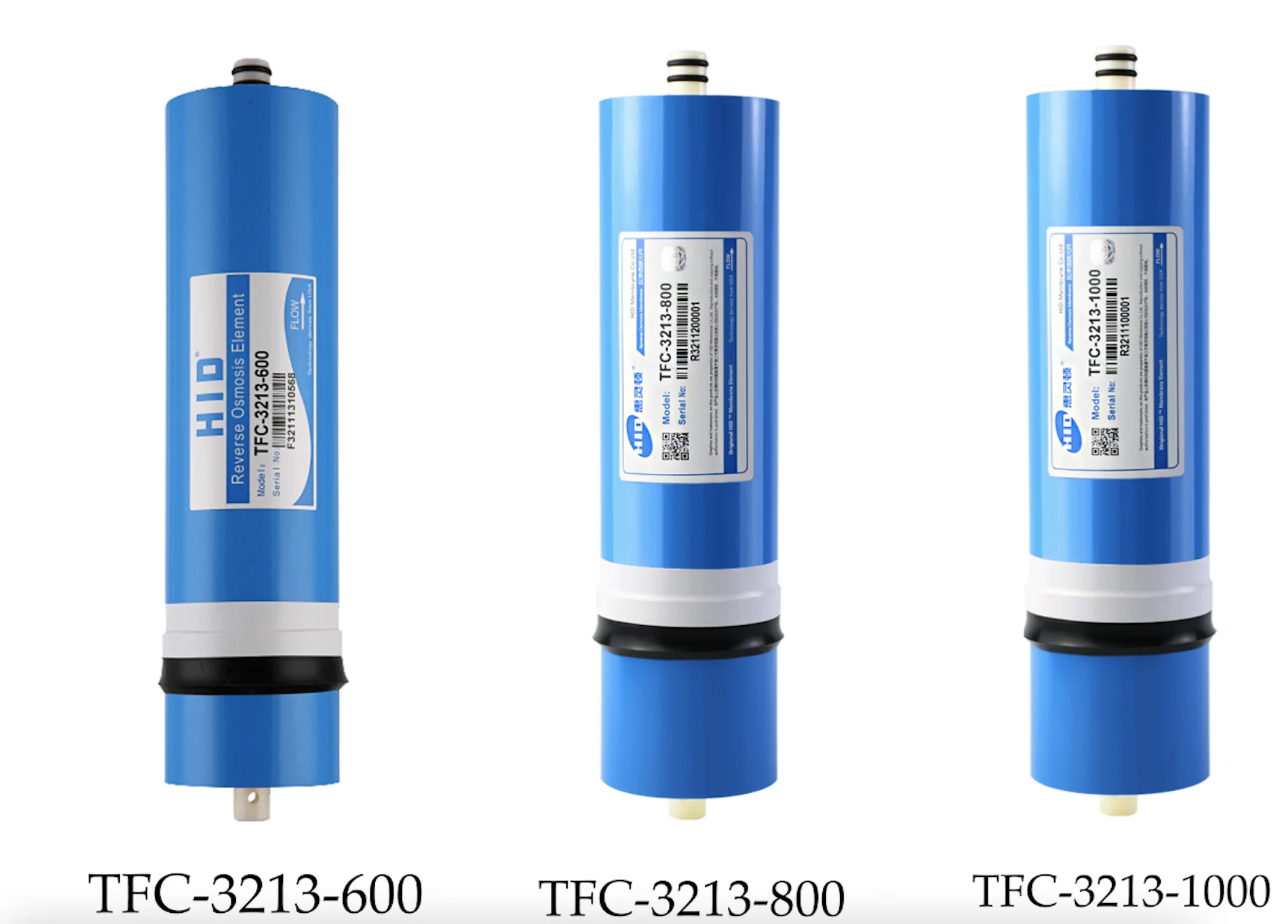

Model | TFC-3213-600 | TFC-3213-800 | TFC-3213-1000 | ||||
Performance | Stable Desalination % | 97 | 97 | 98 | |||
Min. Desalination % | 94 | 94 | 97 | ||||
Mean Permeable Flow GPD | 600 | 800 | 1000 | ||||
Active Film Area ft2(m2) | 27.5（2.56） | 34（3.2） | 26（2.4） | ||||
Test Conditions | Pressure | 150PSI （1.03Mpa） | |||||
Water Temp. | 25℃ | ||||||
Concentration (NaCl) | 500PPM | ||||||
Water PH | 6.5 to 7.5 | ||||||
Recovery Rate % | 15 | ||||||
Operating Conditions | Max. Operating Pressure | 500psi (3.45Mpa) | |||||
Max. Feed Water Temp. | 45℃ | ||||||
Max. Feed Water Silt Density Index (SDI) | 5 | ||||||
Feed Water Chlorine Tolerance | < 0.1ppm | ||||||
Feed Water PH Range, Continuous Operation | 3 to 10 | ||||||
Feed Water PH Range, Short-Term Cleaning | 2 to 12 | ||||||
Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) | ||||||
1. Permeate flow rate and salt rejection is based on testing conditions: 250C, pH 7.5, 20% recovery. 2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions. 3. Active area guaranteed +/- 3% | |||||||
HID RO Membrane Advantage
HID OWN Flat Sheet Rolling
HID has been sticking to quality and competitiveness for years as to supply to our customer, and that's why we invested a lot in
flat sheet production line to well enhance the necessary.
flat sheet production line to well enhance the necessary.
Tailored Design to Make Better RO Membrane
With factory capacity increase and quality control demand, we have also invested to automate activities of slitting, stickering,
testing & packing, all with tailored design to make better RO membrane itself.
testing & packing, all with tailored design to make better RO membrane itself.

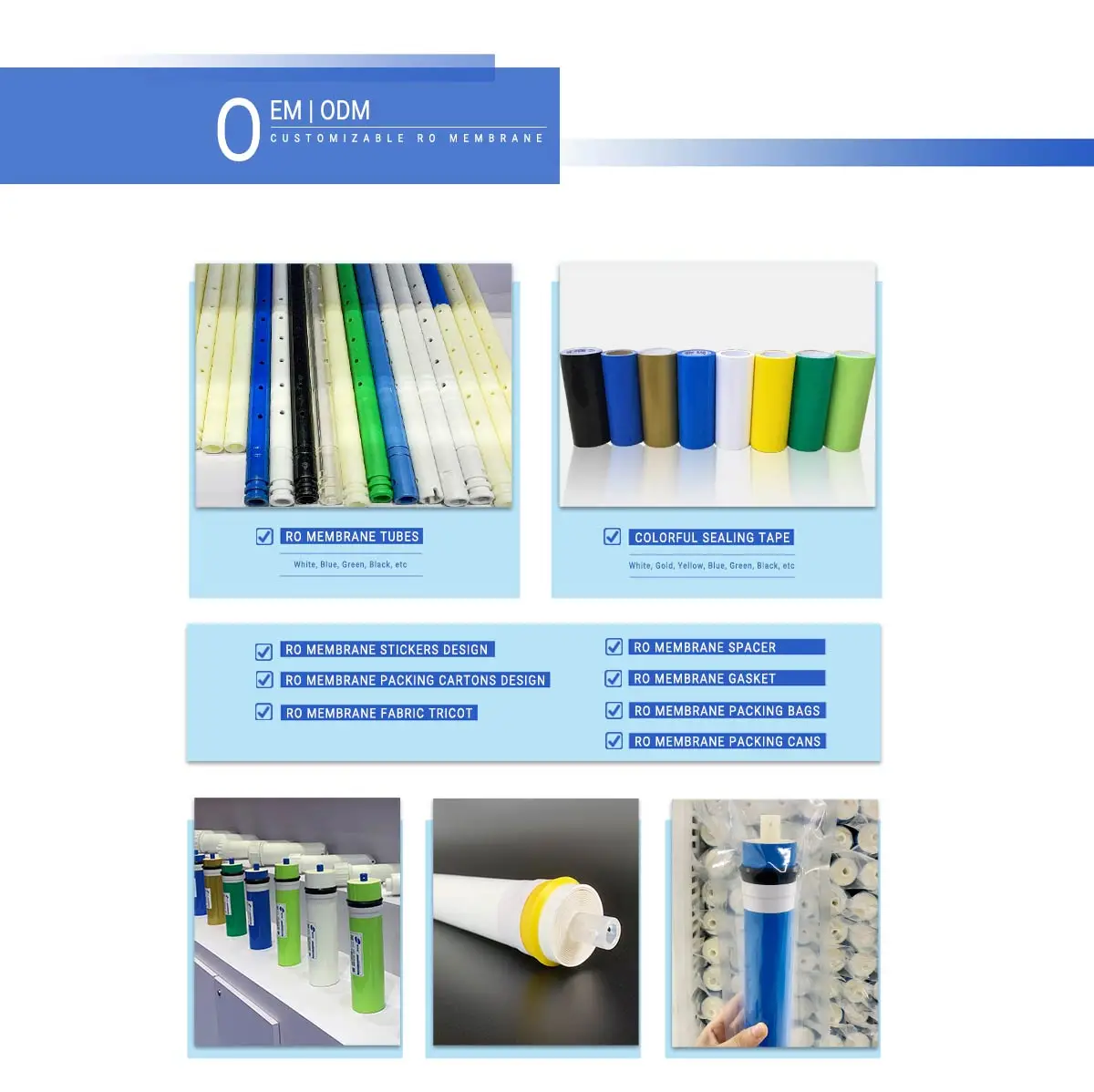

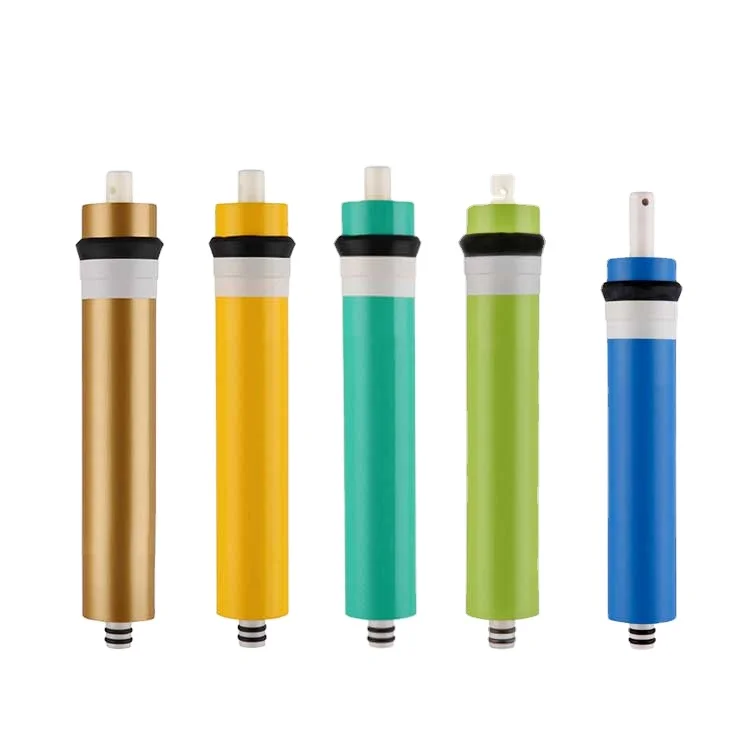

Customization
Wrapping Tape - Available √
Center Tube - Available √
Fabric Tricot - Available √
Spacer - Available √
Stickers Design - Available √
Packing Bags - Available √
Packing Cans - Available √
Packing Cartons Design - Available √
Center Tube - Available √
Fabric Tricot - Available √
Spacer - Available √
Stickers Design - Available √
Packing Bags - Available √
Packing Cans - Available √
Packing Cartons Design - Available √

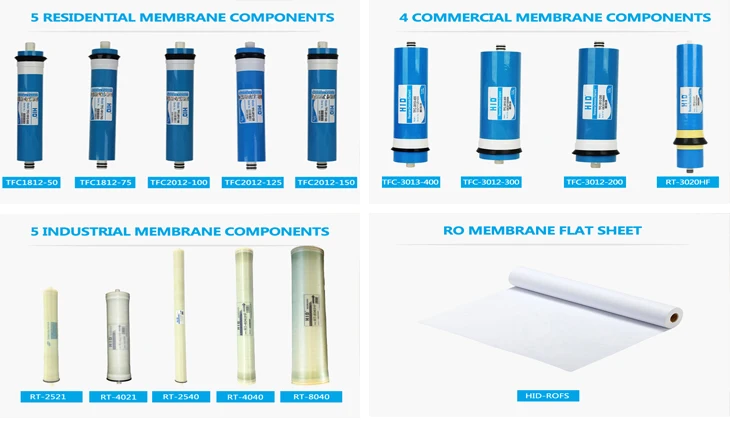

Recommend Products
Our Services

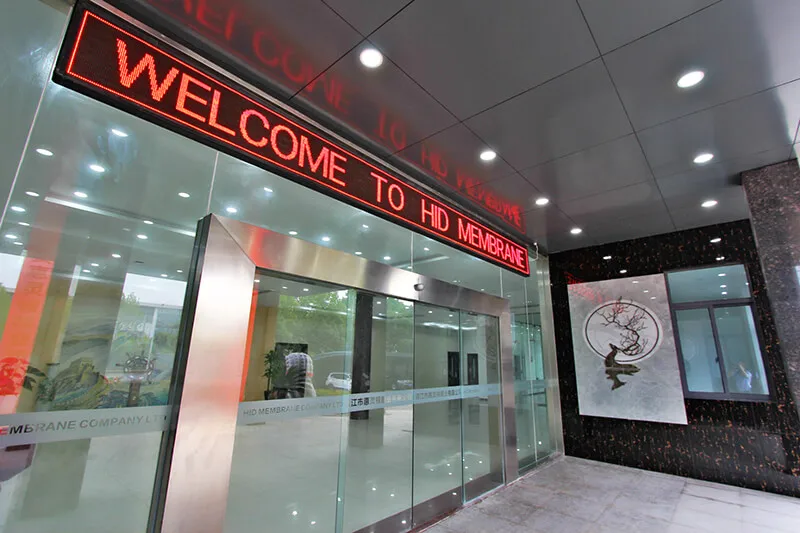

About Us

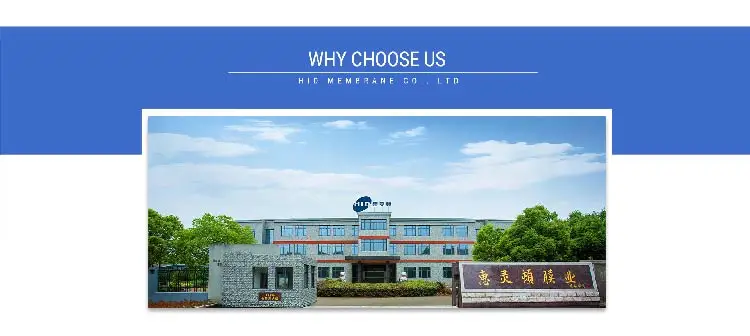

HID Membrane Co., Ltd. is located in the Zhenjiang City of Jiangsu Province, a city with combines history, nature & modern facilities. Zhenjiang City is west of Shanghai, 1.5 hours by express bullet train available every 30 minutes.
HID Membrane Co., Ltd. has specialized in manufacturing Reverse Osmosis (RO) membranes for over 10 years and participated
incompetitiveness & sound market share within China and around the world.
HID Membrane Co., Ltd. has specialized in manufacturing Reverse Osmosis (RO) membranes for over 10 years and participated
incompetitiveness & sound market share within China and around the world.
Focusing on membrane design, equipment automation & quality control management, HID has so far developed to be an ever-growing enterprise of over 160 employees, the workshop covering 30000 square meters and the annual output of a total of 5,500,000 pieces of RO membranes.
The auto rolling machine was developed by HID to well improve the efficiency & quality of RO membrane making. So far we have 16
sets of auto rolling machines, each can make 1000pcs per day (shift).
The auto rolling machine was developed by HID to well improve the efficiency & quality of RO membrane making. So far we have 16
sets of auto rolling machines, each can make 1000pcs per day (shift).
With factory capacity increase and quality control demand, we have also invested to automate activities of slitting, stickering,
testing & packing, all with tailored design to make a better RO membrane itself.
testing & packing, all with tailored design to make a better RO membrane itself.
Customer Feedback

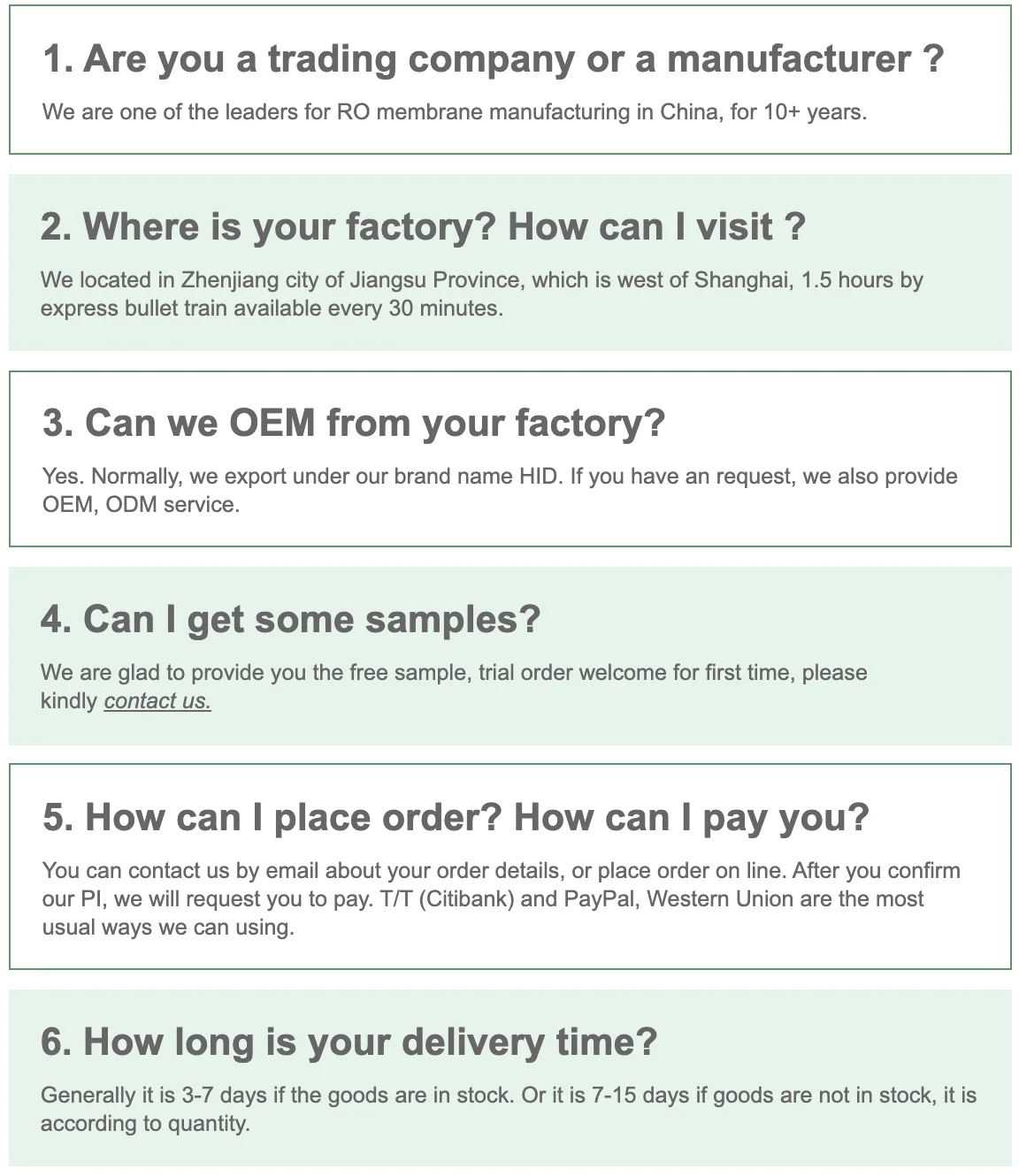

FAQ
