Small capacity 600 900kg/h rotary drum dryer manufacturer (1600213866117)

Share on:


Price:$11,500.00 - $12,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Small capacity 600-900kg/h rotary drum dryer manufacturer


Product Overview


This machine is widely used to dry material with high moisture, friable, free-flowing commodity products and by-products. It is special designed to combine the function of drying and cooling together, which can save 30-50% energy.





Working principle:
1. In this system, wet raw material is input into hopper by conveyor, then large volume of hot air produced by the fuel furnace mixed with the wet powder in the rotary drum and moved through drying chamber by the power of fan blower.
2. As the material travels along the rotary drum, it keeps the suspending state together with the fast moving hot air and moisture and is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.



Production process:
1. Put the sawdust into the rotary drum dryer with transfer system.
2. The sawdust are evenly distributed in rotary drum dryer cylinder, then fully contact with the hot air, speed up the drying heat and mass transfer.
3. During the drying process, under the effect of plate and hot treatment in rotary drum dryer, the materials are dried evenly and efficiently.





Advantages:
1. High degree of mechanization, quick drying speed, and large production capacity.
2. With simple and excellent structure, raw material running smoothly inside the dryer.
3. Less mechanical failure, low maintenance and low power consumption.
4. With complete dust removal equipment and protect the environmental.
5. Finished product has good uniformity, fluidity, solubility, and purity.


Specification


Model
GT630
GT800
GT1000
GT1200
GT1500
Capacity (kg/h)
600-800
800-1000
1200-1500
1500-2000
2000-2500
Main motor power (kw)
5.5
7.5
7.5
11
15
Air lock power (kw)
1.1
1.5
2.2
2.2
2.2
Weight (kg)
2600
2800
3800
4500
5000
Drum diameter (mm)
630
800
1000
1200
1500
Drum length (m)
9
10
10
12
12
Total length (m)
9+4
10+5
10+5
12+6
12+8
Wood waste consumption (kg/h)
15-20
20-25
30-40
40-50
50-60

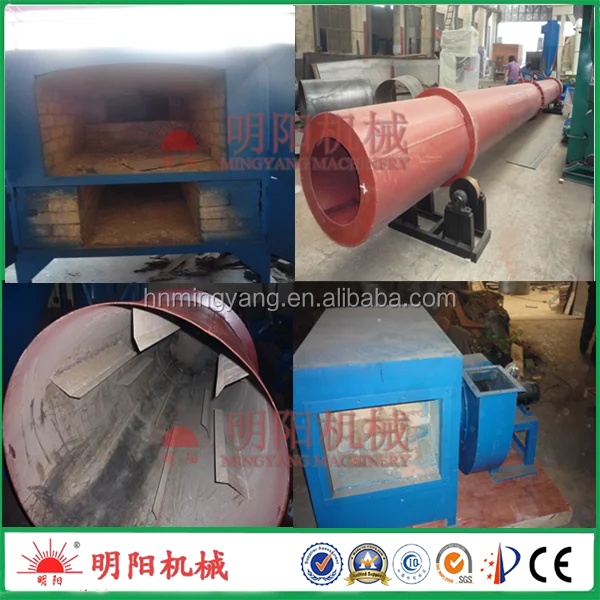

Details Images
