DC5V 24V 3 keys Mini led Pixel RGB Controller SP002E for addressable led pixel ring madrix Strip
- Category: >>>
- Supplier: Shenzhen Kaixinliang Technical Co. Limited
Share on (1600213980751):
Product Overview
Description
Product Description

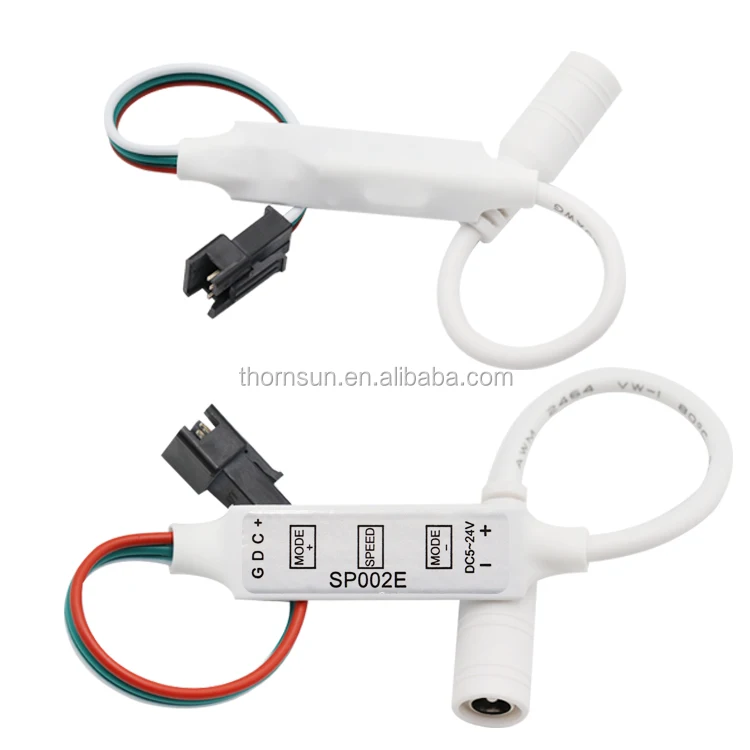

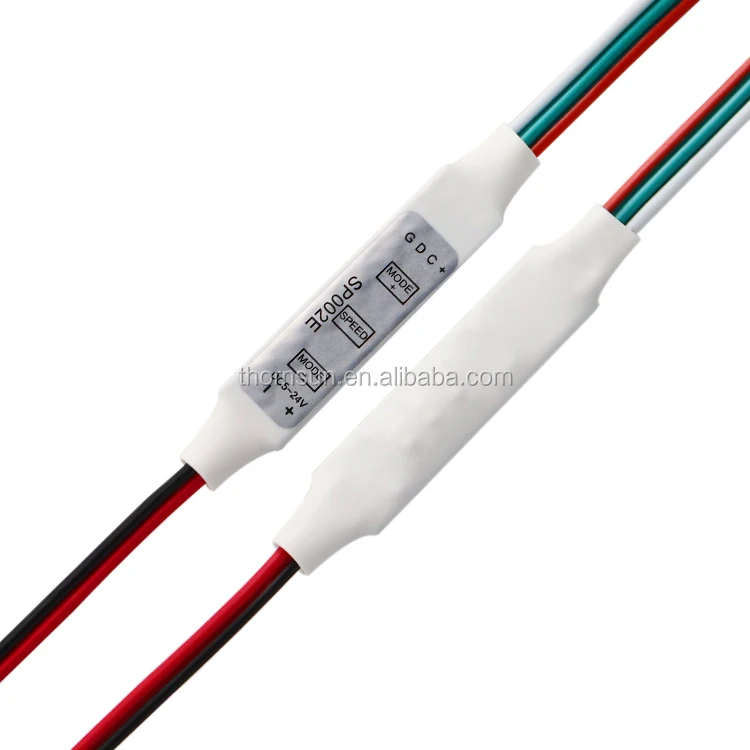

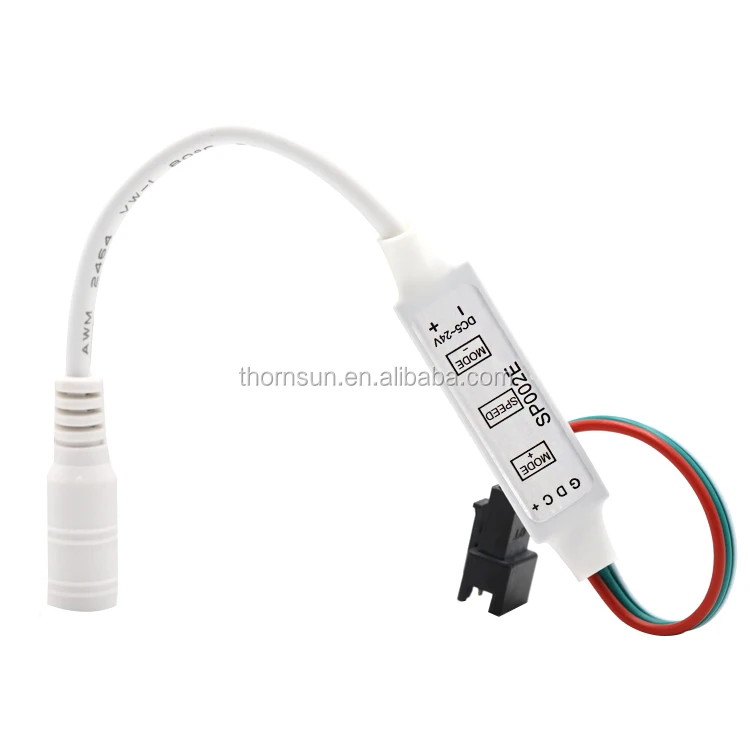

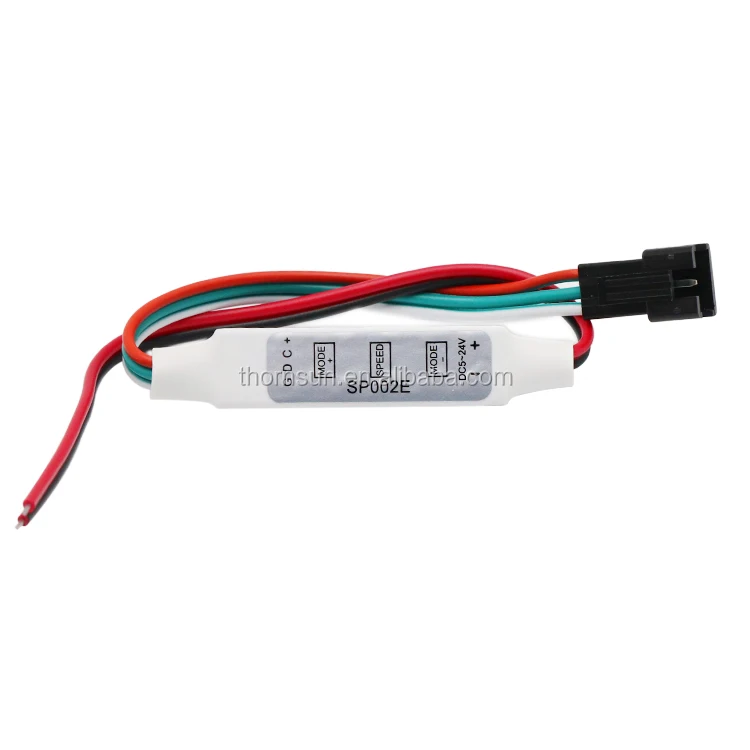

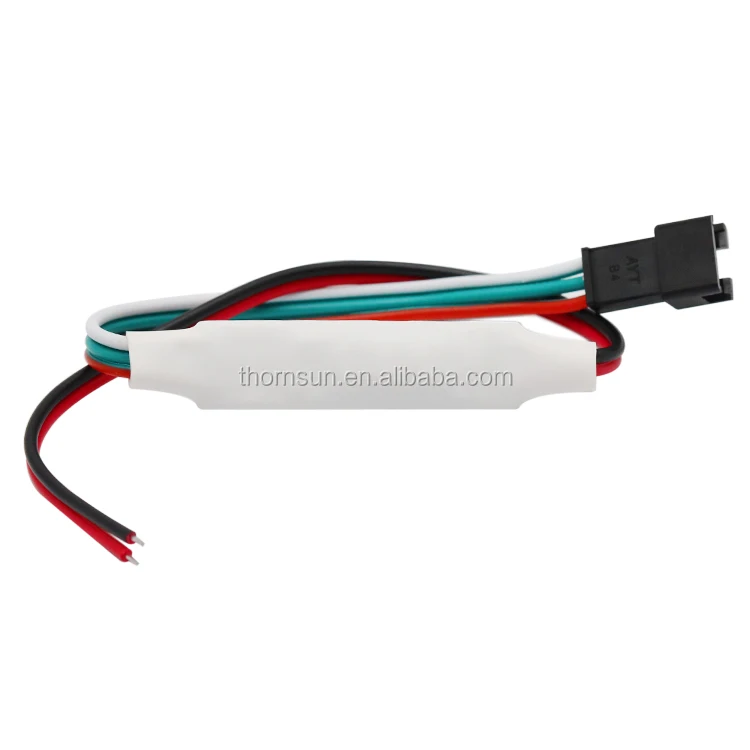

DC5V-24V 3 keys Mini led Pixel RGB Controller SP002E for addressable led pixel ring madrix Strip
Please note this one is for full color/digital/smart/programmable led product, if need single color or normal rgb color, please
contact us for other items!
This item is very suitable for small projects and test function! Easy to use: connect DC connector to power supply, and insert the
3-pin or 4-pin connector to strips/modules. 68 programs are enough for normal use!
contact us for other items!
This item is very suitable for small projects and test function! Easy to use: connect DC connector to power supply, and insert the
3-pin or 4-pin connector to strips/modules. 68 programs are enough for normal use!
Features:
1.Works stably, easy to use and connection is simple;2.Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
3.With 68 kinds of patterns,which are vivid and beautiful;
4.Can control up to 600 pixels;
5.DC5~24V wide-range power supply;
6.Preventing reverse connection of power supply.
Functions Of Keys:
MODE+ | Switching patterns forwardly | ||||||
SPEED | Switching speed | ||||||
MODE- | Switching patterns backwardly | ||||||
MODE+ AND MODE- | Pressing MODE+ and MODE- at the same time and release at the same time into AUTO Mode | ||||||
Title goes here.
Operating Voltage：DC5~24V;
Power Consumption: Less than 1W;
Supported IC by now:WS2801,WS2811,LPD6803,LPD8806,TM1809,UCS1903,UCS9812,APA102,APA104.
Can be customized to support other DRIVER-IC.
Cautions: Please make sure the power supply voltage is match to your controller before you power it.
Power Consumption: Less than 1W;
Supported IC by now:WS2801,WS2811,LPD6803,LPD8806,TM1809,UCS1903,UCS9812,APA102,APA104.
Can be customized to support other DRIVER-IC.
Cautions: Please make sure the power supply voltage is match to your controller before you power it.
Detailed Images
