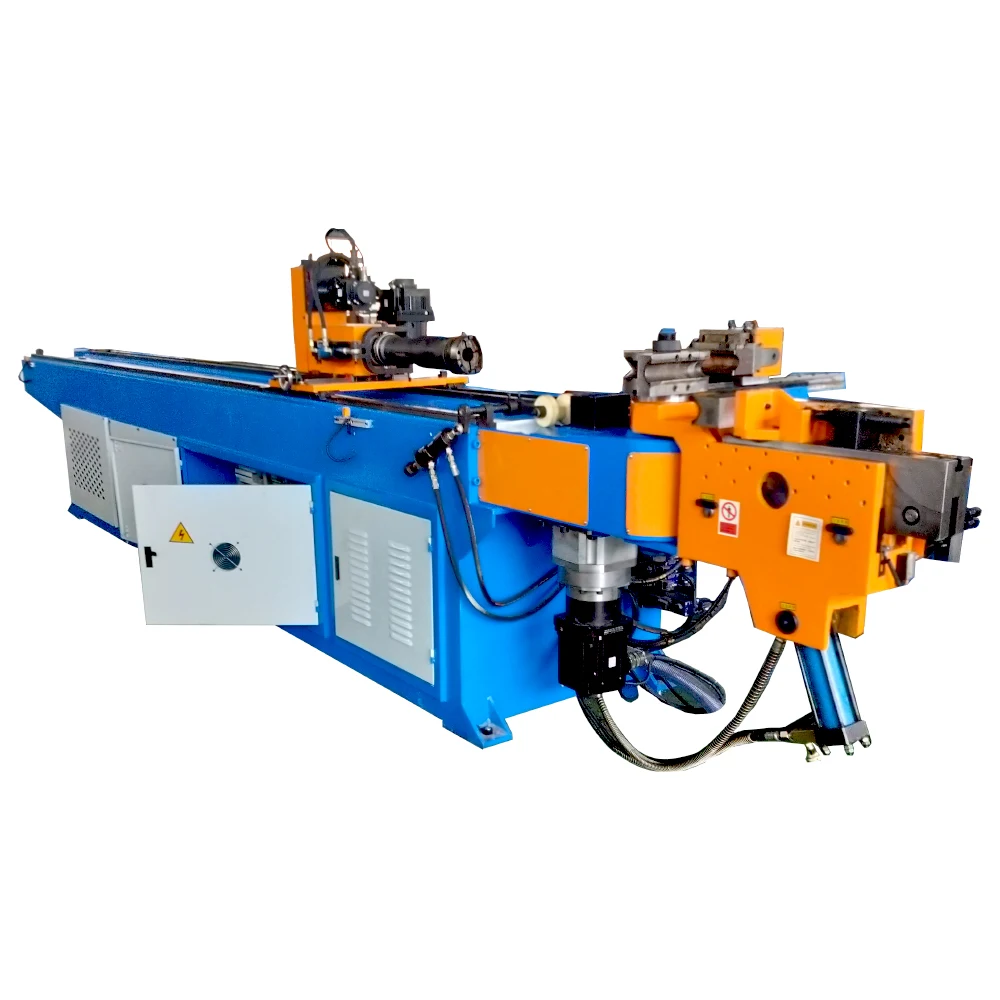

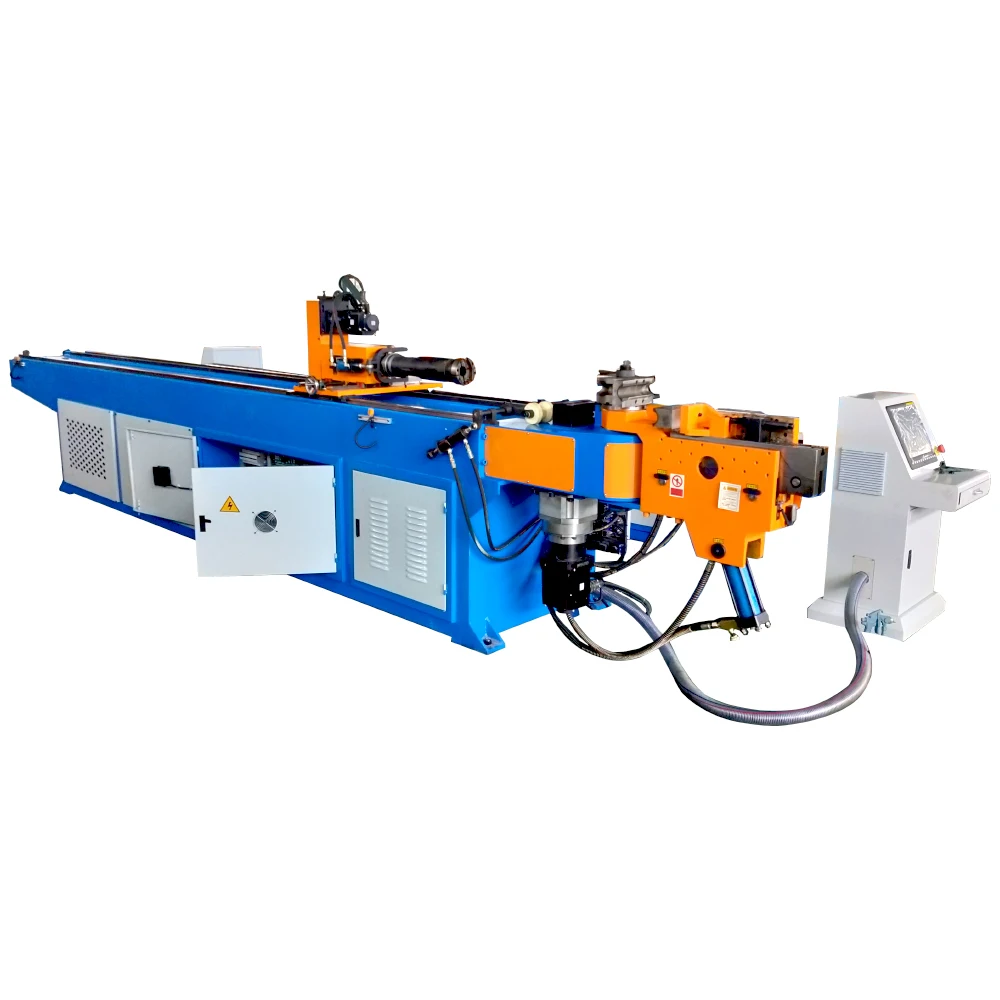

Fridge Titanium 40mm 60mm 45mm 180 Degree SS Metal Copper Mandrel CNC Pipe And Tube Bender Machine For Sale
- Category: >>>
- Supplier: Jiangsu Zhongwan Machine Technology Co. Ltd.
Share on (1600214011488):
Product Overview
Description
Fridge Titanium 40mm 60mm 45mm 180 Degree SS Metal Copper Mandrel
CNC Pipe And Tube Bender Machine For Sale
Product Description
Specifications
* Technical:cold bending
* Electrics:France Schneider
* PLC:Japan Mitsubishi
* Servo motor&driver: Japan Mitsubishi
* Electrics:France Schneider
* PLC:Japan Mitsubishi
* Servo motor&driver: Japan Mitsubishi
Main features
1. Fully automatic and CNC pipe bending machine\t\t\t\t\t\t\t
2. Equipped with servo motor programmable axis, 2 axis(standard), 3 axis, 4 axis or 5 axis...\t\t\t\t\t\t\t
3. Feeding: servo motor drive; Rotation: servo motor drive\t\t\t\t\t\t\t
4. Bending: hydraulic and encoder control; Servomotor with reducer.\t\t\t\t\t\t\t
5. Imported hydraulic system and PLC(standard) unit or IPC(optional).\t\t\t\t\t\t\t
6. Automatic lubrication system for moving areas.\t\t\t\t\t\t\t
7. Self-diagnostic system, detecting the error immediately.\t\t\t\t\t\t\t
8. Multiple groups pipe-bending information storage.\t\t\t\t\t\t\t
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.\t\t\t\t\t\t\t
10. Touch screen and human/machine interface control provide user friendly operations.\t\t\t\t
2. Equipped with servo motor programmable axis, 2 axis(standard), 3 axis, 4 axis or 5 axis...\t\t\t\t\t\t\t
3. Feeding: servo motor drive; Rotation: servo motor drive\t\t\t\t\t\t\t
4. Bending: hydraulic and encoder control; Servomotor with reducer.\t\t\t\t\t\t\t
5. Imported hydraulic system and PLC(standard) unit or IPC(optional).\t\t\t\t\t\t\t
6. Automatic lubrication system for moving areas.\t\t\t\t\t\t\t
7. Self-diagnostic system, detecting the error immediately.\t\t\t\t\t\t\t
8. Multiple groups pipe-bending information storage.\t\t\t\t\t\t\t
9. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.\t\t\t\t\t\t\t
10. Touch screen and human/machine interface control provide user friendly operations.\t\t\t\t
Max bending capacity | Ø75mmx5mm |
Max bending radius | R320mm |
Min bending radius | According to pipe diameter |
Max bending degree | 190° |
Max effective distance of mandrel | 2900mm |
Control system | CNC control |
Bending speed | Max 40°/s |
Rotary speed | Max 160°/s |
Feeding speed | Max 800mm/s |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Feeding accuracy | 0.1mm |
Bending servo motor power | 11KW |
Rotary servo motor power | 1.5KW |
Feeding servo motor power | 2KW |
Left and right moving sevo motor power | 2KW |
Max hydraulic pressure | 12Mpa |
Measurement | 5200x1150x1360mm |
Weight | 4500kg |
Mitsubishi Servo Motor
It is with 4 axis, which has 4 servo motors. The Bending, feeding and rotary are drived by servo motor. It is with high efficiency, accurate bending angle and feeding.

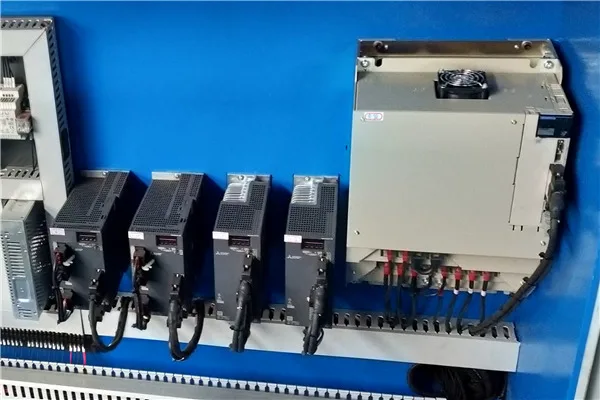

- Mitsubishi Servo Driver
Bending pipes with servo motor power, high precise bending angle and compensation value.
Electrics
Schneider, France brand
- Valve
7 Ocean, Taiwan brand
Ensure the stability of the machine for a long time
- PLC Controller
A pipe per bending all individually preparing five action sequence and 10 sections of speed, allows the operator to match the use, improve work efficiency, reduce the fitting interference
Detailed Images
Bending sample
Related Products
Company Profile
As a Sino-foreign joint venture specializing in machining and production of metal pipes, Jiangsu Zhongwan Machine Technology Co.,
Ltd. is located in the most developed Yangtze River Delta economic circle-Zhangjiagang, Jiangsu- the famous ring garden city in
China. Zhongwan Machinery has the strong design and R&D ability, already has developed CNC numerical control pipe bending machine,
series CNC NC Pipe end molding machine, series CNC NC metal circular sawing machine, riveting machine, CNC NC gear grinding
machine and other automatic pipe processing machines. Zhongwan Machinery provides complete sets and perfect automation equipment
for aerospace, heavy engineering machinery, nuclear power, wind energy, thermal power, shipbuilding yachts, auto parts, motor
vehicle frames, air conditioning, sports fitness equipment, steel pipe furniture, tourism and leisure products, water heating
sanitary ware, decorative materials and other industries of metal pipe products processing. The company can design and manufacture
the special specification unmanned intelligent automation machine, as well as all kinds of non-standard mechanical equipment
according to customer's demand.
Ltd. is located in the most developed Yangtze River Delta economic circle-Zhangjiagang, Jiangsu- the famous ring garden city in
China. Zhongwan Machinery has the strong design and R&D ability, already has developed CNC numerical control pipe bending machine,
series CNC NC Pipe end molding machine, series CNC NC metal circular sawing machine, riveting machine, CNC NC gear grinding
machine and other automatic pipe processing machines. Zhongwan Machinery provides complete sets and perfect automation equipment
for aerospace, heavy engineering machinery, nuclear power, wind energy, thermal power, shipbuilding yachts, auto parts, motor
vehicle frames, air conditioning, sports fitness equipment, steel pipe furniture, tourism and leisure products, water heating
sanitary ware, decorative materials and other industries of metal pipe products processing. The company can design and manufacture
the special specification unmanned intelligent automation machine, as well as all kinds of non-standard mechanical equipment
according to customer's demand.
FAQ
1.Do you provide any training to make sure our user can operate the machine very well?
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
2. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
3.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
4. Are you a manufacturer or trading company?
We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
5.What is the difference for NC and CNC machines?
NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius .
6.Where is your factory located? How can I visit there?
Our factory is located in Suzhou Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or Pudong airport directly.
1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city, to make sure every client will be the expert in using our machine!
2. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!
3.What kind of solution you can offer to make sure your pipe bending machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!
4. Are you a manufacturer or trading company?
We are a manufacturer, We are dedicated to pipe processing equipment manufacturing.
5.What is the difference for NC and CNC machines?
NC is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius .
6.Where is your factory located? How can I visit there?
Our factory is located in Suzhou Zhangjiagang city (beside to Shanghai).You can fly to Shanghai Hongqiao or Pudong airport directly.
