Product Description

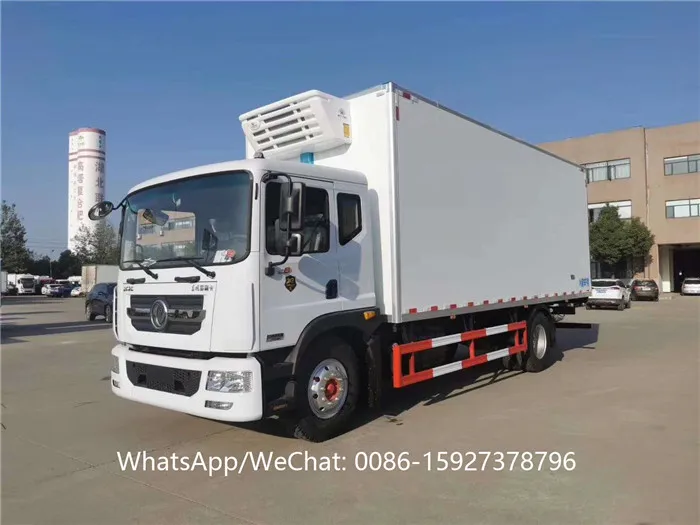

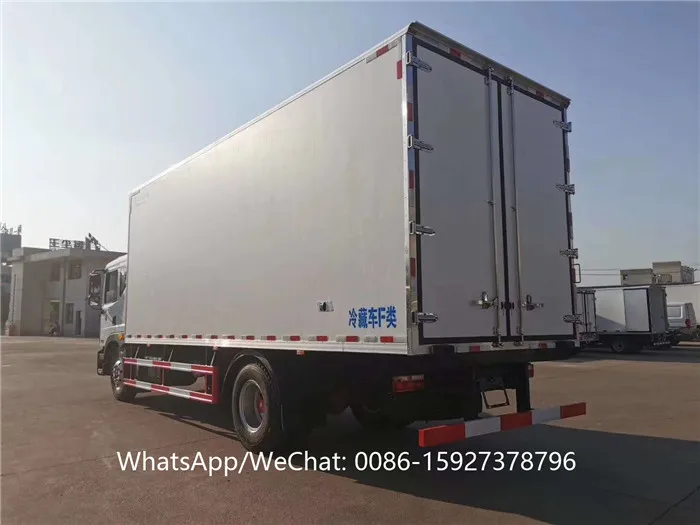

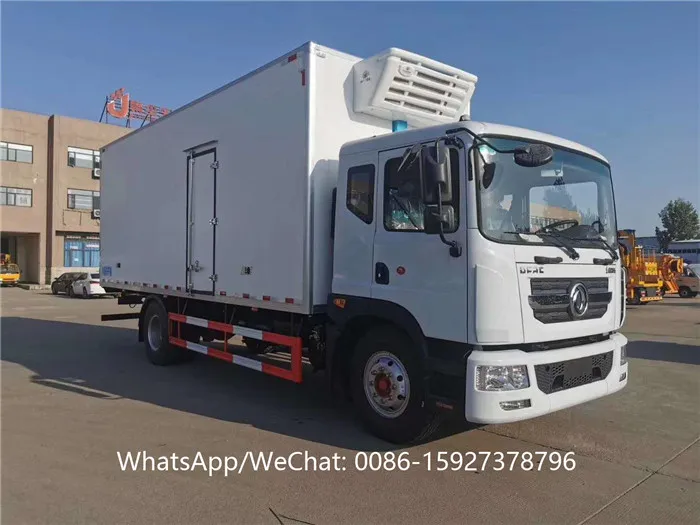

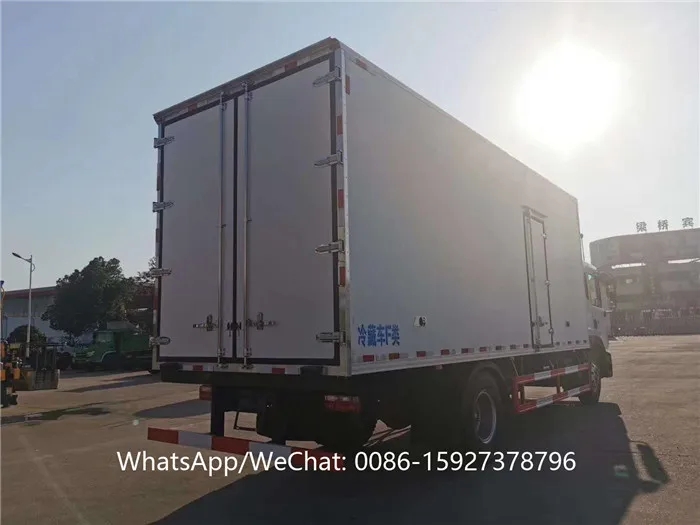

10 ton thermoking cooling van refrigerator box truck for sale.
Specification :
Complete Vehicle Parameter
Vehicle
DONGFENG refrigerator truck
Overall dimension (mm)
7445 × 2490 × 3650
Refrigerator boxsize (mm)
5200 × 2280 × 2300
Gross vehicle weight (kg)
Appro × 16000
Net weight (kg)
Appro × 5805
Loading (kg)
Appro × 10000
Wheel base (mm)
3950
Max speed (Km/h)
90
Standard configuration

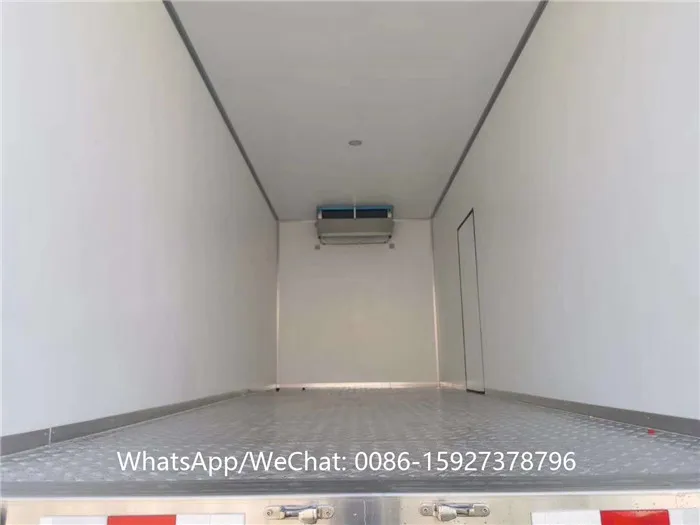

1. Refrigerator box inner and outer are fiber glass plastic (FRP).
2. Intermediate insulation material is polyurethane, thickness 80mm.
3. Door frame material are stainless steel.
4. With CHINA well-known brand refrigeration unit, refrigerator box lowest temperature -18℃.
5. Refrigerator box roof is sealed, rear open doors.
DONGFENG Truck Chassis Parameter
Cabin
Single row cabin,power steering,no air conditioner, 3 passengers,left hand drive
Drive form
4×2
Engine
Brand : CUMMINS
Model : B170 33
Engine power : 170hp
Fuel type : diesel.
Displacement : 5900ml
Emission standard : Euro 3
Transmission
6 forward,1 reverse, manual operated
Tire model
9.00R20
No.of tire
6pcs,with a spare tire
Customize 1-30 ton refrigerator trucks,
please contact WeChat and WhatsApp number : 0086-15927378796.
Packaging & Shipping
Roll on roll off (RORO) ship It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
