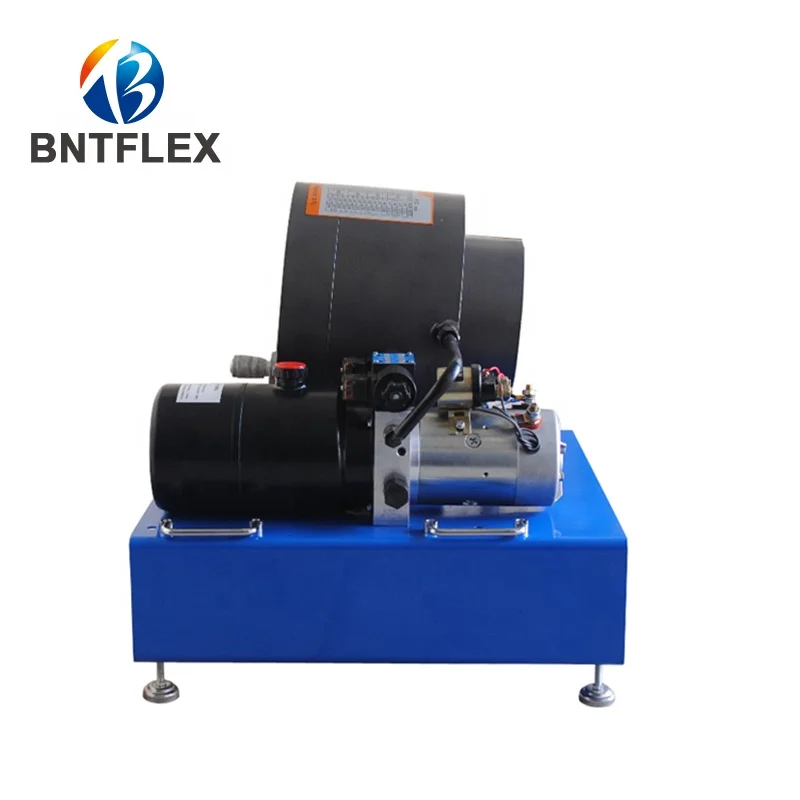

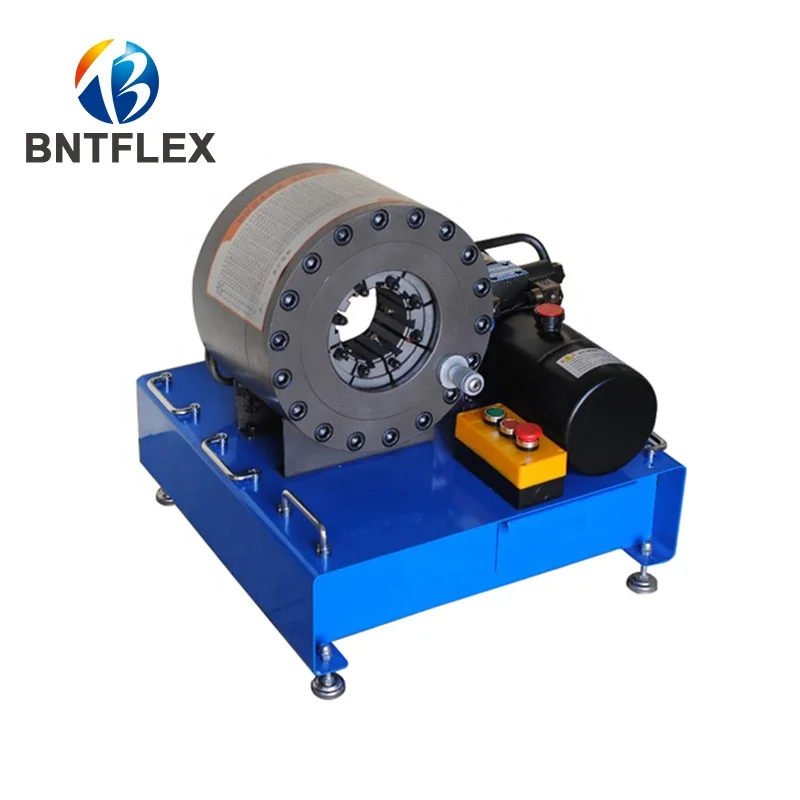

manual hand operate 2 inch battery 12 volt 24 volt used hydraulic hose crimping machine
- Category: >>>
- Supplier: Dalian Barnett Flex Hydraulics Co. Ltd.
Share on (1600214040423):
Product Overview
Description
CRIMPING MACHINES
BNT24
PROFESSIONAL WORKSHOP
BENCHTOP
BENCHTOP
KEY ADVANTAGES

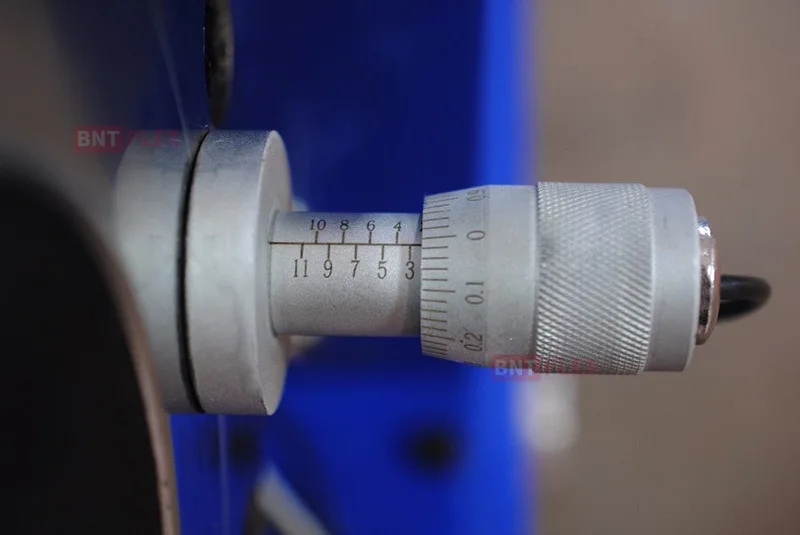

• Ergonomic micrometer

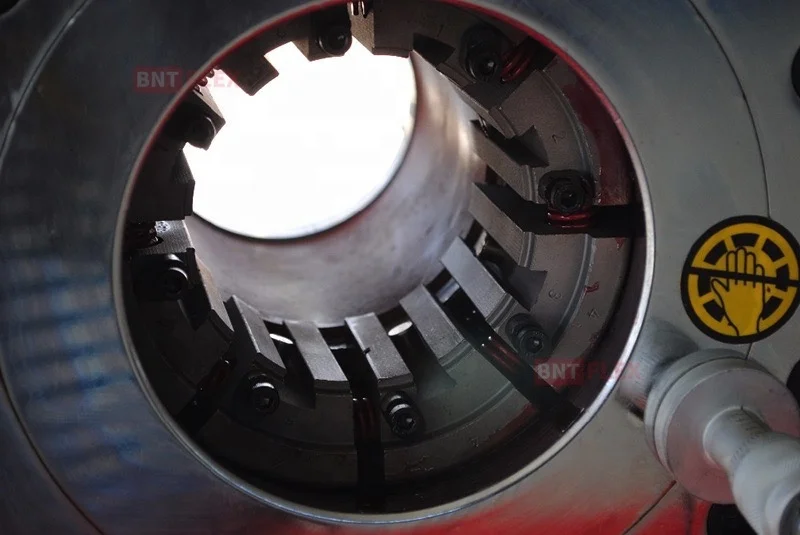

•Radial die movement
•High crimping force
•Electronic control and semiautomatic opening
•Cylinder protection
•Easy front access for elbow fittings
•Energy savings
MAIN APPLICATIONS
Dedicated to hydraulic maintenance specialists working on medium sized machines and equipment. Also suitable for assemblers involved in medium sized hoses and quantities.
TECHNICAL SPECIFICATIONS
Motor: 3.6KW
Noise Level: 71dB
Crimp Range: 10-87mm Crimp force: 3000KN
Opening with dies: +30mm
Complete Opening: 114mm
Master Die Length: 65mm
Standard Dies: 15,19,23,26,31,36,41,47,55,60mm
Noise Level: 71dB
Crimp Range: 10-87mm Crimp force: 3000KN
Opening with dies: +30mm
Complete Opening: 114mm
Master Die Length: 65mm
Standard Dies: 15,19,23,26,31,36,41,47,55,60mm
Dimensions: 750mm*700mm*700mmNet Weight: 180kg
Packaging: 850*800*800mm
Gross Weight: 240kg
Voltages: 24 V
Capacity: 2wb: 2'' max.
4ws: 2” max.
6ws: 1” max.
Packaging: 850*800*800mm
Gross Weight: 240kg
Voltages: 24 V
Capacity: 2wb: 2'' max.
4ws: 2” max.
6ws: 1” max.
Technical Features:
The BNT24 crimping machine is a cost-effective alternative for single-piece production.
BNT24-models (precision, durability, force and ease of use), the 50model is totally unmatched in it's own class.
AVAILABLE DIE SETS
Product Code | Description | N° | Crimp Range(mm) | Die Length (mm) | For Hose ID(mm) |
1 | Die set n. 15 - length 60mm | 15 | 15-19 | 65 | 6 |
2 | Die set n. 19 - length 60 mm | 19 | 19-23 | 65 | 8 |
3 | Die set n. 23 - length 60 mm | 23 | 23-26 | 65 | 10 |
4 | Die set n. 26 - length 60 mm | 26 | 26-31 | 65 | 13 |
5 | Die set n. 31 - length 70 mm | 31 | 31-36 | 65 | 16 |
6 | Die set n. 36 - length 70 mm | 36 | 36-41 | 65 | 19 |
7 | Die set n. 41 - length 75 mm | 41 | 41-47 | 65 | 25 |
8 | Die set n. 47 - length 80 mm | 47 | 47-55 | 78 | 32 |
9 | Die set n. 55 - length 80 mm | 55 | 55-60 | 78 | 38 |
10 | Die set n. 60 - length 80 mm | 60 | 60-69 | 78 | 51 |
Detailed Images
OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t
Crimp range: 10 – 87 mm
Crimp force: 300t
OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t
Crimp range: 10 – 87 mm
Crimp force: 300t
OUR RANGE OF BNT24 POWER MACHINES HAVE VARIOUS
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
OPTIONS OF CONTROL AND A WIDE RANGE OPTIONAL
EXTRAS TO SUIT WHAT YOU NEED.
Capacity: 2″ 4wb (may vary according to assembly material)
Crimp range: 10 – 87 mm
Crimp force: 300t
Crimp range: 10 – 87 mm
Crimp force: 300t
